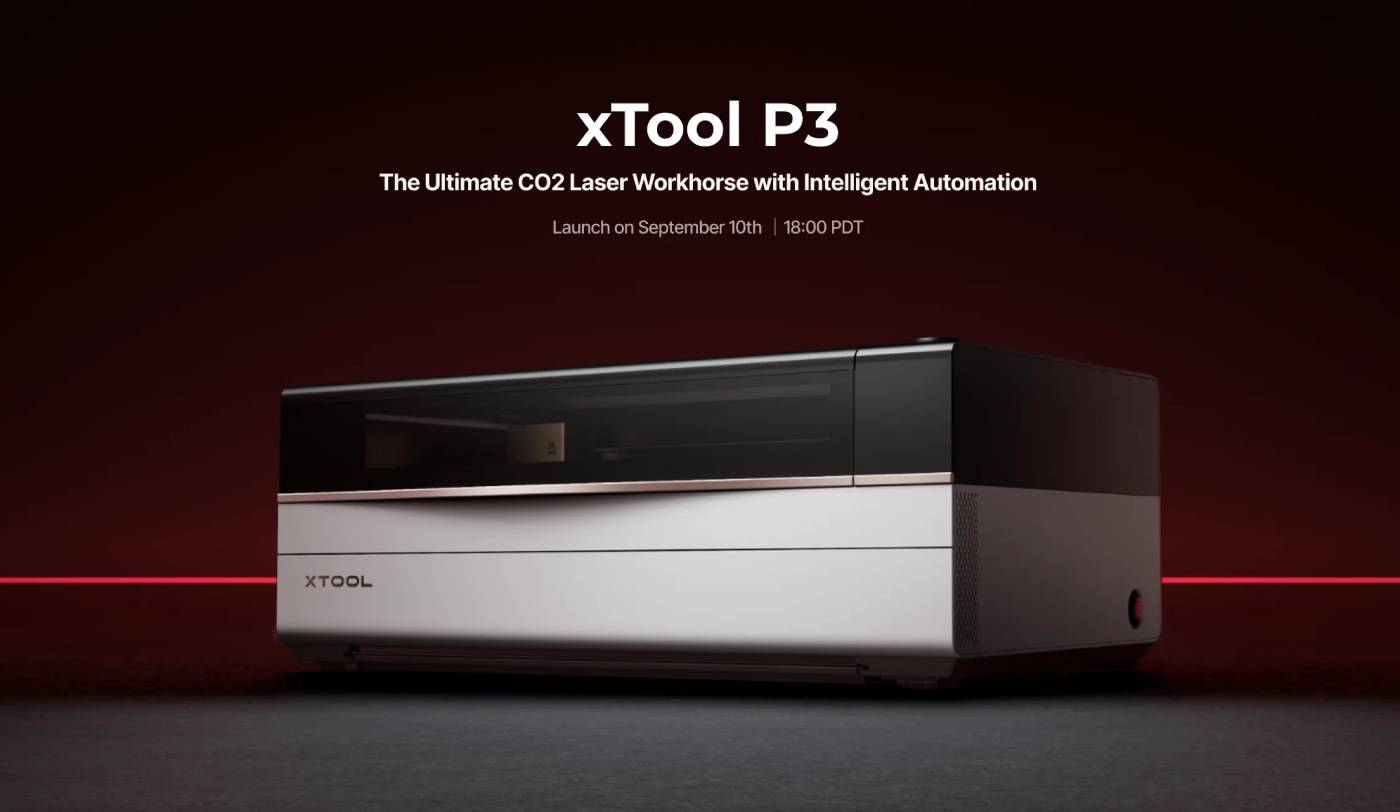

xTool P3 cover image

xTool P2 vs P2S vs P3: Which CO2 Laser Cutter Is Right for You? (2026)

Based on the comparison questions our sales team fields on calls every week, xTool's P-series naming convention trips people up more than almost any other product line we carry. The short version: P2 and P2S are nearly identical 55W machines with different airflow and acceleration, while the P3 is a genuinely different, higher-tier 80W machine — not just an incremental upgrade.

The Maker’s Chest carries the xTool P2S and xTool P3. The original P2 is included here as a reference for owners weighing an upgrade.

xTool P3 vs P2S vs P2

Table of Contents:

  1. Quick Verdict
  2. Power and Speed
  3. Automation and Workflow
  4. Workspace and Safety
  5. Full Spec Comparison
  6. Frequently Asked Questions

1) Quick Verdict

  • Keep the original xTool P2 if: your current 55W machine handles your typical sheets, batch sizes and turnaround comfortably.
  • Choose the xTool P2S if: you want a desktop 55W CO₂ laser and most of your jobs fit its 23.6 × 12.1 in. work area.
  • Choose the xTool P3 if: you need real production throughput — 80W power, a 36" x 18" bed (over twice the P2S), Class 1 full enclosure, auto-focus, and a built-in chiller. This is the machine for schools, shops, and businesses running volume.

2) Power and Speed

xTool P3 laser head

The P3's 80W tube and 1200mm/s engraving speed put it in a different performance class than the P2/P2S pair — roughly double the engraving speed and 45% more power. The P2S matches the P2 on raw wattage (both 55W) but pulls ahead on acceleration, which translates to noticeably smoother, faster real-world job completion even at the same top speed (600mm/s).

xTool P3 laser materials

3) Automation and Workflow

The P3's AutoLift Base auto-adjusts focus height for materials of varying thickness — no manual riser base required, which both the P2 and P2S still need for taller objects. The P3's RA3 rotary attachment uses LiDAR mapping for curved-object engraving and supports batch rotary jobs; the P2 and P2S share the RA2 Pro rotary, which is reliable but fully manual.

xTool P3 auto lift base

4) Workspace and Safety

xTool P3 use cases

Check the laser classification for the exact machine and configuration you’re buying. xTool documents both Class 1 and Class 4 P2S versions. Follow the manufacturer’s operating instructions, including any accessory-specific safety requirements.

Bed size scales with the safety tier: the P3's 36" x 18" working area is more than twice the P2/P2S's 23.6" x 12.1".

When does the xTool P3 pay off for a small business?

Suppose a recurring order has 120 acrylic tags. Your P2 or P2S layout fits 24 per load and your P3 layout fits 40. That’s five loads versus three. If unloading, reloading and aligning takes four minutes per load, you save eight minutes of operator time per order. At 30 orders a month and $30 per hour in labor, that’s $120 a month in handling time. Using the $2,900 difference between TMC’s listed standalone P2S and P3 prices when this guide was updated, handling savings alone would cover the price gap in about 24 months.

These are illustrative inputs. Time a representative job on the material you sell and include any cut-time savings, added capacity, accessories and installation. If you already own a P2, use the net cost of upgrading after any resale proceeds.

5) Full Spec Comparison

Specification xTool P2 xTool P2S xTool P3
Laser power 55W CO2 55W CO2 80W CO2
Engraving speed 600mm/s 600mm/s (faster accel.) 1200mm/s
Working area 23.6" x 12.1" 23.6" x 12.1" 36" x 18"
Focus system Manual riser base Manual riser base AutoLift motorized
Safety class Class 4 Class 1 or Class 4, depending on model Class 1 (enclosed)
Cooling External chiller External chiller Built-in chiller
Available at The Maker's Chest The Maker's Chest xTool direct
xTool P3 wood working

6) Frequently Asked Questions

Is the xTool P2S worth the upgrade over the P2?

The P2S keeps the same 55W power and bed size. If you already own a P2, upgrade when stronger exhaust or faster acceleration would solve a recurring problem in your workflow.

Why does the P3 cost so much more than the P2S?

The P3 adds a larger bed, an 80W tube, AutoLift and built-in cooling. Compare the time saved on your actual jobs using the example above.

Do I need laser safety glasses with the xTool P3?

Follow the safety instructions for the exact P3 configuration and accessories in use. The manufacturer’s manual specifies the precautions for each operating mode.

Can the P2 and P2S handle the same materials as the P3?

Yes, all three handle the same core material range — wood, acrylic, leather, and glass engraving. The difference is throughput and finish quality on thicker materials, not material compatibility.

Not sure which xTool machine fits your workspace or production volume? Contact our team — we help buyers through this decision regularly.
