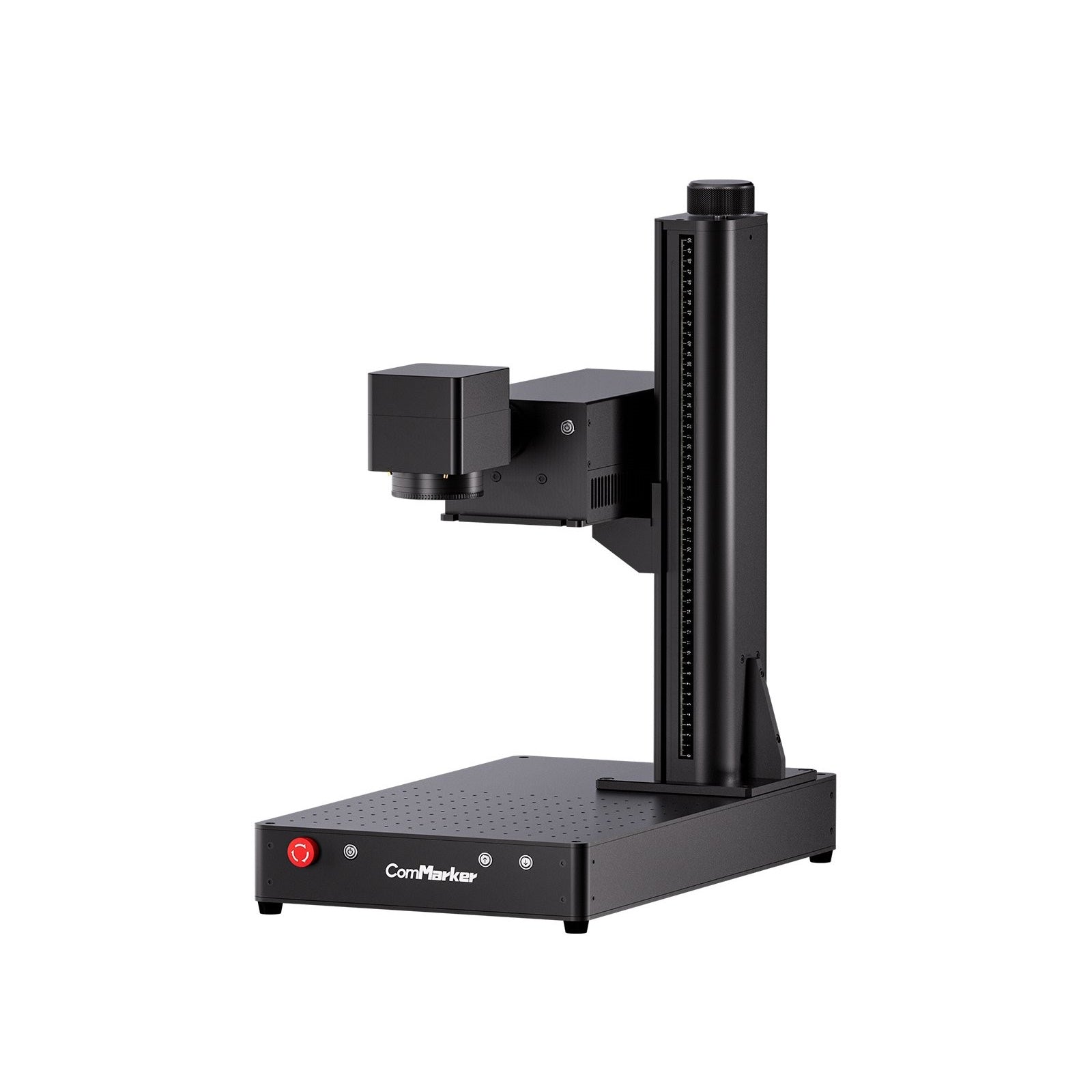

Haotian UV Laser vs ComMarker Omni 1: Budget vs Flagship UV Compared

UV laser engraving occupies a specific niche: marking glass, clear plastics, ceramics, and heat-sensitive metals without the burning or micro-fracturing a CO₂ or fiber laser would cause. If you've been comparing options, you've likely noticed the Haotian UV Galvo and the ComMarker Omni 1 come up together — and that at matching power levels, the Haotian costs roughly 60-80% more. That gap isn't a pricing mistake. It reflects two different working-area and durability philosophies. Here's the actual breakdown.

Table of Contents

• Quick Answer
• The Price Gap, By the Numbers
• Side-by-Side Specifications
• Why Haotian Costs More at Every Power Tier
• Where the ComMarker Omni 1 Wins
• The Verdict: Which Should You Buy?
• Frequently Asked Questions

Quick Answer

The ComMarker Omni 1 is the better entry point if you're adding UV as a complementary capability and want the lowest-cost way into the technology — it starts at $3,299 versus the Haotian's $5,350. The Haotian UV Galvo is the better choice if you need a larger working field for bigger glass or crystal pieces, want carbon fiber cutting capability, or are running high enough daily volume that the longer warranty and included rotary attachment offset the higher upfront cost.

The Price Gap, By the Numbers

At every matching power tier, the Haotian costs more — roughly 62% more at 5W and 83% more at 10W. The ComMarker Omni 1 line tops out at 10W; Haotian offers a 15W tier the Omni 1 doesn't have an equivalent for at all.

Side-by-Side Specifications

Why Haotian Costs More at Every Power Tier

Three things drive the Haotian's higher price, and none of them are arbitrary:

Working area flexibility. The ComMarker Omni 1 ships with a fixed 150 x 150mm field. The Haotian lets you choose a lens up to 300 x 300mm — four times the surface area — which matters directly if you're marking larger glass panels, plaques, or crystal pieces rather than small jewelry-scale items.

Included accessories. Haotian bundles your choice of rotary attachment into the base price; on the Omni 1, the equivalent rotary is a $260 add-on. Factor that into any side-by-side price comparison.

Headroom at the top of the range. The 15W Haotian configuration unlocks carbon fiber cutting without charring — a capability rooted in UV photon energy exceeding the carbon-carbon bond energy — and produces the deepest subsurface 3D crystal engraving in either lineup when paired with an optional 3D Feeltek head. ComMarker doesn't offer a comparable tier.

Where the ComMarker Omni 1 Wins

Price aside, the Omni 1 isn't simply the "cheaper, lesser" option. Its rated 0.0019mm minimum line width and 10,000 mm/s SpeedMax rating are both tighter than the Haotian's published specs, which matters for photo-realistic engraving and fine text work where the Omni 1's 16K HD positioning is specifically marketed toward that use case. If your primary work is small-format detail engraving — jewelry, small plaques, fine text — rather than large-format glass or carbon fiber, the Omni 1's tighter spec sheet is doing real work for a lower price.

The Verdict: Which Should You Buy?

Choose the ComMarker Omni 1 if: you're adding UV as a secondary capability alongside an existing CO₂ or fiber laser, your work is small-format (under 150 x 150mm), you want the lowest-cost entry into UV technology, or fine detail and photo engraving is your primary application.

Choose the Haotian UV Galvo if: you need a working field larger than 150 x 150mm, carbon fiber marking or cutting is a real business requirement, you want a rotary attachment included rather than purchased separately, or you're running high enough volume that the extra 6 months of warranty and larger material range justify the higher entry cost.

Frequently Asked Questions

Why is the Haotian UV laser more expensive than the ComMarker Omni 1 at the same wattage?

Mainly working-area flexibility (up to 300 x 300mm vs. a fixed 150 x 150mm field), an included rotary attachment that's a paid add-on on the Omni 1, and a 15W tier with carbon fiber cutting capability that the Omni 1 lineup doesn't offer.

Do I need a water chiller for a UV laser engraver?

The 5W air-cooled configuration of either machine does not require a chiller. The Haotian 10W and 15W configurations, and the ComMarker Omni 1's 10W configuration, use water cooling with an included chiller.

Can a UV laser cut carbon fiber?

Yes, but only at higher power — the Haotian's 15W configuration is rated for carbon fiber cutting without charring. Neither company's 5W or 10W configuration is rated for this.

Is UV laser engraving safe for jewelry with stones?

Yes. UV's cold photochemical marking process doesn't generate the heat that could damage stones or settings, which is why both machines are commonly used for jewelry surface marking.

Can a UV laser engrave as deep into metal as a fiber laser?

No. Both machines are designed for surface marking on metals, not deep engraving. If deep metal engraving is your primary need, a fiber laser is the correct tool — UV is the right choice specifically for materials that heat damages, like glass, clear plastics, and sensitive electronics.

Which is better for a growing glass and crystal engraving business?

If your pieces are consistently under 150mm, the ComMarker Omni 1 handles the work at a lower cost. If you're marking larger panels or crystal blocks, or expect volume to grow into multi-shift production, the Haotian's larger field and higher power ceiling give you more room before you'd need to upgrade machines.
