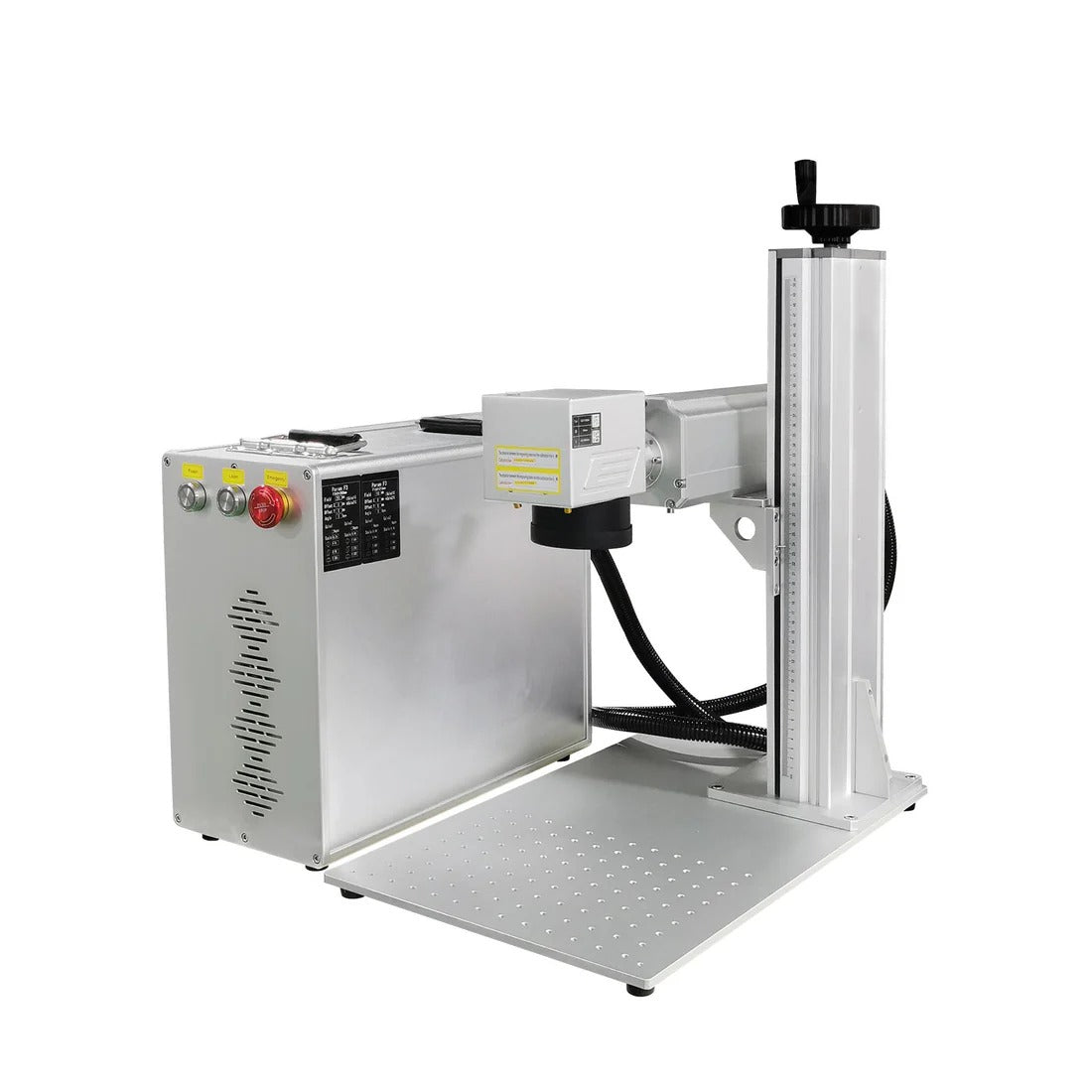

Haotian 60W MOPA Fiber Laser Review: Power and Value Compared

Haotian Laser is not a typical laser engraver brand. There's no retail layer between the factory and the buyer, no inflated MSRP to discount for marketing purposes, and no proprietary software to lock you into. What they sell is factory-configured JPT MOPA fiber laser machines — assembled with components you can look up on the JPT website, shipped DDP (Delivered Duty Paid, meaning zero customs fees at the door), and supported by a named, accessible technical team.

The 60W tier is their most popular configuration and the focus of this review. You have two options: the 60W EM7 at $4,400 and the 60W M7 at $6,200. The difference between them is internal component sourcing, not output performance — and Haotian themselves say plainly that for most daily business production, the two machines produce identical marking results. This kind of transparency is unusual in the laser market, and it's one of the reasons Haotian has built a strong following among professional engravers in the US, Canada, and EU.

Why Haotian Is Worth Taking Seriously

The fiber laser market has a long tail of sellers offering similar-looking Chinese-manufactured machines at similar prices. Most of these are intermediaries who source generic machines and put their brand name on the housing. Haotian is different in a specific, verifiable way: they manufacture and sell directly, use named and auditable components (JPT laser sources, SG7110 galvo scanning heads), and provide support through named engineers rather than anonymous ticket systems.

The reviews reflect this. Customer testimonials consistently mention specific support staff by name — Pascal and Bella appear in multiple independent reviews — and describe pre-sale technical guidance that worked to match buyers to the right configuration rather than push the most expensive option. From the perspective of a business buying a $4,000–$6,000 machine, knowing who picks up when something goes wrong is genuinely meaningful.

The direct-manufacturer model also enables something that retail-channel brands can't easily offer: full customization. Haotian builds to order. You choose the laser source (JPT EM7, M7, Raycus), wattage (20W–200W), field lens (70mm, 150mm, 300mm, or combinations), tower height, and accessories. The machine that ships is configured for your actual workflow, not a pre-specced retail SKU.

What You Get: Build, Components and Sourcing

JPT EM7 MOPA Laser Source

The 60W EM7 (the recommended starting point for most buyers) uses a JPT EM7 MOPA source. JPT (Jept Opto-electronics) is one of the two dominant fiber laser source manufacturers in China alongside Raycus, and their MOPA sources power most of the professional-grade desktop fiber lasers on the market — including the ComMarker B6 MOPA and many others.

The EM7 gives you: pulse width adjustable from 1–500 nanoseconds, frequency range 1–4,000kHz, and 2.0mJ maximum pulse energy at 60W. This is the same MOPA architecture that enables color marking on stainless steel and titanium, black annealing, and fine detail control on sensitive materials. For a full explanation of why these parameters matter and how they enable color that standard Q-switched lasers can't produce, our MOPA vs standard fiber laser guide covers the technical distinctions clearly.

The 60W M7 ($1,800 more) uses the full JPT M7 source with imported seed and pump diodes from Canada and France. The M7 gives 1.5mJ pulse energy (vs 2.0mJ on the EM7 — the EM7 actually has higher spec here) and better long-term stability for 24/7 industrial continuous use. For daily business production, Haotian's own documentation states that EM7 and M7 output and marking results are identical. The M7 is the choice if you're running a high-duty-cycle industrial operation. For most small businesses and production engravers, the EM7 is the right machine at the right price.

Sino-Galvo Scanning Head

The SG7110 galvo scanning head from Sino-Galvo is a professional-grade component used in production fiber laser systems worldwide. It provides high-speed, high-precision mirror movement for galvo engraving at up to the machine's rated marking speed. The field lens options — 70mm (70×70mm working area), 150mm (150×150mm), and 300mm (300×300mm quartz lens) — are available in single or multiple configurations depending on your production needs.

The split design (separate control box and laser head on a tower) is the standard configuration for professional fiber lasers at this power level. It gives better cable management, easier lens changes, more flexible table integration, and the ability to configure the tower height for your specific setup. The Maker's Chest carries this configuration.

US Showroom, DDP Shipping and 3-Year Warranty

This is where the Haotian value proposition becomes most concrete. For US, Canada, and EU buyers: free DDP shipping, which means all customs duties and import fees are paid by Haotian. Zero surprise fees at the door. The machine is delivered to your address ready to use.

Warranty coverage is 3 full years on the JPT laser source and the complete machine. If any part has a quality issue during the warranty period, Haotian ships the replacement part free of charge and the broken part stays with you — you don't pay return shipping on warranty claims. After the 3-year warranty expires, lifetime email technical support continues at no cost.

Multiple independent customer reviews specifically cite this warranty and support process as having been executed well when tested — replacement parts shipped promptly, technical guidance from named engineers. The communication throughout the purchasing and setup process has been described as first-class, with consistently responsive and knowledgeable support through the purchasing and setup phases.

Key Specs in Context

60W vs the 20W–30W Tier: What More Power Actually Means

Moving from a 20W or 30W fiber laser to 60W changes the machine's capabilities in two measurable ways: deep engraving speed and color vibrancy.

On deep engraving, 60W removes more material per pass than 20W, which means the same depth in fewer passes and therefore faster cycle times. For deep 3D embossing on metal, challenge coins, relief work, and thick metal marking, this is a genuine production throughput improvement. Haotian's own product documentation indicates the 60W EM7 engraves 3D metal coins approximately 5× faster than a 20W system at equivalent depth settings.

On color engraving, higher pulse energy at 60W (2.0mJ on the EM7) produces more vivid, saturated colors on stainless steel and titanium compared to 20W machines at the same pulse width and frequency settings. Blues are richer, golds are warmer, and the full spectrum is more accessible. If color-branded metalwork is a revenue stream for your business, the 60W tier is a meaningful upgrade over the 20W entry point.

Motorized Z-Axis and Autofocus

The motorized Z-axis is standard on Haotian's tower-design machines and provides button-controlled height adjustment for focus calibration. Manual focus using the supplied three-dot convergence method or a focus spacer remains the workflow — this is not an automated LiDAR or sensor-based autofocus like the ComMarker B6 MOPA. But button-controlled Z-axis motorization makes focus adjustment precise and repeatable, which is meaningfully faster and more accurate than a manual crank or hand-lifted head.

EZCAD and LightBurn Compatibility

The Haotian 60W ships with EZCAD2 as the primary software and a pre-configured correction file for the installed lens. Full LightBurn compatibility is standard via the LightBurn Galvo plugin — both Windows (EZCAD2 and LightBurn) and Mac (LightBurn only) are supported. This is full compatibility, not partial — unlike some machines where LightBurn only works for part of the laser's functionality.

The correction (.cor) file specific to your lens configuration ships with the machine and should be backed up before any software updates. Haotian can resend the original if needed.

Performance Testing

Deep Engraving on Stainless, Aluminum, Brass

The 60W EM7's 2.0mJ maximum pulse energy is the highest in the Haotian EM7 range and produces deep, high-contrast marks on all common metals at competitive speeds. On standard high-contrast logo and text engraving (the most common production application), the machine completes jobs quickly at the 150×150mm standard working area.

Deep engraving on stainless steel — multiple passes to achieve tactile depth for embossed plaques, tool marks, or industrial identification — benefits visibly from the 60W power level compared to 20W systems. Fewer passes for equivalent depth means less total cycle time and less cumulative heat in the material, which reduces warping risk on thin sheet.

Aluminum at 60W marks cleanly with lower relative power settings than stainless — the EM7's wide frequency range (up to 4,000kHz) enables the fine surface marks and annealed black on anodized aluminum that make the MOPA source valuable for aluminum products. Brass and copper require higher power settings due to their high thermal conductivity, but the 60W source has comfortable headroom for clean production marking on both.

Color Engraving Capability

The EM7 MOPA's 1–500ns adjustable pulse width gives the same color parameter space as the JPT M7, enabling the full thin-film interference color spectrum on stainless steel and titanium. Blues, golds, purples, greens, reds — all are achievable with the right frequency and pulse width combination and a properly cleaned, polished surface.

The 60W power level produces noticeably more vivid and saturated colors than 20W MOPA machines at equivalent settings, because higher pulse energy at the same pulse width means more complete oxide formation per pulse. For businesses where color-branded metalwork is a primary or growing product line, this is a tangible output quality advantage.

Color engraving remains the most parameter-sensitive application in fiber laser work — consistent results require test-grid methodology and clean surfaces, regardless of machine. Our fiber laser color engraving guide covers the MOPA settings methodology in full, including starting parameters for the most common colors on stainless steel and titanium.

Speed for Batch Production

At 60W with the SG7110 galvo, the Haotian machine handles batch production of small metal items — jewelry components, dog tags, industrial labels, knife blanks — at professional throughput. The working area of 150×150mm fits most standard production items comfortably; the 300×300mm quartz lens option expands to a larger batch layout for customers producing more than a handful of items per run.

For batch production workflow efficiency beyond the laser itself, our guide to how to laser engrave metal covers parameter library building, surface prep workflow, and the test-grid process that underpins consistent high-volume production output.

The Direct-Manufacturer Trade-Off: What You Gain and Give Up

What you gain:

Buying direct from Haotian means you're paying for the machine, not for brand recognition, retail distribution, or marketing budgets. The 60W EM7 at $4,400 competes directly on component quality and performance with machines at $5,000–$7,000 from retail-channel brands. The 3-year full warranty with free replacement part shipping and lifetime post-warranty technical support is more comprehensive than most retail brands at equivalent price points.

You also gain configurability — choosing your laser source, wattage, field lens combination, and accessories rather than accepting a pre-specced retail SKU. For buyers who know what they need, this is a genuine advantage.

What you give up:

Compared to boxed retail machines like the ComMarker B6 MOPA or xTool F2 Ultra, Haotian's machines require more initial operator investment. There are no pre-loaded material library USB drives or beginner-guided onboarding flows. EZCAD2 is the software — powerful and professional-standard, but not beginner-friendly in the way xTool Creative Space is. LightBurn requires a separate license purchase.

You're also buying from a manufacturer with a smaller English-language review base than brands like ComMarker or xTool. This means less community-shared parameter data and fewer ready-made tutorials in English. For an experienced laser operator who knows EZCAD2 or LightBurn, this is not a limitation. For a complete beginner, the onboarding learning curve is steeper.

Who Should Buy the Haotian 60W MOPA?

The Haotian 60W is the right machine for experienced operators and growing businesses who want maximum fiber laser capability at the most competitive price point available for JPT MOPA components — without paying for a retail brand's overhead.

Established metal engraving businesses ready to move from 20W or 30W to 60W for production speed and color vibrancy gains. The EM7's pricing makes this upgrade more accessible than retail-channel 60W alternatives, and the 3-year warranty reduces post-purchase risk.

Industrial and manufacturing operations marking metal components, tools, medical devices, or industrial identification that need a professional-grade fiber system with verifiable component sourcing and a real warranty.

Experienced makers and small business owners who are comfortable with EZCAD2 or LightBurn, understand parameter-based metal marking, and want to buy on component quality rather than brand name. Haotian is the machine that people who know fiber lasers well often end up recommending to each other.

Buyers who want configuration flexibility — selecting their specific lens configuration, wattage, and accessories rather than accepting retail product specs. This is particularly relevant for production operations with specific working area or workflow requirements.

If you're ready to build on what the Haotian platform offers, you can Buy the Haotian JPT MOPA Fiber Laser directly from The Maker's Chest, where it's available in the split-design configuration with JPT source options across wattages.

Final Verdict

The Haotian 60W MOPA fiber laser is exactly what it presents itself as: a professional-grade, factory-direct JPT MOPA machine priced competitively because the manufacturer sells direct. The EM7 at $4,400 is the sweet spot — full MOPA functionality, 2.0mJ pulse energy (higher than the M7 spec), 1–500ns pulse width range, 3-year warranty, and free DDP shipping with no hidden import fees.

The caveats are honest ones. This is not a beginner-optimized machine. There's no smart camera, no AI layout software, no guided onboarding. EZCAD2 is powerful and steep. You're buying industrial capability, and operating it professionally requires industrial operator skills.

For buyers who have those skills, or who are building toward them, the Haotian 60W represents some of the best value available in professional MOPA fiber laser engraving — a machine that works because the components are right, not because the marketing says so.

Frequently Asked Questions

What is the difference between the Haotian 60W EM7 and 60W M7?

Both use JPT MOPA technology with the same 1–500ns pulse width range, 1–4,000kHz frequency range, and produce identical color marking and deep engraving results for daily production work. The EM7 ($4,400) uses domestically sourced seed and pump diodes; the M7 ($6,200) uses imported diodes from Canada and France. The M7 also has slightly different pulse energy specs (1.5mJ vs 2.0mJ on the EM7). Haotian themselves state clearly that for the vast majority of business production, the two machines produce identical output. The M7 is recommended for 24/7 continuous industrial use where long-term stability over tens of thousands of hours matters. For small business and side-hustle production, the EM7 is the correct choice.

Does the Haotian 60W MOPA support LightBurn?

Yes — full LightBurn compatibility via the LightBurn Galvo plugin is standard on all Haotian JPT MOPA machines. Both Windows and Mac are supported (Mac via LightBurn). EZCAD2 is also included and is the primary software for Windows users. Unlike some machines where LightBurn has partial functionality, the Haotian machines provide full parameter control through LightBurn. A separate LightBurn Galvo plugin license is required.

What working area does the Haotian 60W MOPA have?

The standard configuration uses a 150mm field lens with a 150×150mm working area. A 300mm quartz lens option expands the working area to 300×300mm for larger pieces or bigger batch layouts (the 300mm lens is recommended at 60W for maintained quality across the full area). Additional lens configurations (70mm for high-density work) are available as add-on or multi-lens packages. The split-body design makes lens changes practical for operators who switch between different working area requirements.

Is the Haotian fiber laser good for color engraving on stainless steel?

Yes. The JPT EM7 MOPA source provides full pulse width control from 1–500ns across a 1–4,000kHz frequency range — the same parameter space as the JPT M7 found in premium retail machines. This enables the full thin-film interference color spectrum on stainless steel and titanium: blues, golds, purples, greens, and more. The 60W power level produces more vivid, saturated colors than 20W MOPA machines due to higher pulse energy per pulse. Color results still require systematic test-grid work to dial in consistent settings per material.

What are the shipping and warranty terms for Haotian lasers?

Haotian offers free DDP (Delivered Duty Paid) shipping to the United States, Canada, and EU — meaning all customs duties and import fees are prepaid by Haotian, with zero additional charges at delivery. The warranty is 3 full years covering the JPT laser source and the complete machine. If any part has a quality issue during the warranty period, Haotian ships the replacement at no charge and the broken part stays with you (no return shipping required). After the 3-year warranty, lifetime email technical support continues at no cost.

How does the Haotian 60W MOPA compare to the ComMarker B6 MOPA 60W?

Both use JPT MOPA technology (ComMarker uses the JPT M7 at 60W; Haotian EM7 uses the JPT EM7). The ComMarker B6 MOPA is a compact integrated machine with electric autofocus, a touchscreen, and a modular 2-in-1 design suited to portability and ease of use — it starts at approximately $1,500–$2,000 for the 60W. The Haotian 60W EM7 at $4,400 is a larger split-design professional system with the SG7110 galvo, full configuration flexibility, and the direct-manufacturer warranty and support structure. ComMarker B6 is better suited for makers who want compact, portable ease-of-use. Haotian is better suited for professional production operations that want configurable, industrial-grade hardware with direct manufacturer support.

What software learning curve should I expect with the Haotian?

EZCAD2 is the primary software, which is the industry standard for professional fiber laser operation. It's powerful and fully capable but not beginner-friendly by modern software standards — limited preset guidance means you'll build your own parameter library through test-grid methodology. LightBurn (additional purchase) provides a significantly more intuitive interface for those already in that ecosystem. Haotian provides technical support during setup, and Pascal's team (per multiple customer reviews) is responsive and knowledgeable for configuration questions. Expect to invest several sessions in parameter testing before running reliable production output on new materials.
