How to Set Up a Laser Welder: Power, Gas, Consumables and Maintenance

Quick answer: A correctly installed handheld laser welder goes from crate to first test weld in about 1–3 hours. You need a dedicated, properly grounded circuit (220V single-phase for most 1000W–2000W machines), a primed chiller with deionized water on water-cooled units, argon through a two-stage regulator and flow meter at 12–18 L/min for most steel, fume extraction within about 200 mm of the weld, and wavelength-rated laser eyewear for everyone nearby. After that, most quality problems trace to consumables: inspect the protective lens and nozzle every shift, keep 5–10 spares of each, and follow a simple daily, weekly and monthly maintenance routine.

Table of Contents

1. Setup checklist
2. Power supply and breaker sizing
3. Cooling system
4. Gas supply
5. Step-by-step first setup
6. Starting parameters, wobble, focus and wire feed
7. Consumables: nozzles, lenses, PPE and filters
8. Maintenance schedule
9. Cutting consumable costs
10. Common setup mistakes
11. Air-cooled or water-cooled?
12. Frequently asked questions

Setup checklist

Have these in place before the machine arrives:

• A dedicated 220V single-phase circuit (most 1000W–2000W handhelds) or three-phase supply (typically 3000W+), with a correctly sized breaker and wire
• A chiller and deionized water for water-cooled machines, or confirmation your machine is air-cooled
• An argon (or, for some carbon steel work, nitrogen) cylinder, two-stage regulator, hose and a flow meter reading in L/min
• Fume extraction rated for welding fume, positioned within about 150–200 mm of the weld
• Laser safety eyewear rated for the machine's wavelength (around 1,070 nm) at the optical density its manual specifies, for everyone in the area
• Laser curtains or screens, and a grounded welding table
• Spare protective lenses and nozzles

Power supply and breaker sizing

Most handheld laser welders from 1000W to 2000W run on single-phase 200–240V, the same supply as many shop machines. Some compact air-cooled models are designed for wide-input voltage and can run on 110V household circuits. Water-cooled machines draw more once the chiller compressor is included, and machines above 2000W, especially 3000W systems, often need high-current single-phase or three-phase supply.

Configuration	Typical full-load current	Typical breaker	Typical wire
Air-cooled 700W–1000W (110V)	15–20A	20–30A	10 AWG
Air-cooled 1000W–1500W (220V)	15–20A	30A	10 AWG
Water-cooled 1500W + chiller (220V)	20–28A	40A	8 AWG
Water-cooled 2000W + chiller (220V)	25–35A	50A	6 AWG

These are typical figures only. Size the breaker from the full-load current on your machine's data plate with a safety margin, use a circuit dedicated to the welder, and have a licensed electrician confirm the installation against local code. A solid earth ground is essential: poor grounding is one of the most common causes of unexplained fault codes and control-panel noise, and a shock hazard.

Cooling system

A 1500W laser at roughly 30% wall-plug efficiency sheds on the order of 1 kW of heat continuously, so the chiller must be sized to the manufacturer's stated cooling requirement; most machines ship with a matched chiller recommendation.

• Coolant: deionized or distilled water only. Tap water leaves mineral deposits that restrict flow and can block cooling channels in the laser source, an expensive repair. Below about 10 °C, add laser-grade antifreeze at the manufacturer's ratio, typically no more than 30%, since more reduces heat transfer.
• Flow: confirm the minimum flow in your manual (often around 4–8 L/min for 1500W) is met. Many machines won't lase until a flow sensor confirms it.
• Air-cooled machines: no coolant, but keep intakes clear with about 200–300 mm clearance around the unit.

Gas supply

• Gas: industrial argon (99.99%) for stainless and most fabrication; 99.999% argon for titanium and reactive metals. Some carbon-steel-only shops use nitrogen to save cost. See our shielding gas guide.
• Cylinder size: plan on consumption. A 50 cu ft cylinder holds about 1,400 L, roughly 1.5 hours of welding at 15 L/min. A 300 cu ft cylinder (about 8,500 L) lasts roughly 9 hours at the same flow, so production shops usually need large cylinders or bulk supply.
• Regulator: a two-stage regulator holds delivery pressure steadier as the cylinder empties.
• Hose and flow meter: gas-appropriate hose with fittings that match the machine inlet, and a flow meter calibrated for your gas. The regulator's pressure gauge does not tell you flow.

Step-by-step first setup

Step 1: Electrical connection and grounding

Connect to the dedicated circuit exactly as the machine documentation labels the terminals, never omitting the ground. Before powering on, confirm voltage at the supply terminals with a multimeter; about 200–240V is expected on a 220V circuit. Avoid sharing the circuit: other equipment starting up can cause voltage sag and fault codes mid-weld.

Step 2: Prime and leak-check the cooling system

Fill the chiller with deionized water to the MAX mark, run the chiller alone for 2–3 minutes, and check every hose connection, including at the welding head, for weeping. Confirm the flow reading meets spec; a FLOW fault must be cleared before the laser will enable.

Step 3: Connect gas and set flow

Tighten fittings hand-tight plus about a quarter turn; overtightening damages seals. Set regulator delivery pressure around 0.3–0.5 MPa (45–75 psi) unless your manual specifies otherwise, then set flow:

• Stainless steel: 12–18 L/min
• Carbon steel: argon 12–15 L/min, or nitrogen 15–20 L/min
• Aluminum: 15–20 L/min
• Titanium: 20–25 L/min plus trailing shield

Check every fitting from cylinder to machine with soapy water while gas flows; even a slow leak can contaminate stainless or titanium welds. To confirm gas reaches the nozzle, hold a tissue 20–30 mm from the tip with the laser disabled; it should deflect steadily.

Step 4: Power-on sequence and first weld

Power up in order: cooling first, then main power, then laser enable once the machine confirms cooling and safety conditions. Before the first trigger, confirm the work-contact safety sensor responds, gas flow is stable, everyone nearby is wearing laser eyewear, a starting parameter set for your material is loaded, and scrap of the same material and thickness is clamped ready. Weld scrap first, adjust, then move to production.

Starting parameters, wobble, focus and wire feed

Starting parameters (1500W handheld)

Material	Thickness	Power	Travel speed	Mode
Stainless	0.8 mm	25–35%	25–35 mm/s	CW or pulsed
Stainless	1.5 mm	40–55%	18–25 mm/s	CW
Stainless	3.0 mm	70–85%	10–15 mm/s	CW
Mild/carbon steel	1.5 mm	45–60%	20–28 mm/s	CW
Mild/carbon steel	3.0 mm	75–90%	10–14 mm/s	CW
Aluminum	1.5 mm	50–65%	18–25 mm/s	CW
Aluminum	3.0 mm	80–95%	12–18 mm/s	CW
Galvanized steel	1.2 mm	35–45%	20–30 mm/s	CW

Adjust about 15% for your machine and start at the low end of power: it's easier to add power than to repair burn-through. More detail in our sheet metal and carbon steel and stainless steel guides.

Wobble

Enable wobble for most production work other than very tight butt joints. Starting points: 1.5–2.0 mm at 80–120 Hz on 0.5–1 mm sheet; 2.5–3.0 mm at 60–100 Hz on 1–2 mm; 3.0–3.5 mm at 40–60 Hz on 2–4 mm; about 3.0 mm at 80–100 Hz for bright cosmetic stainless seams. Widen wobble for gaps; lower frequency for more penetration on thicker material.

Focus

Most handhelds ship focused at the surface (0 mm), right for most steel and stainless. Check it with a short weld on scrap: correct focus gives a tight, bright bead; out-of-focus gives a wide, dull, shallow one. On thicker sections, focusing slightly below the surface helps penetration.

Wire feeder

Use filler when gaps exceed roughly 0.1–0.2 mm, for build-up and repair, and on lap and fillet joints needing more bead volume. Match wire to thickness: about 0.5–1.0 mm wire up to 1.2 mm sheet, 0.8–1.2 mm for 1.2–2.5 mm, and 1.0–1.6 mm above that. Adjust feed in 10–15% steps until the wire melts steadily into the pool without sticking or spatter.

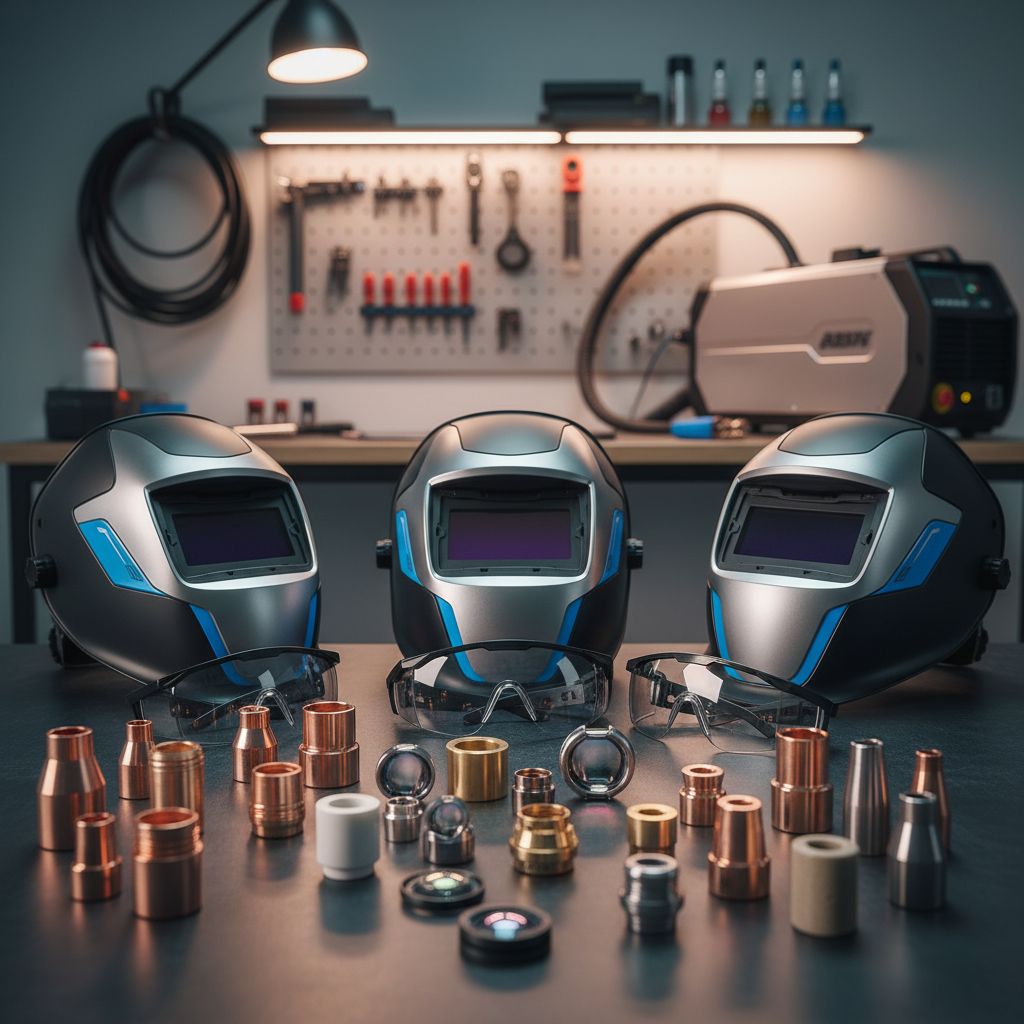

Consumables: nozzles, lenses, PPE and filters

When a machine that welded perfectly yesterday produces spatter and porosity today with no settings changed, the cause is usually a consumable. Consumables rarely fail dramatically; they degrade gradually, which is why they're so often missed. Based on the support calls our team fields, a dirty protective lens is the single most common cause of "my welder lost power."

Consumable	Typical cost	Typical life	Check
Protective window (cover lens)	$3–$15	Varies with material and discipline	Every shift
Copper nozzle	$2–$10	About 10–40 arc hours on clean steel; far less on galvanized or aluminum	Every shift
Focus lens	About $150–$500+	Often 1,000–3,000+ hours with good cover-lens discipline	When quality doesn't recover after a new cover lens
Fume extractor main filter	About $30–$300 by unit	About 100–400 operating hours, or at rated pressure drop	Airflow before each session
Laser safety eyewear	Varies	Per manufacturer; replace immediately if damaged	Before each use

Nozzles

The copper nozzle directs a smooth shielding gas blanket over the pool. Most machines ship with 5–10 in different shapes:

• Conical: the general-purpose choice for butt, fillet and seam welds, with good coverage and visibility.
• Flat or wide-aperture: broader coverage for wide welds, slow travel and materials like titanium whose cooling zone needs shielding.
• Narrow or precision: access to tight corners and repair positions, with a smaller coverage area.
• Cutting nozzles on 3-in-1 and 4-in-1 machines are for cutting only.

Inspect before each shift and replace if the bore has spatter buildup you can't clear, the tip is deformed or eroded, or the aperture is no longer round and centered. If weld quality drops with no setting changes, swap the nozzle and run a test weld before touching parameters. Aftermarket copper nozzles are fine if bore, length and thread exactly match your head; off-center or wrong-bore nozzles give lopsided gas flow.

Protective window (cover lens)

This replaceable coated window shields the focus lens from vapour and micro-spatter. As it gets dirty it absorbs energy instead of passing it: a machine set to 60% may deliver only 45–50% to the work, so welds run cold, penetration drops and porosity rises. Operators often turn up power, which heats the dirty lens further and can crack it or scatter the beam into more expensive optics.

• Inspect every shift: remove it and tilt it under bright light, looking for haze or film, bright or dark spatter points, scratches, and iridescent or crazed coating from heat.
• Clean only light deposits: use anhydrous (99.9%) isopropyl alcohol, since pharmacy 70% IPA leaves water residue. Put it on a proper optical tissue, never on the lens, and make a single wipe from center outward, never circular or back-and-forth.
• Replace if cleaning doesn't restore clarity or there's any impact mark, scratch or heat damage. Never weld without one.

Focus and collimating lenses

The focus lens concentrates the beam to its working spot and is protected by the cover lens, but it can still be damaged by a missing or failed cover lens, condensation from temperature swings, or impact. Suspect it when quality doesn't recover after a fresh cover lens and clean optical path, or when the bead becomes wider or lopsided. Focus lens cleaning should follow the manufacturer's procedure, ideally by trained service staff; incorrect cleaning often does more harm than good. The collimating lens further up the optical path isn't a routine consumable; have it inspected after an impact to the head or damage to the fiber connector.

PPE

• Laser safety eyewear: rated for the machine's wavelength (around 1,070 nm) at the optical density in its manual, often OD 5+ or higher. Replace immediately after any scratch, chip or impact, per the manufacturer's service life, or if markings are unreadable. Eyewear rated for other lasers may offer no protection at this wavelength.
• Helmet and filters: a standard auto-darkening welding helmet is not laser eyewear. If you use a helmet, confirm its filter is rated for the laser wavelength, and keep spare filter lenses so a damaged filter never forces unprotected work.
• Gloves and clothing: leather or flame-resistant welding gloves and FR clothing covering exposed skin. Avoid latex gloves and thin polyester, which can melt onto skin. Replace when burned, cut or past the FR treatment's wash limit.

See our laser welding safety guide for the laser controlled area setup.

Fume extraction filters

Laser welding fume is fine and ultrafine, sub-micron particles that ordinary shop dust collectors don't capture. Use HEPA (H13/H14) or MERV-15/16 filtration. A clogged filter doesn't stop the extractor running; it quietly lets fume reach the operator's breathing zone, with no warning in weld quality. Check airflow at the intake before each session (a tissue held about 20 cm away should pull clearly), inspect pre-filters weekly, and replace the main filter at the manufacturer's interval or rated pressure drop, sooner when welding galvanized, coated or aluminum material.

Maintenance schedule

Daily

• Inspect and clean or replace the protective lens.
• Inspect and clean or replace the nozzle.
• Check chiller coolant level; a noticeable drop means a leak to find before production.
• Check fume extractor airflow.

Weekly

• Clean the welding gun and umbilical, and inspect the fiber connector at the gun for contamination or damage.
• Leak-test gas lines and fittings.
• Confirm wobble motion is smooth and consistent.
• Inspect fume extractor pre-filters.

Monthly to twice yearly

• Check beam alignment per the machine documentation.
• Clean the internal optical path only per the manufacturer's instructions.
• Replace chiller coolant about every 6 months (sooner if discolored or cooling drops), flushing the circuit and cleaning the strainer. Swap antifreeze mix back to straight deionized water when the cold season ends.
• Replace fume filters at the rated interval.

When to call for service

Call the manufacturer or an authorized service center for persistent fault codes after a reset, low power despite clean optics, a damaged fiber connector or cable, abnormal fan or wobble-motor noise, or any safety interlock that doesn't work. Never open the laser source, internal optics or high-voltage components yourself; they combine lethal voltage with Class 4 laser hazards.

Cutting consumable costs

• Clean correctly: the wrong solvent or wiping technique turns a cleanable cover lens into a replacement.
• Store optics sealed: keep cover lenses in their packaging in a dry, dust-free container, and keep used nozzles apart from new stock.
• Buy cover lenses in bulk from the manufacturer or a verified OEM supplier and keep two to three months' supply; running out invites welding with a damaged lens.
• Aftermarket nozzles are fine in packs of 10–20 if specs match exactly.
• Focus lenses and safety eyewear: OEM or verified-specification only. A wrong focal length or coating quietly degrades welds and can damage other optics, and eyewear is never the place to save money.

Every $5 cover lens you replace on time protects a focus lens that can cost 30–100 times more.

Common setup mistakes

• Gas-related porosity: check flow reading, leak-test fittings, clean the nozzle, and close doors or windows, since even mild drafts disrupt shielding.
• Dirty optics: spatter and inconsistent beads that worsen through a session usually trace to the protective lens.
• Wrong preset loaded: build a named parameter library for each material and thickness and confirm the loaded preset before every run.
• Shared or poorly grounded circuit: causes nuisance trips and fault codes.
• Tap water in the chiller: slowly scales the cooling channels.

Air-cooled or water-cooled?

Choose air-cooled if you need portability, work across job sites, want the simplest installation and maintenance, or have limited electrical capacity.

Choose water-cooled if you run long production shifts at higher power, want more power per dollar, and can dedicate floor space and routine coolant maintenance to a fixed station.

Browse our air-cooled laser welders or the full laser welder collection, and see our cost and ROI guide for running costs.

Frequently asked questions

How long does it take to set up a laser welder?

Usually 1–3 hours from crate to first test weld, depending on whether wiring is ready and whether the machine is water-cooled (chiller filling and leak checks add 30–45 minutes). Daily start-up checks take 5–10 minutes.

What voltage does a laser welder need?

Most 700W–2000W handhelds run on 220V single-phase; some compact air-cooled models accept 110V. Water-cooled 3000W systems often need three-phase. Always check the data plate.

Do I need a dedicated circuit?

Yes. Sharing a circuit causes voltage sag, nuisance tripping and mid-weld faults. Size the breaker from the machine's full-load current with margin and have an electrician confirm it meets local code.

What shielding gas do I need to start?

99.99% argon covers stainless, mild steel and aluminum. Some carbon-steel-only shops use nitrogen. Titanium needs 99.999% argon.

How long does a gas cylinder last?

At 15 L/min, a 50 cu ft cylinder lasts roughly 1.5 hours of arc time and a 300 cu ft cylinder roughly 9 hours.

How often should I change the coolant?

About every 6 months with fresh deionized water, sooner if it discolors or cooling drops. Flush the circuit and clean the strainer at each change.

How often should I replace the nozzle?

Around 10–40 arc hours on clean stainless and mild steel, much sooner on galvanized or aluminum. Inspect every shift and replace at any buildup you can't clear or any deformation.

How do I know if my protective lens needs replacing?

If haze, spots, spatter marks, scratches or heat discoloration remain after correct cleaning, replace it. If weld quality drops with no setting changes, change the cover lens first.

What is the most expensive consumable?

The focus lens, typically around $150–$500+, versus a few dollars for cover lenses and nozzles. Good cover-lens discipline is what protects it.

Can I clean a focus lens myself?

Only following the manufacturer's procedure with anhydrous IPA and optical tissue, and ideally with training. If in doubt, use authorized service rather than risk damaging it.

What PPE is required for laser welding?

Wavelength-rated laser safety eyewear at the specified optical density, appropriate face protection, leather or FR gloves, flame-resistant clothing, and fume extraction with HEPA or MERV-15/16 filtration close to the weld.
