Which Filtrabox Is Right for You? Models, Setup & Maintenance Guide
Quick answer: Match a Filtrabox to the laser's emission rate, enclosure leakage, hose run and duty cycle, not to the square footage of the room. For a single small, lower-output enclosed engraving station, start by assessing the Micro. The Compact X has a higher rated maximum airflow and more filter media for more demanding single-station work. The ExpandX-1 has the same nominal single-blower airflow as Compact X but much larger filter capacity; the X-2 and X-3 add blowers for greater demand. The Base is a different physical integration choice, not automatically the most powerful model. Once installed, performance depends as much on placement and filter maintenance as on the model you picked. This guide covers all three.
Table of Contents
- How a Filtrabox works: three filtration stages
- Filtrabox model comparison
- The five inputs that determine the right extractor
- Model-by-model: Micro, Compact X, ExpandX and Base
- Which Filtrabox should you choose?
- Setup: placement, hose routing and operating sequence
- Maintenance schedule and filter replacement
- Troubleshooting weak suction, odours and noise
- Compatibility checklist to send us
- Frequently asked questions
How a Filtrabox works: three filtration stages
A laser produces three different problems at once: coarse debris (ash, dust, fibres), fine smoke particles, and gases and vapours. No single filter handles all three, which is why Filtrabox separates them into stages that are replaced independently.
Pre-filter
Catches coarse particles before they reach the finer stages. It is the cheapest element and the one that loads fastest, so it protects the more expensive HEPA stage behind it. A dusty cutting workload fills it long before the other stages are spent.
HEPA stage
Captures the fine particulate fraction of laser smoke, which is the part that passes through ordinary fans and room purifiers. Check the exact HEPA class on your model's listing rather than assuming one rating across the range.
Chemical (activated carbon) cartridge
Gases and vapours, such as the odour from cutting acrylic, are not particles, so HEPA media cannot stop them. The chemical cartridge adsorbs them until it saturates. Cartridge size differs by model: 20 lb on the Micro, 40 lb on the Compact X, and 80 lb across the pair on the ExpandX-1. That difference matters for service intervals in a busy shop.
Filtration is one control in a safe process, not permission to laser anything. PVC and other chlorine-containing plastics must never be lasered, and materials whose composition you cannot confirm should not be processed at all. Based on the calls our team fields every week, the most expensive mistakes are not undersized extractors but unknown materials and neglected filters.

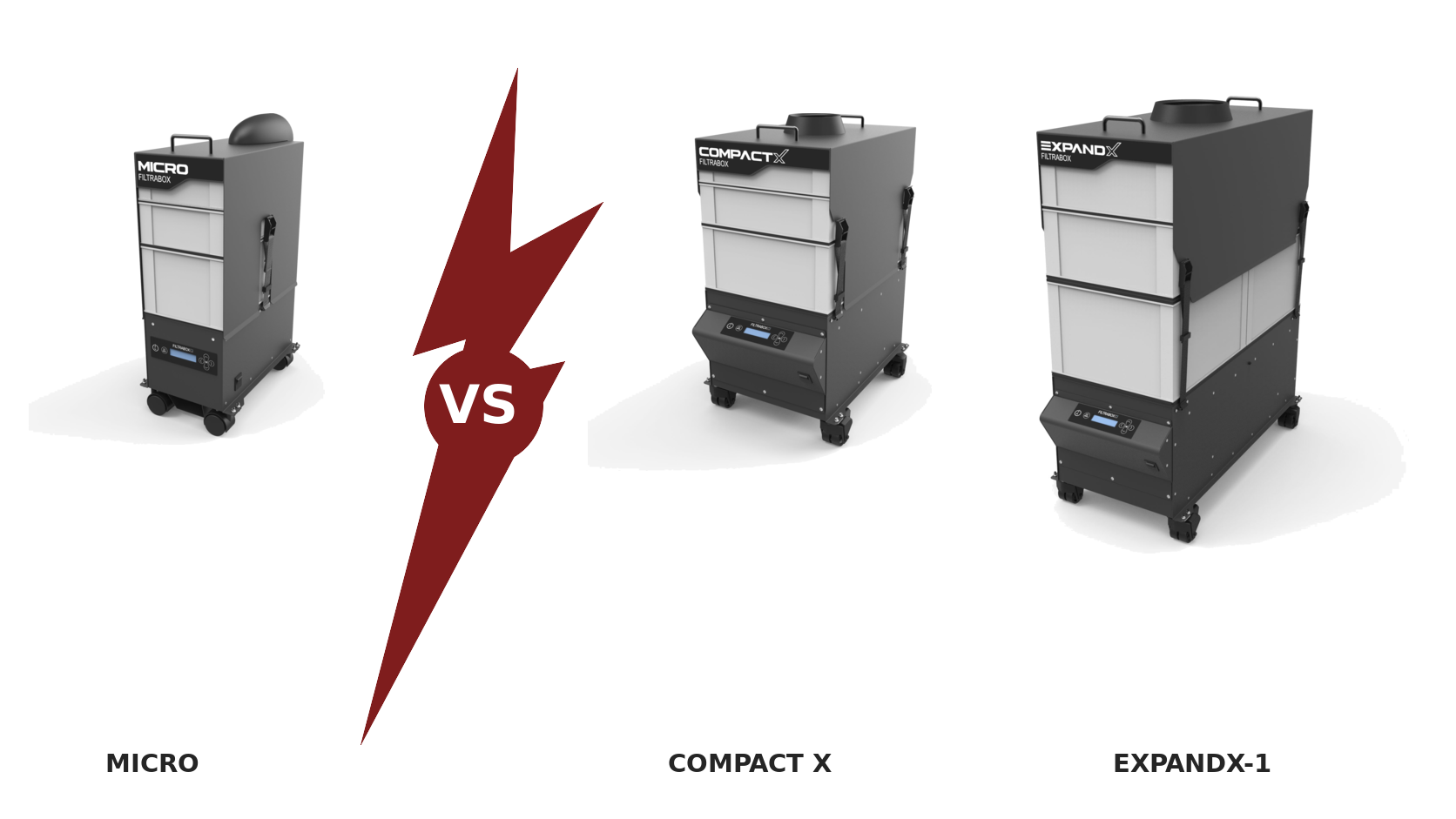

Filtrabox model comparison for laser engraving and cutting
| Model | Manufacturer-rated maximum airflow | Filter and machine decision | TMC listing |
|---|---|---|---|
| Micro | 128 CFM | Small single-station setups; 20 lb chemical-media cartridge; check hose loss and workload | View Micro |
| Compact X | 235 CFM | More demanding single station; 40 lb chemical-media cartridge | View Compact X |
| ExpandX-1 | 235 CFM | Single blower plus a much larger filter bank; choose for loading and longer service intervals, not a higher headline airflow than Compact X | View X-1 |
| ExpandX-2 | 2 × 235 CFM | Two blowers and high-capacity filters; consider higher-emission work or engineered multi-point capture | View X-2 |
| ExpandX-3 | 3 × 235 CFM | Three blowers; size with actual simultaneous inlets, pressure losses and filter loading | View X-3 |
| Base | Configuration dependent | Under-machine/space-saving arrangement where machine dimensions and connection work | View Base |
"Maximum airflow" is an uninstalled equipment rating, not guaranteed capture flow at a laser after filters, bends, hose length and adapters. Adding blower ratings does not prove that two lasers can each receive the target flow. Different Filtrabox product families, including laser cleaning, printing and welding, can use similar names with different filtration packages. Compare the engraving/cutting configuration on the actual listing and current manufacturer documentation. Micro · Compact X · ExpandX-1 · ExpandX-2 · ExpandX-3.
The five inputs that determine the right extractor
1. What does the laser process actually create?
Engraving clean anodized aluminum, marking coated metal, cutting plywood and cutting acrylic impose different particulate and gas loads. Coatings, adhesives, paint and unknown plastics can change the hazard altogether. Because Filtrabox separates the pre-filter, HEPA stage and chemical cartridge, particle and gas media can be replaced based on their own condition rather than discarding both together. This is useful when material mix changes over time; it does not mean any cartridge can neutralize every gas. Confirm the material and suitable filtration with the laser and extraction manufacturers.
2. Is the laser enclosed, and where does air enter?
An enclosure with a defined exhaust port generally makes capture easier to plan than an open galvo or welding station. The extraction point must pull fumes away from the breathing zone and optics at the moment of generation. An open workstation may require a capture hood or arm located close to the work; simply buying a larger extractor may not compensate for a poorly placed inlet. The Micro is not an automatic match for every small laser, and a large laser can be manageable with a well-designed enclosure and duct run.
3. How long and restrictive is the hose?
Measure the exhaust-port diameter, intended hose inside diameter, overall hose length, number of tight bends and any manifold. Long narrow tubing and restrictive adapters reduce available flow at the machine. Share these dimensions when asking us to size a unit; the extractor's free-air CFM is only one input. Use the manufacturer's setup and calibration instructions with the actual hose installed, then verify capture at the laser rather than assuming the catalog airflow reaches the work.
4. How many hours and simultaneous stations?
The difference between Compact X and ExpandX-1 is instructive. Both are listed at a single-blower 235 CFM maximum, but ExpandX-1 carries more filter media and is designed to accept a second blower. This can be a better total-cost choice for sustained loading even when the initial capture demand is similar. The X-2 and X-3 are logical when validated airflow demand grows, including engineered multi-station systems. Size a multi-machine manifold for the number of stations actually running together and prevent inactive branches from drawing away flow.
5. What replacement-media expense can the shop tolerate?
Price the filter path before choosing by purchase price alone. Ask which pre-filter, HEPA and chemical media each model takes, how the media is monitored, and whether a high-dust application will fill the pre-filter long before the chemical cartridge is spent. A larger filter bank can make economic sense in a busy shop, but no honest fixed "filter lasts X months" promise applies to every material and workload.
Model-by-model: Micro, Compact X, ExpandX and Base
Micro: compact single-station entry point
The Micro's manufacturer page lists one blower, 128 CFM maximum airflow and a 20 lb chemical-media cartridge. That makes it worth evaluating for a small enclosed engraving setup with a short, sensible hose and modest emission load. It is not an ambient room purifier, and "small room" alone does not qualify the installation. Confirm that the specific laser's exhaust port and required flow can be met under installed conditions. A dense cutting workload or a long, bent hose can point to a larger extractor despite the laser's compact dimensions.
Compact X: more airflow and media in a single-station footprint
Compact X is a one-blower, 235 CFM maximum-airflow model with a 40 lb chemical cartridge on the manufacturer's laser model page. It is a useful next evaluation for regular engraving and cutting, a more demanding enclosure or additional hose losses. It is still a single-inlet sizing exercise. Do not treat a claimed "250-square-foot coverage" as proof that an open machine captures fumes; verify the actual laser, hose and material. Shop the Compact X and check the matching filters.
ExpandX: distinguish filter capacity from airflow
ExpandX-1: 235 CFM maximum from one blower with 30 m² pre-filter media, 15 m² HEPA media and a pair of chemical cartridges listed at 80 lb. It can accept an additional blower module. Pick it over Compact X when filter loading and room to grow justify the larger chassis, not because its initial nominal CFM is higher.
ExpandX-2: two 235 CFM blower ratings and a large filter bank. Consider it for larger applications or two carefully designed capture points. How much flow reaches each source depends on ducting and how branches operate. ExpandX-3: three 235 CFM blower ratings for still higher demand; the manufacturer calls this model a four-stage filtration configuration, so it should not be casually described as identical three-stage filtration with a third blower.
Review X-1, X-2 and X-3 against the machine-side capture requirement. If you are buying for laser cleaning or welding, identify the actual process; those fume and particle loads need their own capture design and potentially a different filter package. Do not infer suitability solely from the similar Expand name.
Base: under-machine integration
Base is a placement and integration option intended to fit under compatible equipment. Measure the laser's footprint, access to filter drawers, exhaust route, service clearance and supporting load. It should not be selected solely because it looks tidy under a CO₂ machine, or assumed compatible with a named brand. Check the Base listing and a dimensioned drawing against your exact model before buying.
Which Filtrabox should you choose?
Choose the Micro if you run one small, enclosed engraving laser with a short hose, light-to-moderate hours, and mostly low-emission materials.
Choose the Compact X if you run one laser regularly, cut as well as engrave, or can't avoid a longer hose run, and want more airflow and a larger chemical cartridge in a compact footprint.
Choose the ExpandX-1 if single-station airflow is enough but you run long days and want larger filter capacity and longer service intervals, with room to add a blower later.
Choose the ExpandX-2 or X-3 if your validated airflow demand is higher, emissions are heavy, or you are designing an engineered multi-point capture system.
Choose the Base if floor space is the constraint and your laser's dimensions, exhaust route and service access have been confirmed against the drawing.
Based on our experience selling laser equipment to universities, schools and small shops, buyers who size by room area tend to under-buy, and buyers who size by headline CFM tend to over-buy. Sizing by process, hose and hours gets it right.
Setup: placement, hose routing and operating sequence
Placement and hose routing
The goal is source capture: pulling fumes away at the moment they're generated, before they disperse into the room. Position the extractor close to the laser, connect to the laser's exhaust port, and keep the hose as short and straight as your layout allows. Every bend and extra length adds resistance and reduces the flow that actually reaches the machine. Leave clearance around the extractor's inlet and outlet so the unit can move air freely; don't wedge it into a corner.
Quick capture check: with the extractor running, hold a thin strip of tissue near the laser's work area. It should pull immediately and steadily toward the exhaust. If it wavers or drifts away, fix the hose route, connections or inlet position before running a job.
First-time setup
- Open the filter access and confirm the pre-filter, HEPA stage and chemical cartridge are seated correctly after shipping, then close and latch the door.
- Secure the hose at both ends. Even a small gap at a connection lets unfiltered fumes bypass the filters.
- Plug into a grounded outlet and follow Filtrabox's calibration instructions with the actual hose installed.
Operating sequence for every job
Start the extractor first, then start the laser. When the job ends, let the extractor run for another two to three minutes to clear residual fumes from the enclosure and hose before switching off.
Maintenance schedule and filter replacement
A loaded filter doesn't just filter worse; it forces the blower to work harder for less airflow. The intervals below are typical starting points for regular use. Your model's filter indicator, the suction you feel at the laser, and returning odours are more reliable signals than the calendar.
| Task | Typical interval | What to look for |
|---|---|---|
| Pre-filter inspection | Monthly; replace often | Visible loading or reduced suction. Dusty cutting work fills it fastest |
| HEPA stage | Commonly 6–12 months | Filter indicator or pressure readout; heavy daily use shortens it |
| Chemical cartridge | Commonly 6–12 months, or sooner | Material odours returning during jobs means it's saturated |
| Hose and connections | Monthly | Cracks, soft spots, kinks, loose fittings at either end |
| Debris tray and spark/flame arrestor (if fitted) | Monthly | Empty and wipe dry; confirm nothing is blocked |
| Hose interior | Every few months | Vacuum out accumulated dust that adds resistance |
Replacing filters safely
Used filters hold everything they've captured. Wear disposable gloves and safety glasses, and add an N95 or similar respirator if you've been processing plastics or coated materials. Bag each used filter immediately and seal it; don't leave it open on the bench. Check local disposal rules if your materials go beyond natural wood and leather.
HEPA media and saturated chemical cartridges are consumables. Washing or vacuuming HEPA media damages it, and saturated carbon can't be regenerated at home. Filters are model-specific, so order the kit for your exact unit from Filtrabox replacement filters, and keep a spare pre-filter on hand so a loaded filter never stops production.
Troubleshooting weak suction, odours and noise
Suction has dropped
Replace the pre-filter first; it's the usual cause. If suction is still weak, check the hose for kinks, cracks or loose connections at both ends. If the hose is sound, the HEPA stage may be near the end of its life.
Odours come back during jobs
The chemical cartridge is almost always saturated. Replace it. If odours return quickly with a fresh cartridge, look for a leak at the laser-side connection that's letting fumes bypass the extractor.
The unit is louder than usual
A rattle usually means a loose panel or fastener. A grinding or rough sound can mean dust on the blower or bearing wear. If it persists after fastener and filter checks, contact Filtrabox support or our team.
Compatibility checklist to send us
- Laser make, exact model, enclosure type and exhaust-port size.
- Materials and coatings, plus whether the work is engraving, marking, cutting, cleaning or welding.
- Hours per day and whether multiple machines operate simultaneously.
- Proposed hose diameter, length, bends and any branch/manifold.
- Room constraints, electrical service and whether filtered return air or outside exhaust is permitted and appropriate.
- Expected maintenance owner and the cost/availability of all model-specific replacement media.
With those inputs, our team can narrow the options before a machine and extractor are ordered. Browse Filtrabox extractors, or see our BOFA range as another equipment family with different controls and filter configurations.
Frequently asked questions
Do I need a fume extractor if my laser already has a built-in fan?
Yes. Built-in fans are usually for cooling electronics, and a basic exhaust fan only moves unfiltered fumes somewhere else. An extractor captures and filters them at the source.
Can I just open a window instead?
Not reliably. Fumes spread through the room before reaching a window, and in still air a window does little. Source capture is the only approach that consistently keeps fumes out of the breathing zone.
Can I size the Micro to a 100-square-foot room?
No. The relevant question is whether capture at the connected laser meets its needs after installation losses. Room floor area is not a substitute for a source-capture design.
Is ExpandX-1 twice as powerful as Compact X?
Not by the published maximum-airflow number: both start at 235 CFM with one blower. X-1 offers substantially more filter media and can be upgraded with another blower.
Can I use one ExpandX-2 for two lasers?
Potentially, if the simultaneous airflow, hose sizing, backdraft control and each enclosure's requirements are checked. Its two blower ratings alone do not certify a particular two-laser installation.
How long do Filtrabox filters last?
It depends on materials and hours. Pre-filters are inspected monthly and replaced often; HEPA and chemical media commonly last 6–12 months in regular use. Heavy daily production shortens all three. Use the filter indicator, suction and odour as your real signals.
Do all Filtrabox models use the same replacement filters?
No. Match the exact model and process version, then check the pre-filter, HEPA and chemical cartridges separately. See Filtrabox replacement filters.
Can I clean and reuse Filtrabox filters?
No. Cleaning damages HEPA media, and saturated chemical cartridges can't be regenerated at home. Treat both as consumables.
Can the filter make unknown plastics safe to laser?
No. Identify the material and consult the laser and extraction manufacturers' restrictions. PVC and other chlorine-containing plastics must never be lasered.
