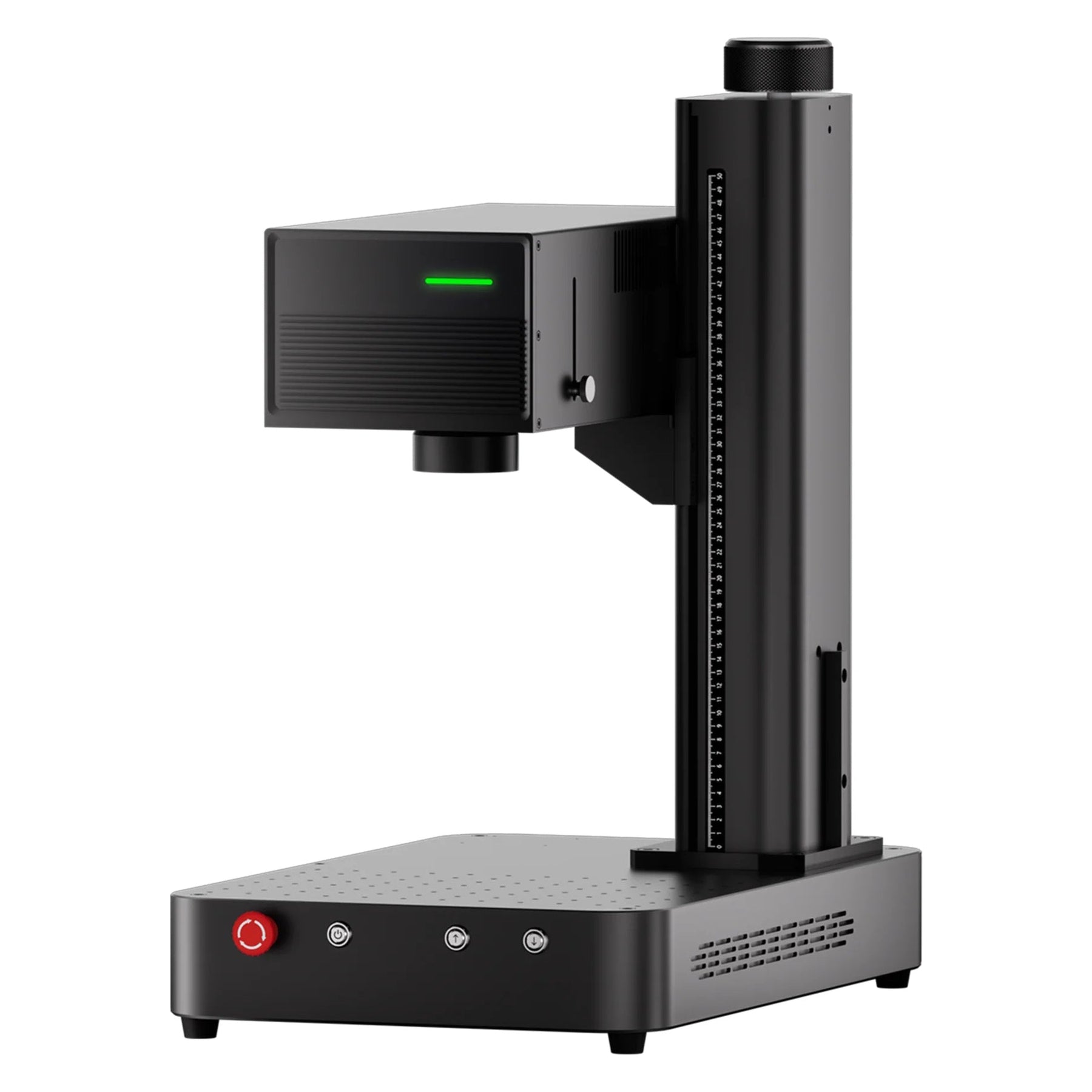

ComMarker Omni XE Review: Industrial UV Engraving for High-Volume Production

The ComMarker Omni XE is built on a clear proposition: deliver the same core UV laser performance as the Omni X — 16K HD precision, LiDAR autofocus, 10,000 mm/s speed, 3D internal glass engraving — in an open-frame design that's lighter, more flexible, and more accessible in price.

At $3,299, the XE sits below the Omni X's $4,600 starting point. The difference isn't in the laser or the capability — it's in the housing. The Omni X ships with a fully integrated Class-1 safety enclosure. The XE ships as an open frame, requiring separate eye protection and an optional enclosure if your environment needs it.

For the right buyer — a professional working in a controlled private studio, a production operator with existing laser safety infrastructure, or a high-volume specialist who needs the XE's open-frame access for larger irregular pieces — this is a meaningful value proposition. This review covers what you get, what you give up, and who the XE genuinely suits.

Who the Omni XE Is Actually Built For

The Omni XE is built for operators who have the setup discipline to work safely with an open-frame UV laser and want maximum performance-per-dollar without paying for an enclosure they don't need.

This includes professional engravers and small manufacturers with dedicated laser workstations where access control and PPE protocols are already established. It includes operators who regularly work with larger or irregularly shaped items — oversized glass panels, long wooden boards, custom fabricated pieces — where an enclosed design's fixed-dimension work area creates constraints. And it includes serious hobbyists and Etsy-level businesses that have outgrown the Omni 1 and want the automation features of the X-series at a lower price point.

What it is not: the right machine for shared workspaces, retail studios where customers are present, or environments where laser safety can't be managed by the operator alone. For those contexts, the Omni X's Class-1 enclosure is the appropriate choice. Our ComMarker Omni 1 vs Omni X comparison covers the full safety and capability spectrum across the Omni range if you're still working out where each model fits.

What Separates the XE From the Omni X

The core technology in the Omni XE and Omni X is identical. Same UV wavelength (355nm). Same laser power options (5W/10W, with a 12W upgrade kit available). Same LiDAR autofocus system. Same 10,000 mm/s SpeedMax™ galvo speed. Same 0.0019mm spot size and 16K HD resolution. Same 150×400mm extended working area with the slide accessory. Same 3D internal engraving capability with motorized Z-axis.

The differences are structural, not laser-technical. Here's what actually changes between the two models:

Higher Power Configuration

Both machines offer the same 5W and 10W UV laser configurations, and both support the 12W laser upgrade kit — a separate accessory that steps up laser power for higher-contrast marking and faster cutting on demanding materials. The XE is not a lower-powered version of the X; it's the same laser in different packaging.

For applications that need maximum UV power — thick material cutting, deeper glass subsurface work, high-volume marking runs on demanding substrates — the 10W configuration (or 12W upgrade) is available on the XE exactly as it is on the Omni X.

Industrial Build and Duty Cycle

The Omni XE uses a ColdFront™ thermal control system to manage operating temperature during extended engraving sessions. This is the same thermal management approach used in the Omni X, adapted for the open-frame design.

Without an enclosure, heat dissipation from the surrounding environment is more efficient on the XE than on the Omni X. Extended production runs — batch marking of serial components, high-volume gift personalization, industrial identification marking — benefit from this. The open frame means the system doesn't retain the heat that an enclosed machine generates around the work area during long sessions.

Extended Working Area

The standard working area on both the XE and Omni X is 150×150mm. With the slide extension accessory, both expand to 150×400mm. For the Omni XE's open-frame design, this extended area is arguably more practical — there are no enclosure walls limiting the height or shape of items you can place in the work zone. Large glass panels, elongated custom pieces, and items with unusual profiles are more accessible on the open-frame XE than on an enclosed machine.

Key Specs in Plain English

Power and Speed

The 10,000 mm/s SpeedMax™ system and 16K HD engraving precision are ComMarker's top specifications in the UV range — shared between the XE and Omni X. For context: this speed allows standard logo and text engraving on glass or plastic to complete in seconds at production quality. The fine 0.0019mm spot enables micro-text, intricate patterns, and photo-quality engravings on glass, ceramic, and anodized aluminum that larger-spot UV systems can't replicate.

Galvo System and Precision

The galvo scanning system on the XE delivers the same positional accuracy and repeatability as the Omni X. ZeroBurn™ technology — ComMarker's branding for the UV cold ablation process — ensures that heat-sensitive materials including plastics, leather, and thin polymers are marked without thermal discoloration or surface damage. This is the fundamental advantage of UV cold processing over diode and CO2 lasers for delicate materials, and the XE delivers it fully.

Software and Control

The Omni XE supports LightBurn via the Galvo plugin and ComMarker Studio, which handles 3D internal engraving workflows including the motorized Z-axis depth sequencing. ComMarker Studio also supports local job storage — the machine can complete a running job independently even if the PC connection is interrupted, which matters for long 3D crystal engraving sessions of 45–90 minutes.

Real-World Performance

Batch Marking on Plastics and Electronics

UV cold processing is the right technology for batch marking on heat-sensitive materials — ABS, polycarbonate, nylon, silicone, PCBs, and flexible circuits. The 355nm wavelength breaks molecular bonds without thermal input, preventing the melting, discoloration, and surface damage that diode and CO2 lasers cause on these substrates.

For electronics manufacturing and component marking, this makes the Omni XE a technically correct tool in a way that other laser types simply aren't. PCB identification, product serial numbers on plastic housings, and marking on coated electronic assemblies are all achievable cleanly at the XE's 10,000 mm/s speed. Batch processing dozens of small components per session is well within normal operation.

The open-frame design is particularly useful here — placing and removing small components in a batch fixture is easier without enclosure walls limiting access from the sides.

Glass and Coated Metal

Glass engraving is the Omni XE's signature application category, as it is for the full Omni series. The 355nm UV wavelength is absorbed by glass rather than transmitted through it, enabling direct frosted surface marking and — with the motorized Z-axis — 3D subsurface engraving inside glass and crystal blocks.

For a detailed look at settings methodology and material-specific results, our UV laser engraving on glass guide covers the full workflow including focus distance, frequency, Q-pulse parameters, and the differences between soda-lime, borosilicate, and K9 crystal. The XE's LiDAR autofocus addresses one of the historically fiddly parts of glass engraving — maintaining consistent focal distance on curved surfaces like wine glasses — automatically.

On coated metals (anodized aluminum, powder-coated steel, painted surfaces), the UV cold process removes coating cleanly without burning or discoloring the surrounding material. This makes the XE useful for branded metalware, personalized drinkware, and industrial component marking on finished metal pieces.

High-Volume Serial Production

For consistent serial production — the same design on hundreds of pieces — the XE's LiDAR autofocus and pre-calibrated material settings in ComMarker Studio enable repeatable, reliable results without re-calibrating focus for each batch. The slide extension's 150×400mm area allows multiple items to be set up in a single layout and processed sequentially without repositioning.

The open-frame design also makes loading and unloading parts faster in a production context — there's no lid to open and close with each piece, and items can be loaded from any angle. For high-volume marking of small components at a dedicated station, this practical access advantage adds up over the course of a production day.

Where the XE Earns Its Premium

The XE sits at $3,299 — not inexpensive for a desktop UV laser, but competitively positioned against comparable UV galvo systems with LiDAR autofocus and 3D capability.

What justifies the price against cheaper UV alternatives:

LiDAR autofocus. Comparable UV galvo lasers without autofocus require manual focus calibration for every material thickness change. The XE's LiDAR system adjusts automatically, which is a genuine workflow improvement for operators running multiple material types per session.

3D crystal engraving. Full motorized Z-axis with ComMarker Studio support enables the 3D subsurface engraving inside K9 crystal blocks that commands $60–$200 per piece at retail. This product category requires this specific capability — machines without motorized Z-axis cannot produce it. At the XE's price, this is an accessible entry point to a high-margin product line.

Slide extension to 150×400mm. The expandable work area opens up product categories (wine bottle engraving, long wooden boards, sequential batch layouts) that smaller fixed-area UV lasers can't serve.

Who Doesn't Need the XE (And Should Look Elsewhere)

Shared workspaces, retail studios, or environments with people present during operation: The XE is open-frame and requires safety glasses during operation. If you can't control access during operation or if customers or colleagues are regularly in the room, the Omni X's Class-1 enclosure is the appropriate choice.

Complete beginners wanting a guided experience: The XE's open-frame design and LightBurn/ComMarker Studio workflow requires more laser safety knowledge and parameter-building discipline than an entry-level enclosed machine. The Omni 1 at $999 is a better starting point for someone new to UV laser work.

Pure surface engraving without 3D: If your work is exclusively surface frosting on glassware and you don't need LiDAR autofocus or 3D crystal capability, the Omni 1 produces comparable surface results at a fraction of the XE's price.

ComMarker Omni XE vs Omni X: The Practical Decision

The choice between the XE and Omni X comes down to one question: do you need the built-in enclosure?

If yes — if you operate in a shared studio, have customers present, work with employees who aren't laser operators, or want Class-1 certification for your workspace — buy the Omni X. The $1,300 premium buys a fully enclosed Class-1 machine that handles safety for you.

If no — if you work alone in a controlled private space, already have proper PPE infrastructure, or need the open-frame access for irregular or oversized pieces — the XE delivers identical laser performance for $1,300 less. You get the same LiDAR autofocus, same 3D crystal capability, same speed and precision. You manage safety yourself.

For a full comparison of the Omni X's specific capabilities and how it handles 3D crystal work, see our ComMarker Omni X review.

Who Should Buy the ComMarker Omni XE?

The XE is the right machine for operators who want the Omni X's full capability in a more accessible, open-frame package and who have the environment to use it safely.

Professional private studios — jewelry makers, custom gift businesses, and engraving professionals working in dedicated spaces with controlled access and established laser safety protocols. The XE's performance matches the Omni X; the savings go toward K9 crystal inventory, accessories, or the 12W upgrade kit.

Production shops with laser safety infrastructure — operations already running fiber or CO2 lasers where safety glasses, ventilation, and access control are standard practice. Adding the XE to an existing laser-equipped production environment is straightforward.

3D crystal engraving businesses building or expanding that product line. The XE's motorized Z-axis and ComMarker Studio 3D workflow make it one of the most accessible paths to 3D crystal portrait production at desktop scale.

Operators working with large or irregular items where the open frame's unrestricted access to the work area is a practical advantage over an enclosed machine's constrained interior dimensions.

If this describes your setup, you can Buy the ComMarker Omni XE directly from The Maker's Chest.

Final Verdict

The ComMarker Omni XE is exactly what ComMarker positions it as: the full performance of the Omni X — LiDAR autofocus, 3D crystal engraving, 10,000 mm/s, 16K HD precision — in an open-frame design at a lower price.

The trade-off is honest and straightforward. You're not getting less capable technology; you're getting less enclosure. If you have the discipline and environment to operate an open-frame UV laser safely, you get everything the Omni X delivers for $1,300 less. If you don't, the Omni X is worth the premium.

For the right buyer — a professional engraver in a controlled studio who wants the most capable UV laser accessible at this price — the XE is a compelling machine. The laser is the same. The results are the same. The difference is in how you manage the safety around it.

Frequently Asked Questions

What is the main difference between the ComMarker Omni XE and Omni X?

The core UV laser technology, LiDAR autofocus, 3D crystal engraving capability, speed (10,000 mm/s), and precision (0.0019mm) are identical between the two machines. The defining difference is the enclosure: the Omni X has a fully integrated Class-1 safety enclosure with smoke containment; the Omni XE is an open-frame design requiring separate laser safety glasses during operation. The XE is approximately $1,300 less than the Omni X as a result. For operators in controlled private environments who can manage their own safety protocols, the XE delivers identical engraving results at a lower cost.

Is the ComMarker Omni XE safe to use?

Yes, when used with proper protective equipment. The XE is a 355nm UV laser operating as an open-frame Class 4 system — laser safety glasses rated for UV at 355nm are required at all times during operation, and no one without PPE should be in the room when the laser is active. This is manageable in a private, dedicated workspace with established laser safety practices. For shared spaces, retail environments, or any setting where controlling access during operation isn't possible, the Omni X's Class-1 enclosure provides the appropriate level of safety compliance.

Can the ComMarker Omni XE do 3D crystal engraving?

Yes. The XE includes the motorized Z-axis and ComMarker Studio software support required for 3D subsurface engraving inside glass and K9 crystal blocks. This is the same 3D crystal capability as the Omni X — subsurface portraits, objects, and sculptures that appear to float inside clear crystal blocks, a premium gift product that sells for $60–$200+ per piece. The workflow requires importing or generating a depth map in ComMarker Studio and allowing the machine to run the Z-axis stepping sequence, which typically takes 45–90 minutes per piece.

What materials can the ComMarker Omni XE engrave?

The XE supports 1,500+ materials per ComMarker's documentation. In practical terms: glass and crystal (surface frosting and 3D subsurface), K9 crystal (3D engraving), plastics (ABS, polycarbonate, PET, nylon, silicone, rubber, PCBs) without thermal damage, anodized aluminum, coated metals, painted surfaces, ceramics, wood, leather, paper, fabric, bamboo, stone, and food surfaces. UV cold processing handles heat-sensitive materials that diode and CO2 lasers damage — this is the fundamental advantage that makes UV laser technology worth the premium for glass, electronics, and precision plastics work.

How does the Omni XE work area compare to the Omni X?

The standard working area is 150×150mm on both machines with the included field lens. Both support an optional slide extension that expands the effective working area to 150×400mm for longer pieces and larger batch setups. The open-frame design of the XE provides an additional practical advantage: there are no enclosure walls limiting the height or profile of items you can place in the work zone, making the XE more flexible for large, irregular, or unusual items that wouldn't fit inside the Omni X's enclosed interior.

Does the ComMarker Omni XE support LightBurn?

Yes. The Omni XE supports LightBurn via the LightBurn Galvo plugin for standard surface engraving workflows. ComMarker Studio is the primary software for 3D crystal engraving (Z-axis control and depth sequencing) and provides local job storage for long engraving sessions. Both platforms are fully functional, and users can choose between them based on their workflow preference. The LightBurn Galvo plugin is a separate purchase.

What is the ZeroBurn™ technology in the Omni XE?

ZeroBurn™ is ComMarker's branding for the UV cold ablation process that distinguishes UV lasers from infrared laser types. The 355nm UV wavelength interacts with materials through photochemical bond breaking rather than thermal heating — meaning the laser doesn't generate significant heat at the engraving point. This protects heat-sensitive materials (plastics, leather, PCBs, thin polymers, glass) from the melting, discoloration, and thermal cracking that CO2 and fiber lasers can cause. It's not a proprietary technology per se — it's the fundamental physics of UV laser processing — but it correctly describes the core capability that makes the Omni XE useful for materials that other lasers damage.
