What 120W Adds Over 100W
More average power means faster deep engraving and faster material removal per pass. A job that takes 60 minutes at 100W takes roughly 50 minutes at 120W. Across a full shift running deep engraving, that compounds into real additional production capacity per week.
The 120W also steps up the galvo hardware: the SG7110 scanning head with silicon (Si) mirrors rather than the standard K9 glass mirrors in the 100W configuration. Si mirrors have a higher laser damage threshold (10 J/cm² vs. 9.1 J/cm²), meaning better long-term optics reliability under sustained high-power operation. Industrial water cooling is included at this power level.
The full MOPA application set remains unchanged: color marking on stainless and titanium, anodized aluminum blackening, deep engraving on hard metals, thin metal cutting up to ~1.5mm. All 120W configurations ship with quartz F-theta lenses.

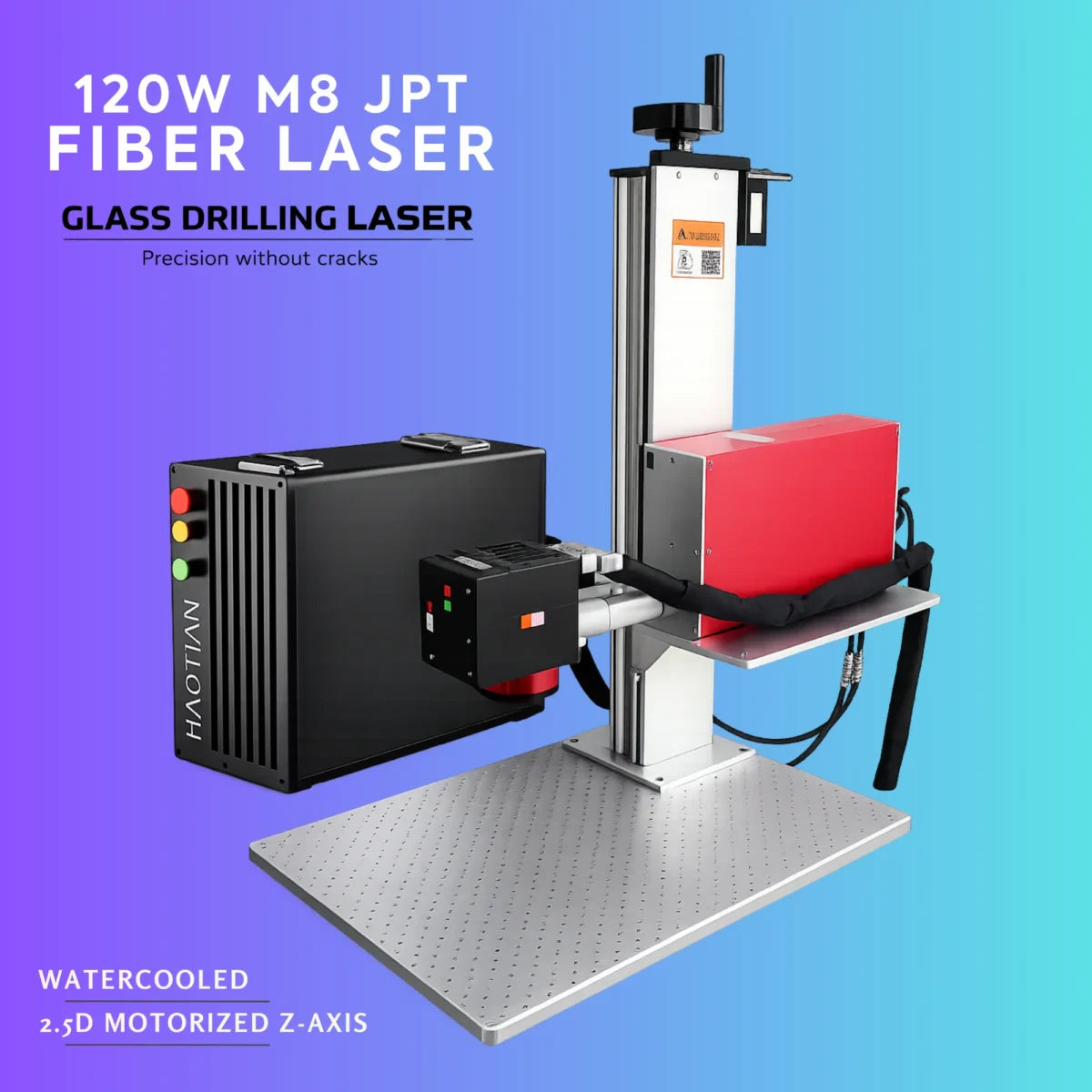

The Two 120W Sources — M7 vs. M8
|
JPT MOPA M7 (M-version) |
JPT MOPA M8 (M-version) |
| Color marking on stainless/titanium |
Yes — full spectrum |
Yes — full spectrum |
| Deep engraving on metals |
Excellent |
Excellent |
| Thin metal cutting |
Up to ~1.5mm |
Up to ~1.5mm |
| Glass drilling |
No |
Yes — G3 PRO 2.5D galvo + EZCad3 |
| 2.5D mold cavity work |
Limited |
Yes — full Z-axis layer control |
| Galvo head |
SG7110 with Si mirrors |
G3 PRO 2.5D with integrated EZCad3 |
| Software |
EZCad 2 original / LightBurn |
EZCad3 + LightBurn (2D) |
| Cooling |
Water cooled (chiller included) |
Water cooled (chiller included) |
| Price |
Lower |
Premium for glass capability |
Same decision rule as at 100W: M7 if your work is metals. M8 if glass, crystal, or 2.5D mold work is a genuine production requirement.
What's Included — Complete Working System
Every 120W configuration ships complete:
- JPT MOPA source at your selected variant (M7 M-version or M8 M-version)
- Sino-Galvo SG7110 with Si mirrors and dual red-dot positioning (M7) or G3 PRO 2.5D galvo with integrated EZCad3 (M8)
- Two quartz F-theta lenses of your choice — 70×70, 110×110, 150×150, 175×175, 210×210, or 300×300 mm
- Rotary attachment — D60, D80, or D100
- Motorized 500mm Z-axis tower
- Foot pedal
- OD6 certified safety glasses
- EZCad 2 original software (M7) or EZCad3 (M8)
- Industrial water chiller (included)
- Fixed aluminum worktable
Free DDP shipping to the US, Canada, and EU. Approximately 30 days delivery.
3-Year Warranty — And Why That Number Actually Matters
Both 120W variants carry 3 years of full coverage on the JPT source and the complete machine — chiller, galvo head, motorized Z-axis, and all electronics included. At this power level and price point, that coverage matters more than it does on a 20W marking station. A galvo head replacement outside warranty on a machine running production daily is a significant unplanned cost. On the Haotian, it's a warranty claim.
Competing fiber laser brands commonly offer 1 year at this power level. The Haotian 3-year standard is a meaningful differentiator for shops planning to run this machine for years.
The Maker's Chest Difference
75-day returns — Enough time to run production work, confirm the 120W step-up is delivering the throughput improvement you need, and verify the source variant is right.
USA-based support by phone and email — Chiller commissioning, EZCad setup, parameter migration from your previous machine, deep engraving optimization.
Pre-sale guidance — Deciding between 100W and 120W, or between M7 and M8? We'll give you an honest answer based on your actual work volume and material list.
Frequently Asked Questions
Q: Is the 120W worth the step up from 100W, or should I go straight to 200W?
The 120W makes sense for shops where the 100W is a genuine production bottleneck — jobs take too long, you're turning down work, or you need another 15–20% throughput to meet demand. If you're not hitting that wall yet, the 100W is still an excellent machine. If your production volume justifies a big throughput jump, the 200W delivers roughly 50% faster deep engraving over 100W — a more dramatic improvement, but also a larger investment. Talk to us if you're genuinely between 120W and 200W — we'll ask about your volume and give you a direct recommendation.
Q: What are Si mirrors, and why do they matter at 120W?
The SG7110 galvo on the 120W M7 uses silicon (Si) mirrors rather than the standard K9 glass mirrors in the 100W. Si has a higher laser damage threshold — 10 J/cm² vs. 9.1 J/cm² for K9 glass. Under sustained high-power operation, Si mirrors maintain surface quality longer, reducing gradual degradation of mark quality over thousands of production hours. For a machine running at 120W daily, this is a meaningful long-term optics advantage.
Q: Does the M8 at 120W drill glass as effectively as the 200W M8?
Both drill glass using the same G3 PRO 2.5D galvo and EZCad3 process. The 200W is approximately 40–60% faster because it removes material per layer more aggressively. For shops where glass drilling is occasional work alongside metal engraving, the 120W M8 is sufficient. For shops where glass drilling is daily high-volume production, the 200W M8 delivers meaningfully better throughput.
Q: How do I set the Z-axis focal height?
The 120W includes a motorized 500mm Z-axis tower. Use the control buttons to raise or lower the head until the dual red-dot pointers converge precisely on your material surface. Save focus heights per material in your parameter library for fast batch changeovers. The motorized Z also coordinates with EZCad3 for automatic layer-by-layer Z movement during 2.5D deep engraving (M8 variant).
Q: Can settings from my current 60W or 100W machine transfer to the 120W?
Most parameters transfer with adjustments. Your 60W or 100W color marking parameters are a valid starting point on the 120W — you'll tune speed up and may reduce pass counts on deep work because more power removes material faster per pass. The MOPA pulse width and frequency relationships to material response stay consistent across the M7 family.
