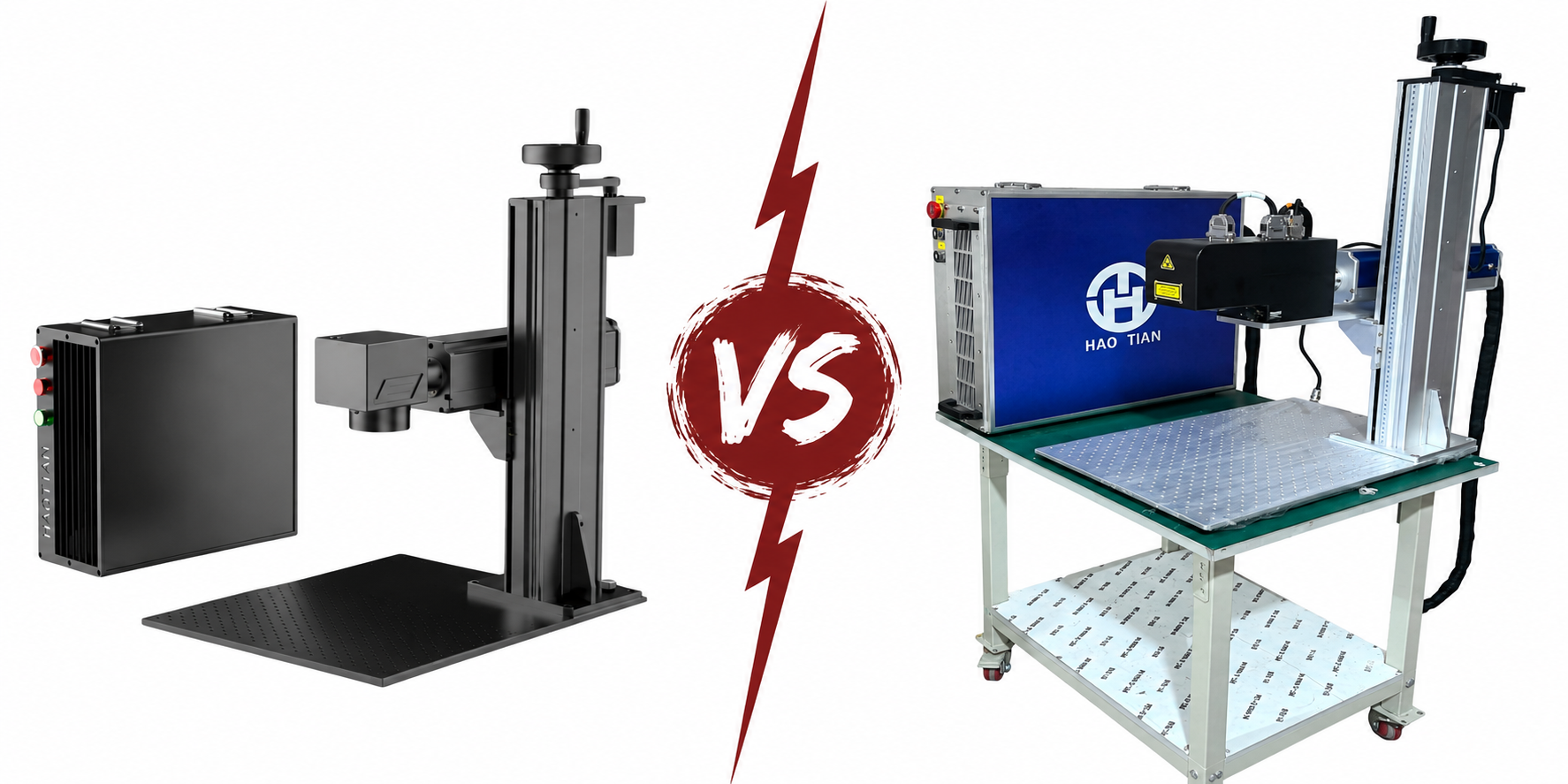

Haotian 2D vs 3D Feeltek Fiber Lasers: Is Dynamic Focus Worth It?

The short answer: choose a conventional 2D Haotian fiber laser when most work is flat, cylindrical with a rotary, or performed at one controlled focal height. Pay for the 3D Feeltek system when the laser must maintain focus across curved, sloped, stepped or uneven surfaces, or when a validated large-field or relief process requires dynamic Z control. The 3D machine is not automatically faster or better on flat work, and it brings a different software workflow.

The decision is easier when you separate the laser source from the focusing system. A standard Haotian fiber laser uses a fixed focal plane and a two-axis galvo head. The Haotian 3D Feeltek Fiber Laser Engraver adds dynamic focus control so the focal point can move in Z while the X and Y mirrors scan. That capability can solve difficult geometry—but only if your parts actually require it.

Table of Contents

1. Quick comparison
2. What 2D, 2.5D and 3D mean
3. What a conventional 2D galvo does best
4. What Feeltek dynamic focus unlocks
5. What 3D does not fix
6. Software and workflow differences
7. Is the price premium worth it?
8. Decision by application
9. Choose 2D or 3D Feeltek if
10. Frequently asked questions

Haotian 2D vs 3D Feeltek: Quick Comparison

Based on the calls our team fields every week, buyers often use “3D engraving” to describe three different things: engraving a height-map relief into a flat block, marking an existing curved object, or engraving an image inside crystal. Those are different processes. A Feeltek fiber system is designed primarily around dynamic focus for external surfaces and compatible relief workflows; it is not a universal replacement for every machine described as “3D.”

What 2D, 2.5D and 3D Mean on a Galvo Laser

2D: X and Y scanning on a fixed focal plane

A standard galvo head steers the beam in X and Y through an F-theta lens. The workpiece is positioned so its marking surface sits at the lens’s focal distance. Within the usable field, the lens and correction file keep the spot acceptably focused on that plane.

This is ideal for nameplates, flat jewelry blanks, knife blades, firearm slides, tools, tags, electronic components and thousands of other commercial products. A Z-axis can move the head up or down between jobs, but it does not continuously change focus while a job is running.

2.5D: layer-controlled depth on a mostly planar workpiece

The term 2.5D commonly refers to building depth through layers. The laser repeatedly removes material while software adjusts the intended Z relationship or processes slices from a height map. This can create coins, reliefs, cavities and textured surfaces. Some conventional systems can create impressive relief work by running many layers and manually or mechanically managing focus. An advanced head/controller can automate more of that relationship.

3D dynamic focus: X, Y and optical Z work together

A dynamic-focus system adds a controllable optical axis that shifts the focal point while the beam scans. The software uses surface or height information to keep the spot focused across changing geometry. On a dome, taper, angled face or stepped part, the system can compensate for height differences that would push portions of the design out of focus on a flat-field machine.

That is the real value of Feeltek: it expands the usable geometry, not merely the wattage or maximum marking speed.

What a Conventional 2D Haotian Galvo Does Best

A 2D galvo remains the correct machine for most fiber-laser businesses because most sell work that can be presented to the lens as a flat surface. Even cylindrical objects can often be handled with a rotary, which turns the part while the laser marks a narrow focused band.

Flat parts and repeatable fixtures

Production marking rewards repeatability. If a fixture holds every part at the same height, a fixed focal plane is an advantage rather than a limitation. The operator loads the part, runs the file and repeats. There is less surface data to prepare and fewer axes to calibrate.

Color marking and black marking

MOPA color on stainless steel and black marking on anodized aluminum depend on source control, preparation, focus and parameters. Dynamic focus does not inherently create better color on a flat coupon. If color work is your priority, invest first in the correct MOPA source, stable focus, surface consistency and parameter development.

Deep engraving on flat metal

A conventional high-power M7 can remove significant material from a flat tool, die, firearm component or coin blank. Relief artwork can be produced through layered passes. The 3D head becomes valuable when the process requires coordinated Z control or the workpiece itself changes height—not simply because the final cavity has depth.

Rotary work with predictable geometry

Rings, tumblers, tubes and cylindrical parts can often be engraved with a rotary. The rotary presents successive portions of the circumference to the focal zone. This is a proven solution when the object is symmetrical, can be clamped securely and fits the rotary’s capacity. Dynamic focus may reduce setup or handle more complex profiles, but it does not eliminate the need to support or rotate every long, heavy or irregular part safely.

LightBurn-centered shops

If your team already uses LightBurn and the work is flat, staying with a compatible 2D JCZ-based configuration can be operationally valuable. Familiar design, layers, libraries and job preparation reduce training time. Software preference should not override a genuine geometry requirement, but it belongs in the total-cost calculation.

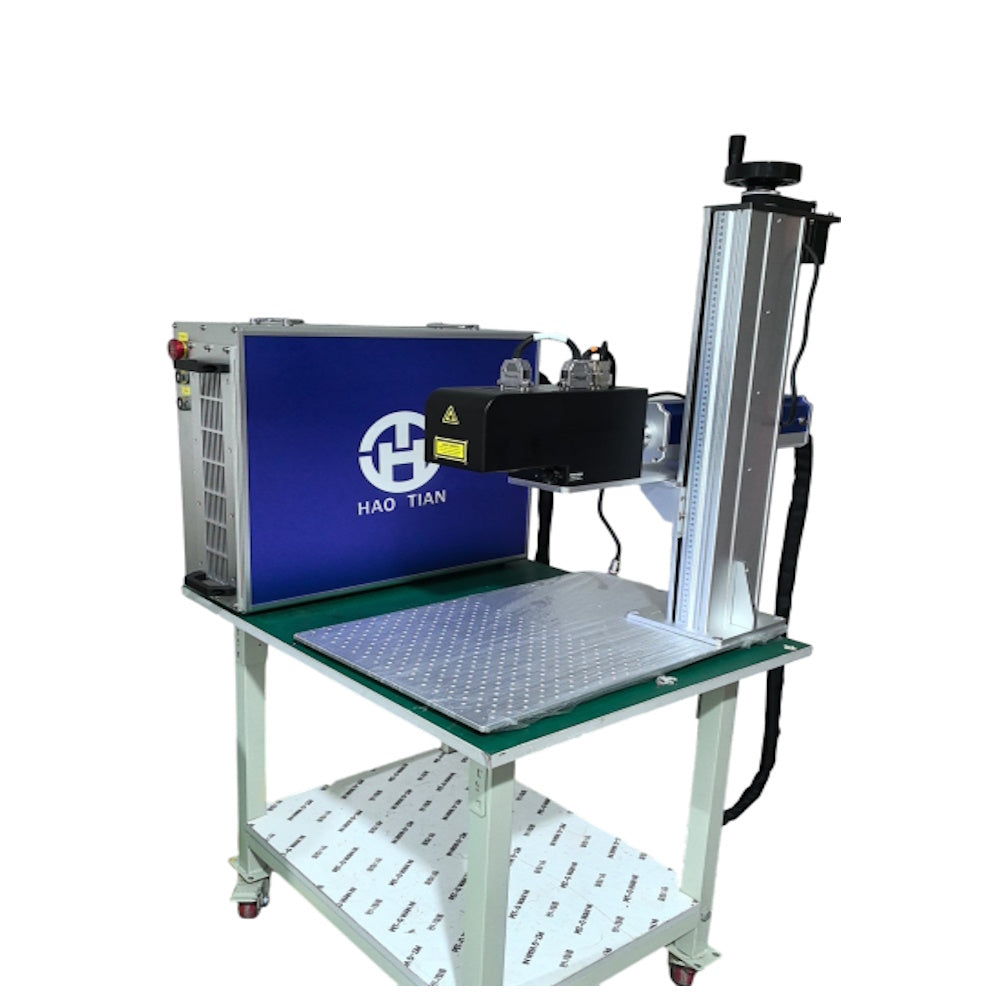

What the Haotian 3D Feeltek System Unlocks

Marking across curved surfaces without losing focus

On a dome or curved face, the center and edges sit at different distances from the lens. A fixed-focus system may produce a sharp center and soft edges, or require the artwork to be divided into multiple setups. Dynamic focus can follow the intended surface so more of the design stays within the effective focal zone.

Sloped, angled and stepped parts

Industrial components often have bosses, recesses, chamfers, angled faces or several marking planes. If the mark crosses those changes, dynamic focus can reduce manual repositioning and separate operations. The value is strongest when the geometry repeats and the surface model or mapping process can be reused across a batch.

Larger fields with better focus management

Wide fields challenge a fixed optical system because spot behavior and focal error become harder to control away from the center. Dynamic focus can help maintain working focus across larger areas. It does not make a large field optically identical to a small lens, and buyers must still account for spot size and energy density, but it can improve the practicality of large-format marking.

Height-map and relief workflows

LenMark 3DS supports height-related processing used for surface marking and compatible relief work. This can simplify jobs that would otherwise require manual layer management. The benefit depends on the artwork, calibration and material-removal strategy. A 3D head does not automatically generate a clean relief from a low-quality grayscale image.

Tall or awkward workpieces

The current Haotian Feeltek listing uses a 700mm tower rather than the 500mm column common on many standard systems. Extra vertical clearance helps with fixtures, rotaries and tall components. Clearance is not load capacity: a heavy or long part still requires independent support and safe workholding.

What a 3D Feeltek System Does Not Fix

It does not make the source more powerful

An 80W source remains an 80W source whether it is paired with a 2D or 3D scan head. Dynamic focus changes where the energy is delivered. It does not turn an 80W machine into a 200W material-removal system.

It does not make every curved job fixture-free

The part must remain stable and accurately positioned. A long pipe, heavy component or irregular casting may need a dedicated fixture, tail support or industrial positioner. Optical focus compensation cannot prevent the object from moving, vibrating or overloading the table.

It does not replace a rotary in every application

A rotary can expose an entire circumference and preserve a predictable relationship between the artwork and a cylindrical surface. A 3D head can compensate within its optical and geometric range, but extreme wraparound coverage may still require rotation. The two technologies can complement one another.

It does not guarantee one-click 3D artwork

Surface files, height maps and relief designs still require preparation. Calibration establishes the relationship among the head, lens, field and workpiece. Operators must understand how focus, hatch, pulse settings and layer depth interact. Expect a learning curve and test material.

It does not create subsurface crystal portraits

Internal crystal engraving is a different process associated with suitable UV or green-laser systems and specialized point-cloud workflows. A 3D Feeltek fiber laser is not automatically an internal crystal engraver simply because both use the term “3D.”

Software and Workflow: The Difference Buyers Should Not Miss

The current Haotian 3D Feeltek product uses LenMark 3DS. It supports control over marking parameters, focus behavior and 3D surface processing, with imports that include common vector, bitmap and 3D-related production formats depending on the workflow.

Do not assume the machine’s dynamic 3D functions run inside standard LightBurn galvo mode. LightBurn compatibility depends on the controller and supported hardware architecture; a familiar 2D JCZ configuration and a Feeltek/LenMark dynamic-focus configuration are not interchangeable. If LightBurn is mandatory for your organization, put that requirement in writing and confirm exactly which operations will work before ordering.

This software difference affects more than preference. It influences operator training, file preparation, computer requirements, support and how easily the new machine fits an existing fleet. A buyer who needs curved-surface capability may reasonably accept LenMark. A flat-part shop may gain little from changing software ecosystems.

Calibration carries more weight

A 2D galvo needs lens correction, scale and focus calibration. A dynamic-focus system adds the relationship between commanded Z and the actual surface. Errors can appear as inconsistent focus, distorted placement or depth variation. Repeatable results require a documented setup and controlled fixtures.

Ask for a sample made from your geometry

A flat sample does not prove a 3D system can handle your part. Send the actual object or an accurate drawing with dimensions, curvature, height changes and required mark location. Ask the supplier to document the head, lens, source, software and processing method used for the sample. This is the most reliable way to turn a general capability claim into a purchase decision.

Is the 3D Feeltek Price Premium Worth It?

At publish time, TMC’s matching high-power M7 configurations show a consistent premium of approximately $5,300 for the 3D Feeltek system:

Prices are subject to change. More importantly, the premium should be compared with the cost of the problem it solves.

The premium can be justified when:

• A recurring part requires several manual focus positions or separate operations on a 2D machine.
• Curved or stepped geometry causes unacceptable softness, depth variation or rejected parts.
• The business can sell work competitors with flat-field machines cannot execute reliably.
• Reduced setup time across a known batch produces measurable labor savings.
• A validated relief or large-field process depends on dynamic focus.

The premium is difficult to justify when:

• Most revenue comes from flat plates, tags, blades, jewelry blanks or fixtures at one height.
• A rotary already handles the cylindrical work effectively.
• The buyer mainly wants color marking, more depth or faster cycles; those are primarily source and wattage decisions.
• No customer order currently requires curved-surface compensation.
• The team strongly depends on a LightBurn-only workflow.

A simple payback calculation helps. Divide the $5,300 premium by the contribution margin from each job that specifically requires 3D capability. If the system saves $25 of setup labor or scrap per repeat part, roughly 212 parts recover the premium before financing and overhead. If the capability supports a new product with $100 contribution margin, about 53 jobs recover it. If you cannot identify the jobs, the premium is speculative.

2D vs 3D Feeltek by Application

If you are still deciding on source power as well as head type, read our fiber laser buying guide. Choose the wavelength and source for the material and process first; then choose the focusing architecture for the geometry.

Choose a 2D Haotian or 3D Feeltek If…

Choose a conventional 2D Haotian if:

• Most parts are flat or can be held at one repeatable height.
• A rotary already handles rings, tumblers or straight cylindrical parts.
• Your priorities are more power, deeper engraving, color marking or shorter flat-part cycles.
• Your team values a familiar EZCAD2 or compatible LightBurn galvo workflow.
• You would rather invest the $5,300 difference in extraction, lenses, fixtures or a higher-power source.

Choose the 3D Feeltek if:

• Marks must remain sharp across curved, angled, stepped or uneven surfaces.
• You have repeatable complex parts that currently require multiple setups.
• Dynamic focus enables a product or contract with a defensible payback.
• You accept the LenMark 3DS workflow and additional calibration requirements.
• You have tested your real geometry and confirmed the result before ordering.

Final verdict: for the majority of flat-part engraving businesses, the standard 2D machine is the more efficient investment. For a narrower group working with complex geometry, the Feeltek upgrade can transform an awkward multi-step job into a repeatable production process. Buy it for that measurable capability—not for the “3D” label.

Frequently Asked Questions

Can a 2D fiber laser engrave a curved surface?

Yes, within limits. Shallow curvature may remain inside the usable depth of focus, small areas can be repositioned, and cylinders can often use a rotary. Dynamic focus becomes valuable when the height change is large enough to produce visible softness or inconsistent depth.

Does a 3D Feeltek laser engrave faster than a 2D laser?

Not automatically. On a flat part with the same source and lens, the 3D head may provide little speed advantage. It can reduce total production time when it replaces multiple setups, manual refocusing or rejected curved parts.

Can I use LightBurn with the Haotian 3D Feeltek system?

The current Feeltek listing uses LenMark 3DS for dynamic-focus functions. Do not assume standard LightBurn galvo support covers the Feeltek controller or 3D workflow. If LightBurn is mandatory, request written confirmation for the exact controller and functions included in your quotation.

Is 3D Feeltek the same as autofocus?

No. Autofocus commonly moves the head or Z-axis to establish one focal height before the job. Dynamic focus changes the optical focal position while the beam scans, allowing compensation across a surface with varying height.

Can Feeltek engrave all the way around a cylinder without a rotary?

Not necessarily. Coverage depends on diameter, curvature, field, lens and accessible angle. A rotary may still be required for true wraparound engraving or to expose areas outside the optical range.

Is 3D Feeltek better for deep engraving?

It can improve Z-related control in suitable relief workflows, but source power, pulse characteristics, material and parameters still determine removal rate. A higher-power 2D machine may outperform a lower-power 3D machine on a flat deep-engraving job.

What files does LenMark 3DS use?

The current product information lists common vector and production formats such as AI, PLT, DXF, BMP, DST, DWG, LAS and DXP. Exact import support and the workflow for surface or height data should be confirmed for the software version supplied with the machine.

How do I know whether the $5,300 premium is justified?

Identify the jobs that specifically require dynamic focus. Calculate the labor, scrap or new contribution margin associated with those jobs. If there is no repeatable geometry, customer order or measurable saving attached to the capability, choose the 2D system.

What should I provide for a sample test?

Provide the actual part when possible, plus material, dimensions, curvature or step heights, artwork, required mark location, target depth or contrast, cycle-time goal and monthly volume. Ask for the sample to be processed on the same source power, head, lens and software configuration you plan to purchase.

Not sure whether your part needs dynamic focus? Contact The Maker's Chest with photos, dimensions and the required mark area. We can help determine whether a conventional 2D galvo, a rotary setup or the 3D Feeltek system is the most practical solution.
