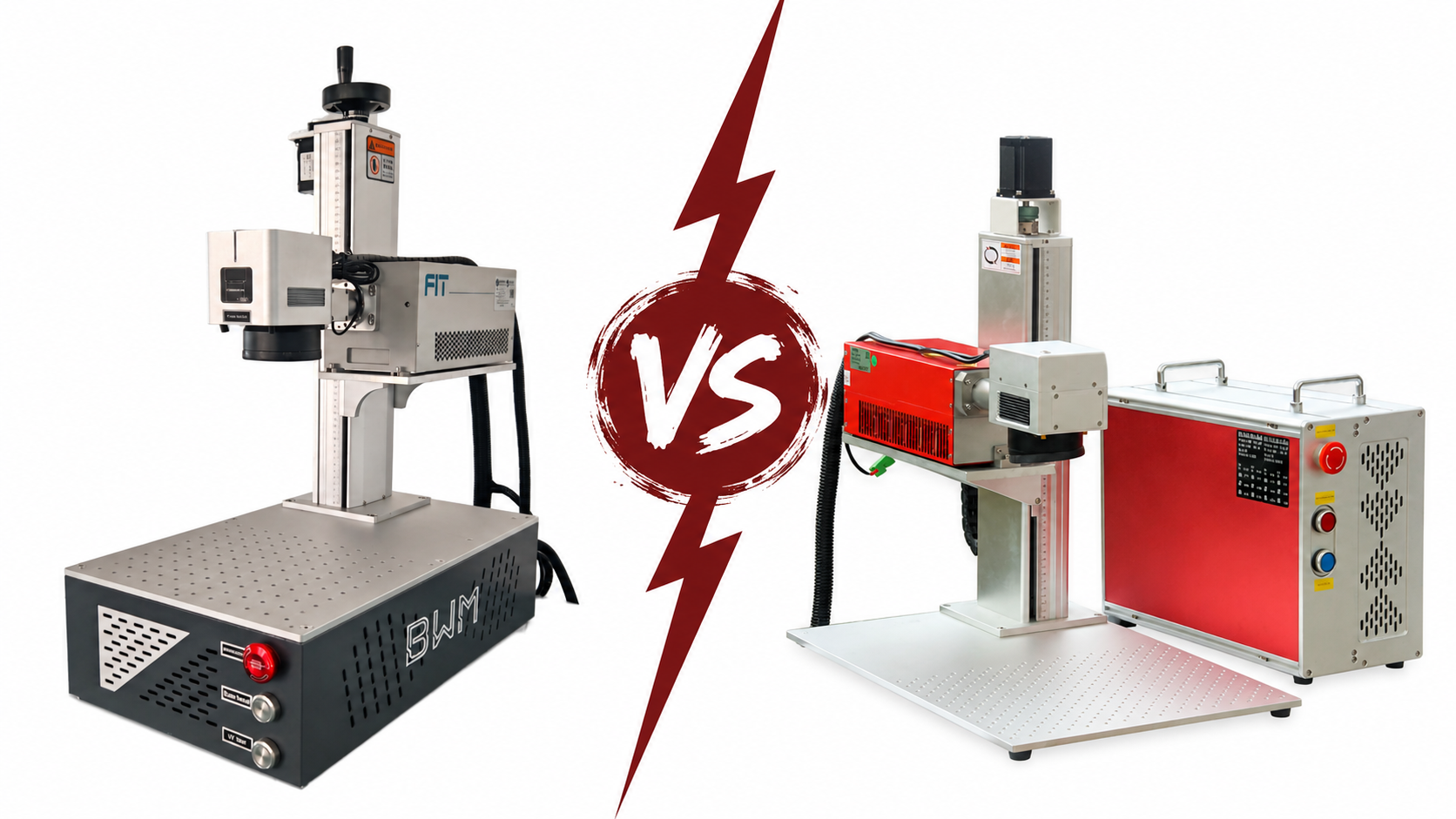

BWM 5W UV vs Haotian 5W UV Laser: Which Should You Buy?
The BWM 5W UV and Haotian 5W UV are both open-frame 355 nm galvo lasers designed for materials that fiber and CO₂ lasers often mark poorly: glass, clear and light-colored plastics, electronics, coated packaging, ceramics and other heat-sensitive surfaces. Both are air-cooled, run without a water chiller and can mark at up to 7,000 mm/s.
They are not, however, the same machine with different branding. BWM uses an Inno 5W UV source and sells a fixed, fast-shipping package at $4,190. Haotian uses a JPT Lark-355-5A source, offers more lens and rotary choices and supports an optional 3D Feeltek upgrade, but costs $5,400 and is built to order.
You can view the BWM 5W UV laser, the Haotian 5W UV laser, or compare UV laser engravers across brands and power levels.
Table of Contents
- Quick Answer
- BWM 5W UV vs Haotian 5W UV Specifications
- Inno vs JPT Lark UV Sources
- Materials and Marking Results
- Lenses, Rotaries and Work Area
- Software and Daily Workflow
- Warranty, Delivery and Returns
- Which 5W UV Laser Should You Buy?
- Frequently Asked Questions
Quick Answer
Choose the BWM 5W UV if price, delivery speed and warranty coverage are your priorities. It is currently $1,210 less, typically arrives in about seven business days and includes a three-year complete-machine warranty. It also includes a D80 rotary and your choice of one 100, 150, 200 or 300 mm field lens.
Choose the Haotian 5W UV if source brand, configuration range or future specialization matters more. Its JPT Lark source has a wider published repetition-frequency range, Haotian offers lens sizes from 70 to 300 mm and a choice of three rotary sizes, and the platform can be ordered with a 3D Feeltek head for curved-surface or subsurface crystal work. Its warranty is 18 months and delivery is approximately 30 days.
For normal flat marking on glass, plastics and electronics, both should be capable 5W production tools. The extra $1,210 for Haotian buys configuration flexibility and the JPT-based platform—not double the marking power or an automatic improvement on every material.
BWM 5W UV vs Haotian 5W UV Specifications
| Feature | BWM 5W UV | Haotian 5W UV |
|---|---|---|
| Laser source | Inno 5W UV | JPT Lark-355-5A |
| Wavelength | 355 nm | 355 nm |
| Cooling | Air-cooled | Air-cooled |
| Repetition frequency | 20–150 kHz | 20–200 kHz |
| Published beam quality | M² 1.2, TEM00 | M² below 1.3 |
| Maximum marking speed | 7,000 mm/s | 7,000 mm/s |
| Minimum line width | 0.01 mm | 0.01 mm |
| Included lens | One; choose 100, 150, 200 or 300 mm | One; choose 70–300 mm |
| Included rotary | D80 | Choice of D60, D80 or D100 |
| Controller/software | Original JCZ, EZCAD2; LightBurn compatible | EZCAD2; LightBurn compatible |
| Published power consumption | 800W | Below 500W |
| Warranty | 3 years, complete machine | 18 months |
| Typical delivery | About 7 business days | Approximately 30 days |
| Current price | $4,190 | $5,400 |
Prices and configurations can change. Confirm the current package on each product page before ordering.
Inno vs JPT Lark UV Sources
The source is the strongest technical distinction. BWM specifies an Inno 5W air-cooled UV source. Haotian specifies the JPT Lark-355-5A, JPT’s dedicated air-cooled 5W UV platform. Both operate at 355 nm and are intended for precision marking rather than cutting or deep metal removal.
BWM publishes a TEM00 spatial mode, M² of 1.2, pulse duration below 18 ns at 50 kHz and a 20–150 kHz frequency range. Haotian publishes M² below 1.3 and a wider 20–200 kHz frequency range. These figures suggest both sources are capable of tight detail. They do not prove that one will produce visibly superior marks across every glass or plastic formulation.
A wider frequency range can provide additional parameter flexibility, but material response remains decisive. Plastic additives, pigmentation, glass composition, coating thickness and focus all influence contrast and surface quality. Buyers should ask for samples on their actual material when a specific production result is critical.
The JPT name may matter to shops standardizing equipment around a known source manufacturer or wanting the Haotian/Feeltek ecosystem. BWM’s Inno source, meanwhile, is paired with a lower complete-machine price and a longer warranty. Source branding should be considered alongside the whole machine rather than treated as the only quality signal.
Materials and Marking Results
Both machines are best suited to precision surface marking where heat input must be controlled. Typical applications include:
- Frosted marks on glass and crystal
- High-contrast marks on white, clear and heat-sensitive plastics
- Serial numbers, QR codes and identifiers on electronics housings and PCBs
- Medical-device and industrial-plastic traceability
- Logos and date codes on coated packaging
- Surface marking on precious metals and jewelry components
- Fine marks on ceramics, stone, leather, paper and selected organic materials
Neither 5W UV laser is the correct tool for fast deep engraving on steel, cutting sheet metal or production cutting of wood and acrylic. A MOPA fiber laser is usually the better choice for deep metal work, while a CO₂ laser is more efficient for cutting organic sheet materials.
UV is often described as “cold marking,” but that does not mean the process creates no heat. It means the short 355 nm wavelength can drive photochemical ablation with much less heat-affected damage than many longer-wavelength processes. Testing and extraction are still required, especially on plastics whose fumes may be hazardous.
Lenses, Rotaries and Work Area
BWM includes one lens selected from 100 × 100, 150 × 150, 200 × 200 or 300 × 300 mm fields. Haotian includes one lens selected from a broader 70 × 70 to 300 × 300 mm range. A smaller field generally concentrates the beam more tightly and is preferable for micro-text, jewelry and small electronic components. Larger fields cover more area but reduce energy density and fine resolution.
Haotian specifically recommends keeping demanding 5W glass work to approximately a 130 × 130 mm field or smaller. This is useful guidance for either brand: a machine may physically accept a 200 or 300 mm lens, but that does not mean every material will retain the same contrast and ablation quality across the larger field. Large lenses make more sense for lower-energy-density marking and batch layouts than for the most demanding glass results.
BWM includes a fixed D80 rotary, a versatile choice for drinkware and many cylindrical products. Haotian lets the buyer select a D60 for rings and bracelets, a D80 for standard drinkware or a D100 for larger cylindrical parts. That choice makes Haotian especially attractive when the rotary application is already known.
Haotian also offers an optional 3D Feeltek configuration for curved-surface focusing and subsurface crystal applications. Buyers whose business plan centers on 3D crystal products should compare the dedicated Haotian 3D Feeltek UV system rather than assuming a conventional 2D 5W galvo will provide the same capability.
Software and Daily Workflow
Both machines ship with EZCAD2 and are compatible with LightBurn’s galvo module. LightBurn can simplify artwork preparation and layered workflows, while EZCAD remains common in industrial marking environments. A LightBurn galvo license may need to be purchased separately depending on the current offer.
BWM uses an original Beijing JCZ controller, a manual lift column and dual red-light focusing. The separate control cabinet includes an emergency stop and key switches. Haotian also uses the familiar split galvo format and provides a fixed worktable with the selected lens and rotary.
Neither standard machine is a fully enclosed Class 1 appliance. UV-rated eye protection, controlled access, a suitable enclosure and fume extraction should be planned before installation. This is particularly important in schools, public makerspaces and businesses with employees who are not trained laser operators.
Warranty, Delivery and Returns
BWM’s package is stronger on speed and warranty. Its 5W UV normally ships by FedEx air freight and arrives in approximately seven business days. BWM provides a three-year warranty on the complete machine and lifetime technical support. Its current delivered price is $4,190.
Haotian builds the machine to order, with approximately 30-day delivery. Its current 5W price is $5,400, and the machine carries an 18-month warranty. Haotian’s price includes DDP shipping to eligible destinations, the selected lens, selected rotary and required accessories.
Both products include duties and import charges in the stated DDP price for eligible destinations. Neither is covered by The Maker’s Chest’s standard return policy because both ship directly from the manufacturer internationally. Warranty coverage and remedies for shipping damage still apply, but an ordinary change-of-mind return should not be assumed.
Which 5W UV Laser Should You Buy?
Buy the BWM 5W UV if:
- You want the lower delivered price.
- You need the machine quickly.
- A D80 rotary and one of the four standard field sizes fit your work.
- A three-year complete-machine warranty materially reduces your risk.
- You want a simple air-cooled 5W UV setup without planning a later 3D upgrade.
Buy the Haotian 5W UV if:
- You specifically prefer a JPT Lark source.
- You need a 70 mm fine-detail field or another Haotian-specific lens size.
- You want a D60 jewelry rotary or D100 large-part rotary.
- You may move toward Feeltek curved-surface or 3D crystal work.
- Configuration flexibility is worth more than the $1,210 price difference and longer delivery time.
For most buyers seeking a conventional 5W UV laser for flat glass, plastics and product marking, BWM currently offers the stronger value package. Haotian earns its premium when its lens selection, rotary choice, JPT source or Feeltek upgrade path solves a specific requirement. Paying more without using those differences is unlikely to produce a proportional improvement in ordinary 2D marking.
Frequently Asked Questions
Is the BWM 5W UV as powerful as the Haotian 5W UV?
Both are rated at 5W and operate at 355 nm. Haotian publishes a wider frequency range, while BWM publishes slightly tighter M² figures. Neither specification alone establishes a universal performance winner across different materials.
Which machine is better for glass engraving?
Both are appropriate for surface marking on glass. Use a relatively small field lens, test the exact glass formulation and avoid assuming that a large 200 or 300 mm field will retain the same energy density. Haotian is the stronger option if subsurface 3D crystal engraving is required because it offers a Feeltek upgrade path.
Which is better for jewelry?
Haotian has the configuration advantage through its 70 mm lens option and D60 rotary. BWM can mark jewelry effectively, but its included D80 rotary and 100 mm minimum listed field are more general-purpose.
Do either of these 5W UV lasers need a water chiller?
No. Both sources are air-cooled. Water cooling becomes relevant in the 10W and 15W configurations.
Can either machine deep engrave metal?
Not efficiently. Both can create fine surface marks on many metals, but a MOPA fiber laser is the appropriate tool for meaningful depth, fast metal removal or production engraving.
Do they work with LightBurn?
Yes. Both are LightBurn galvo compatible and also ship with EZCAD2. Confirm whether a LightBurn license is included with the current offer or needs to be purchased separately.
Why is the Haotian 5W more expensive?
The premium reflects the JPT Lark source, broader lens and rotary choices, built-to-order configuration and its relationship to Haotian’s Feeltek platform. It does not increase output power beyond 5W.
Can I return either machine?
Neither is eligible for The Maker’s Chest’s standard return policy. Confirm materials, lens size, rotary requirement and expected volume before ordering. Covered warranty defects and serious shipping damage are handled under the applicable warranty process.
