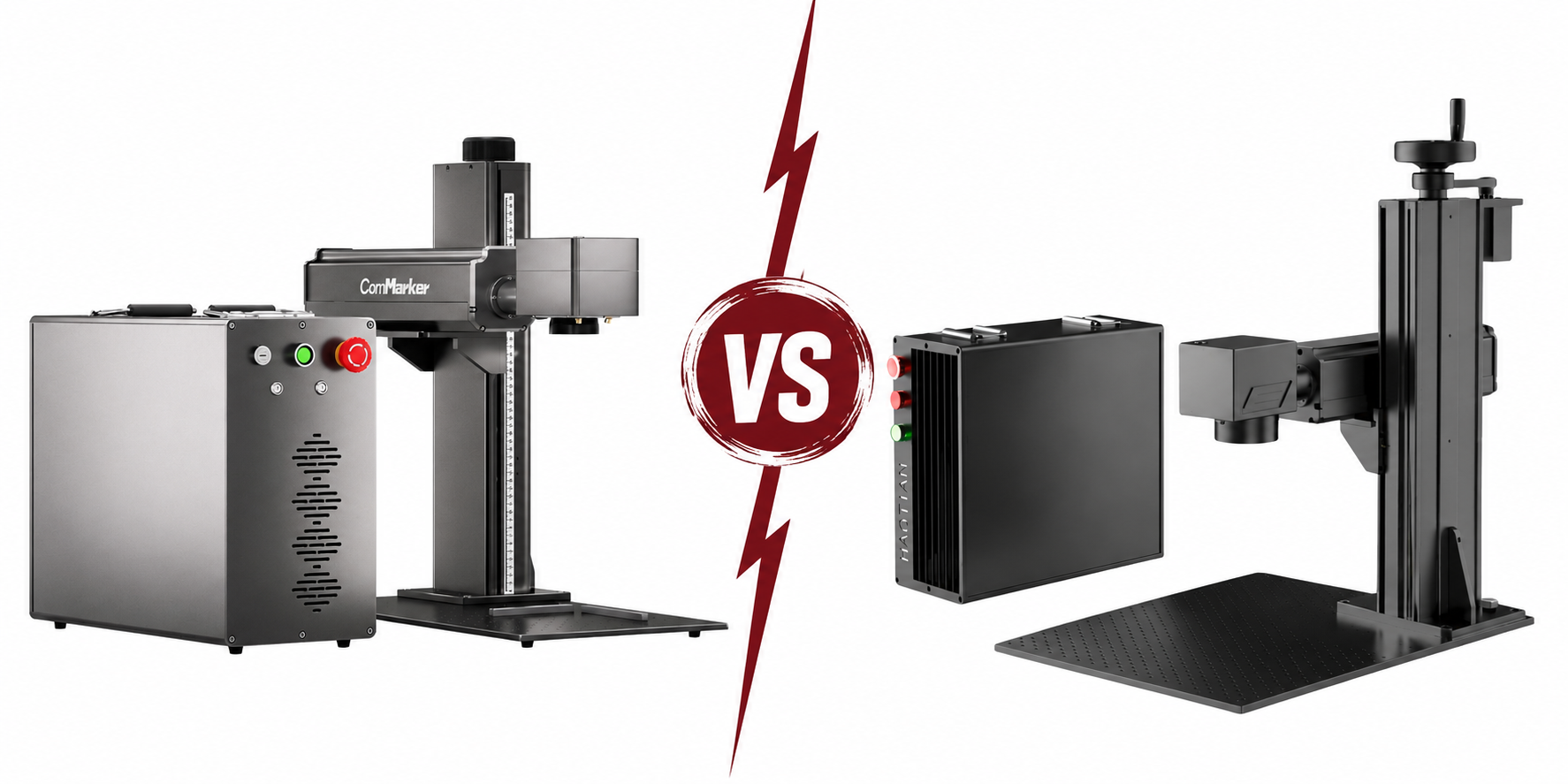

ComMarker Titan 1 vs Haotian 60W MOPA: Which Fits?

ComMarker Titan 1 vs Haotian 60W MOPA is a comparison between a packaged heavy-duty product family and a more configurable industrial galvo platform. At 60W, both can be built around JPT MOPA technology, run LightBurn or EZCad workflows, mark color on suitable metals, and perform deep engraving. The difference is how much configuration judgment you want to exercise—and whether you need Titan’s path to 100W or 200W.

Research note: Specifications and sold configurations were checked against current manufacturer information and The Maker’s Chest catalog in September 2026. Haotian offers three 60W M7 grades, while ComMarker’s Titan listing spans multiple power levels and bundles. Confirm the exact source code, lens, controller, rotary, and enclosure on the order; “60W MOPA” alone is not a complete specification.

The Short Answer

See current configurations on the ComMarker Titan 1 and Haotian 60W JPT MOPA product pages. Those pages own live pricing, stock, and bundle details; this article owns the side-by-side buying decision.

Titan 1 vs Haotian 60W Specifications

The blank spaces in this table are deliberate. A responsible comparison does not invent a scan-speed number or source code simply because competing machines publish one. Ask for the exact bill of materials and use written order specifications as the buying record.

The Most Important Difference: Source Grade Is Not a Footnote

Haotian’s 60W listing separates JPT M7 E2, E, and M-version sources. They share MOPA control, but they are not identical internal builds. Current catalog information positions E2 as the value configuration for moderate daily use, E as an upgraded build for longer sustained operation, and M-version as the top 60W choice with tighter beam quality and the strongest duty-cycle positioning.

Beam quality expressed as M² describes how closely a beam approaches an ideal Gaussian beam. Lower is generally better, but the customer does not buy an M² number; the customer buys a result. Lens quality, focus, calibration, galvo tuning, fixture stability, and settings can overwhelm a small specification advantage. The M-version earns its price when the whole process is controlled well enough to use it.

What MOPA Gives Both Platforms

A 60W JPT MOPA source combines useful average power with wide control over pulse behavior. Compared with a basic Q-switched source, the operator can tune pulse duration and frequency more independently. That supports color development on stainless steel and titanium, controlled black marks on anodized aluminum, lower-heat strategies for selected plastics, and a broader range of surface textures and deep-engraving strategies.

• Color is material science, not a preset. Alloy, finish, oxidation, cleaning, focus, lens, hatch, and pulse settings must remain consistent.
• Deep engraving is a volume-removal problem. Power helps, but debris removal, heat management, pass strategy, and refocusing affect both speed and finish.
• Plastic compatibility is specific. Some polymers mark cleanly; others melt, char, release hazardous fumes, or barely react. Test and confirm safe extraction.
• Large fields trade concentration for coverage. A 300 mm lens is useful for big parts but is not the automatic choice for micro-detail or maximum depth.

Where the Titan 1 Is Stronger

A defined product family

Titan reduces some of the component-level decision burden. The family has clear power tiers and prepared bundles around safety, rotary, and production accessories. That matters for a buyer who wants a coherent system more than a custom bill of materials.

A direct path to 100W and 200W

Haotian sells higher-power systems elsewhere in its range, but this specific product comparison is between the Titan family and the Haotian 60W listing. If 100W or 200W is already justified by deep engraving volume, the Titan page provides that step without changing the buyer’s product family.

Brand-specific setup and support content

A standardized machine can be easier to document across a team because settings, accessories, manuals, and community examples refer to the same chassis. That does not guarantee better output, but it reduces the number of variables during onboarding.

Where the Haotian 60W Is Stronger

Transparent configuration choice

The Haotian listing makes the source grade part of the buying decision instead of hiding all 60W machines behind one label. Buyers who understand why they want E2, E, or M-version can put budget into the characteristic that matters.

A focused 60W value proposition

A shop that has validated 60W as the correct power does not need to pay for a platform story built around future 200W capability. The E2 and E options can be compelling when broad MOPA control, motorized Z, and standard galvo work are the requirements.

Working-field flexibility

A 110 × 110 mm standard field favors spot density and fine work, while optional fields up to 300 × 300 mm cover larger parts. This is valuable only when the lens is chosen deliberately and the settings library is maintained separately for each lens.

60W vs 60W: How to Decide

Before choosing, request a test on your actual alloy with the proposed lens and source. Supply the artwork, target depth or contrast, finish requirement, and acceptable cycle time. A polished manufacturer sample made with unknown settings is less useful than an imperfect test that documents every parameter.

Scan Speed, Power, and the Throughput Myth

Titan publishes a maximum of 10,000 mm/s. That is not the same as a guaranteed production speed, and the absence of an equivalent number in a Haotian order should not be filled with an assumption. Fine marking can be limited by acceleration and short vectors; deep engraving can be limited by energy and pass count; rotary work can be limited by the axis. Compare timed parts, not isolated maximums.

At 60W, both systems live in a strong general-purpose MOPA tier. If removal time is still unacceptable, the answer may be 100W—not a different 60W chassis. If quality is inconsistent, the answer may be optics, focus, fixtures, cleaning, or settings—not more wattage.

Ownership Costs That Belong in the Decision

• Enclosure: Both are open Class 4 galvo systems unless placed in a suitable interlocked enclosure.
• Extraction: Plan point-of-generation capture for metal dust, coatings, oils, and plastics.
• Lens set: A useful lens is not merely the largest one. Calibration and separate settings libraries take time.
• Rotary and fixtures: Heavy chucks, rings, tumblers, and irregular parts require different holding and clearance.
• Software: Confirm controller compatibility and LightBurn Galvo licensing. EZCad is a common Windows baseline.
• Documentation: Record source code, controller, galvo, lens, rotary, and wiring at delivery so future support starts with facts.
• Samples and consumables: Budget blanks for test grids and process development before selling new effects.

Our Recommendation

Choose the Titan 1 if you want a packaged heavy-duty family, named bundles, and an immediate option to move beyond 60W. At 60W, confirm the exact JPT source and lens so you know what you are comparing. Choose 100W or 200W only when deep-engraving throughput can repay the premium.

Choose the Haotian 60W if 60W is the settled power level and you value explicit source-grade options. E2 is the value choice for moderate production, E is the middle path, and M-version is for buyers who can use the tighter beam and stronger duty-cycle positioning.

For either machine, the best pre-sale evidence is a timed, documented sample on your own material. If a seller cannot identify the source, lens, parameters, and cycle time behind the sample, the comparison is still incomplete.

Frequently Asked Questions

Are the Titan 1 60W and Haotian 60W equally powerful?

They have the same nominal average-power class, but source variant, pulse behavior, lens, optics, galvo, and settings can produce different real results.

Which one is better for color engraving?

Both can support color work when configured with a suitable JPT MOPA source. Repeatability depends more on material consistency and parameter control than the chassis name.

What is the difference between Haotian E2, E, and M-version?

They are different JPT M7 source grades/builds. Current listings position E2 as value, E as upgraded sustained-use, and M-version as the tightest-beam, highest-grade 60W option.

Is lower M² always worth paying for?

No. It matters when fine detail, beam consistency, and controlled production can use it. Poor focus or optics can erase the advantage.

Which is better for deep engraving?

At 60W, compare timed samples. If deep removal dominates and 60W is too slow, Titan’s 100W or 200W options may be the more meaningful difference.

Can either engrave wood or acrylic?

They are 1064 nm fiber lasers optimized for metals and selected plastics. Use a CO2 laser for wood, clear acrylic, leather, and most organic materials.

Do both work with LightBurn?

Both are sold with LightBurn-compatible workflows, but confirm the exact controller and budget for the correct Galvo license.

Do I need an enclosure?

Yes for responsible shared-space operation. These are Class 4 fiber systems; wavelength-rated eyewear alone is not a complete safety system.

Which working field should I choose?

Use a smaller field for finer spot performance and deep work, and a larger field for coverage. Choose around common part sizes and validate with the selected lens.

Is 100,000 hours a warranty?

No. It is a source-life rating under specified conditions, not a promise that every component will run that long or a substitute for warranty terms.

Which is easier for a beginner?

Titan’s packaged bundles may reduce configuration decisions. Haotian can be equally workable, but the buyer benefits from understanding source grades, lenses, and accessories.

What must be written on the quote?

Exact laser source code and grade, power, lens and field, galvo/controller, Z-axis, rotary, enclosure, extraction, software, warranty, included training, and delivery terms.
