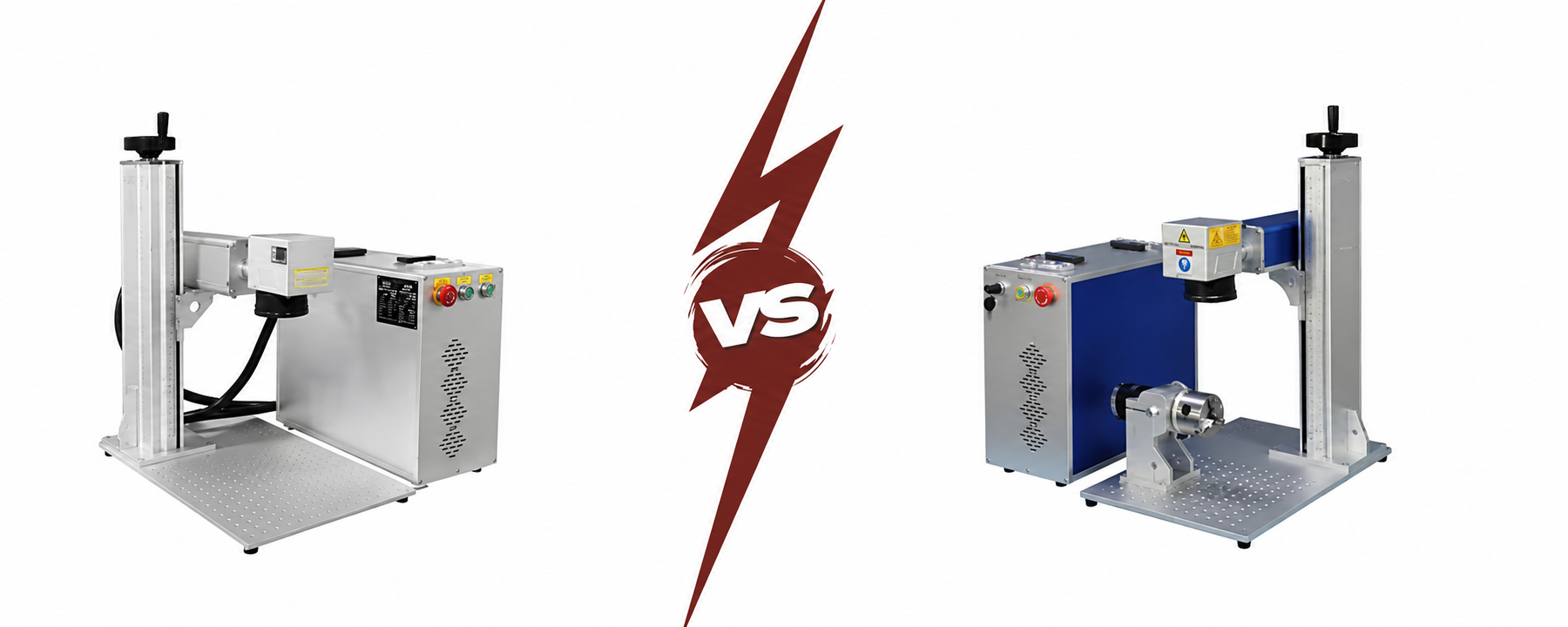

MOPA vs Standard Fiber Laser: What the Difference Means for Your Work
The Short Answer Most Guides Get Wrong
The standard framing on MOPA vs standard fiber laser goes like this: MOPA is advanced, standard is basic. MOPA is better. Pay the premium.
This is a simplification that leads buyers to overpay for capability they'll never use — or to underestimate what standard fiber does well.
Here's the more accurate framing: both technologies produce excellent permanent marks on metal. The difference is in what you can do with pulse width. MOPA lets you adjust it. Standard fiber doesn't. That matters for some applications a great deal, and for others not at all.
The key question is: does your work include color engraving on stainless steel or titanium, high-contrast black on anodized aluminum, or heat-sensitive materials where a fixed pulse causes damage? If yes — MOPA is worth considering. If your work is logo marking, serial numbers, QR codes, and deep engraving on standard metals — a standard Q-switched fiber is fully adequate and typically less expensive.
How a Standard Fiber Laser Works
A standard fiber laser uses a Q-switched mechanism to produce pulses. The laser cavity builds up energy until it's released in a burst — the "Q-switch" is a shutter-like mechanism that controls when the energy is released. The pulse shape and duration are determined by the physical characteristics of the cavity design.
The resulting pulses are high-energy, short-duration bursts. At 1064nm wavelength, they're highly absorbed by metals. The result: fast, efficient, permanent marking on virtually any metal surface.
Key technical parameters on a standard Q-switched fiber:
- Pulse width: fixed by cavity design (typically 80–150ns, depending on model)
- Frequency range: typically 20kHz–100kHz
- Peak power: very high at lower frequencies; drops as frequency increases
The frequency-peak power relationship is an important limitation. As you push the frequency up (more pulses per second), each individual pulse carries less peak energy. This is a fundamental characteristic of Q-switched operation that MOPA specifically addresses.
What It Can and Can't Do
A standard fiber laser does these things extremely well:
- Metal marking: Permanent, high-contrast marks on steel, stainless steel, aluminium, brass, copper, titanium, gold, silver, and most engineering metals
- Deep engraving: Multiple passes remove material efficiently at 1064nm
- Industrial part marking: Serial numbers, barcodes, QR codes, data matrix codes, logos at production speed
- Black marking on stainless: Dark grey/black marks through surface oxidation are achievable, though less controllable than MOPA
- Anodized aluminium: Marks well by removing coating, though with less control than MOPA over the result depth
What it cannot do reliably:
- Color engraving on stainless steel: The fixed pulse width doesn't provide enough control over oxidation depth to produce reliable, repeatable colour variation
- Very thin materials requiring precise heat control: The fixed pulse deposits heat in a characteristic profile that can't be shortened
- Certain plastics: Some plastics that require very short pulse widths for clean marking will char or melt with the longer fixed pulse
Ideal Use Cases
Standard fiber is the right choice for: industrial part marking at high volume, permanent logo and branding on metal goods, serial numbering and compliance marking, deep engraving on aluminium and steel plaques, cutting thin metal sheet (given sufficient power), and any application where the colour of the mark isn't required to be anything other than dark on light or light on dark.
A 20W or 30W standard Q-switched fiber handles the majority of small business metal marking work at lower cost than equivalent-wattage MOPA alternatives.
How a MOPA Fiber Laser Works
MOPA stands for Master Oscillator Power Amplifier. Rather than using a single Q-switched cavity that generates and amplifies light together, MOPA separates these functions. A seed laser (the master oscillator) generates the initial pulses at controlled pulse widths; a separate amplifier stage boosts them to the desired power level.
Because the pulse shape is determined by the seed laser — which is electronically controlled — you can adjust the pulse width through software parameters. The amplifier then boosts whatever pulse shape the seed laser produces.
This separation is what makes MOPA different at the application level. You're not just getting more power or better beam quality; you're getting the ability to choose what shape pulse hits the material.
Pulse Width Control: The Real Difference
The JPT M7 MOPA — the source in the ComMarker B4 and B6 MOPA machines — provides:
- Pulse width range: 1–500 nanoseconds (vs ~80–150ns fixed on standard Q-switched)
- Frequency range: 1kHz–4000kHz (vs ~20kHz–100kHz on standard Q-switched)
The combination of variable pulse width and extended frequency range means:
Short pulses (1–20ns): Deliver energy very quickly, minimising the time the material is exposed to heat per pulse. Useful for heat-sensitive materials, creating specific surface effects, and some colour engraving on stainless.
Long pulses (100–500ns): Deliver energy more slowly, creating more heat penetration. Useful for deep material interaction and some marking effects.
Ultra-low frequencies (1–5kHz): Very widely spaced pulses, each carrying high peak power. Standard Q-switched can't go this low.
Ultra-high frequencies (1000–4000kHz): Extremely rapid pulses that create a nearly continuous heating effect. Standard Q-switched can't go this high.
The expanded parameter space is what opens up colour engraving, high-quality anodised aluminium marking, and heat-sensitive material capability.
Color Engraving on Stainless Steel and Titanium
This is the most commercially significant capability that MOPA adds over standard fiber. By controlling pulse width and frequency together, you can create a thin chromium oxide layer on the stainless steel surface of precise, controllable thickness. The thickness of this layer determines how visible light interferes with reflected light — creating different colours through thin-film interference.
Different parameter combinations produce:
- Blue/violet: short pulse widths, higher frequencies
- Green/teal: moderate pulse widths
- Yellow/gold: longer pulses
- Orange/red: longer pulses still
- Black: high peak power marking that creates a carbon/oxide mark
This is a permanent, durable, chemically integrated colour — not paint or coating. It's used for decorative jewellery marking, branded metal products, medical device identification on titanium implants, and premium custom gifts where colour differentiation adds commercial value.
Standard fiber lasers produce dark marks on stainless steel well. They cannot reliably produce this colour range because the fixed pulse width doesn't provide the control over oxide layer thickness needed for repeatable colour variation.
For the complete parameter guide to colour engraving on stainless steel — the specific frequency, pulse width, speed, and power combinations for each colour — see our fiber laser color engraving settings guide.
What MOPA Unlocks That Standard Fiber Can't Do
Anodized aluminium deep black: Short-pulse MOPA creates a cleaner, darker mark on anodised aluminium surfaces by more precisely removing only the oxide coating without heating the underlying aluminium — resulting in higher contrast black marks than standard fiber typically achieves.
Certain plastics without damage: Some plastics (particularly certain nylons, ABS, and engineering polymers) that char or discolour with standard fiber's longer fixed pulse can be marked cleanly with MOPA's shorter pulses, which deliver energy faster before heat can conduct laterally.
Coloured/painted surface marking: Better control over coating removal depth on painted or powder-coated metals.
Very thin metals: The ability to use shorter pulses reduces thermal input per pulse, allowing work on thinner materials with less risk of heat distortion.
Side-by-Side: Where Each Wins
Metal Marking and Deep Engraving
For standard metal marking — logos, serial numbers, barcodes, deep engraving on aluminium plaques and stainless steel tags — a standard Q-switched fiber laser is fully adequate. The marking is permanent, high-contrast, and fast.
At equivalent wattage, standard fiber typically costs less than MOPA. For a business whose primary work is part marking and basic metal engraving, the standard fiber is the more economically rational choice.
Deep engraving on aluminium and steel: both technologies work. MOPA's short-pulse options give slightly finer control over heat input, but at comparable wattage, the material removal rate is similar. Standard fiber is not disadvantaged here.
Color and Grayscale Effects
Color engraving on stainless steel and titanium: MOPA only. Standard fiber cannot reliably produce this colour range.
Grayscale images on anodized aluminium (portrait engravings, detailed graphics): MOPA provides better control over tonal range through pulse parameter variation. Standard fiber can produce grayscale but with less parameter flexibility.
High-contrast black on raw stainless steel: both technologies achieve this. MOPA may achieve slightly darker blacks with specific pulse settings; standard fiber achieves dark grey/black adequate for most marking applications.
Plastics and Anodized Aluminum
For anodized aluminium: MOPA provides better control over the contrast and character of the mark through short-pulse options. Both work; MOPA typically produces cleaner, higher-contrast results.
For engineering plastics (ABS, nylon, polyamide): standard fiber works on many plastics at 1064nm, though some materials will char. MOPA's short-pulse options provide more control for plastics that are borderline with standard fiber's fixed pulse.
For organic materials (wood, leather, paper): neither 1064nm standard fiber nor MOPA is the right technology. These materials absorb 455nm (blue diode) or 10,600nm (CO₂) better. If non-metal engraving is part of your work alongside metal, consider the xTool F1 Ultra's dual 20W fiber + 20W diode design — see our xTool F1 Ultra review for how the dual-laser system handles both material categories.
Price Difference
As a general market observation in 2025:
- 20W standard Q-switched fiber laser (Raycus or similar): $800–$1,200 desktop configuration
- 20W JPT MOPA fiber laser (ComMarker B4 JPT MOPA): ~$1,499
- 60W JPT MOPA fiber laser (ComMarker B6 MOPA): ~$2,799
The MOPA premium at 20W is approximately $300–$700 over a standard fiber of comparable wattage. At 60W, the gap is larger.
For a business whose work includes colour engraving on stainless or titanium: the MOPA premium pays for itself in the additional services and product lines it enables. For a business whose work is exclusively standard marking and deep engraving: the MOPA premium doesn't return value through expanded capability.
Do You Actually Need MOPA?
Work through this checklist:
You likely need MOPA if:
- Color engraving on stainless steel is part of your product offering (personalised jewellery, custom gifts, branded metal items with colour marks)
- Titanium marking with colour is required (medical devices, premium jewellery, aerospace component identification)
- High-contrast deep black on anodised aluminium is critical to your product quality
- You work with heat-sensitive materials or thin metals where standard fiber's fixed pulse creates damage or quality issues
- Your customer base values decorative colour effects and is willing to pay a premium for them
Standard fiber is probably sufficient if:
- Your primary work is logo marking, serial numbers, QR codes, data matrix codes, and barcodes on metal
- Deep engraving on aluminium plaques, stainless tags, and similar standard materials is your main application
- Colour variation isn't required — dark marks on metal surfaces meet your specifications
- Budget is a meaningful constraint and the $300–$700 MOPA premium would be better allocated to other equipment or business needs
The honest majority assessment: For small businesses entering fiber laser engraving primarily for personalised gifts, jewellery, and branded products — where colour engraving on stainless steel is a genuine commercial feature — MOPA is worth the premium. The ComMarker B4 JPT MOPA at $1,499 is one of the most compelling entry points available. See our ComMarker B4 review for the full assessment.
For industrial part marking, compliance marking, and high-volume serial marking where colour is irrelevant — a standard Q-switched fiber at lower cost is the rational choice.
Which Machines to Consider in Each Category
Standard fiber laser (Q-switched):
The standard fiber market includes machines from Raycus, nLIGHT, and other established sources. For a small business entry point: the ComMarker B4 standard version (20W Raycus source) is a capable starting point at lower cost than the MOPA version. Desktop fiber laser marking systems from established Chinese manufacturers with Raycus sources cover standard marking applications well.
MOPA fiber laser:
20W entry tier: ComMarker B4 JPT MOPA (~$1,499) — two lenses, rotary axis, foot switch, motorised Z-axis included. The complete MOPA package with JPT M7 source at an accessible price. For the full specification breakdown and performance assessment, our ComMarker B4 review covers the machine in depth.
60W production tier: ComMarker B6 JPT MOPA (~$2,799) — same JPT M7 source at 60W with autofocus, modular split design, and 13kg portability. For businesses doing production volume metal engraving where the 60W speed advantage over 20W is commercially significant.
Dual-laser (MOPA fiber + diode): xTool F1 Ultra — 20W fiber laser (1064nm) + 20W diode laser (455nm) in one enclosed unit at 10,000mm/s. For businesses working across both metal and non-metal materials (wood, acrylic, leather alongside metal), the dual-laser design eliminates the need for two separate machines.
For the detailed settings guide on achieving specific results with MOPA fiber lasers — frequency and pulse width combinations for each colour on stainless steel, parameters for anodised aluminium, and the settings framework for different plastics — our how to laser engrave metal guide covers the practical parameter application.
Final Recommendation
MOPA vs standard fiber laser isn't a question of better vs worse. It's a question of whether your applications need what MOPA adds.
If colour engraving on stainless steel and titanium, high-contrast anodised aluminium marking, or heat-sensitive material work are in your regular workflow: MOPA pays for itself through expanded capability, and the ComMarker B4 JPT MOPA at $1,499 is the entry point we'd recommend.
If your work is standard metal marking at volume — serial numbers, logos, deep engraving on common metals — a standard Q-switched fiber covers the application at lower cost.
The key insight: both technologies produce professional-quality permanent marks on metal. MOPA adds the pulse width control that unlocks colour and expanded material range. Whether that additional range is worth the additional cost depends entirely on what you're selling and to whom.
Frequently Asked Questions
What is the difference between MOPA and standard fiber laser?
The core difference is pulse width control. Standard Q-switched fiber lasers have a fixed pulse duration determined by their cavity design — typically 80–150 nanoseconds. MOPA (Master Oscillator Power Amplifier) lasers separate the pulse generation and amplification stages, allowing the pulse width to be adjusted electronically — from as short as 1ns to as long as 500ns on JPT M7 MOPA sources. This adjustability also extends the usable frequency range (1kHz–4000kHz vs ~20kHz–100kHz for standard Q-switched). Standard fiber produces excellent permanent marks on metal. MOPA adds color engraving capability and better heat control for sensitive materials.
Can a standard fiber laser do color engraving on stainless steel?
Generally, no — not reliably. Color engraving on stainless steel requires precise control of the oxide layer thickness to create specific thin-film interference colors. This control requires the adjustable pulse width that MOPA provides. Standard Q-switched fiber lasers, with fixed pulse duration, lack the parameter range to reliably produce specific, repeatable colors on stainless steel. They can produce dark grey and black marks on stainless; the full color spectrum (blue, green, gold, orange, red) requires MOPA.
Is a MOPA laser worth the extra cost?
For businesses offering color engraving on stainless steel or titanium, high-contrast marking on anodized aluminum, or work with heat-sensitive materials: yes. The capability expansion enables services and product lines that standard fiber cannot support, and the commercial premium those services command typically covers the price difference quickly. For businesses doing standard metal marking, serial numbering, and deep engraving where color isn't required: standard fiber covers the application at lower cost, and the MOPA premium doesn't return value through additional capability.
What can a MOPA laser do that a standard fiber laser can't?
The primary capabilities MOPA adds: color engraving on stainless steel and titanium (through controlled oxide layer creation at specific pulse parameters), cleaner high-contrast deep black marks on anodized aluminum, clean marking on certain plastics that standard fiber chars, and finer heat control on thin or heat-sensitive materials. MOPA also provides more flexibility in mark character through the expanded parameter space — operators have more options for achieving specific mark appearances for different applications.
What are the best MOPA fiber laser engravers for small business?
The ComMarker B4 JPT MOPA (20W, ~$1,499) is the most complete entry-level MOPA package — it includes two lenses, rotary axis, foot switch, motorised Z-axis, and LightBurn/EZCAD2 compatibility. The ComMarker B6 JPT MOPA (60W, ~$2,799) is the production-tier step-up with autofocus and modular split design. The xTool F1 Ultra adds a 20W diode laser alongside the 20W fiber for multi-material work at 10,000mm/s. For budget-conscious buyers needing only standard metal marking, a 20W machine with Raycus Q-switched source covers most applications at lower cost than any MOPA alternative.
