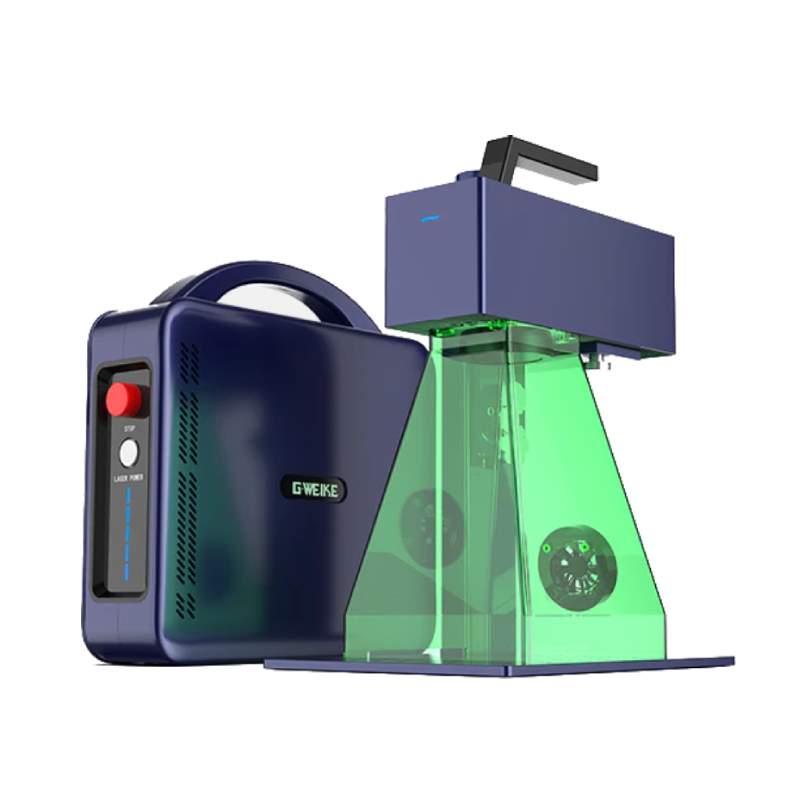

Gweike G2 Max Review: The Most Capable Portable 50W Fiber Laser?

The Gweike G2 Max is a machine that raises an obvious question as soon as you read the specs: how is it possible to get 50W of fiber laser power in a 6.5kg portable unit at around $1,259? That's a combination that simply didn't exist a few years ago. Established desktop fiber lasers at 50W typically weigh three to four times more and cost significantly more.

This review is based on aggregated real-world testing and hands-on evaluation data. We'll cover what the G2 Max genuinely delivers, where the YouTube reviewer's title was right to add "with a catch," and how it stacks up against the xTool F1 Ultra — the other machine most buyers compare it to.

Who the Gweike G2 Max Is Built For

The G2 Max is purpose-built for one thing: fast, high-quality metal engraving in a portable package. If you work primarily with stainless steel, aluminum, brass, titanium, copper, gold, or silver — and you need to do it quickly, at volume, and sometimes outside a fixed workshop — this machine was designed with your workflow in mind.

Jewelry makers who want to engrave rings, pendants, and bracelets with professional results. Custom gift and merchandise sellers who do shows, markets, or on-site events. Small business owners who need a production-speed fiber laser without the footprint of a full desktop unit. Industrial operators marking tools, components, or equipment on location. The G2 Max serves all of these.

What it does not do: cut wood, engrave fabric, or handle organic materials of any kind. It's a fiber-only laser. If your shop regularly switches between metal and wood or leather, this machine covers only half of your workflow and you'll need a separate tool for the rest.

Build Quality and Portability in Practice

Gweike has been building industrial laser systems since 2004, and the G2 Max reflects that background. The chassis is compact and solid — dual red-dot positioning, an electric lift column for focus adjustment, and a detachable design that allows the laser head to separate from the stand for handheld or angled operation.

At 6.5kg, the G2 Max is genuinely portable. It can travel to trade shows, client visits, or between workstations without needing a trolley. The G2 Pro/Max generation represents a significant redesign over the original G2 (which weighed 12kg) — the updated models are lighter, more refined, and have a substantially wider frequency range (20–200kHz versus the original's 30–60kHz).

One practical note on portability: this is a Class 4 laser. Unlike fully enclosed machines like the xTool F1 Ultra, the G2 Max is an open-frame system. Safety glasses are included, and a protective cover ships with it, but you'll need to build appropriate safety habits and workspace protocols, especially in public or shared environments. An optional enclosure is available and worth budgeting for if you plan to use it in customer-facing settings.

Key Specs Unpacked

50W Fiber Laser: What the Power Increase Gets You

Most portable fiber lasers in the G2 series range are 20–30W. Stepping up to 50W changes the machine's capabilities in two important ways: speed and depth.

On speed, the 50W laser completes equivalent marking tasks faster than a 20W machine — particularly on deep engraving, where each pass removes more material. On depth, the increased power enables engraving up to 5mm deep on metal, which opens up 3D relief and embossing work that lower-powered portables simply can't achieve at a meaningful scale. For deep coin engraving, custom knife blades, or embossed metal plaques, this is where the 50W advantage is most visible in real output.

The trade-off is power management. In compact workshops or environments with limited electrical capacity, a 50W machine does draw more than a 20W equivalent. This is worth checking for on-site or event use.

15,000 mm/s Speed and Precision Galvo

The G2 Max uses a high-speed precision galvanometer system to achieve 15,000 mm/s engraving speed and 0.001mm accuracy. These aren't just spec-sheet numbers — in practice, they mean complex logos, detailed text, and high-resolution photo engravings complete in seconds on metal, and small text down to 0.3mm is legible and crisp.

The 8K HD resolution option is worth using for photo engravings and intricate vector designs. At 2K or 4K, the machine is faster but coarser — selecting the right resolution for each job type is one of the workflow decisions that separates good results from great ones. Our guide to how to laser engrave metal covers the settings methodology in depth if you're working on dialing in your first parameter library.

3D Engraving and MOPA Capability

This is the spec that needs an honest clarification, because the G2 Max is widely marketed alongside MOPA machines without being one. The G2 Max uses a Q-switched fiber laser with an expanded frequency range (20–200kHz), not a true MOPA (Master Oscillator Power Amplifier) source. MOPA lasers have an independently adjustable pulse width — typically 1–500ns — which is what enables the most vivid, repeatable color effects and the finest depth control on stainless steel and delicate plastics.

The G2 Max's wider frequency range compared to a narrow-range standard Q-switched laser does allow for color marking on stainless steel and titanium, and it achieves more color variety than older generation Q-switched machines. Testing confirms it can produce over 90 color effects on metals, including gold, blue, and purple tones. But the color range and repeatability are somewhat less controllable than a true MOPA source like the JPT M7 found in the ComMarker B6 MOPA.

For deep 3D engraving — embossed coins, relief patterns, and textured metal surfaces — the 50W power is the key variable, not the laser type. At 50W the G2 Max cuts material aggressively enough for genuine 3D relief work, which is a real advantage over 20W portables. To understand exactly how Q-switched and MOPA fiber lasers differ technically, our MOPA vs standard fiber laser guide covers the distinction clearly.

Rotary Attachment and Working Area

The standard working area is 150 × 150mm — sufficient for most jewelry, dog tags, keychains, small metal plates, and branded components. For larger pieces you'll need to reposition, as the field lens doesn't expand beyond this size without a lens swap.

A rotary chuck attachment is available as an optional accessory, enabling engraving on tumblers, rings, bracelets, pens, and other cylindrical items. This is a common revenue-generating use case for G2 Max owners who serve the drinkware customization market. The rotary is sold separately, so factor it into your budget if cylindrical work is part of your plan.

Real-World Performance Testing

Deep Engraving on Stainless and Aluminum

This is where the G2 Max is at its best. The combination of 50W power and 15,000 mm/s galvo speed makes it exceptionally fast on high-contrast black marks on stainless steel and aluminum. Serial numbers, logos, and detailed text engrave cleanly and at speed that production-volume users will notice immediately compared to 20W machines.

For deep engraving — multiple passes to achieve significant material removal depth — the 50W source completes jobs in materially fewer passes than lower-powered portables. Anodized aluminum is particularly clean: high-contrast white marks at speed without burning through the coating, with consistent results across batches.

Stainless steel deep engraving produces rich, dark, permanent marks that are resistant to abrasion and chemical exposure. The beam quality at 0.001mm precision means fine detail holds up even at small scales — text as small as 0.3mm remains legible, which matters for jewelry hallmarking, medical device marking, and similar precision applications.

Color Marking and Grayscale Effects

As noted in the specs section, the G2 Max achieves color effects on stainless steel and titanium through its expanded frequency range. In practice this means blues, golds, purples, and other oxidation-based hues are achievable with parameter adjustment. The machine ships with pre-loaded settings that give you a starting point, and community parameter libraries are available through LightBurn forums.

Real-world color results are good — commercial-quality color marks on steel that are clearly more than basic monochrome. But achieving consistent, repeatable color across production batches requires more parameter tuning than a true MOPA machine, and some colors (particularly vivid reds) are harder to land reliably. For light color work as part of a broader metal marking workflow, the G2 Max's color capability is a genuine bonus. For shops where color metal products are the primary business, a MOPA machine gives you more parameter control.

Grayscale photo engraving on anodized aluminum and stainless steel is strong. The 8K resolution mode combined with 50W power produces photo-quality gradients with excellent tonal range.

Cutting Thin Metals

The G2 Max can cut thin metal sheet — aluminum up to approximately 1mm in multiple passes, and very thin brass and stainless in appropriate configurations. This capability is limited compared to higher-powered dedicated cutting systems, and real-world metal cutting on this machine requires careful parameter work and patience.

For users who need thin metal cutting as an occasional part of their workflow (cutting blanks for jewelry, for example), the G2 Max handles it. For users who need to cut metal sheet regularly or in production volume, a more powerful dedicated fiber cutter is a better tool for that specific task.

Strengths of the G2 Max

The G2 Max's strongest selling points are genuinely compelling, particularly at its price point.

Power-to-weight ratio. 50W in a 6.5kg portable frame is a standout achievement. Competing machines at this power level are typically 2–3x heavier and significantly less portable.

Speed and throughput. 15,000 mm/s with 0.001mm precision delivers fast, high-quality output on metal. For high-volume marking of small metal items, the throughput is competitive with desktop units costing considerably more.

Price. At approximately $1,259, the G2 Max 50W offers a power level typically found in machines priced at $2,000 and above. For small businesses and professionals who need 50W fiber performance without the investment of a full desktop system, the value per watt is excellent.

LightBurn compatibility. LightBurn support is standard, which means a well-documented, widely-supported software environment with extensive community resources, tutorials, and parameter libraries.

Portability for on-site work. The detachable design, light weight, and multi-angle head adjustment make the G2 Max genuinely useful for engraving at events, markets, and client locations — use cases where a 20kg desktop machine is impractical.

Where It Falls Short

No machine at this price level is without limitations, and the G2 Max is honest about its trade-offs.

Open-frame design. No built-in enclosure means Class 4 laser safety is your responsibility. For home workshops with controlled access this is manageable. For retail, public, or shared environments, you need an additional enclosure and proper protocols. Budget for this from the start.

No MOPA pulse control. The expanded frequency range enables color marking but doesn't replace the full parameter space of a dedicated MOPA source. For serious color production work, a machine like the ComMarker B6 MOPA offers more reliable color repeatability.

150 × 150mm working area. The standard field lens limits you to this size without a lens swap. For larger metal pieces, you'll be repositioning or looking at a lens upgrade. Many competitors offer similar constraints at this form factor, but it's worth knowing.

No capability on wood, fabric, or organic materials. The G2 Max is purely a fiber laser. If your business requires engraving on wood, leather, or fabric as well as metal, you'll need a second machine. This is inherent to fiber laser technology, not a G2 Max-specific limitation.

Post-sales support response times. Some users in review communities have noted that while pre-sales support from Gweike is responsive, post-sales email replies for replacement parts or technical issues can be slower than ideal.

Gweike G2 Max vs xTool F1 Ultra: The Key Decision

These two machines come up together frequently, and the comparison is worth making clearly. For a full breakdown, see our Gweike G2 Max vs xTool F1 Ultra comparison guide.

The fundamental difference is scope. The xTool F1 Ultra combines a 20W fiber laser and a 20W diode laser in a fully enclosed desktop unit, making it capable of metal, wood, leather, acrylic, and more in a single machine. It also uses xTool's smart camera system for automatic positioning and batch production. It's an all-in-one production tool that covers the full range of maker materials. It retails at around $3,999.

The G2 Max is a dedicated metal specialist at $1,259 — less than a third of the F1 Ultra's price — that delivers more raw fiber laser power (50W vs 20W). It's lighter, more portable, and faster in engraving throughput on metal. But it does not engrave wood, leather, or acrylic, lacks a camera positioning system, and has no enclosure.

Choose the G2 Max if metal engraving is your primary or only workflow and portability matters to your operation. Choose the F1 Ultra if you need both metal and non-metal capability, want an enclosed machine, or if the camera-assisted positioning and batch automation are important to your workflow.

Who Should Buy the Gweike G2 Max?

The G2 Max makes most sense for professionals and small business owners for whom metal is the primary material and portability is a meaningful advantage.

Jewelry makers and metalworkers producing high-volume custom marks on rings, pendants, chains, and components will find the 50W speed and deep engraving capability genuinely productive. The 0.001mm precision handles fine hallmark text and intricate design detail reliably.

Event and market sellers who do craft fairs, trade shows, or on-site personalization events benefit from the 6.5kg weight and detachable design. Bringing 50W of fiber laser capability to a table in a convention hall is a real differentiator.

Knife makers, coin engravers, and industrial branding operations that need 3D embossing depth and fast deep marking on metal will appreciate the 50W power's advantage in per-pass material removal.

Budget-conscious professionals who need real 50W fiber laser output without spending $2,000+ for a comparable desktop machine will find the G2 Max's price-to-performance ratio difficult to beat.

If that description fits your workflow, you can Buy the Gweike G2 Max directly from The Maker's Chest.

Final Verdict

The Gweike G2 Max earns its reputation as the most capable portable fiber laser in its class. At 6.5kg and $1,259, 50W of fiber laser power with 15,000 mm/s speed and 0.001mm precision is a remarkable value proposition for metal-focused makers.

The YouTube reviewer who titled their test "The Best 50W Fiber Laser, with a catch" was right on both counts. The machine genuinely delivers at its advertised specs. The catch is that it's an open-frame, metal-only machine — no enclosure, no wood engraving, and color marking that's capable but not at MOPA-level repeatability.

For makers whose work is primarily metal, those limitations are either irrelevant or easily managed. For makers who need an all-in-one system covering metal and organic materials with a smart camera and enclosed design, the xTool F1 Ultra remains the more complete tool despite its higher price.

The G2 Max is the right machine for the right shop. Know your workflow, and this one won't disappoint.

Frequently Asked Questions

What materials can the Gweike G2 Max engrave?

The G2 Max is a fiber laser engraver designed primarily for metals and select hard materials. It engraves and marks stainless steel, aluminum (including anodized), brass, titanium, copper, gold, silver, platinum, and other metal alloys with excellent results. It also marks engineering plastics, leather, stone, and slate. Like all fiber lasers, it cannot engrave wood, clear acrylic, glass, or organic materials — those require a CO2 or diode laser. If your workflow includes wood or fabric alongside metal, a dual-laser machine like the xTool F1 Ultra would cover more materials from a single unit.

Is the Gweike G2 Max a MOPA laser?

No. The G2 Max uses a Q-switched fiber laser with an expanded frequency range (20–200kHz) rather than a true MOPA (Master Oscillator Power Amplifier) architecture. MOPA lasers feature independently adjustable pulse width (typically 1–500ns), which provides finer color control and more precise material interaction. The G2 Max's wider frequency range enables color marking on stainless steel and titanium — over 90 color effects are achievable — but with less parameter precision than a dedicated MOPA system. For most professional marking and engraving applications, this distinction doesn't affect day-to-day results. For shops where consistent, vivid MOPA color work is the core business, a dedicated MOPA machine offers more control.

How does the Gweike G2 Max compare to the xTool F1 Ultra?

The key differences: the G2 Max has more raw fiber laser power (50W vs 20W), weighs less (6.5kg vs 14.7kg), and costs significantly less (~$1,259 vs ~$3,999). The xTool F1 Ultra is a fully enclosed dual-laser machine with a 20W fiber and 20W diode, meaning it handles both metal and organic materials (wood, leather, acrylic). It also includes a smart camera for automatic positioning and batch production automation. The G2 Max is the better choice for metal-focused portable work at budget. The F1 Ultra is the better choice for mixed-material production and enclosed all-in-one operation.

What software does the Gweike G2 Max use?

The G2 Max is compatible with both LightBurn (via the LightBurn Galvo plugin) and the Gweike Cloud platform. LightBurn is widely considered the most capable and community-supported laser software available, with a large library of community settings, tutorials, and parameter resources. The Gweike Cloud platform enables cloud-based project storage and remote access. For most users, LightBurn is the preferred workflow environment. A LightBurn Galvo plugin license is a separate purchase but considered by most users as an essential addition.

Can the Gweike G2 Max cut metal?

Yes, with limitations. At 50W, the G2 Max can cut thin metal sheet — aluminum up to approximately 1mm and very thin stainless steel and brass with multiple passes. It's not designed or optimized as a primary metal cutting machine; its strengths are marking, deep engraving, and surface texturing. For occasional cutting of thin blanks (jewelry nameplate cutting, for example), it handles the task. For regular production metal cutting, a higher-powered dedicated system is more appropriate. The specification of 150mm working area also limits the size of pieces that can be cut without repositioning.

Does the Gweike G2 Max come with an enclosure?

No — the G2 Max is an open-frame Class 4 laser machine. It ships with safety glasses and a protective cover, but not a full enclosure. An optional enclosure is available from Gweike and is strongly recommended for use in shared workspaces, customer-facing environments, or any setting where eye exposure to laser scatter is a concern. For private home workshops with appropriate access control and personal protective equipment, the open frame is workable. Always treat this as a Class 4 laser and plan your safety setup accordingly before your first use.

What is the Gweike G2 Max's working area?

The standard working area is 150 × 150mm, determined by the included field lens. This is sufficient for most jewelry, dog tags, name plates, small awards, branded components, and similar small-to-medium metal items. For larger pieces, you would need to either reposition the workpiece or purchase a larger field lens (300 × 300mm lenses are available from Gweike). A rotary chuck accessory is available for cylindrical engraving on tumblers, rings, and similar items, which is a popular addition for personalization businesses.
