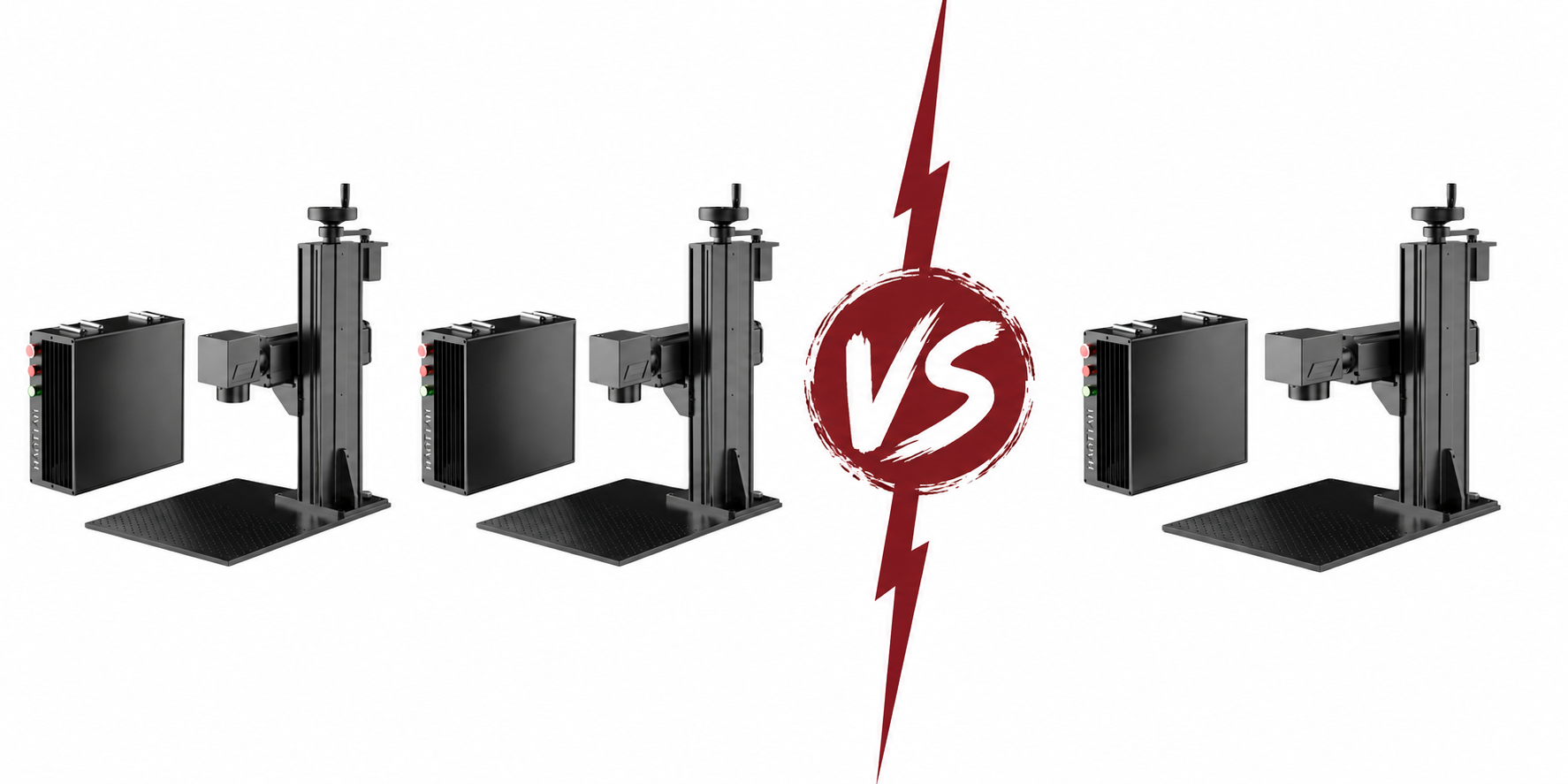

Haotian 30W vs 50W vs 60W Fiber Lasers: Which Power Fits?

Short answer: The Haotian 30W is the best fit for surface marking, jewelry, serialization and lower-volume MOPA color work. The 50W is a specialized value choice for faster monochrome marking and deeper identification when color is not required. The 60W MOPA is the strongest all-rounder because it adds materially faster removal while retaining adjustable pulse width, color capability and better headroom for production.

Research note: This guide uses current manufacturer-published specifications and the configurations sold by The Maker’s Chest as of September 2026. Speed, lifespan, thickness, resolution and output claims are manufacturer ratings, not independent TMC laboratory results. Real performance depends on material, optics, settings, cooling, fit-up, exhaust and job geometry.

The Most Important Point: 50W Is Not Automatically Between 30W and 60W

These machines cannot be compared by wattage alone because their available laser sources are different. The 30W can be ordered with Raycus Q-switched, JPT LP or a full JPT M7 MOPA source. The 50W choices are Raycus or fixed-pulse JPT LP and are aimed at monochrome work. The 60W choices are all JPT M7 MOPA.

That creates a counterintuitive result: a 30W MOPA can perform adjustable-pulse color and heat-sensitive marking that the 50W variants cannot, while the 50W can remove metal faster than the 30W on suitable monochrome jobs. The 60W combines higher average power with full MOPA control.

Haotian 30W vs 50W vs 60W

Check the current configurations and inclusions on the Haotian 30W, Haotian 50W and Haotian 60W MOPA product pages. Prices, source variants, lenses, rotary choices and promotions belong there rather than in this comparison.

What 30W Does Better Than Its Number Suggests

Fine marking and serialization

For logos, serial numbers, QR codes, barcodes, jewelry and identification plates, 30W is usually enough power. These surface jobs often become limited by galvo motion, artwork and desired finish before they become limited by average wattage.

Entry-level MOPA color

The 30W M7(E) offers adjustable pulse width and a broad frequency range, enabling controlled oxide colors on suitable stainless steel and titanium. Color repeatability still depends on alloy, finish, cleanliness, focus, lens and a documented parameter grid. “MOPA” does not make every stainless blank behave the same way.

Lower capital tied up in unused capacity

A shop focused on jewelry, tags, coated cards and one-off personalization may not recover the premium for 60W. The important decision is the source: choosing a cheaper fixed-pulse 30W now cannot be converted into MOPA later without replacing the source.

Why the 50W Exists

The 50W is not the “balanced” option for everyone. It is the cost-efficient production marker for a shop that has deliberately ruled out color. Both current source choices use fixed pulse widths. The extra average power helps when a job requires more metal removal, but it does not unlock the MOPA process window.

Choose the JPT LP over Raycus when the wider published frequency range and greater finish control justify the premium. Choose Raycus when the work is a stable set of monochrome metal marks and acquisition cost is the main constraint. Neither should be purchased with the expectation of later adding full stainless color capability.

Why 60W MOPA Is the All-Rounder

The 60W combines 2.0 mJ published pulse energy with adjustable 2–500 ns pulse width and up to 4,000 kHz frequency. That makes it more adaptable across color, dark marking, sensitive surfaces and deeper removal. It is the logical starting point when a business expects both personalized surface work and production engraving.

The three 60W source grades should not be described as different application sets. All provide the core MOPA functions. E2 is the value-oriented choice for moderate daily use; E is positioned for longer regular production; M offers the strongest published beam quality and the greatest reason to consider it for micro-text, intricate linework or multi-shift use.

Choose by the Job That Pays You

Lens Size Can Matter More Than Buyers Expect

A larger marking field is convenient, but it spreads the optical design over a wider area and typically increases spot size. The same 60W source behind a 300 × 300 mm lens will not behave like it does behind a 110 × 110 mm lens. Choose the field used most often, then treat every lens change as a new focus, correction and parameter-calibration task.

Ownership and Safety

• Class 4 controls: open galvo fiber lasers require controlled access, wavelength-rated protection, reflection management, training and a site-specific risk assessment.
• Extraction: metal dust, coatings, oils and plastic fumes require source capture even when the machine is small.
• Software: current listings state LightBurn compatibility, but the supplied license and controller workflow differ by configuration. Confirm before ordering.
• Returns: Haotian machines are built to specification and are excluded from TMC’s standard return policy. Selection accuracy matters before purchase.
• Material claims: 1064 nm fiber is primarily for metals and selected plastics. Do not buy it as a substitute for a CO₂ laser for wood, clear acrylic, fabric or general organic materials.

Our Recommendation

Choose 30W when surface marking and fine customization dominate. If color or sensitive-material control may matter, choose the MOPA source now rather than assuming it can be added later.

Choose 50W only when monochrome production is the deliberate goal. It can be an efficient value purchase, but it is not a stepping stone to full MOPA color.

Choose 60W MOPA when you want one machine to cover color, deep engraving and production marking without moving to the higher-power Haotian tier. For many growing shops, the E2 or E source is the practical sweet spot; the M-version needs a beam-quality or duty-cycle reason.

Frequently Asked Questions

Is 50W always better than 30W?

No. A 30W MOPA can perform adjustable-pulse color work that the current 50W fixed-pulse variants cannot.

Why not just buy 60W?

Buy 60W when depth, throughput or mixed MOPA work will pay for it. Surface-only marking shops may not recover the additional investment.

Can the 50W make stainless color?

It may create limited heat effects, but it does not provide the full adjustable-pulse MOPA spectrum offered by the 30W M7(E) or 60W M7 sources.

Which 30W source is best?

Raycus for lowest-cost monochrome marking, JPT LP for wider frequency control without full MOPA, and M7(E) when color or short-pulse control matters.

Which 60W source is best for most shops?

E2 is the value-oriented starting point. Choose E for longer regular duty and M when published beam quality or multi-shift stability has measurable value.

How much faster is 60W than 30W?

There is no universal percentage. Depth, alloy, lens, hatch, pulse settings and debris removal determine the cycle-time difference.

Can these machines cut sheet metal?

They can process very thin foil or small blanks under suitable conditions, but they are not production sheet-metal cutters.

Can they engrave wood or clear acrylic?

Not as a general-purpose process. Their 1064 nm wavelength is designed primarily for metals and selected plastics.

Do all three work with LightBurn?

Current TMC listings state compatibility. Confirm the exact controller, license inclusion and computer setup for the selected configuration.

Does a larger lens give better value?

Only when you need the coverage. Larger fields generally trade some spot size and energy density for area.

Are these enclosed Class 1 machines?

No. Treat them as open Class 4 galvo systems unless installed in a properly engineered interlocked enclosure.

What should I send for a recommendation?

Provide the exact alloy or product, desired mark or depth, largest part, batch size, daily run hours, need for color, and preferred working field.
