THEO MA1-35 Handheld Laser Welder - 800W

The Lightest, Most Capable Entry Into Professional Laser Welding.

The THEO MA1-35 is a 62 lb., air-cooled handheld laser welding system that welds up to 3.5mm of stainless steel, carbon steel, and galvanized sheet — with a 1.5 lb. torch that operators learn in under an hour;

No water chiller required, and results that outperform TIG in speed, consistency, and finish quality. It's the machine that serious fabricators buy when they're done compromising on arc welding.

Why Laser Welding Changes the Shop Floor

TIG welding produces beautiful results — but it takes years to master, requires significant heat input that distorts thin metal, and runs at speeds that constrain throughput in any production environment. MIG is faster but trades finish quality for speed and leaves post-weld cleanup that adds time to every job.

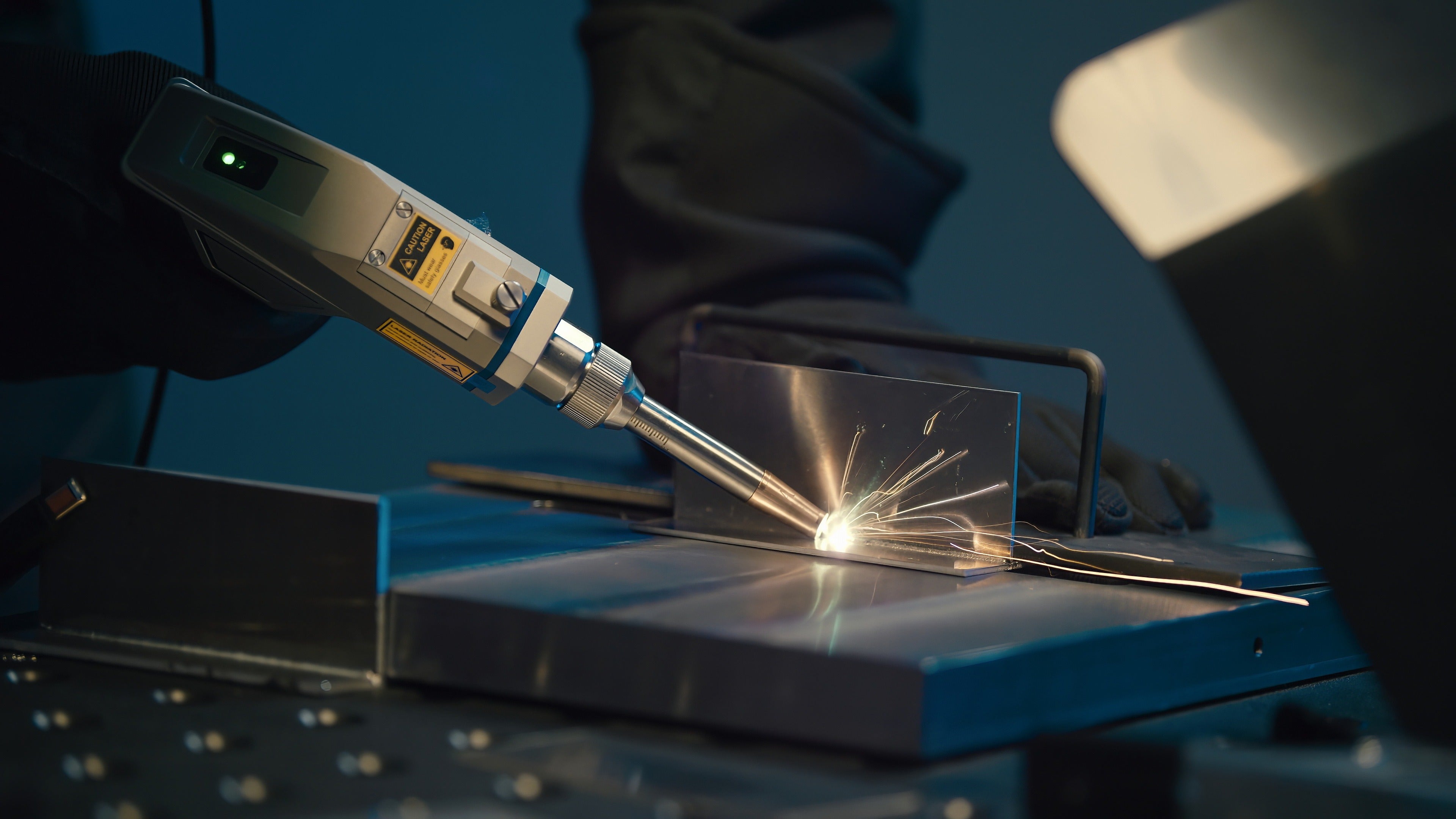

Laser welding with the MA1 is 1.5x as fast as MIG welding and up to 4x as fast as TIG welding, producing TIG-quality welds with equivalent penetration. The concentrated fiber laser beam creates a deep, narrow heat-affected zone — meaning less thermal distortion on thin material, cleaner welds with no spatter, and weld seams that typically require no post-weld grinding or cleanup.

For ornamental and custom fabrication work, sheet metal, enclosures, frames, brackets, and stainless applications where finish quality matters, this changes the economics of every job you run.

800W of Power in the World's Lightest Laser Welding Torch

The MA1-35's power source delivers 800W of continuous fiber laser output through a proprietary 20μm single-mode fiber core — the technology that sets the Theo apart from most competing handheld laser welders. A smaller fiber core concentrates energy into a tighter, more intense spot at the same power level, enabling deeper penetration and faster travel speeds than machines using 50μm or wider fibers at equivalent wattage.

The 20μm fiber core concentrates energy into a smaller area, resulting in faster throughput speed at the same power level and facilitating deep weld penetration.

The result at the torch end is a 14μm laser spot — fine enough for precision work on thin material, powerful enough to achieve the full 3.5mm rated depth on stainless and carbon steel.

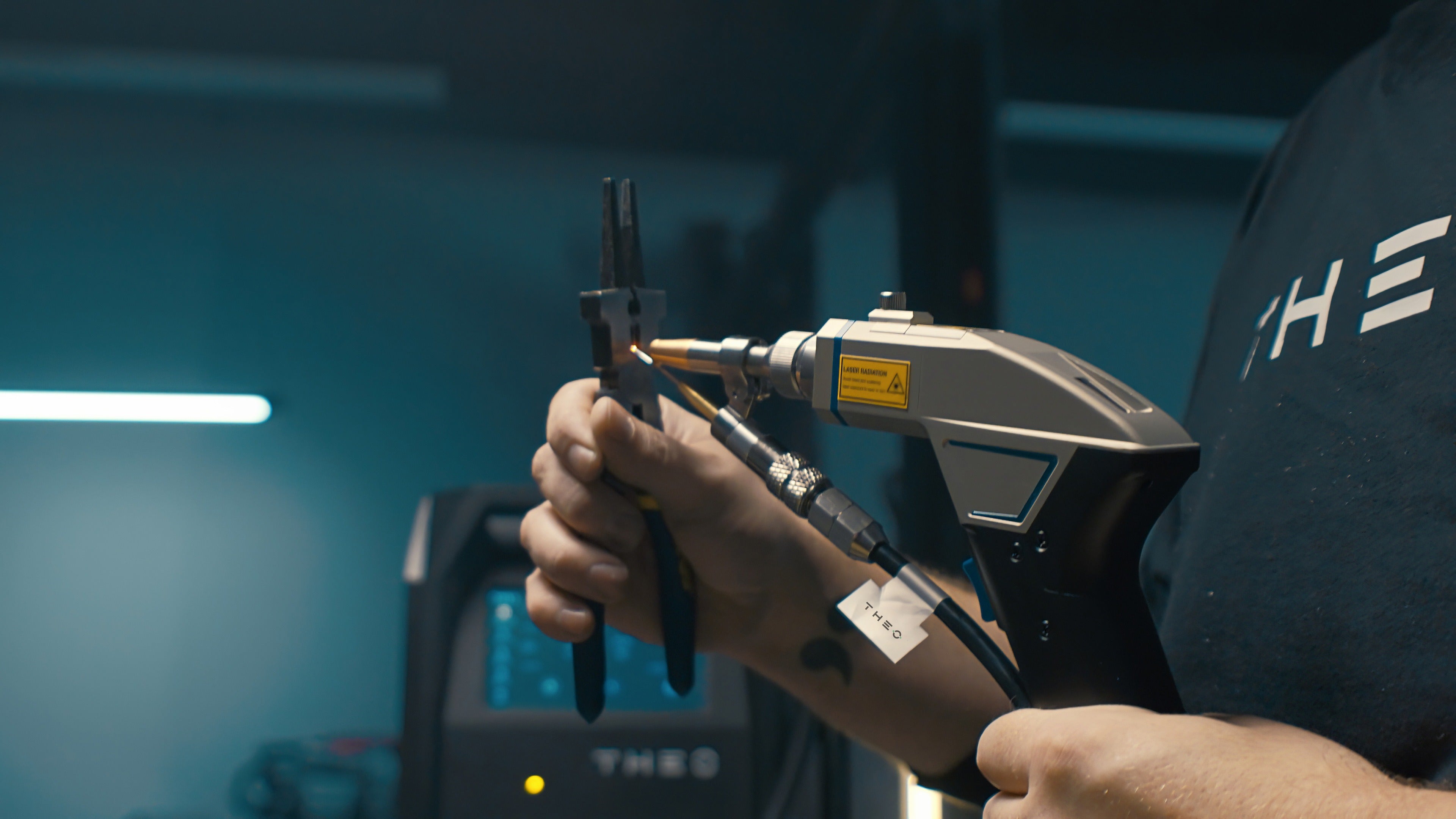

The torch itself weighs only 680g (1.5 lbs), designed for extended use without fatigue, with a built-in double-secured contact sensor that only allows operation when the trigger is in hand contact and in contact with the workpiece.

That dual contact requirement is a meaningful safety design. The laser cannot fire unless both conditions are simultaneously met — accidental activation is physically prevented.

Wobble Welding and Wire Feeder — Both Included Standard

Two features that many competitors charge extra for are included with the MA1-35 as standard equipment.

Wobble Welding: The torch's built-in wobble function oscillates the laser beam transversely across the joint, effectively widening the weld bead up to 4mm (0.16") without changing the power level. This creates a broader, flatter seam that is more forgiving of joint fit-up gaps, produces a more cosmetically appealing finish, and improves fusion on lap and fillet welds. Wobble parameters are preset in the machine for wider welding seams and high tolerance for workpiece assembly fit-up — the wobble effectively increases the beam diameter and increases the weld width. 1laser

T1 Wire Feeder: Included in the box. Wire feeder nozzles in 0.8mm, 1.0mm, 1.2mm, and 1.6mm diameters are all included. Feed filler wire into the weld pool for bridging gaps, building up material, or welding dissimilar metal thicknesses — exactly like TIG cold-wire feeding, but at laser speed.

The machine stores 32 factory preset welding programs covering common material types and thicknesses. Load a preset, verify the parameters on the touchscreen, and start welding. Advanced operators can save 32 additional custom programs for specific jobs and recall them instantly.

Air-Cooled. No Chiller. No Plumbing.

Most industrial laser systems this capable require a water-cooled chiller — a separate unit that adds cost, complexity, maintenance, and floor space. The MA1-35 uses phase-change air cooling that eliminates the chiller entirely.

Plug into a 220V / 32A circuit, connect the torch cable, and you're welding. No water lines, no chiller startup time, no algae risk, no freeze concern in cold facilities.

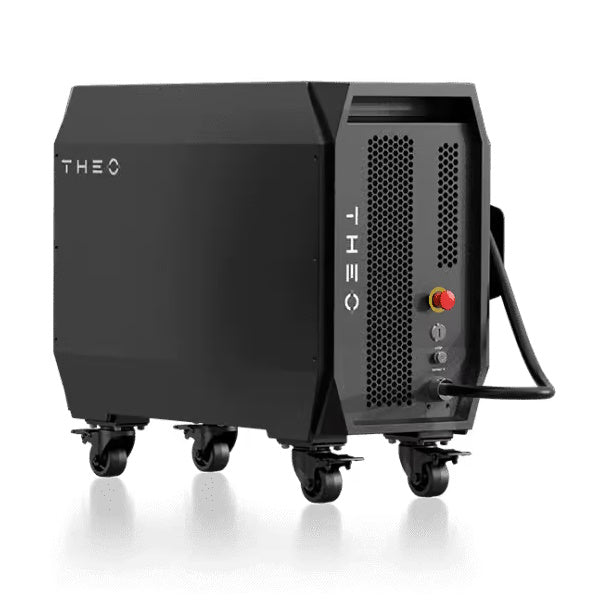

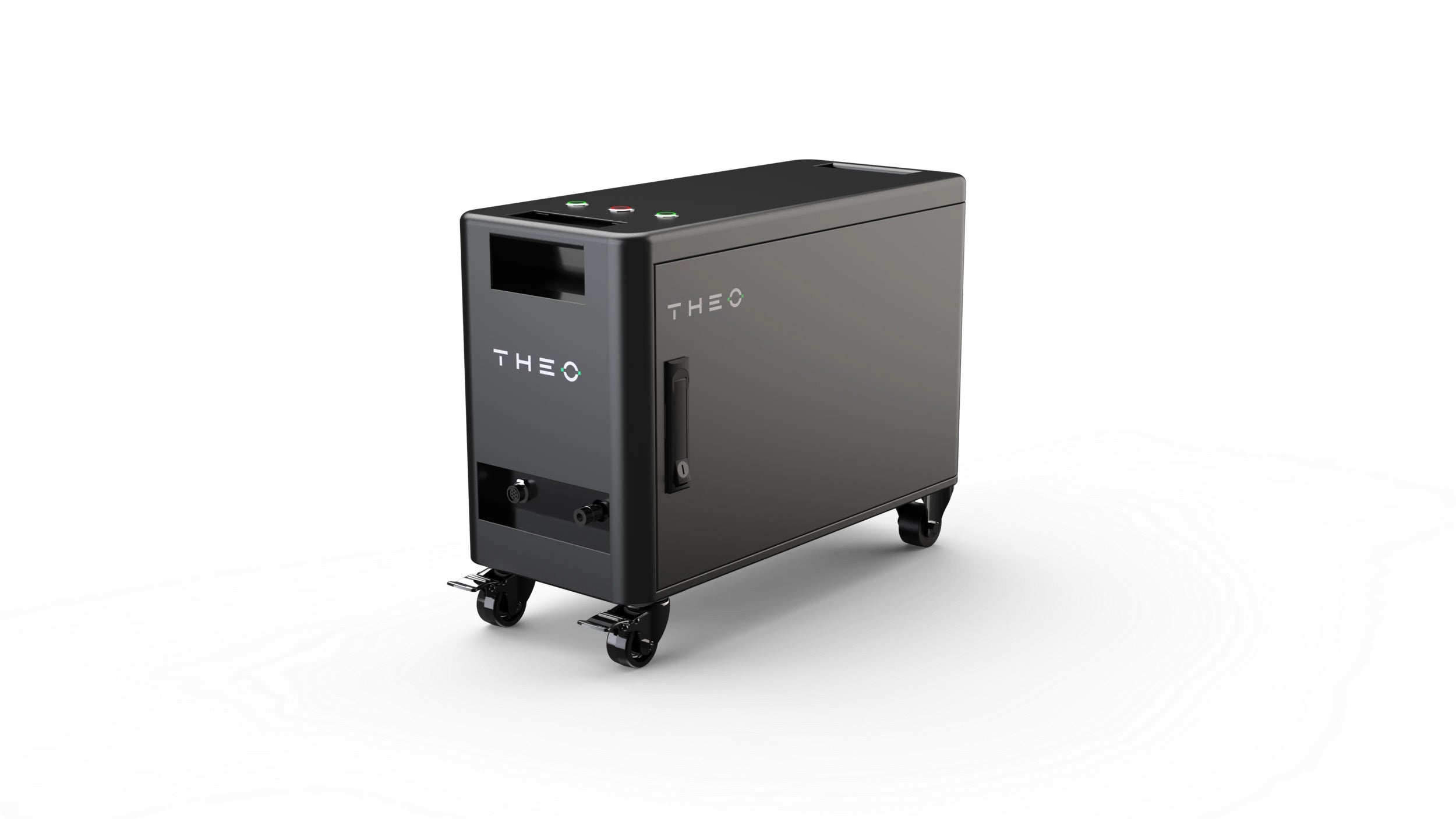

At 62 lbs. (28 kg) and 22.7" × 10.4" × 16.7", the MA1-35 is genuinely portable — small enough to roll between stations or load into a van for on-site work. This is the industry's lightest compact handheld laser welding system. The fiber laser source carries a rated lifetime of up to 10 years under normal operating conditions.

Certified to Industrial Safety Standards

The MA1-35 carries a full complement of safety certifications: CE, FDA, ETL, ISO, and EN. The safety classification is PL-d per ISO 13849-1 — the performance level required for industrial machinery in applications where a safety failure could cause serious injury.

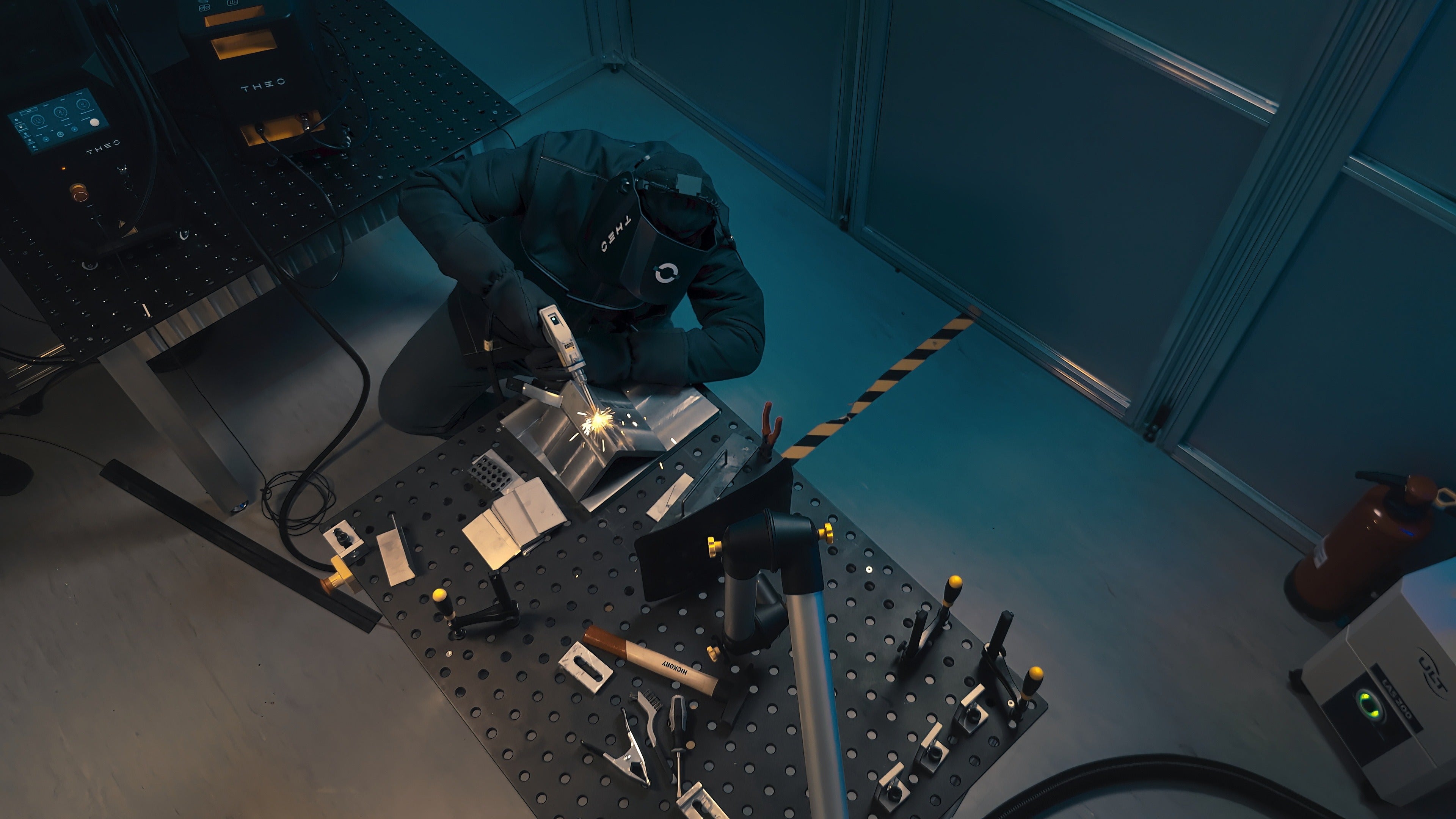

While the ideal scenario for operating the MA1 series is in a separate room, necessary safety can also be achieved with the use of laser safety curtains. Appropriate laser safety glasses are needed, along with gloves, long sleeves, and appropriate work boots.

Two pairs of laser safety glasses are included in the box. The contact sensor design prevents accidental firing. The system includes a safety return cable and ground wire as standard equipment.

What's in the Box

Everything needed to start welding from day one ships with the MA1-35:

• Air-cooled laser power source (MA1-35) with 7" LED touchscreen
• Handheld laser welding torch with 18 ft. optical cable
• T1 Wire Feeder
• Wire feed nozzles: 0.8mm, 1.0mm, 1.2mm, 1.6mm
• DN18G Nozzle 1, Nozzle 3, Nozzle A, Nozzle B
• 5× protective lenses
• 2× pairs laser safety glasses
• Safety return cable and ground wire
• Cotton swabs, ear plugs, disposable mask

The Maker's Chest Difference

The THEO MA1-35 is available from THEO directly and through other resellers. Here's what changes when you order through The Maker's Chest:

• 🛡️ 75-day returns — significantly longer than THEO's own return window. Enough time to receive the machine, set it up in your shop, weld through your actual material mix, and confirm the MA1-35 is the right capacity for your work before you're locked in
• 🇺🇸 Expert USA-based technical support — our team understands laser welding at a hands-on level and can help you with parameter setup, material dialing, wobble settings, wire feeder configuration, and any issues that come up in production
• 📞 Dual lines of support — phone and email, so when you're mid-job and need a real answer about settings or operation, you have a direct path to a knowledgeable person
• 🔧 Honest pre-sale guidance — MA1-35 or MA1-65? Not sure if 3.5mm depth covers your material range? For fabrication shops whose daily work stays under 3mm — which describes the majority of professional small-shop work — the MA1-35's ceiling is adequate with margin. But if you're regularly welding thicker structural sections, we'll tell you that upfront.

Frequently Asked Questions — THEO MA1-35 Handheld Laser Welder

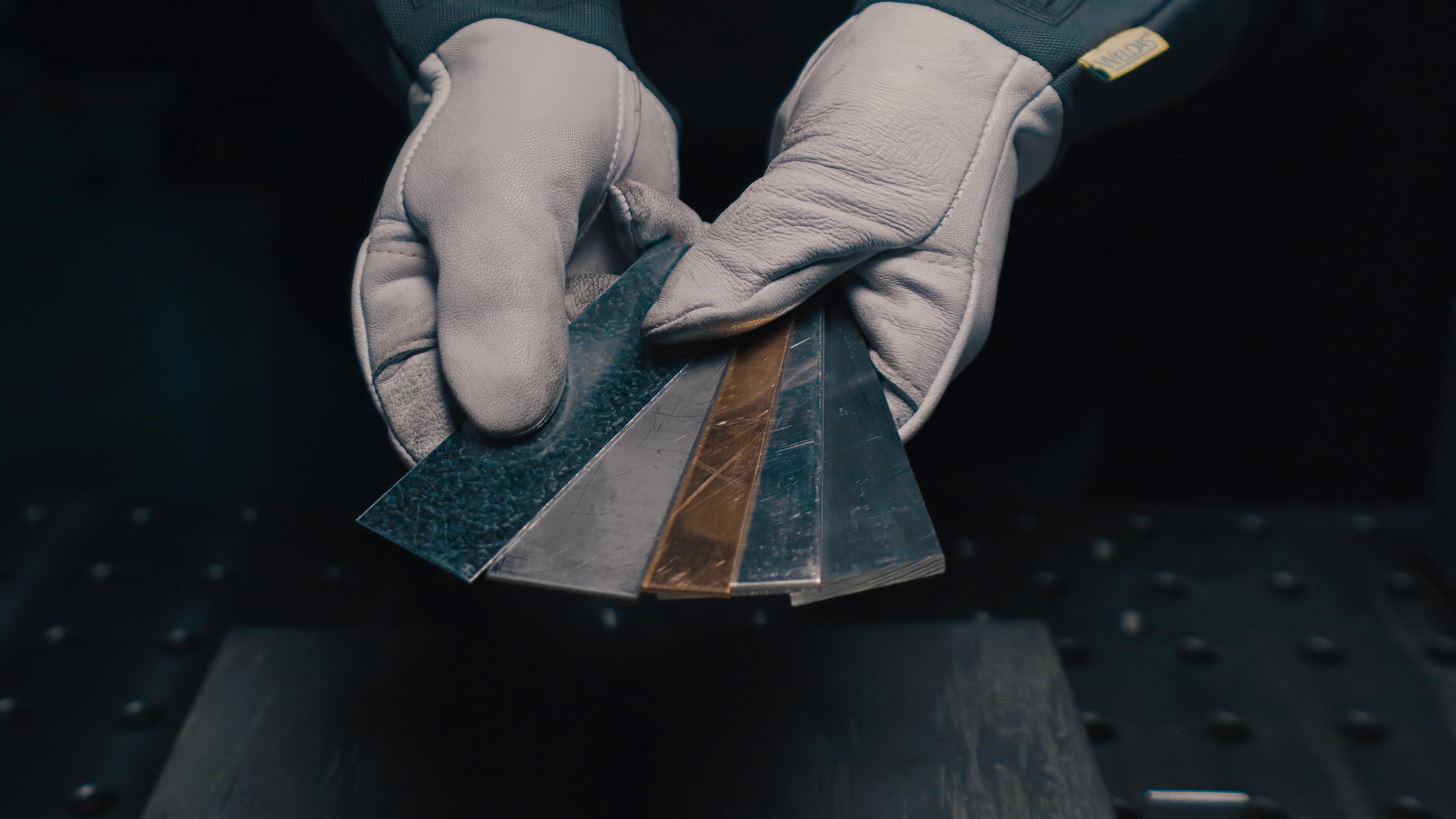

Q: What materials can the MA1-35 weld, and up to what thickness? A: The MA1-35 welds stainless steel, carbon steel, galvanized sheet, and aluminum. Rated weld depths: stainless steel up to 3.5mm, carbon steel up to 3.5mm, aluminum up to 3mm, galvanized sheet up to 3.5mm. It also handles nickel alloys, titanium, copper, and brass within its power range. For structural work requiring deeper penetration, the MA1-65 (up to 6.5mm) is the appropriate model.

Q: How does this compare to TIG and MIG welding? A: The MA1 runs 1.5x as fast as MIG welding and up to 4x as fast as TIG welding, producing TIG-quality welds with equivalent penetration. The low heat input significantly reduces distortion on thin material. Weld seams are clean, consistent, and typically require no post-weld grinding. Training time is measured in hours rather than years — most operators are producing quality welds within their first session.

Q: Does it require a water chiller? A: No. The MA1-35 uses phase-change air cooling — no external water chiller required. Plug into a 220V / 32A circuit and it's operational. This eliminates a significant cost and infrastructure requirement compared to higher-power laser systems.

Q: What is wobble welding, and when should I use it? A: Wobble welding oscillates the laser beam laterally across the joint at a set frequency and amplitude, widening the bead from the native spot size up to 4mm. Use it when you need a wider, flatter seam for cosmetic reasons, when the joint has fit-up gaps that need bridging, or when welding lap and fillet joints where broader fusion improves strength. The wobble function is preset in the machine for common welding conditions — it takes effect with a simple parameter selection on the touchscreen.

Q: Is the wire feeder easy to use? A: Yes. The T1 Wire Feeder feeds filler wire into the laser beam's path from a spool — the same concept as TIG cold-wire feeding. Wire feed nozzles in four diameters (0.8, 1.0, 1.2, and 1.6mm) are included. The feeder enables gap-bridging, buildup welding, and dissimilar thickness work that autogenous (no-filler) laser welding cannot handle alone.

Q: How long does it take to learn? A: Operators can be trained on the MA1-35 in under one hour using the factory preset programs. The 32 presets cover common materials and thicknesses — select the right preset, verify parameters on the touchscreen, and start welding. Advanced parameter customization is available for experienced operators, and custom programs can be saved for job recall.

Q: What safety gear is required? A: At minimum: laser safety glasses (two pairs included), gloves, long sleeves, and work boots. The machine includes a dual contact sensor that prevents the laser from firing unless the torch trigger is pressed AND the nozzle is in contact with the workpiece — a meaningful built-in safety mechanism. For shop environments, laser safety curtains are recommended if a dedicated room isn't available. The MA1-35 is CE/FDA/ETL certified and rated PL-d per ISO 13849-1.

Q: What's the difference between the MA1-35 and the MA1-65? A: The MA1-35 delivers 800W typical output and welds up to 3.5mm depth. The MA1-65 delivers 1500W and welds up to 6.5mm depth — nearly twice the material thickness. Both use the same 20μm fiber core, 680g lightweight torch, and wobble function. The MA1-65 also has a front-facing 7" touchscreen versus the MA1-35's top-mounted screen, which is more ergonomic for sustained overhead or awkward-angle work. If your daily work is primarily sheet metal and fabrication under 3mm, the MA1-35 covers it with margin. For structural components, heavier fabrication, or work that regularly hits 3.5–6.5mm, the MA1-65 is the better long-term investment.

Q: What power outlet does it need? A: 220V / 32A single phase — standard in most commercial and industrial shop environments. If your shop currently runs 120V only, an electrician will need to install a 220V circuit. This is a one-time setup cost and is standard practice for most welding equipment.

Q: Why buy from The Maker's Chest instead of directly from THEO? A: Our 75-day return window gives you real evaluation time in your actual shop conditions — not just a quick test before a short return deadline closes. Our USA-based expert support team is reachable by phone and email, understands laser welding at a hands-on level, and can help you dial in parameters, configure the wire feeder, and troubleshoot anything that comes up. If you're deciding between the MA1-35 and a higher model, talk to us first — we'll help you choose correctly the first time.
