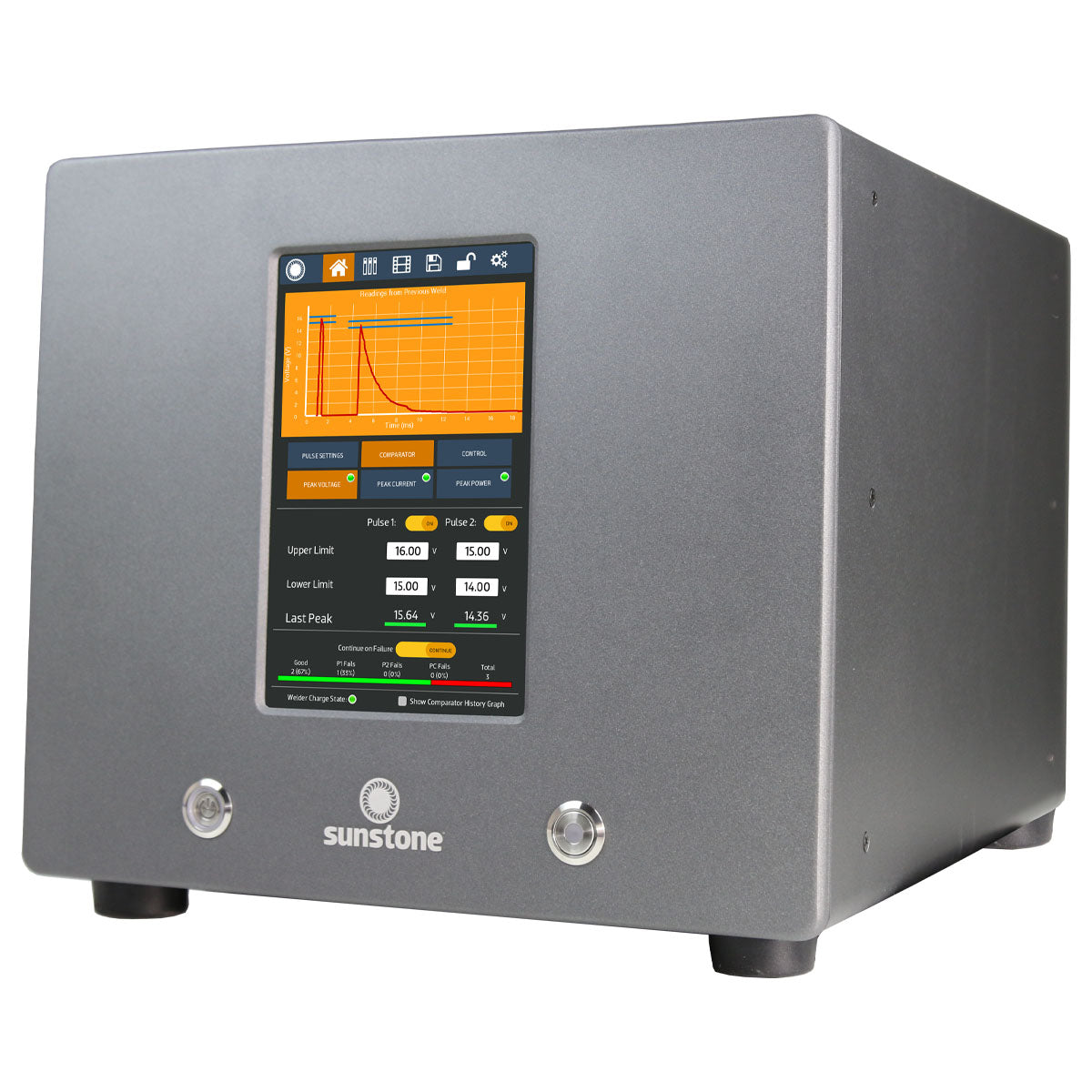

Sunstone CDDP-A Advanced Dual Pulse CD Spot Welder | 200–1200 Ws

The Sunstone CDDP-A: Production-Grade Dual Pulse Spot Welding with Full Process Control and Automation Readiness

When your application demands more than repeatable welds — when it demands documented, monitored, and automatable welds — the CDDP-A is where Sunstone's capacitive discharge lineup steps up to a production platform. This is the most advanced benchtop resistance spot welder in the Sunstone lineup, built for engineers and manufacturers who need precision, traceability, and control at every stage of the weld cycle.

Why Dual Pulse — and Why It Matters

Standard single pulse welders fire once per trigger. That works well for clean, prepared surfaces. But in real production environments — battery tabs, aerospace mesh, copper wire — surfaces aren't always perfect. Oxides, oils, and micro-contaminants can compromise weld quality in ways that aren't visible to the naked eye.

The CDDP-A solves this with two precisely timed pulses per weld cycle, fired within milliseconds of each other:

Pulse 1 — Conditioning. A lower-energy pulse heats the weld zone, burns off surface contaminants, and seats the electrodes properly against the material. The result is a clean, high-conductivity contact point — ready for the weld.

Pulse 2 — Welding. The full-energy weld pulse fires into a prepared, conditioned surface. The bond is cleaner, stronger, and more consistent than a single pulse weld on the same material.

Because the energy behind both pulses comes from capacitors — not the power line — weld output is completely independent of line voltage fluctuations. The same energy, every time, regardless of what else is drawing power in your facility.

A Touchscreen Interface Built for Production Environments

The CDDP-A replaces dials, buttons, and analog readouts with a full capacitive touchscreen display — the same interface technology used in industrial automation equipment, not consumer electronics. Every parameter is set and monitored from the screen, and everything the machine captures is visible in real time.

What you can see and control from the interface:

• Visual weld waveform graph — see the actual shape of each weld's energy delivery in real time
• Weld histogram — chart weld data across a run to identify drift, inconsistency, or process degradation before it becomes a quality problem
• Alarms and warnings — set acceptable limits; the machine flags or stops when welds fall outside them
• Timestamp data feedback — every weld is logged with time data for full traceability
• On-screen PDFs and training videos — documentation and guidance are built directly into the machine
• Statistical process controls (SPC) — production-grade quality monitoring baked into the interface
• Lock-out mode — set your parameters, lock the machine, and prevent unauthorized changes during a production run

Process Control and Monitoring That Protects Your Output

The CDDP-A's monitoring system is what separates it from standard dual pulse welders. Three types of monitoring are available — current, voltage, and power — each with user-defined upper and lower limits.

When a weld falls outside those limits, the machine can be configured to stop and alarm or flag the weld and continue, depending on your process requirements. This matters enormously in production: a weak weld on a battery tab, a sensor junction, or an aerospace component isn't always visible on the surface. The CDDP-A catches it in data — before it becomes a field failure.

The comparator function lets you compare incoming weld data against your established baseline, and the histogram gives you a visual window into long-run weld consistency. These are not accessories — they are the tools that make this machine appropriate for quality-controlled manufacturing environments.

Automation and Integration Capabilities

The CDDP-A is PLC ready — it speaks the communication protocols used in automated production lines, allowing it to integrate with robotic systems, indexing tables, automated weld heads, and process controllers. Inputs and outputs are available for programmatic triggering, feedback, and system control.

Additional integration features:

• Full welder cloning — copy all parameters from one unit and import them to another in seconds. Essential when you're running multiple CDDP-A units in parallel on the same application
• Import/Export weld data — pull production data out of the machine for external analysis, reporting, or quality documentation
• Wi-Fi connectivity — connect the machine to your network for remote monitoring and software updates
• Software updates — the CDDP-A receives firmware updates to add capability and maintain performance over the machine's life
• Roll-spot welding — continuous or indexed seam welding capability for applications requiring a linear weld path
• Emergency stop — hardwired safety stop for integrated automation environments
• Multiple languages — interface available in multiple languages for international production environments

What the CDDP-A Is Used For

The combination of high energy output, dual pulse conditioning, and production monitoring makes the CDDP-A appropriate across a wide range of precision and industrial applications:

• Battery pack assembly — lithium-ion tab welding on 18650, 21700, pouch, and prismatic cells at production scale
• Honeycomb tacking — aerospace and filtration mesh welding requiring precise, low-heat energy delivery
• Cross wire welding — bonding intersecting fine wires with consistent, repeatable nuggets
• Thermocouple welding — precision junction formation for temperature sensors and RTDs
• Copper, aluminum, and brass — thin sheet and wire welding in highly conductive metals where fast energy release is essential
• General precision resistive applications — electronics assembly, medical devices, defense and aerospace components

Choosing Your Power Level: 200 Ws, 400 Ws, 600 Ws, or 1200 Ws

The CDDP-A is available across four energy levels. All four share the same advanced touchscreen interface, dual pulse technology, monitoring capabilities, and automation features. The difference is maximum stored energy — which determines the thickness and conductivity of materials you can weld.

200 Watt Seconds Best for: fine wire welding, thin nickel strip battery tabs, thermocouple junctions, and light-gauge sheet stock. If your application involves thin materials (under ~0.3mm) and you're moving to a production-monitored environment from a simpler single-pulse setup, the 200 Ws is the right entry point into the CDDP-A platform.

400 Watt Seconds Best for: a wider range of battery tab thicknesses, moderate-gauge copper and aluminum sheet, and applications where the 200 Ws is at or near its upper limit. The most common choice for battery pack manufacturers running a variety of cell configurations. A good middle ground between capability and cost.

600 Watt Seconds Best for: thicker tabs, heavier gauge conductive materials, honeycomb tacking, and applications that push the limits of the 400 Ws model. If you're welding copper in any meaningful thickness, or running a high-duty-cycle production line on demanding materials, the 600 Ws provides the headroom you need.

1200 Watt Seconds Best for: the most demanding applications in the lineup — thick, highly conductive, or highly resistive materials that require maximum stored energy and fast rise time to achieve a quality weld. The 1200 Ws model is the top of the CDDP-A range and is appropriate for industrial and defense applications, thick-gauge aerospace materials, and any application where the 600 Ws has been found insufficient.

👉 Download the CD1200DP-A User Manual and CD1200DP-A Data Sheet for full technical specifications on the high-power model.

Not sure which model is right for your application? Our technical team can help you match power level to material and process before you buy.

Why Buy the CDDP-A From The Maker's Chest?

At this price point, the purchase experience matters as much as the product. Here's what you get buying from us:

75-Day Return Window — the most generous return policy in the channel. If the CDDP-A isn't the right fit for your process, you have 75 days to return it. Sunstone's own return window is 30 days.

Expert USA-Based Technical Support — our team understands this machine at a process level. Setup questions, weld parameter optimization, SPC configuration, PLC integration — we can help with all of it.

Dual Lines of Support — you have access to both our in-house support team and Sunstone's own technical resources. Two channels working for you on a single purchase.

Authorized Sunstone Reseller — genuine product, full manufacturer warranty, the same machine you'd receive from Sunstone direct — with our additional support layer on top.

Frequently Asked Questions

What's the difference between the CDDP-A and the standard CDDP (non-Advanced)? Both are dual pulse capacitive discharge welders. The standard CDDP uses a manual interface — dials and buttons — with a digital display showing energy settings. The CDDP-A replaces all of that with a full capacitive touchscreen, adds real-time weld waveform visualization, SPC tools, histogram tracking, weld monitoring with alarms, timestamp data logging, PLC integration, Wi-Fi, welder cloning, and import/export data capability. The CDDP-A is the right choice when your application requires process control, traceability, or automation integration. The standard CDDP is appropriate for lab, R&D, or lower-volume production where those features aren't required.

What does "dual pulse" mean and why is it better than single pulse for production applications? Single pulse welders fire one discharge per trigger. Dual pulse fires two — the first conditions the surface and seats the electrodes, the second makes the weld. In production environments where surface cleanliness varies across parts (oxides, coatings, handling residues), the conditioning pulse makes the difference between inconsistent results and repeatable, high-quality welds. For high-volume battery tab welding in particular, dual pulse is the standard.

What does weld monitoring actually do — and why does it matter? The CDDP-A monitors the peak current, voltage, and power of every weld in real time and compares them against user-defined limits. If a weld falls outside those limits — indicating a weak bond, surface problem, or electrode wear — the machine can stop and alarm or flag the weld for review. In a quality-controlled production environment, this catches bad welds before they leave the line. Without monitoring, a weak weld on a battery tab or sensor junction may not be visible until the product fails in the field.

Can I connect the CDDP-A to a PLC or automated system? Yes. The CDDP-A is PLC ready with multiple communication protocols supported. It accepts programmatic trigger inputs and provides output signals for integration with robotic weld systems, automated indexing tables, and production line controllers. Contact our team if you need guidance on integration requirements for your specific automation setup.

What is the welder cloning feature and when would I use it? Cloning allows you to export all settings, parameters, and configurations from one CDDP-A unit and import them directly into another. If you're running multiple machines on the same production line, cloning eliminates manual re-configuration and ensures every unit is set identically — which is critical for process consistency across parallel workstations.

What materials can the CDDP-A weld? The CDDP-A is designed for metals that respond to resistance welding: nickel, nickel-plated steel, copper, aluminum, brass, stainless steel, and specialty alloys used in aerospace, medical, and defense applications. The dual pulse feature and high energy ceiling make it particularly well-suited for highly conductive metals like copper, which require fast energy release to achieve proper fusion without excessive heat spread.

Where can I find the full technical documentation? The CD1200DP-A User Manual and CD1200DP-A Data Sheet are available for download. These cover the full technical specification for the high-power 1200 Ws model. Contact our team if you need documentation for the 200, 400, or 600 Ws variants.

What is your return policy? 75-day returns. If the CDDP-A doesn't work for your application or process, reach out and we'll take care of you.

Brand: Sunstone | Available Models: CD200DP-A, CD400DP-A, CD600DP-A, CD1200DP-A | Certifications: ETL, CSA, CE
