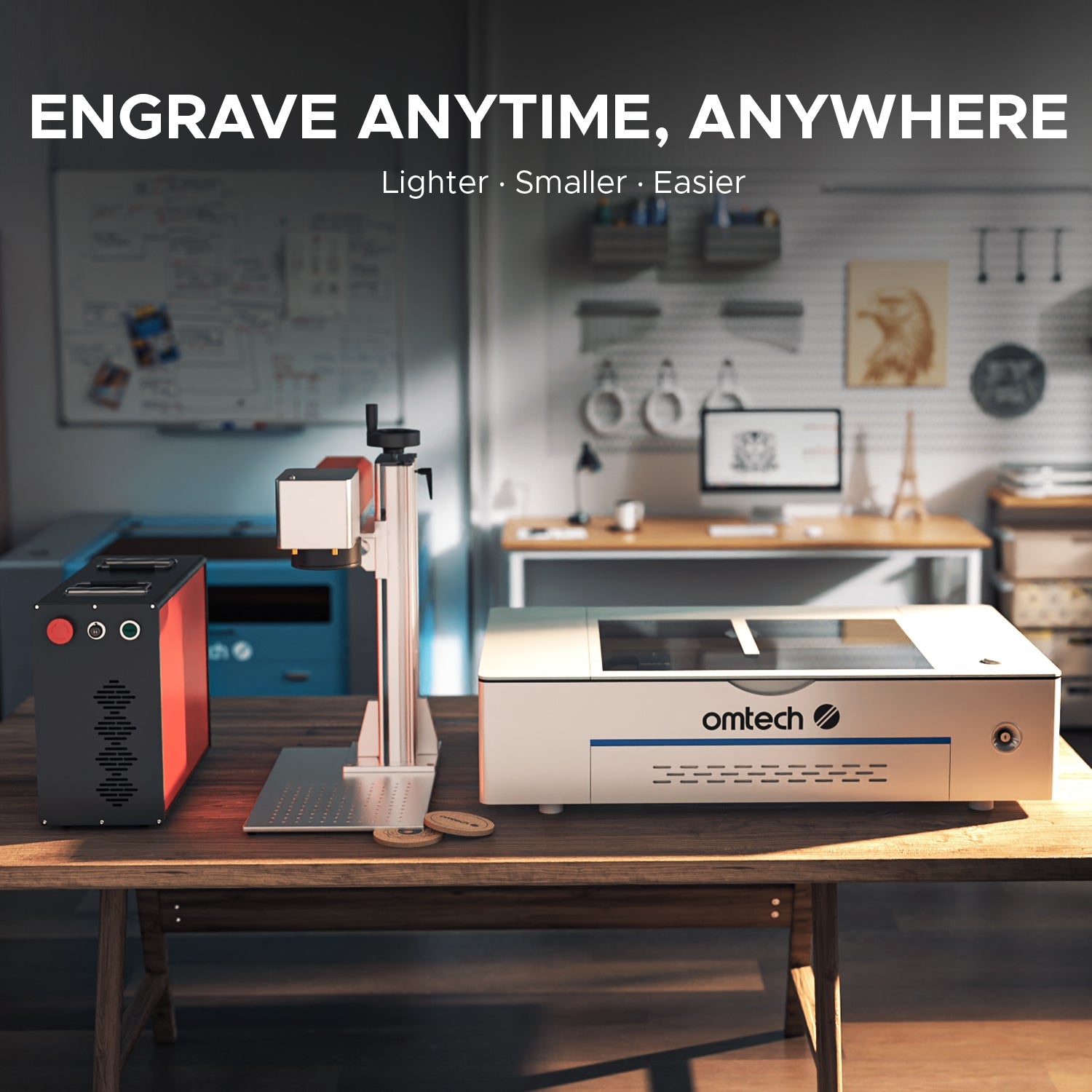

The Entry Point Into MOPA Color Marking — In a Real Production Workstation Layout.

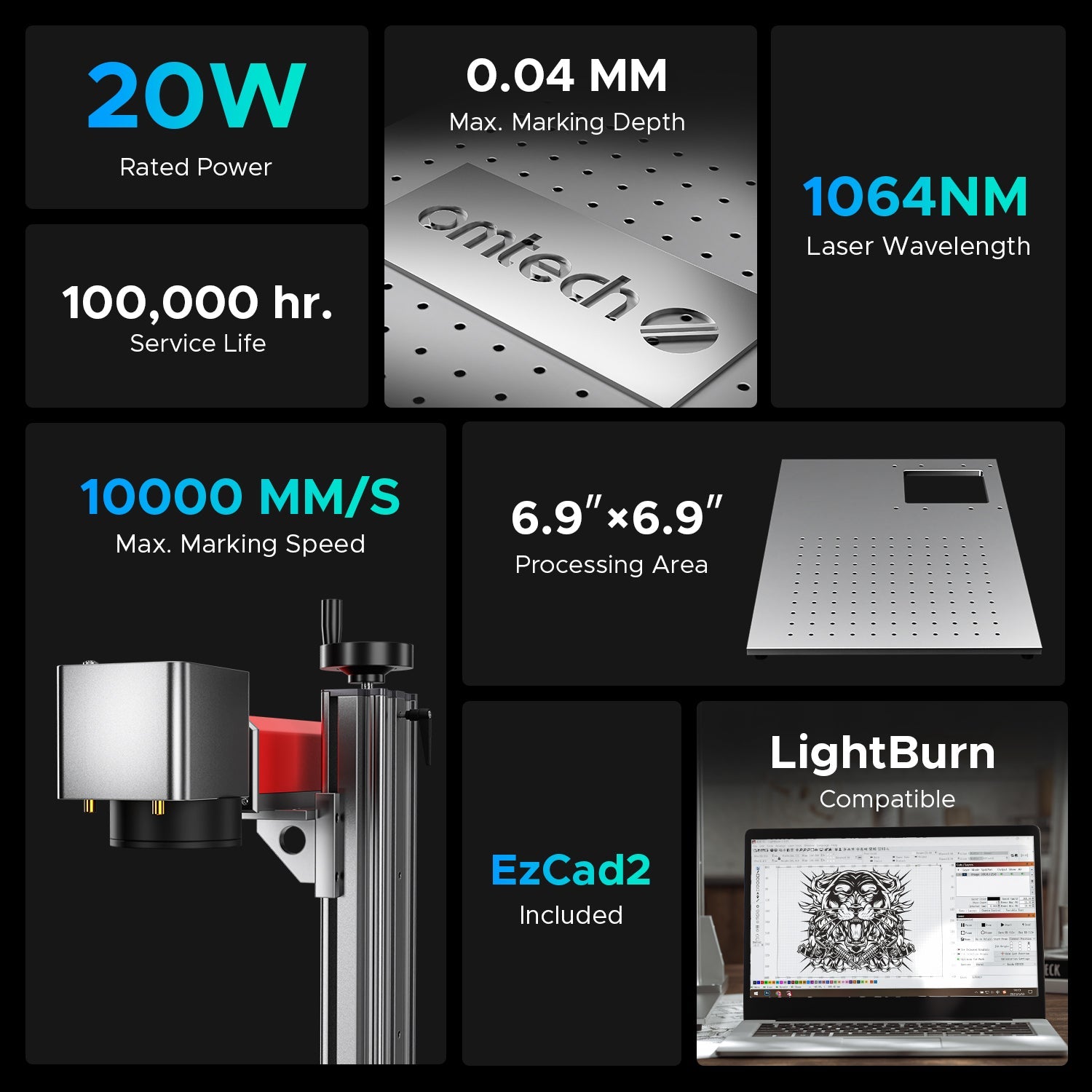

The OMTech MOPA 20W Split Fiber Laser is a 20W JPT MOPA fiber laser marking workstation with a 6.9" × 6.9" marking field, MOPA color marking capability on stainless steel, titanium, and anodized aluminum, 10,000 mm/s marking speed, and a split workstation design — making it the most accessible configuration in the OMTech MOPA Split series.
For personalization businesses, jewelry studios, and makers who want genuine MOPA color marking and a dedicated workstation setup without the cost of higher-power configurations, the MOPA 20W Split is the right starting machine.
Compatible Materials:
|
Metal
|
Plastics
|
Stone
|
Leather
|
Rubber
|
![]()
![]()
Why 20W MOPA — and Why It's More Than Enough for Many Shops
The first question buyers ask about a 20W machine is always some version of "is it powerful enough?" For most personalization, jewelry, and small production marking workflows — the honest answer is yes.
The key to understanding why starts with the technology rather than the wattage. This machine uses a JPT MOPA laser source — and the MOPA architecture is what determines its capability range, not the 20W number alone.
MOPA color marking is fully available at 20W. The color marking mechanism — controlled oxide layer formation on stainless steel and titanium surfaces through adjustable pulse width and frequency — is governed by MOPA's parameter control, not by raw wattage. The full color spectrum (golds, blues, reds, greens, purples) is achievable with the MOPA 20W on compatible metals, with parameters dialed in for your specific material.
20W is the right power for the applications most personalization and jewelry businesses actually run. Fine jewelry inscriptions, small serial numbers, logo marks on tags and nameplates, QR codes on product labels, anodized aluminum dark marks — these are applications where the MOPA 20W's output is appropriate and complete. Where 30W+ wattage makes a meaningful production difference is sustained high-volume output, harder metals at demanding depth requirements, and shops running the machine near continuously all day. For shops marking 1–4 hours daily at modest batch volumes, 20W is the correct entry.
The MOPA Source Difference — What It Unlocks That Standard Galvo Can't
Standard galvo fiber lasers — including the Galvo 20W and 30W Split — mark metal in black. That's their full marking mode. The JPT MOPA source in this machine adds independent control over pulse width (2–500 ns) and pulse frequency (1–4,000 kHz) — two parameters that fixed-pulse lasers cannot adjust — enabling:
Color marking on stainless steel and titanium. Specific pulse width and frequency settings create controlled thermal oxide layers at different thicknesses on the metal surface. Different thicknesses refract light at different wavelengths, producing visible colors. For a personalization or custom gift business, color-marked metal products command higher retail prices than standard black engravings on the same blank.
Dark marking on anodized aluminum. Standard fiber lasers at high frequency cause micro-cracking on anodized surfaces. The MOPA's adjustable pulse width produces clean, high-contrast dark marks on anodized aluminum without damaging the anodized layer — the correct result for shops marking branded tumblers, hardware, and accessories.
Gentle plastic marking. Adjusted to shorter pulse widths, the MOPA marks ABS, PC, and engineering plastics without burning or melting — the same machine that marks tool steel can mark a plastic housing label in the next job.

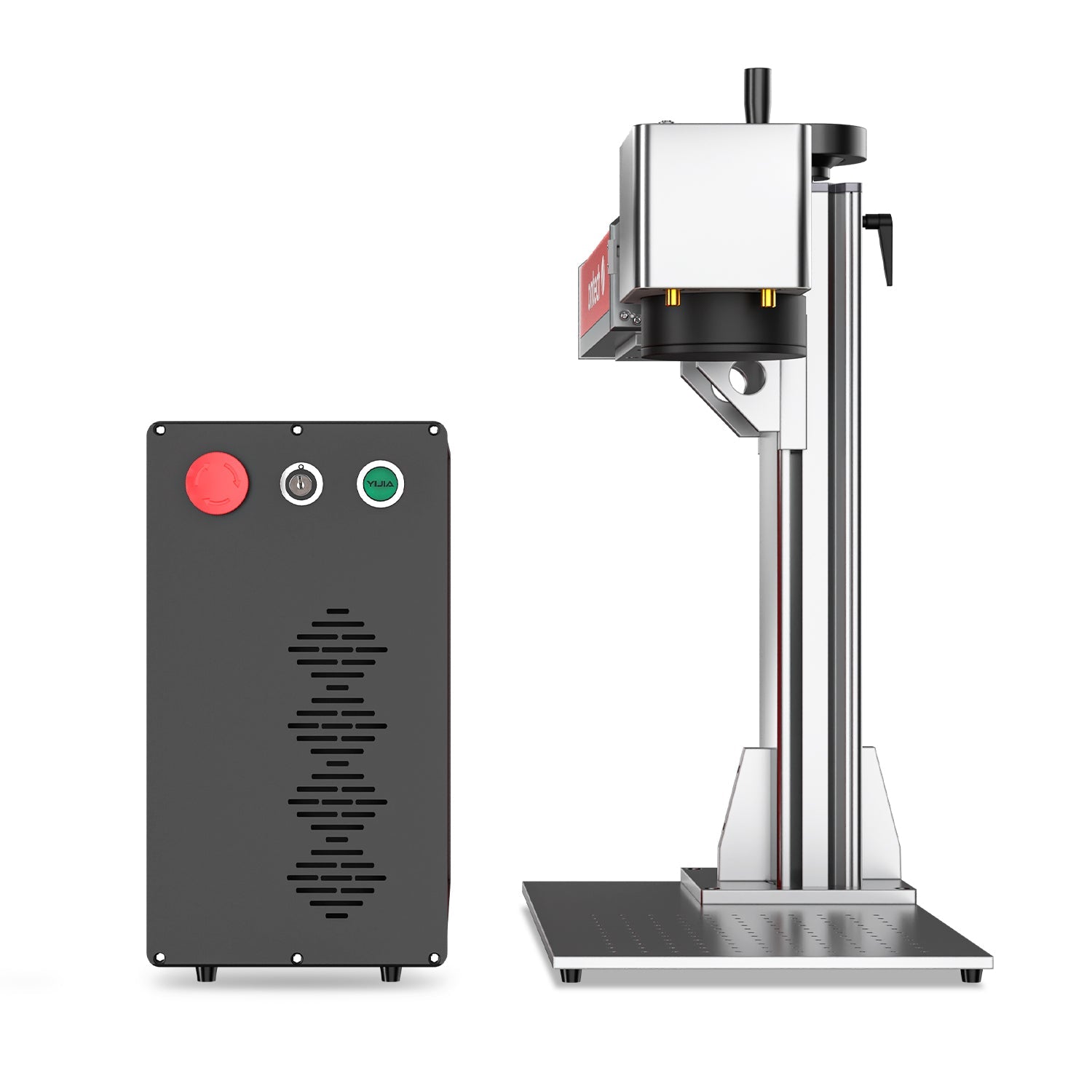

Split Design Over Compact Integrated — What the Workstation Format Gives You
The MOPA 20W is also available in a compact integrated form. The split workstation format is the right choice when:

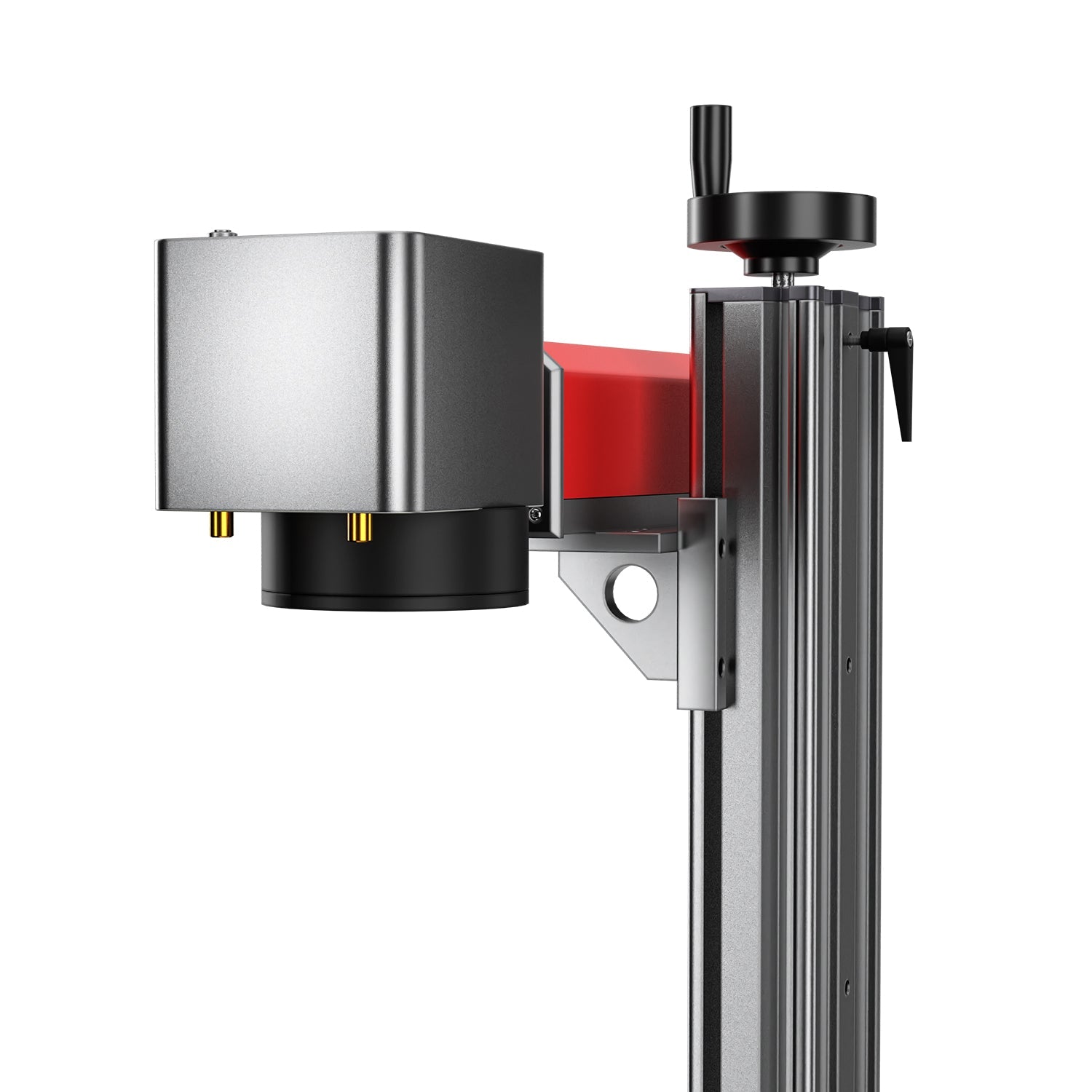

Open platform access matters. The split design positions the galvo head over an open work platform — no enclosure walls, no reach-in constraint. Larger pieces, irregular shapes, and production fixtures all position easily in open air, which matters for a shop handling varied piece sizes throughout the day.
A dedicated workstation setup is the goal. The split layout creates a clearly defined marking station in your workshop — the kind of professional setup that signals production-grade operation and supports a more focused, ergonomic workflow for extended marking sessions.
You work at consistent material heights. Manual focus on the split design is fast and repeatable for operators working with consistent material thicknesses — set the height once per material type, and it repeats accurately across the session.
You want the larger 6.9" field. The split format accommodates the 6.9" × 6.9" field — significantly larger than most compact integrated MOPA machines at this wattage, which typically offer 4.3" or 5.9" fields.
6.9" × 6.9" — More Field Than Most MOPA Machines at This Power Level
The MOPA 20W Split's 6.9" × 6.9" (175 × 175mm) marking field is one of the meaningful practical advantages of this configuration over compact integrated MOPA machines at comparable or higher wattage.
For a personalization business, the larger field means:
- More pieces per batch layout — fitting more individual tags, jewelry pieces, or branded components in a single setup, reducing load cycles per shift
- Larger individual pieces in one pass — wider nameplates, bigger award plaques, and broader components that require repositioning on a 4.3" machine fit cleanly within the 6.9" field
- More design freedom for creative layouts — larger artwork, wider logos, and more visual design space on full-size blanks

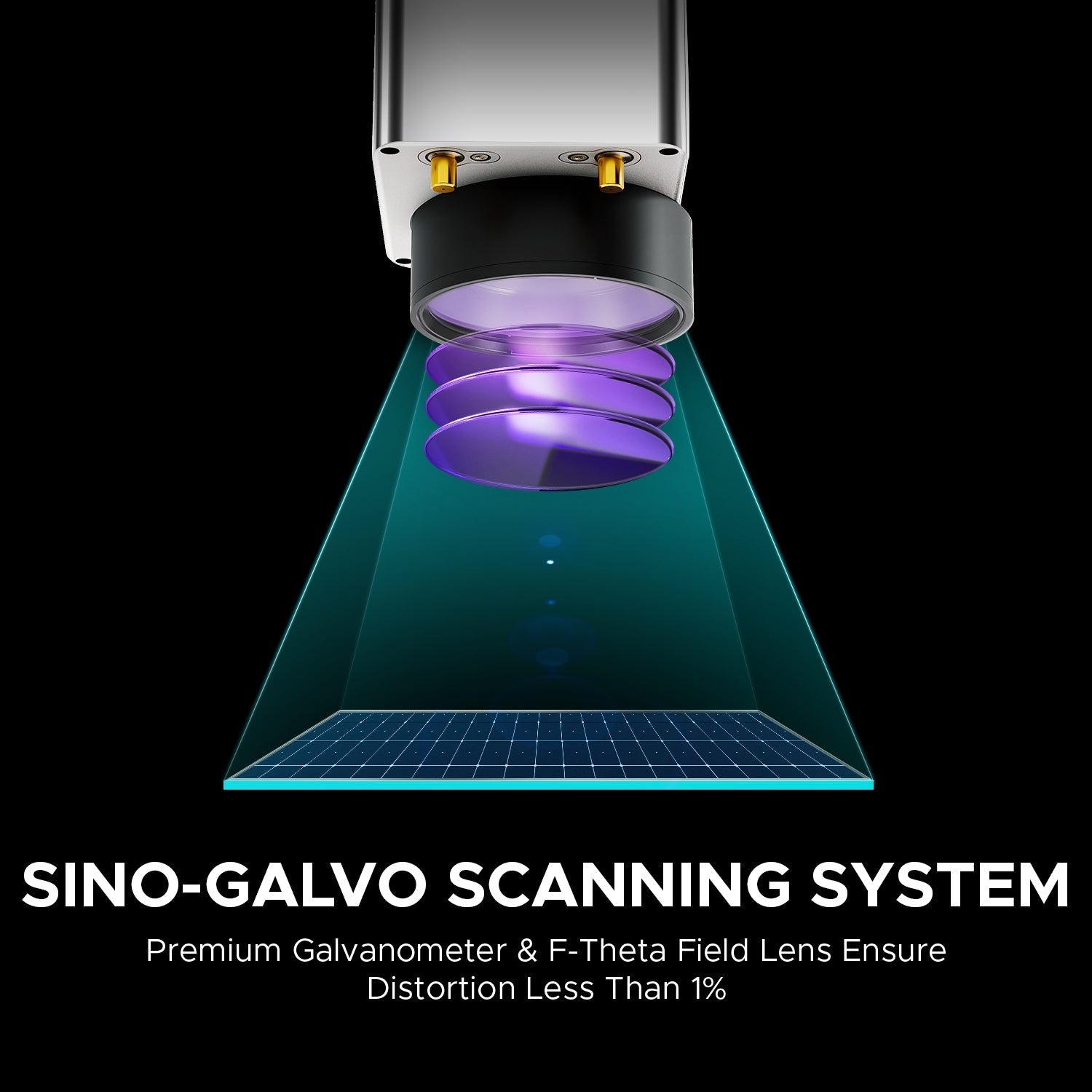

The Galvo-Tech scanning system maintains consistent beam quality across the full 6.9" area — so marks at the corners of a batch layout are as accurate as marks at the center.
Red Dot Guidance, Foot Switch, and Air Cooling — The Production Details
Three practical features that matter in daily production use:
Red dot guidance: Visible pointers help with focusing, origin positioning, outline preview, and pattern placement before the main laser fires. For personalization work where correct placement on the first mark saves material and time, the red dot preview confirms placement before any laser energy is committed.
Foot switch: Included standard. Hands-free job triggering throughout batch runs — step to fire, both hands stay on parts. Eliminates the reach-and-click between every piece and improves cycle efficiency across a full session.
Air cooling: No water chiller, no plumbing, no coolant management. The machine is operational the day it arrives — plug in the power cable and start marking. For a small shop where infrastructure simplicity is part of the operational requirement, air cooling is a meaningful practical advantage.
EzCad2 and LightBurn — Both Available, macOS Supported

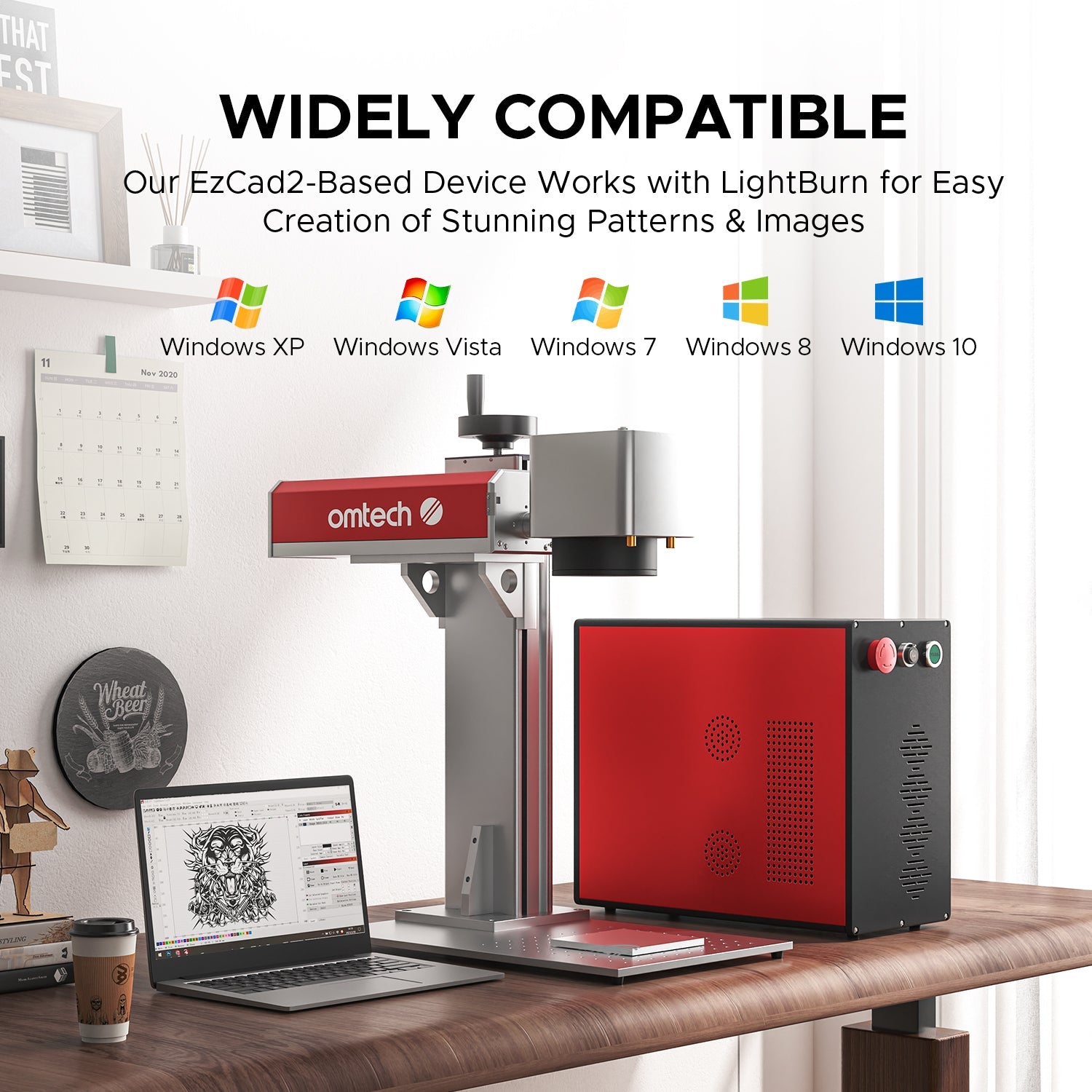

EzCad2 is included on USB drive — compatible with Windows XP through Windows 10 (32/64-bit). Full MOPA pulse parameter access, color marking settings, batch array layouts, barcode and QR code generation, and all standard galvo marking functions.
LightBurn galvo mode is compatible — available as a bundle option at checkout. LightBurn runs on Windows and macOS, making it the right choice for Mac-based operators who want native macOS software without emulation.
Supported file formats: AI, BMP, DXF, GIF, JPG, PLT, PNG, TGA, TIF.
The JPT MOPA source carries a 100,000-hour rated service life. 2-year machine warranty included.
The Maker's Chest Difference
The OMTech MOPA 20W Split is available from OMTech directly and from other resellers. Here's what changes when you order through The Maker's Chest:
- 🛡️ 75-day returns — significantly longer than OMTech's direct return window. Enough time to set up the workstation, develop your MOPA color marking parameters for your specific metals, run real batches, and confirm the 20W configuration is the right starting point before you're committed
- 🇺🇸 Expert USA-based technical support — our team understands MOPA fiber laser operation and can help with EzCad2 and LightBurn setup, color marking parameter development for stainless and anodized aluminum, and any production issues
- 📞 Dual lines of support — phone and email, so when production is running and something needs attention, you have a direct path to a real person
- 🔧 Straight configuration guidance — 20W Split or 30W Split? Split workstation or compact integrated MOPA? Not sure which configuration is right for your daily volume and material range? Talk to us before ordering. We'll give you a direct recommendation
Frequently Asked Questions About OMTech MOPA 20W Split Fiber Laser Engraver
Q: Can a 20W MOPA actually produce color marks on stainless steel?
A: Yes — MOPA color marking on stainless steel and titanium is fully available at 20W. The color mechanism is governed by MOPA's adjustable pulse width and frequency, not by wattage alone. Golds, blues, reds, greens, and purples are all achievable with proper parameter settings. What wattage affects is throughput speed and how quickly those colors develop per pass — higher wattage completes color marking passes faster. At 20W, color marking takes slightly longer per piece than at 30W or 60W, but the color results are achievable and the capability is genuine.
Q: When does it make sense to step up to the MOPA 30W Split instead?
A: If your shop runs the MOPA laser for 5–6+ hours daily at sustained volume, processes predominately harder metals where 0.08mm depth (30W) versus 0.04mm (20W) matters for traceability compliance, or needs faster color marking throughput on large batches — the 30W is the appropriate step. For shops marking 1–4 hours daily on jewelry, personalization, and mixed-material components where color marking quality matters more than maximum speed, the 20W is right. Contact our team with your daily volume and we'll give you a direct answer.
Q: How is this different from the MOPA 20W Integrated compact machine?
A: Both use the same JPT MOPA source and the same color marking capability. The key differences are field size and design format. The compact integrated MOPA 20W has a smaller enclosed cabinet and typically a 4.3" or 5.9" field. The split workstation MOPA 20W provides a 6.9" × 6.9" field, open platform access for easier part loading, and a dedicated workstation layout. If compact footprint and portability are priorities, the integrated format is better. If you want the larger field and a dedicated production workstation, the split is the right choice.
Q: Does it need a water chiller?
A: No. The MOPA 20W Split is air-cooled — no water chiller, no plumbing, no coolant. Plug in and operate.
Q: Is it compatible with macOS?
A: Yes via LightBurn galvo mode, which runs natively on macOS. EzCad2 requires Windows. Add LightBurn as a bundle option at checkout for native macOS operation.
Q: What materials does it mark?

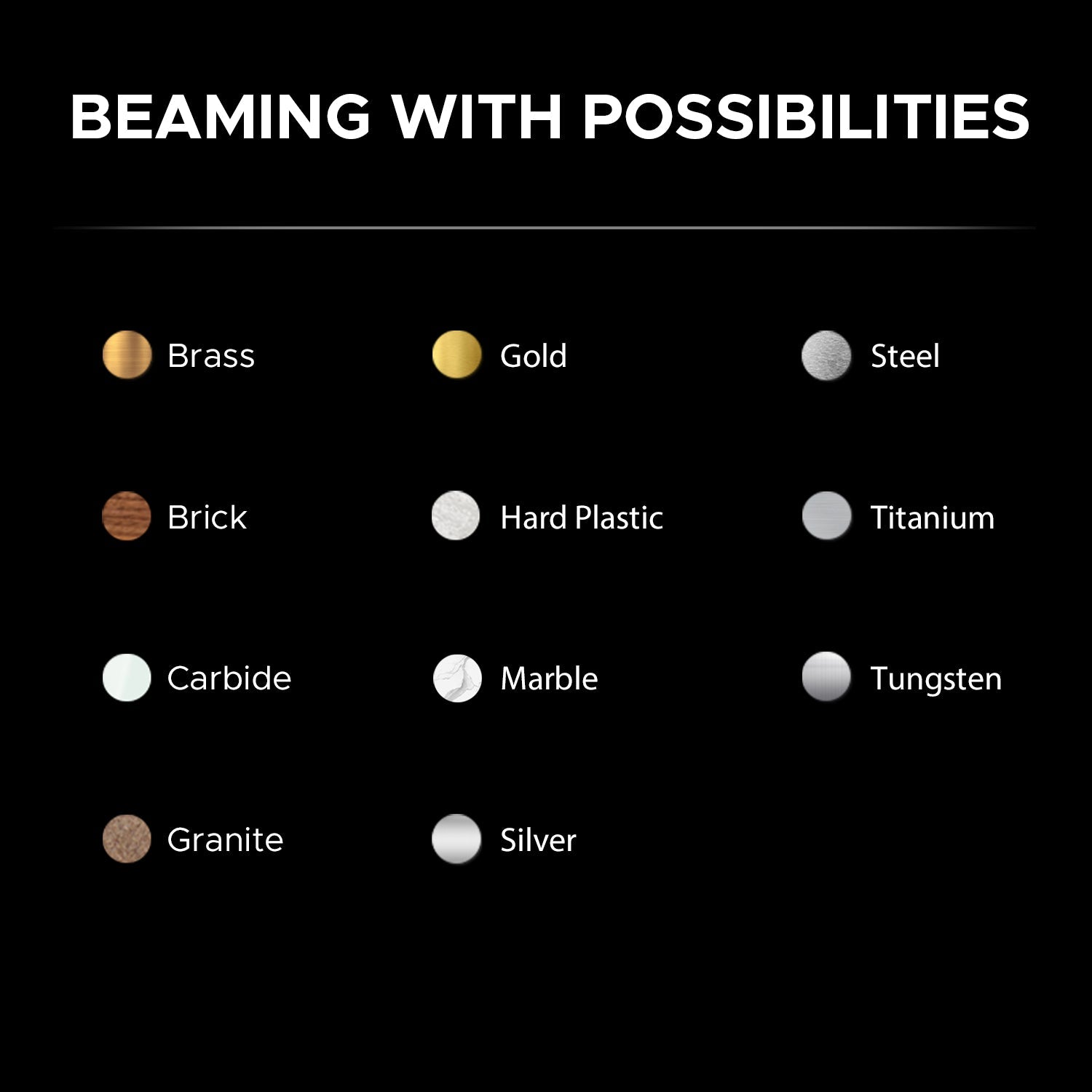

A: Stainless steel, aluminum, anodized aluminum, gold, silver, brass, copper, titanium, chromium, carbide, iron, and most metal alloys. Also granite, marble, and selected hard plastics. MOPA color marking is available on stainless steel, titanium, and chromium. Dark marking on anodized aluminum. Standard black marking on all compatible metals.
Q: What does the foot switch do?
A: Hands-free job triggering — step on the pedal to fire the laser, keeping both hands on parts. For batch runs where the operator is continuously loading, positioning, and marking, this removes the reach-and-click interruption between pieces and meaningfully improves throughput.
Q: What is the marking depth?
A: 0.04mm maximum single-pass depth. Appropriate for permanent surface marking, serial numbers, barcodes, logos, jewelry inscriptions, and most personalization applications. For applications where deeper marks (0.08mm–0.15mm) are specified — defense component traceability, industrial marking that survives coating or handling — the 30W, 60W, or higher-wattage MOPA Split configurations are more appropriate.
