The Mid-Power Compact Fiber Laser That Covers More Jobs Than the 20W Without the Cost of the 50W.

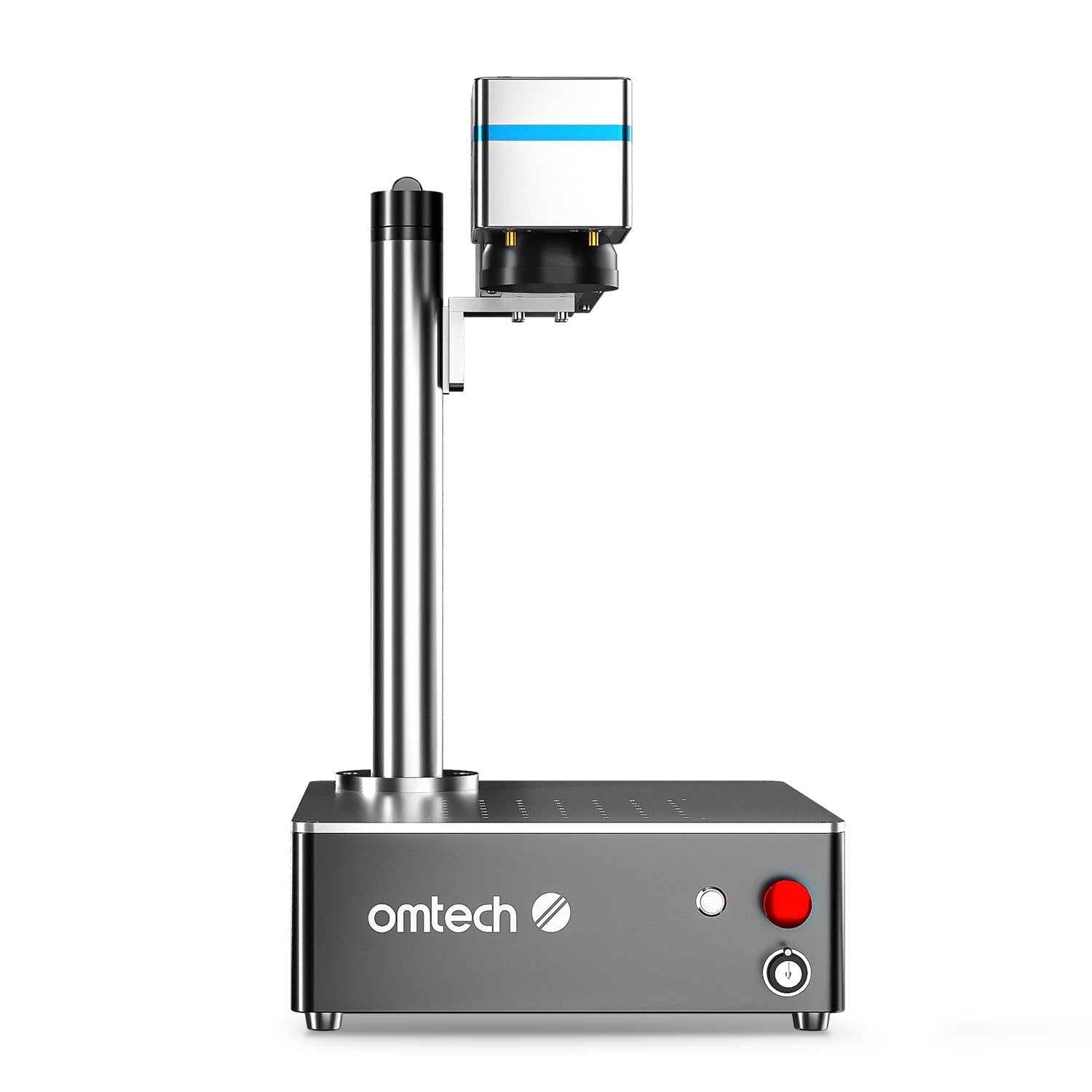

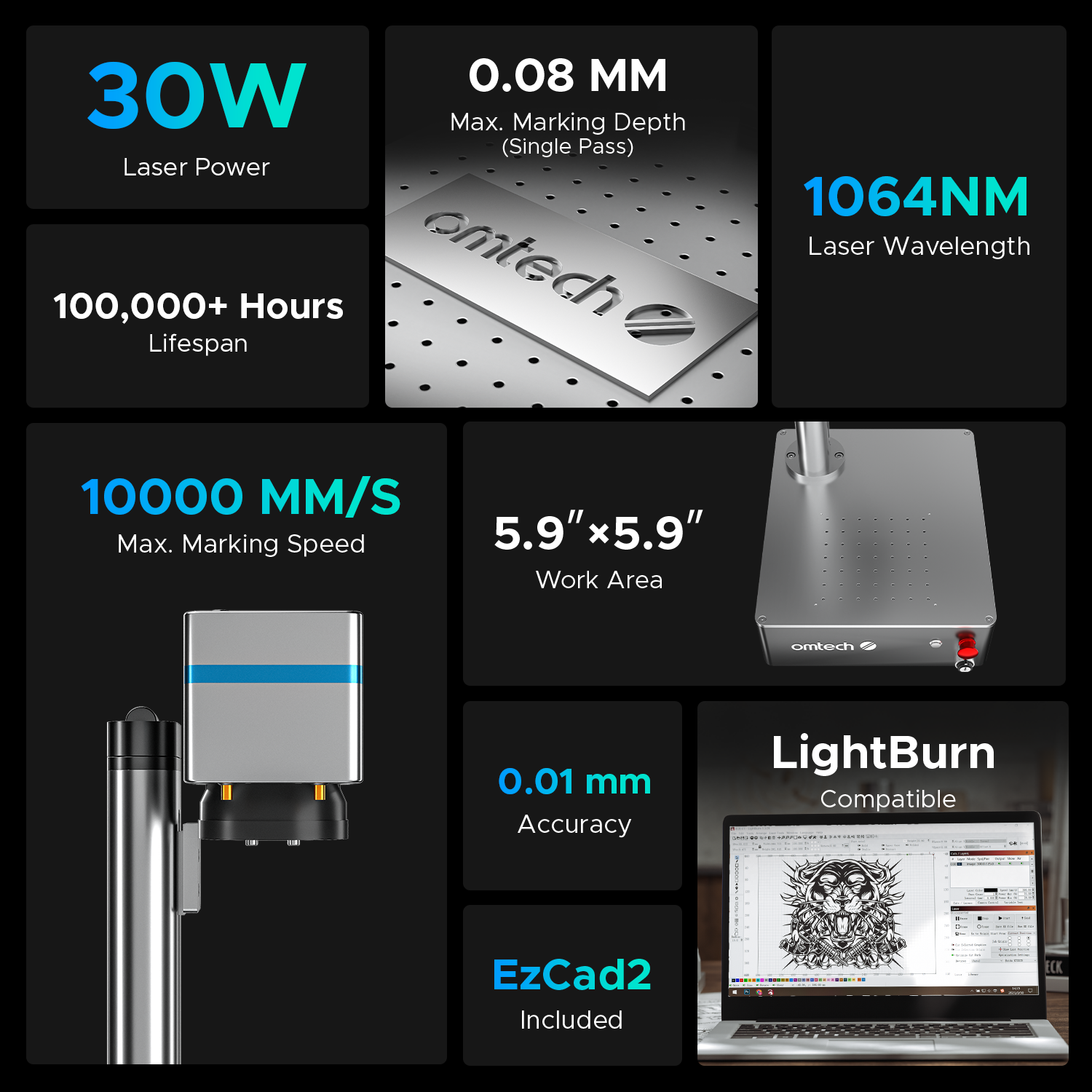

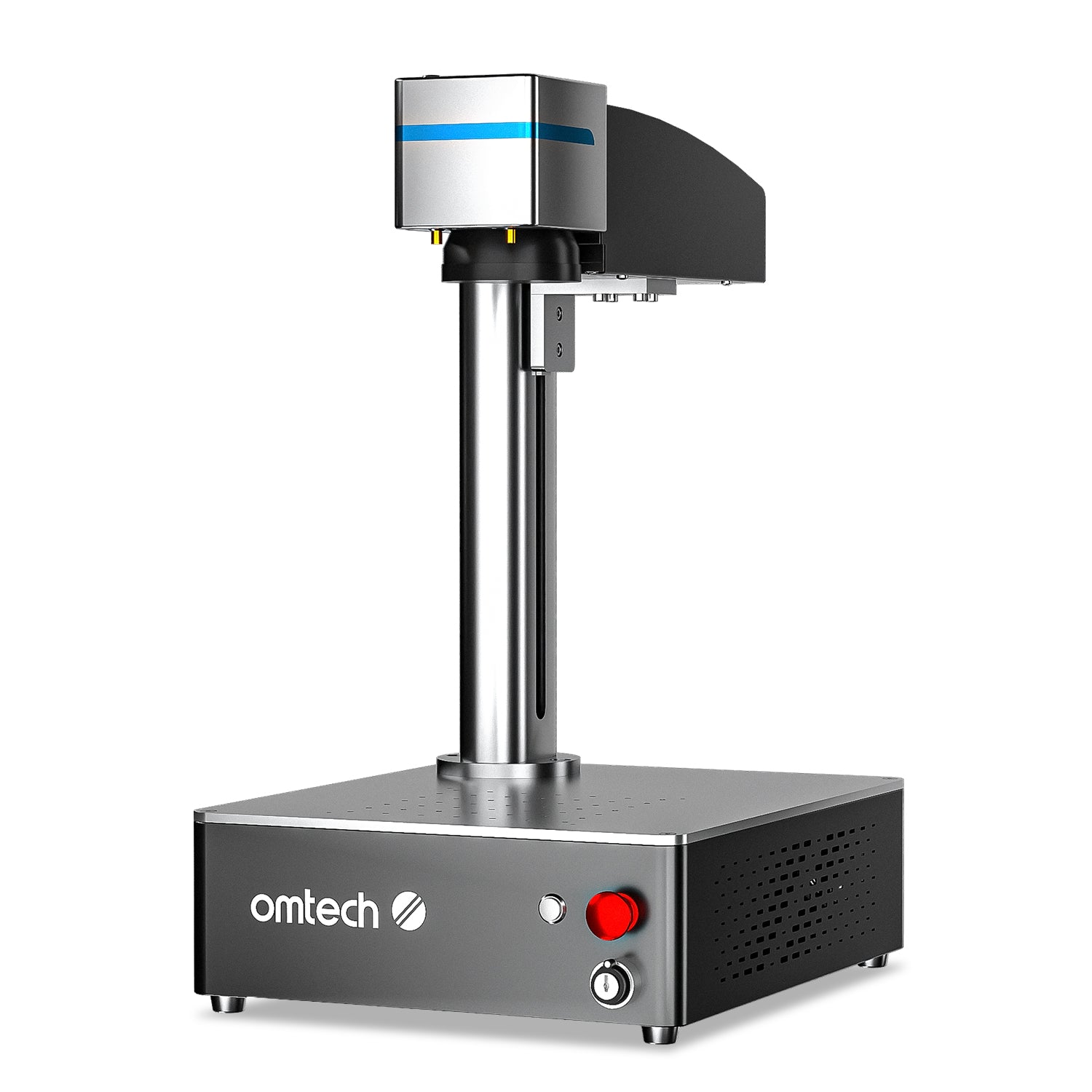

The OMTech Galvo 30W Compact Integrated Fiber Laser is a 30W Sino-Galvo fiber laser marking machine that delivers 10,000 mm/s marking speed, ±0.01mm accuracy, and a 5.9" × 5.9" marking field in a 39 lb. single-piece unit that places on any workbench.
It's the mid-range configuration in the OMTech compact integrated galvo family — providing more output power and a larger working field than the 20W, while remaining meaningfully more accessible than the 50W for shops whose daily volume doesn't yet justify the top-tier configuration.
Compatible Materials:
|
Metal
|
Plastics
|
Stone
|
Leather
|
Rubber
|
![]()
![]()
Where the 30W Fits in the Compact Integrated Galvo Lineup
The OMTech compact integrated galvo family offers 20W, 30W, and 50W configurations — same physical chassis, same design, same LightBurn compatibility. Understanding what the wattage step-up actually changes helps you choose the right one.
20W — the entry configuration. 4.3" × 4.3" marking field. Suited for light-volume marking: individual jewelry pieces, small tags, occasional custom gifts, and casual business card-scale work.
30W — the mid-range step-up. 5.9" × 5.9" marking field — nearly 90% more marking area than the 20W. ~50% more output power. Better throughput on detail-intensive graphics, deeper marking per pass on harder metals, and more comfortable operating headroom during extended sessions. For shops where the 20W's field size or throughput is a recurring constraint, the 30W resolves both in a single upgrade.
50W — the highest-power compact integrated configuration. Same 5.9" × 5.9" field as the 30W, but with 67% more output power again. The right choice for shops running the machine intensively all day on demanding production volumes.
For personalization businesses, jewelry studios, and small shops that mark consistently throughout the day but aren't running full industrial production shifts — the 30W is the practical balance point between capability and cost.

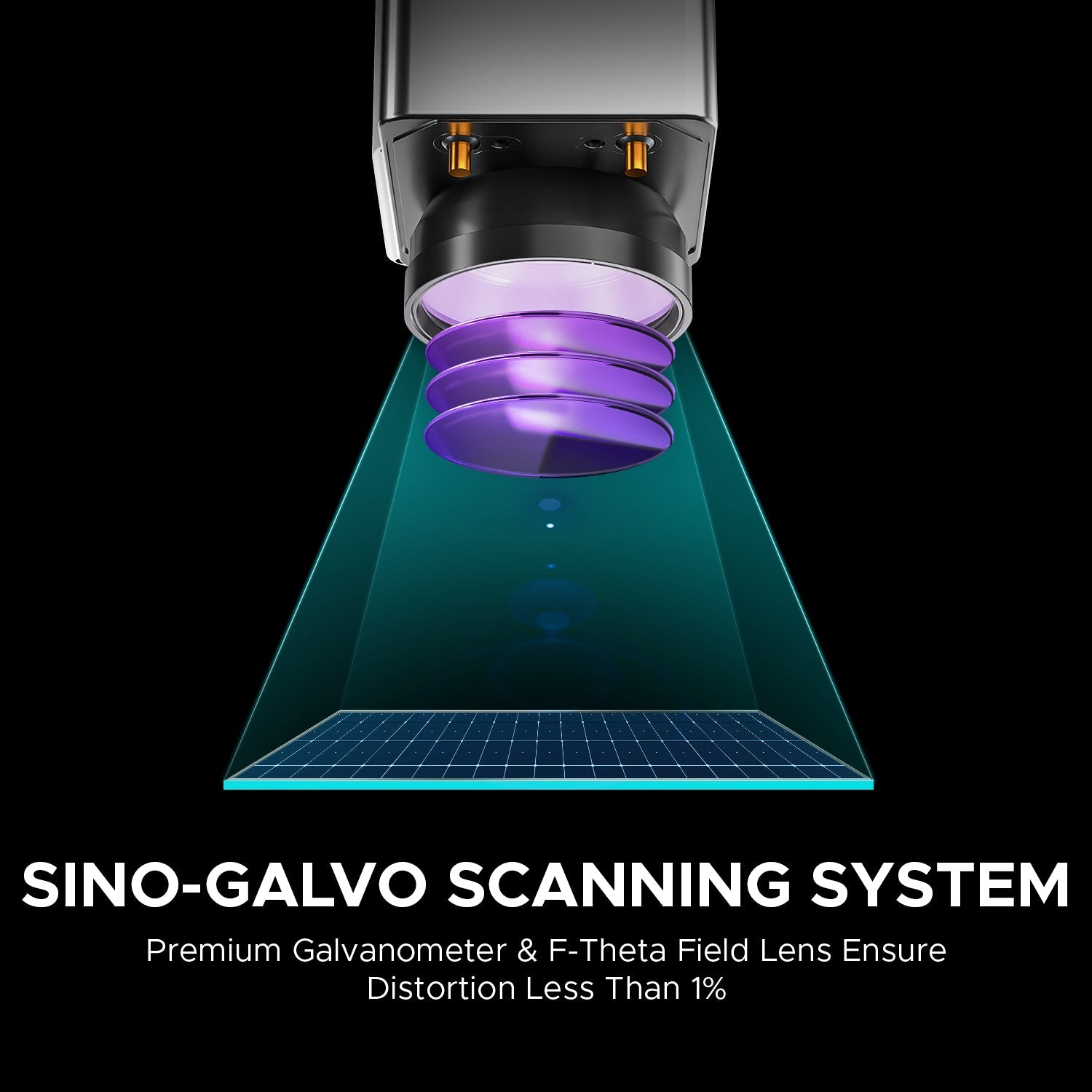

Sino-Galvo Scanning System — Field-Wide Precision, Not Just Center Precision
The Galvo 30W uses a Sino-Galvo scanning system with an F-Theta field lens — an important specification that directly affects mark quality at production scale.
Standard galvo systems with lower-quality field lenses maintain good beam focus at the center of the marking field but experience progressively larger spot size and distortion toward the edges. The result: marks at the corners of a batch layout look softer or less accurate than marks in the center.
The Sino-Galvo's F-Theta lens design maintains consistent beam spot size and focal quality across the full 5.9" × 5.9" working field. A logo at the far corner of the field marks with the same sharpness as a logo at the center. A QR code at the edge of a batch layout scans as reliably as one placed in the middle.
For production layouts where maximizing throughput means placing multiple pieces across the full marking field, this field-wide consistency is what makes the output commercially reliable rather than just technically possible.

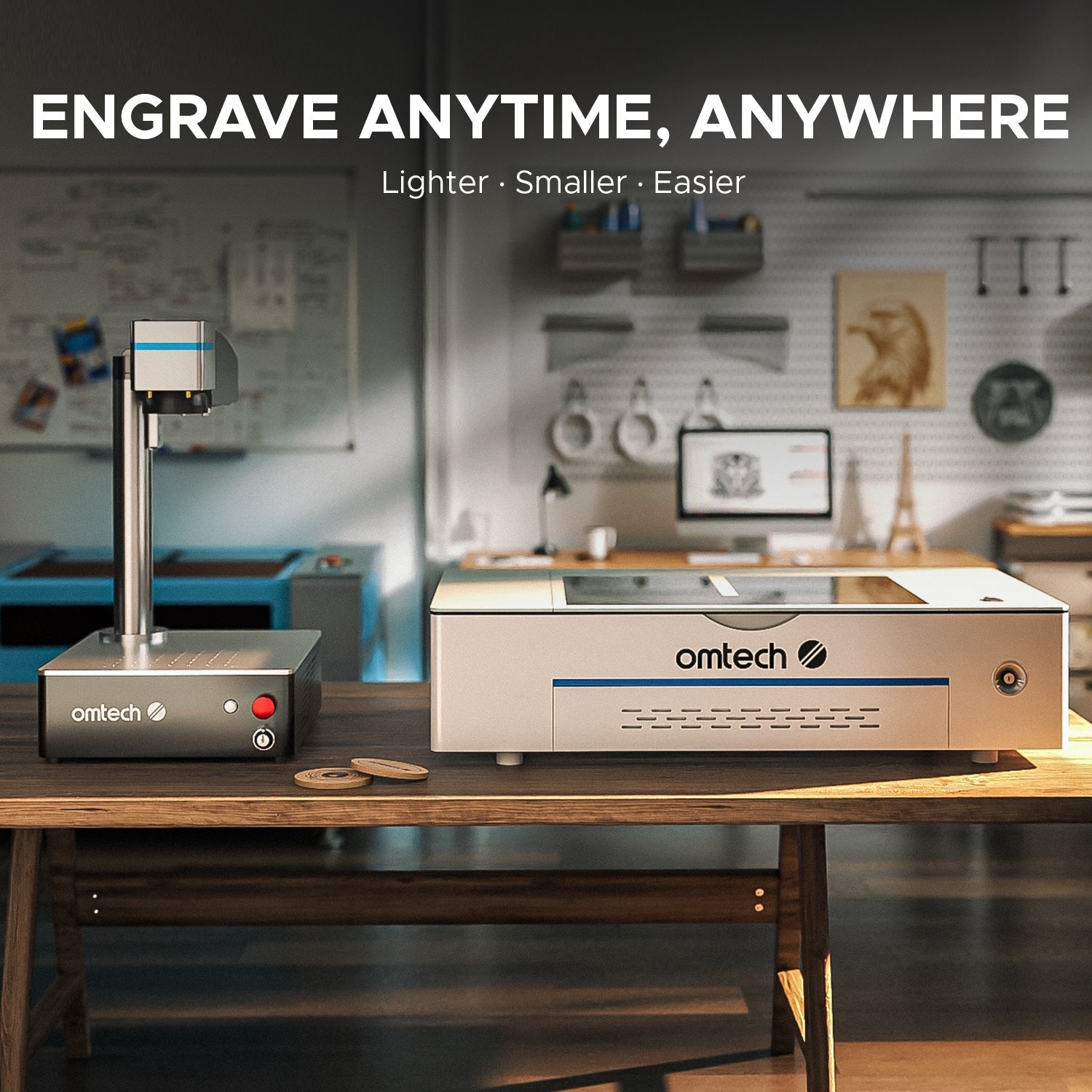

39 Lbs. One Piece. A Real Workbench Machine.
At 39 lbs. in a 15.7" × 13.3" × 21.6" integrated chassis, the Galvo 30W is a workbench machine in the genuine sense — not a machine that requires a dedicated table, a cleared area, or freight handling to move.
One person carries it. It shares a workbench with other equipment. It stores when the space is needed for something else. For home studios, small jewelry studios, personalization businesses operating from a rented space, or makers who take the machine to markets and client locations — this form factor is practically significant in a way that a 200+ lb. workstation machine simply isn't.
The 100,000-hour rated JPT laser source lifespan means this is also a buy-once decision. At 8 hours daily, 250 working days per year, that's approximately 50 years of rated life before the source approaches end of life.

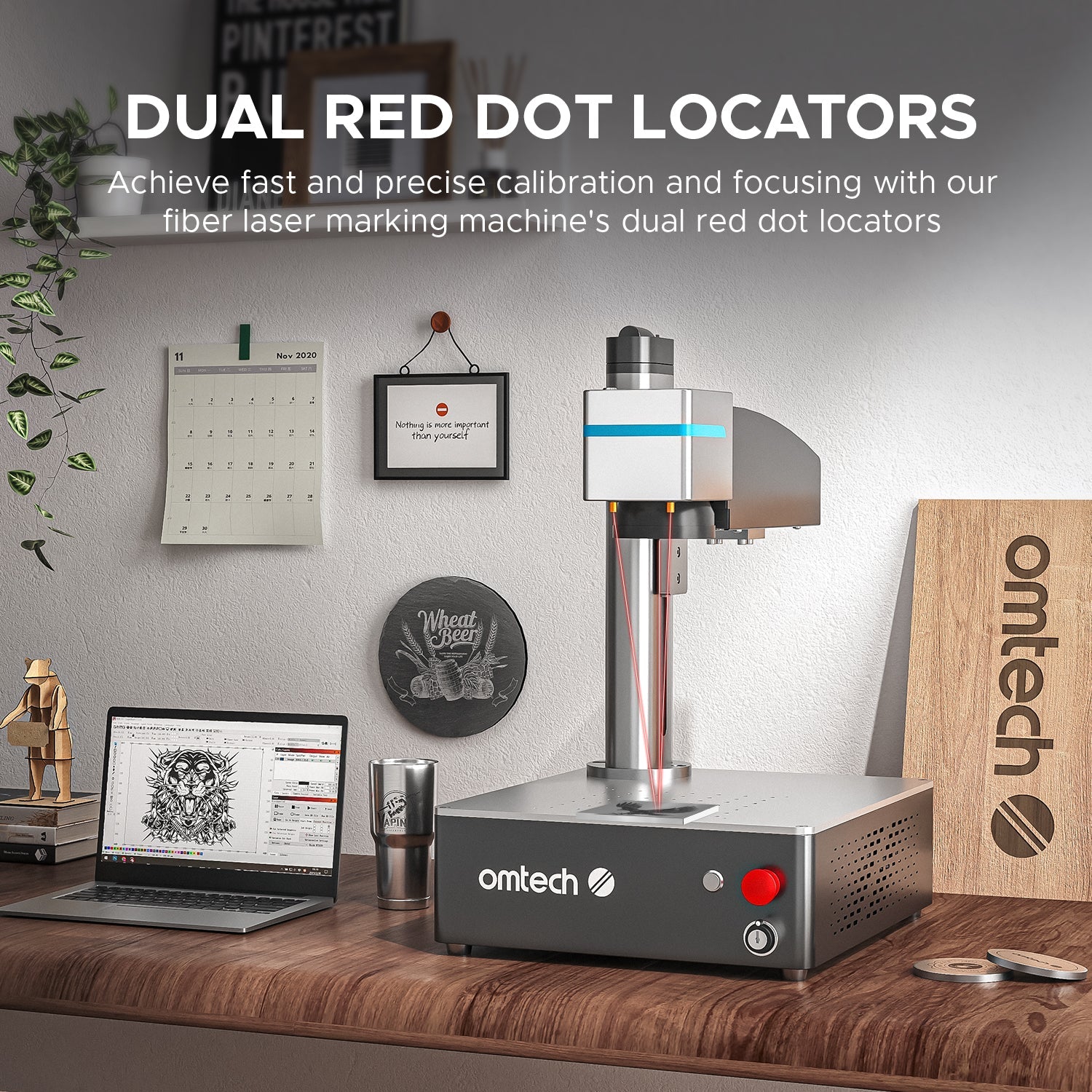

Dual Red Dot Locators — Placement Confirmed Before Every Mark
Before every job, the dual red dot locators project two visible reference points onto the material surface — showing both the center and boundary of the marking area. Position your workpiece to the dual dot references, confirm placement visually, and trigger the job.
For personalization work where placement matters — a logo centered on a nameplate, a name positioned correctly on a gift tag, artwork aligned on a product component — this pre-mark visual confirmation eliminates the test-burn and repositioning cycle on each new material setup.
For batch production where multiple pieces are laid out in a fixture, the dual red dots confirm the full layout is properly aligned before a full batch of parts is committed. The result is a lower misalignment rate, less wasted material, and faster throughput on repeat jobs.

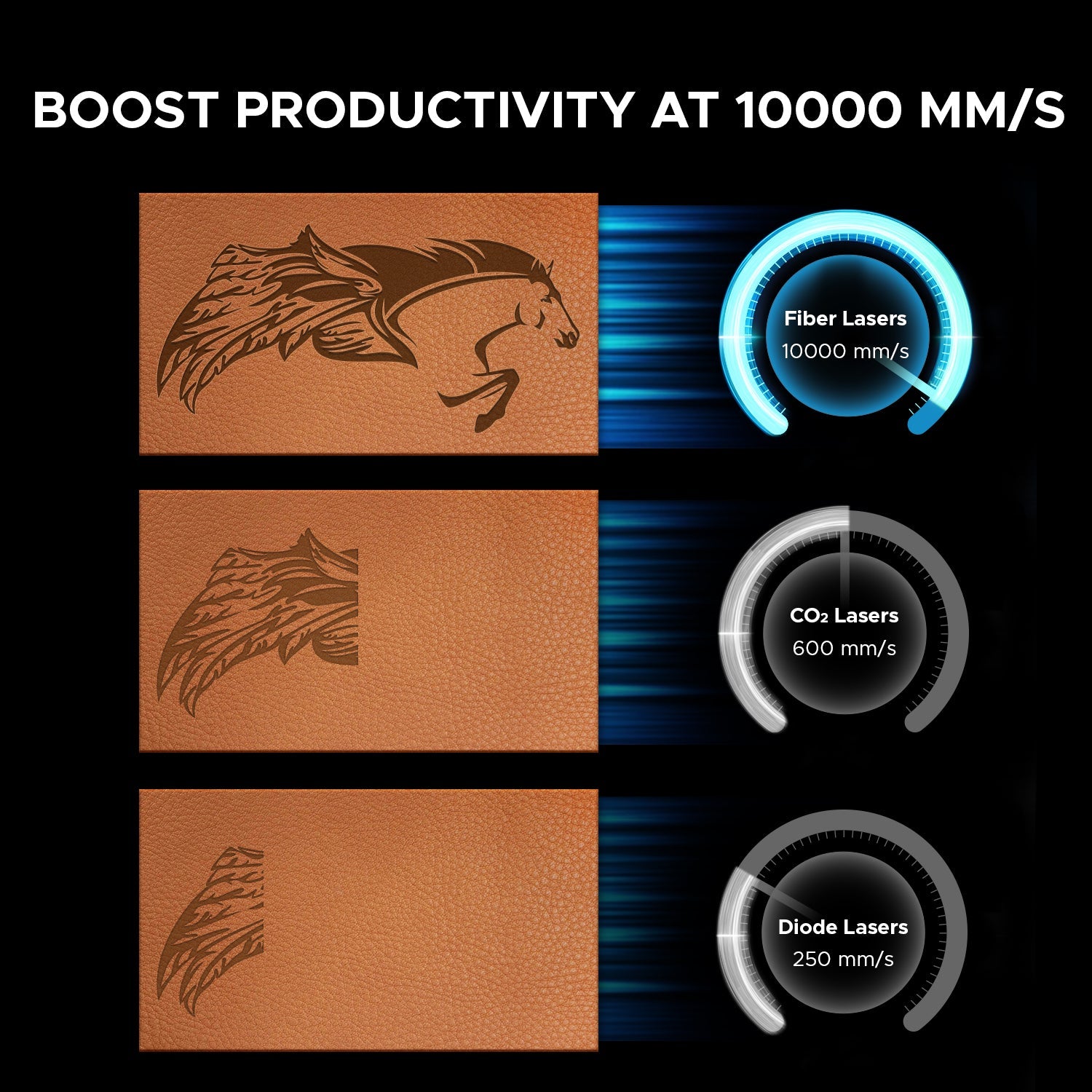

10,000 mm/s — What Galvo Technology Delivers That Gantry Machines Can't
The 10,000 mm/s marking speed is a galvo laser figure — and it's achievable because high-speed mirrors redirect the laser beam without physically moving the laser head. No mechanical mass, no acceleration penalty at direction changes, no deceleration loss at corners.

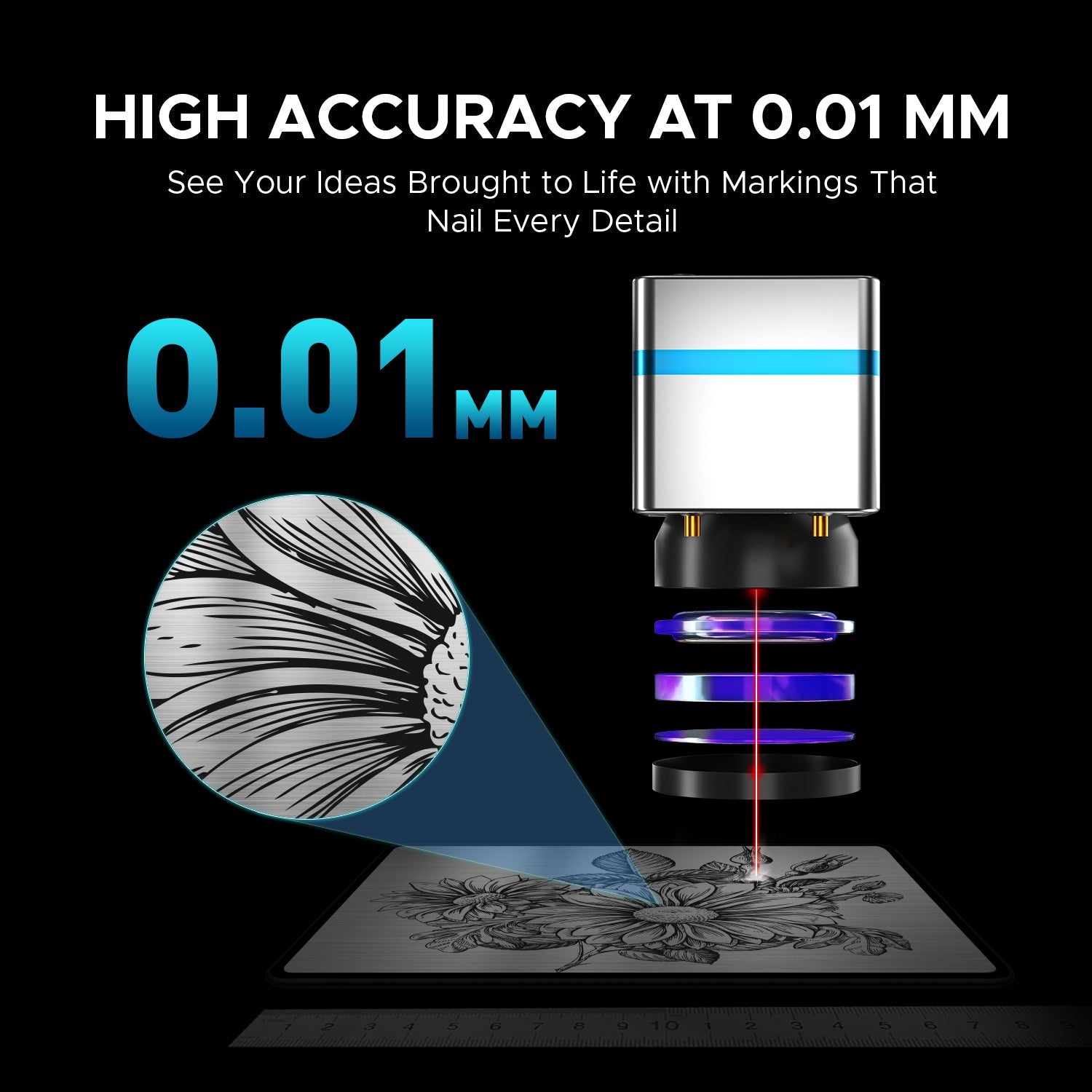

At ±0.01mm marking accuracy, the Galvo 30W maintains this speed across:
-
Fine serif text at sizes required for product labels, jewelry hallmarks, and regulatory markings
-
QR codes and Data Matrix codes at scanning-ready sizes for product identification and traceability
-
Detailed logos with crisp line edges and consistent depth across the full marking field
-
Batch serial number runs where throughput per hour directly affects production capacity
The 5.9" × 5.9" field allows more parts per batch layout than the 20W's 4.3" field — which means fewer load/unload cycles and more marks per machine hour on production setups.
Compatible Materials — Metal is the Core

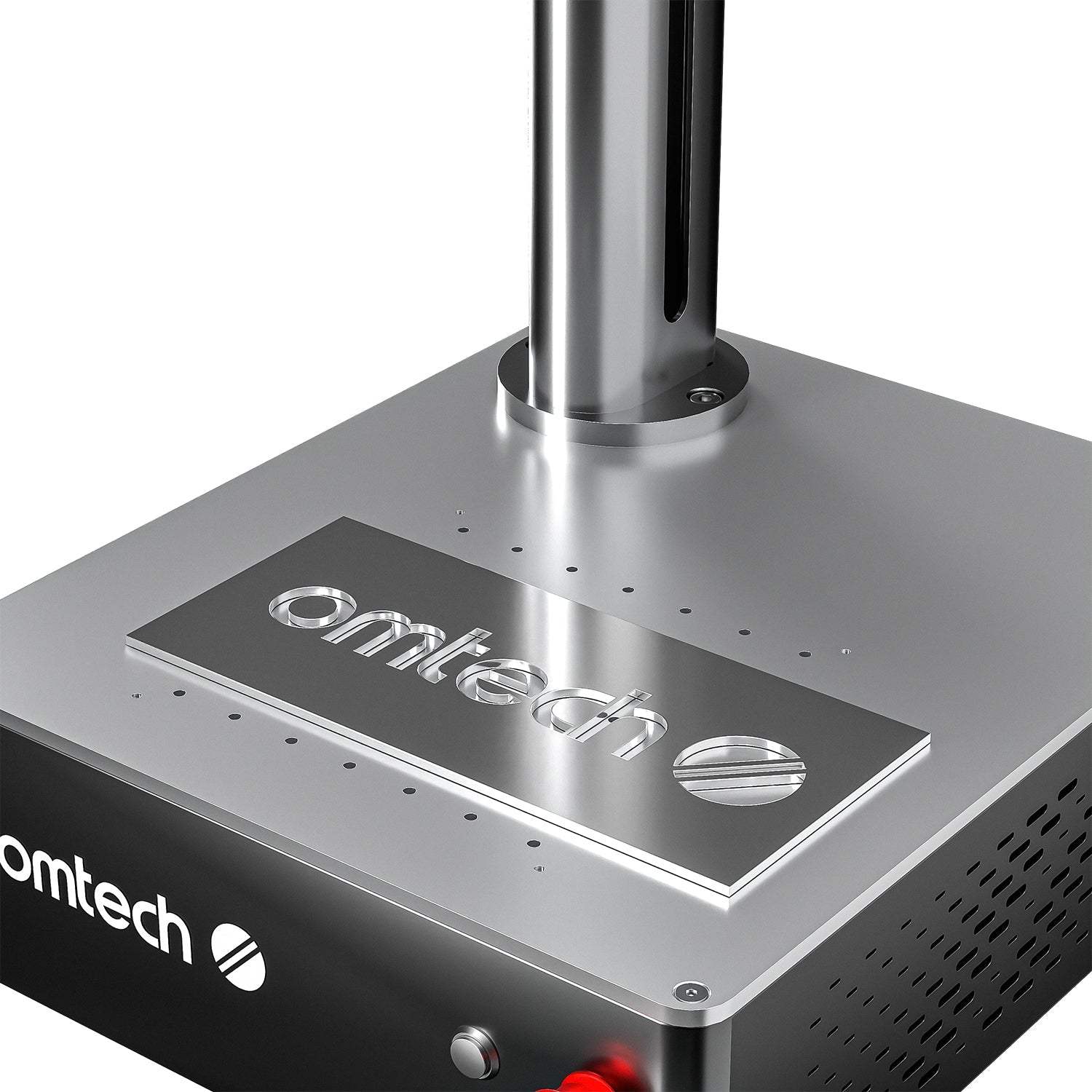

Metals (primary application): Stainless steel, aluminum, brass, gold, silver, titanium, copper, carbide, iron, and most alloys. Fast, permanent black marking for logos, serial numbers, barcodes, QR codes, and detailed artwork.
Hard non-metals: Granite, stone, carbide — surface ablation marking.
Compatible surfaces: Select hard plastics, leather, and coated metal items depending on material and settings.
Two things to be clear about: The Galvo 30W is a standard galvo fiber laser — it marks metal in black and white. It does not produce color marks on stainless steel or titanium (that requires a MOPA laser source). It is also not a CO₂-style cutting machine for wood, acrylic, or thick non-metal material. Within its design scope — high-speed black marking on metal for serial numbers, logos, barcodes, personalization, and traceability — it excels.

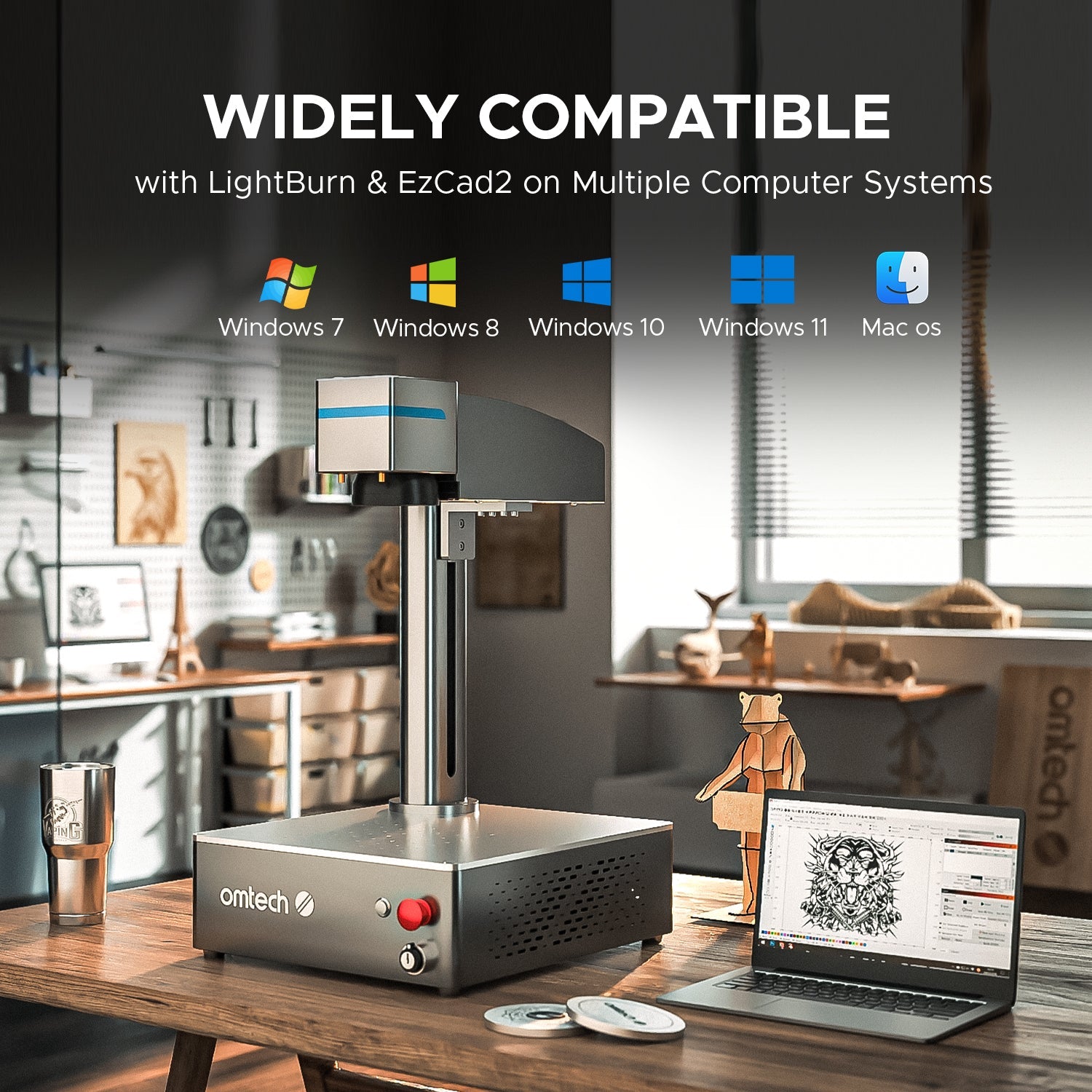

LightBurn and EzCad — Both Supported, macOS Included
The Galvo 30W is natively compatible with LightBurn galvo mode on Windows and macOS — native macOS support without Parallels or workarounds. For Mac-based jewelry studios and creative professionals, this is full-featured galvo marking software without the Windows dependency.
EzCad is also bundled on USB drive for Windows users who prefer the industry-standard galvo fiber laser control environment.
Supported file formats include BMP, GIF, JPG, JPEG, DXF, DST, and AI.
The Maker's Chest Difference
The OMTech Galvo 30W Integrated is available from OMTech directly and from other resellers. Here's what changes when you order through The Maker's Chest:
- 🛡️ 75-day returns — significantly longer than OMTech's direct return window. Enough time to set up the machine, run it through your actual production materials and marking jobs, confirm the 30W power level and 5.9" field fit your workflow, and make an informed decision before you're committed
- 🇺🇸 Expert USA-based technical support — our team can help with LightBurn and EzCad setup, parameter optimization for your specific materials, rotary axis configuration, and any production issues that arise
- 📞 Dual lines of support — phone and email, so when a question comes up during a production run, you have a direct path to a real person
- 🔧 Straight configuration guidance — 30W galvo or 30W MOPA? Integrated compact or autofocus workstation? Tell us your materials and daily volume and we'll give you a direct recommendation before you order
Frequently Asked Questions about OMTech Galvo 30W Compact Integrated Fiber Laser Marker
Q: Is the Galvo 30W meaningfully better than the Galvo 20W?
A: Yes, in two specific ways. First, the 5.9" × 5.9" marking field is nearly 90% larger in area than the 20W's 4.3" × 4.3" field — accommodating wider pieces, more parts per batch layout, and more creative design space in the same machine footprint. Second, ~50% more output power means better throughput on complex graphics and deeper marking per pass on harder metals. If the 20W's field size or throughput is a recurring limitation in your workflow, the 30W resolves both.
Q: What is the difference between the Galvo 30W and the MOPA 30W?
A: The Galvo 30W uses a standard Q-switched fiber laser — fast, precise, cost-effective black marking on metal. It does not produce color marks. The MOPA 30W uses a JPT MOPA source with adjustable pulse width and frequency, enabling color marking on stainless steel and titanium, and clean dark marking on anodized aluminum — in addition to all the standard black marking. If color marking or anodized aluminum are any part of your business, choose the MOPA version. If your work is entirely black marking for serial numbers, logos, and barcodes, the Galvo 30W delivers everything you need at a lower price.
Q: What does the Sino-Galvo with F-Theta lens actually do?
A: The Sino-Galvo is an industrial-grade galvanometer scanning system, and the F-Theta field lens maintains consistent beam quality and focal length across the full 5.9" × 5.9" working area — not just at the center. Without an F-Theta lens, marks toward the edges of the field become progressively distorted and defocused. With the Sino-Galvo F-Theta system, mark quality is consistent from the center to the corners — important for batch layouts that use the full field to maximize throughput.
Q: Does it support macOS natively?
A: Yes — LightBurn galvo mode runs natively on macOS with no workarounds, Parallels, or Boot Camp required. EzCad requires Windows. For Mac users, LightBurn is the recommended primary software interface.
Q: Can I engrave cylindrical objects?
A: Yes, with an optional rotary axis attachment that connects to the machine's built-in rotary port. The rotary enables marking on rings, bracelets, pens, tumblers, and cylindrical objects. Add it at checkout or contact our team for guidance on which rotary configuration fits your piece range.
Q: Does it produce color marks on stainless steel?
A: No. The Galvo 30W is a standard galvo fiber laser — it marks metal in black and white only. Color marking on stainless steel and titanium requires a MOPA laser source with adjustable pulse width and frequency. The OMTech MOPA 30W Integrated and MOPA 60W are the correct machines for color marking applications.
Q: What is the laser source lifespan?
A: 100,000 hours estimated service life. At 8 hours daily use, 250 working days per year, that's approximately 50 years of rated operation — a functionally lifetime component under normal workshop use.
Q: What is the marking depth?
A: Up to 0.08mm maximum marking depth on compatible metals. This is a surface marking specification — the machine is designed for permanent surface marks (logos, serial numbers, barcodes, artwork) rather than deep material removal or cutting.
