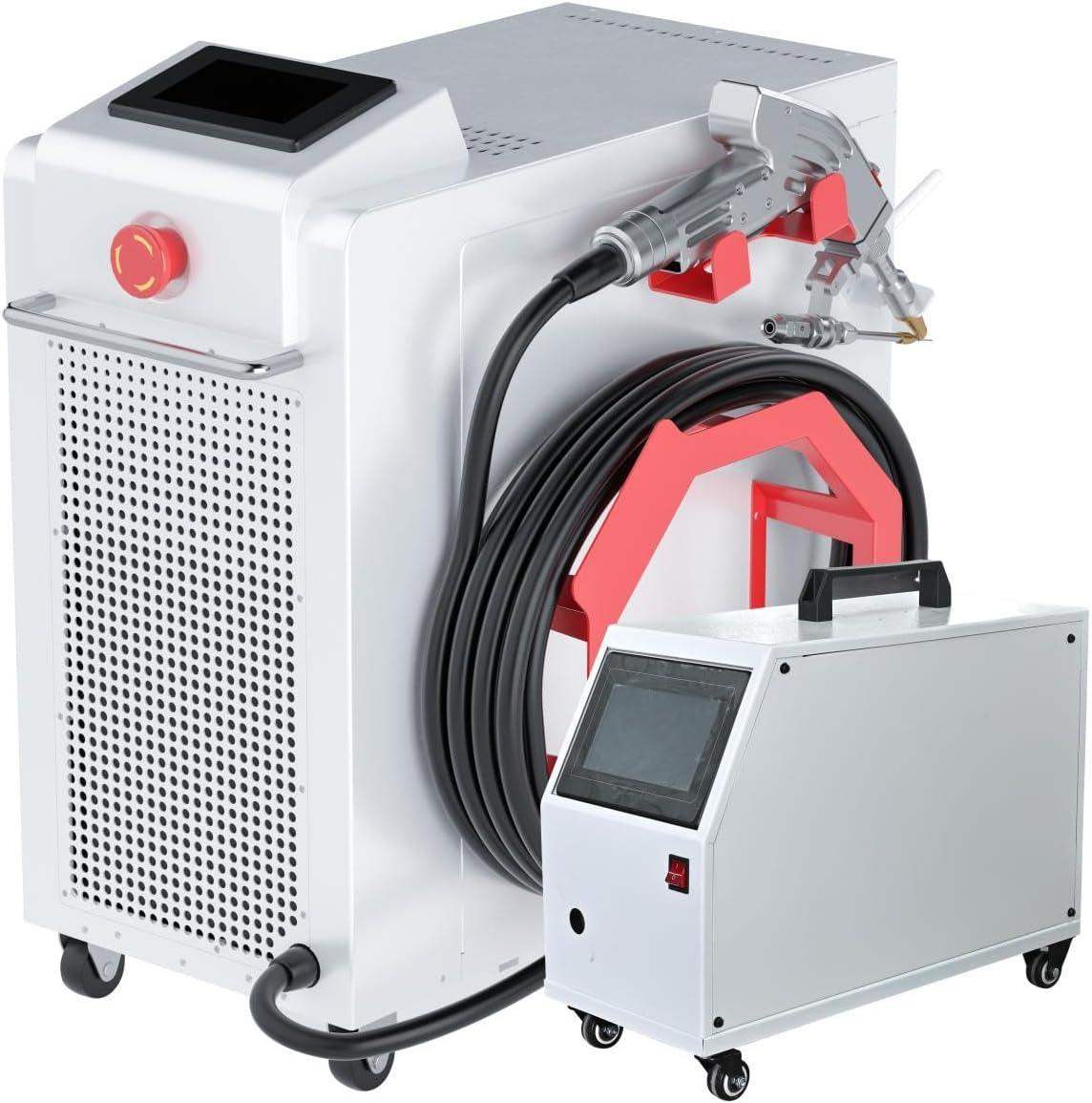

1000W of Air-Cooled Fiber Power That Welds Steel, Stainless, and Galvanized Metal Without a Chiller
The Herolaser 1000W Air-Cooled Handheld Laser Welder delivers up to 25mm/s weld speed from a fully portable, chiller-free platform — the entry point into The Maker's Chest's three-tier Herolaser welding lineup.
Stick and MIG welders leave slag, spatter, and a heat-affected zone that eats into your finishing time. TIG gives you a cleaner bead but demands years of torch control to master. The Herolaser 1000W Air-Cooled Handheld Laser Welder splits the difference: a 1000W fiber laser source fused to a wobble-controlled welding head that lays down a clean, consistent seam at a fraction of the learning curve, with none of the external chiller tank, hoses, or coolant maintenance that water-cooled laser welders require.
This is the entry tier of Herolaser's air-cooled handheld welder family — built for makers, fabricators, and small shops who need genuine laser-weld quality on sheet and light-gauge metal without paying for cutting or cleaning capability they won't use. If your work calls for higher power headroom or built-in weld cleaning, the 1500W and 2000W tiers below cover that ground.
1000W Fiber Laser Core for Clean Autogenous and Filler Welds
The machine's 1000W continuous fiber laser source concentrates enough energy density to fully fuse steel, stainless steel, and galvanized steel sheet metal in a single pass, without the wide heat-affected zone a MIG or stick arc leaves behind. Where a conventional arc welder spreads heat broadly across the joint (warping thin sheet and requiring grinding and finishing afterward), a focused fiber laser beam deposits energy in a tight spot, so the surrounding metal stays cooler and the finished weld needs little to no post-weld cleanup. In practice, that means a fabricator can weld a stainless enclosure seam and move straight to the next step, instead of budgeting an extra round of grinding and polishing to remove discoloration and spatter.

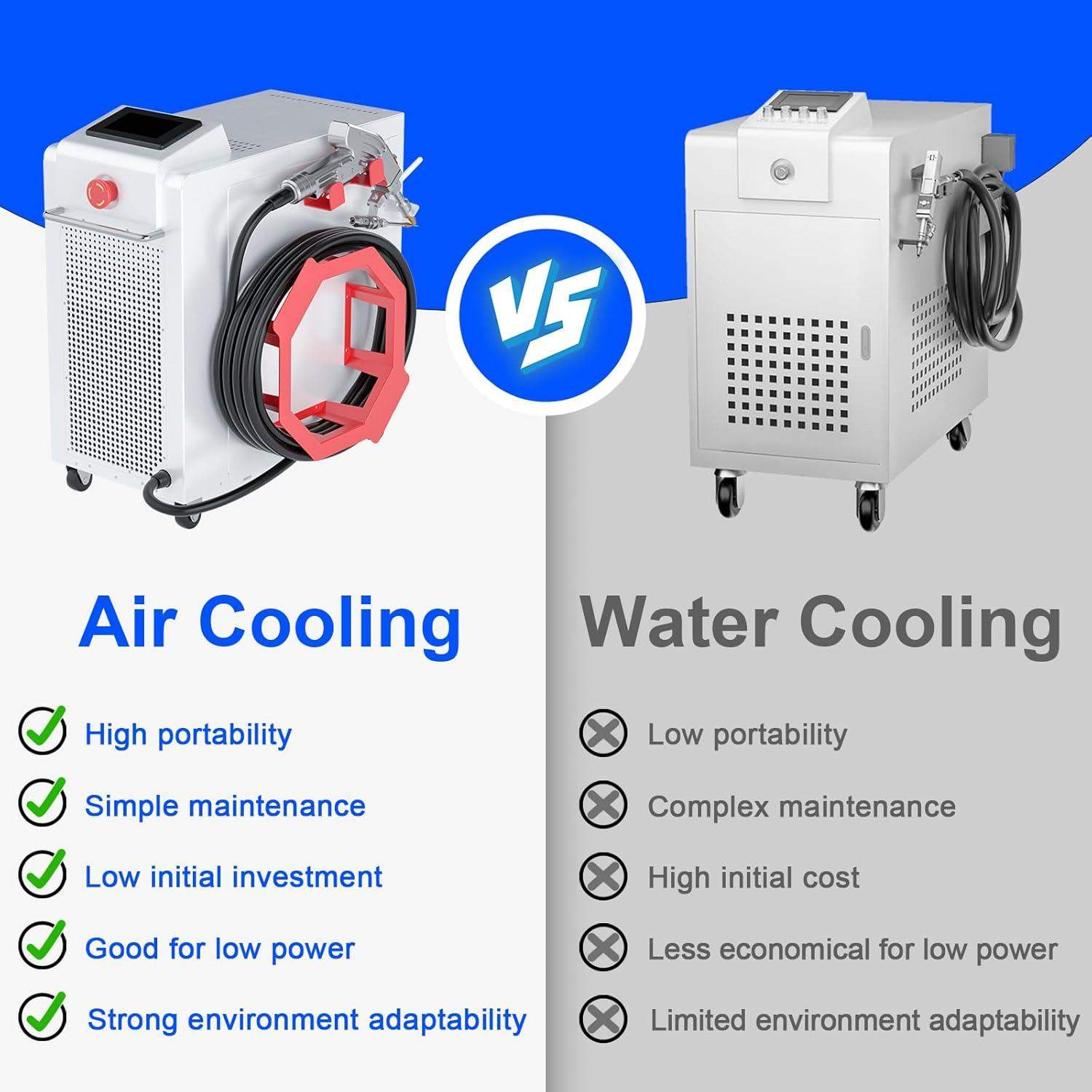

Air-Cooled Architecture Removes the Chiller From Your Shop
Unlike water-cooled handheld laser welders, which pair the welding head with a separate external chiller unit, hoses, and a coolant reservoir that needs to be filled, drained, and monitored, the Herolaser 1000W runs on a self-contained air-cooled system. The chiller is what makes most laser welders bulky, shop-bound tools; removing it is what lets this unit travel to the job instead of the job coming to it. The practical trade-off buyers should know: air-cooled systems typically manage a lower sustained duty cycle than a comparable water-cooled setup, so this tier is best matched to sheet and light-gauge work rather than all-day, high-power production welding.

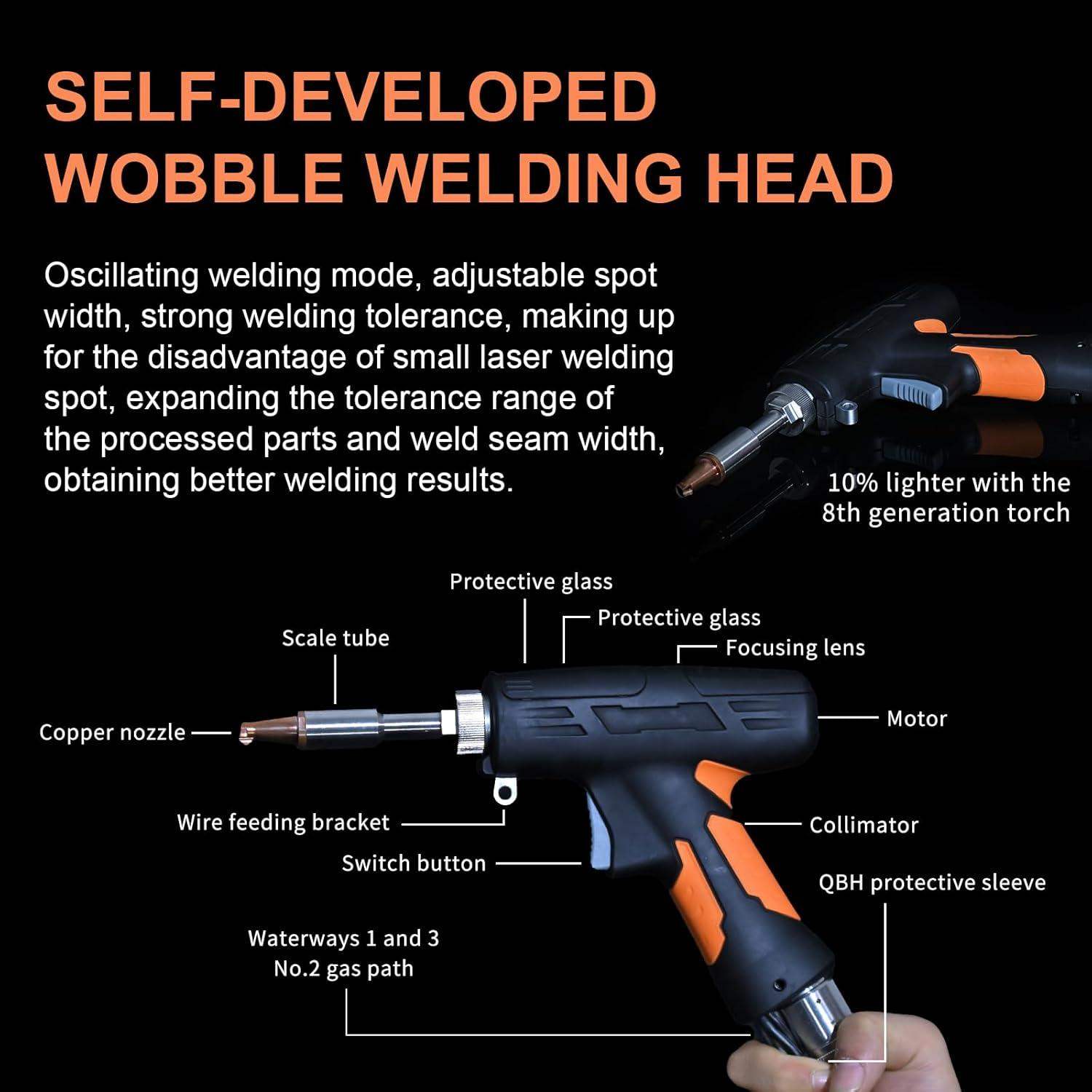

Wobble Welding Head Widens Your Margin for Error
The wobble welding head oscillates the beam across the joint in a controlled pattern rather than tracing a single straight line. A fixed-beam laser weld demands a nearly perfect, tight-fitting joint to fuse cleanly; the oscillating wobble pattern spreads the beam's heat across a wider path, which is what gives the machine what Herolaser describes as strong fault tolerance for less-than-perfect fit-up. For a maker working with sheet metal that was hand-cut or slightly out of true, that difference is the gap between a weld that fuses cleanly and one that blows through or leaves a visible gap.
Automatic Wire Feeding for Gapped Joints
Many laser welds are autogenous — the base metal itself melts and fuses with no added material, which is only reliable when the joint gap is tight. The 1000W's auto wire feeding system adds filler material automatically as the head moves, so joints with a wider gap (generally once the gap approaches roughly 10–15% of the material's thickness) still fill and fuse correctly instead of leaving a thin, under-filled bead. This matters most on repair and fabrication work where the parts being joined weren't laser-cut to a precise tolerance in the first place.
Up to 25mm/s Weld Speed Without Losing Control of the Bead
Rated for weld speeds up to 25mm/s, the 1000W head moves through a joint several times faster than a comparable TIG pass, where an operator is manually feeding filler rod and modulating amperage by foot pedal the entire length of the seam. That speed advantage compounds on repetitive work: a batch of enclosure seams or bracket welds that would take a TIG welder most of a shift can be run down in a fraction of the time, without sacrificing the narrow, controlled bead width a wobble-stabilized laser head produces.

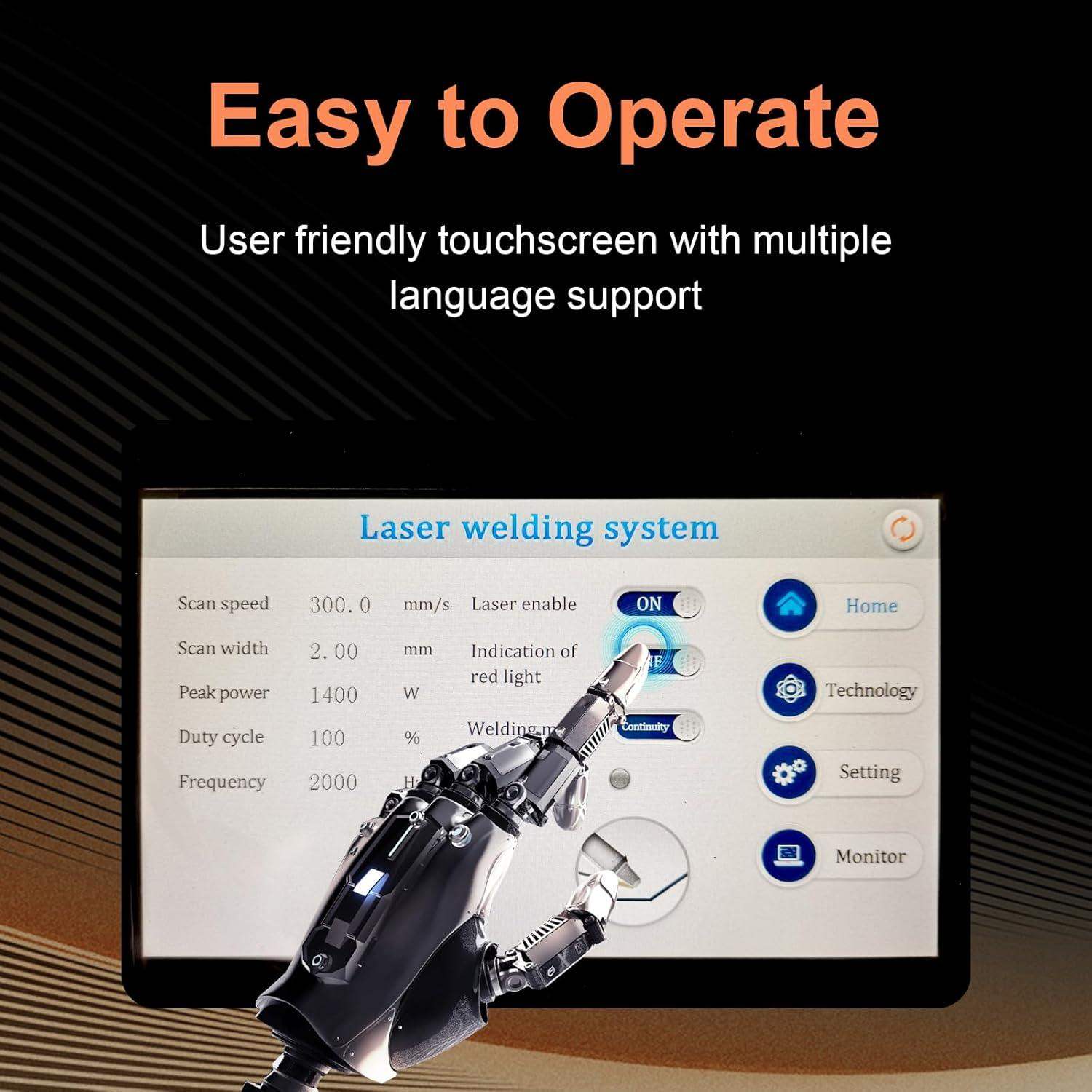

IoT Connectivity for Real-Time Monitoring
Built-in IoT connectivity lets the machine report status and operating data in real time rather than requiring an operator to watch a standalone control panel throughout the job. For a shop running the welder across multiple stations or projects, that visibility is the difference between catching a fault as it happens and only discovering a bad run of welds after the fact during inspection.
Rated for a Real Shop Environment: -15°C to 40°C
The 1000W is rated to operate across a -15°C to 40°C range, running on standard AC220V 50Hz power. A machine specified only for a narrow, climate-controlled indoor band forces a shop to condition the space around the tool; a wider operating range like this one means the welder can be used in an unheated garage bay or a shop floor that swings with the seasons without derating performance or risking a fault shutdown.
What's in the Box
- Herolaser 1000W Air-Cooled Handheld Laser Welder (welding gun + air-cooled control unit)
- Wobble welding head with auto wire feeding attachment
- Wire feed spool holder
- Power cable
- Operator documentation
Specifications
-
Laser Power: 1000W
-
Laser Type: Fiber laser
-
Cooling System: Air-cooled (no external chiller required)
-
Welding Speed: Up to 25mm/s
-
Special Features: Wobble welding head, automatic wire feeding, IoT real-time monitoring
-
Operating Temperature Range: -15°C to 40°C
-
Power Requirement: AC220V, 50Hz
-
SKU: eH10L-MM01
The Herolaser 1000W Air-Cooled Handheld Laser Welder is backed by a 12-month (1-year) manufacturer warranty when purchased through The Maker's Chest.
The Maker's Chest Difference
- ✅ US-based support before and after your purchase, so setup and troubleshooting questions get answered by a person, not an overseas order form
- 🛠️ TMC's standard 75-day return window — Herolaser is not on TMC's return-exclusion list the way some other brands are
- 📦 Manufacturer warranty honored and backed by TMC's own customer service team, so warranty claims don't mean coordinating with an overseas manufacturer on your own
- 🔍 Every unit is inspected before it ships, so the welder that arrives has already been verified to power on and run correctly
- 💬 Real, specific answers on wattage, wire feeding, and setup from people who've actually run these machines — not a generic support script
- ⚖️ Pre-purchase guidance on whether the 1000W, 1500W, or 2000W tier actually fits your material thickness and workload, before you commit to a price point
Compare the Herolaser Air-Cooled Welder Lineup
| Spec |
1000W (this model)
eH10L-MM01 |
1500W
eH15L-MM01 |
2000W (3-in-1)
eH20L-MM01 |
| Laser Power |
1000W |
1500W |
2000W |
| Function |
Welding only |
Welding + weld cleaning |
Welding + cleaning + cutting (3-in-1) |
| Cooling |
Air-cooled |
Air-cooled |
Air-cooled |
| Notable Features |
Wobble welding head, auto wire feeder |
Wobble head, auto wire feeder, multi-angle nozzles, weld cleaning function |
Auto wire feeder, 3-in-1 interchangeable tool head |
| Price |
$5,899 |
$6,749 |
$7,999 |
Choose the 1000W if you need genuine air-cooled laser weld quality on sheet and light-gauge metal at the lowest entry price in the lineup, and you don't need built-in cleaning or cutting capability.
Choose the 1500W or 2000W if you want the same air-cooled welder foundation but with weld cleaning built in (1500W) or a full weld/clean/cut 3-in-1 tool head (2000W) for higher-mix production work.
Frequently Asked Questions about Herolaser 1000W Air-Cooled Handheld Laser Welder
Q: What's the difference between the 1000W and the 1500W/2000W Herolaser welders?
A: The 1000W is a welding-only machine — it does not include the weld cleaning function built into the 1500W or the cutting capability built into the 2000W 3-in-1 unit. All three share the same air-cooled, chiller-free architecture and wobble/wire-feed welding approach; the higher tiers add power headroom and additional tool functions.
Q: What metals can the Herolaser 1000W weld?
A: It's rated for steel, stainless steel, galvanized steel, and other common sheet and light-gauge metals. For very thick or highly reflective material like bare aluminum or copper, confirm suitability for your specific material and gauge with TMC before ordering.
Q: Do I need TIG or MIG welding experience to use this machine?
A: No prior arc-welding certification is required. The wobble head's wider fault tolerance and the auto wire feeder make it significantly more forgiving of imperfect joint fit-up than TIG, which is one of the reasons laser welders have become a common first welding tool for makers and small shops.
Q: Is a handheld laser welder safe to use in a home garage or small shop?
A: Yes, when operated with the safety practices any Class 4 laser welding tool requires: appropriate laser safety eyewear rated for the unit's wavelength, a workpiece/enclosure interlock, and keeping bystanders outside the beam path. Always follow the included safety documentation and applicable local regulations for Class 4 laser equipment.
Q: What power and outlet does the 1000W require?
A: Standard AC220V, 50Hz power. Confirm your shop's outlet and circuit capacity match this requirement before installation, and check step-down/step-up needs if your local supply differs.
Q: Is the manufacturer warranty valid when I buy through The Maker's Chest?
A: Yes. Herolaser states a 12-month (1-year) warranty on this model, and TMC backs that warranty with its own customer support if you ever need help filing a claim.
Q: What's TMC's return policy on this machine?
A: This listing falls under TMC's standard 75-day return window.
Q: Why buy from The Maker's Chest instead of directly from the manufacturer?
A: You get US-based pre- and post-sale support, warranty assistance handled by a team that isn't overseas, and a 75-day return window — on top of the same manufacturer warranty coverage you'd get buying direct.
Q: Does the 1000W include weld cleaning or cutting functions?
A: No — this is a welding-only machine. Weld cleaning is added on the 1500W tier, and cutting is added on the 2000W 3-in-1 tier.
Q: What does the wobble welding head actually do?
A: It oscillates the laser beam in a controlled pattern across the joint instead of tracing a single fixed line, which widens the heat zone slightly and gives the machine meaningfully more tolerance for joints that aren't perfectly fit up — a common real-world condition on hand-cut or reworked sheet metal.
