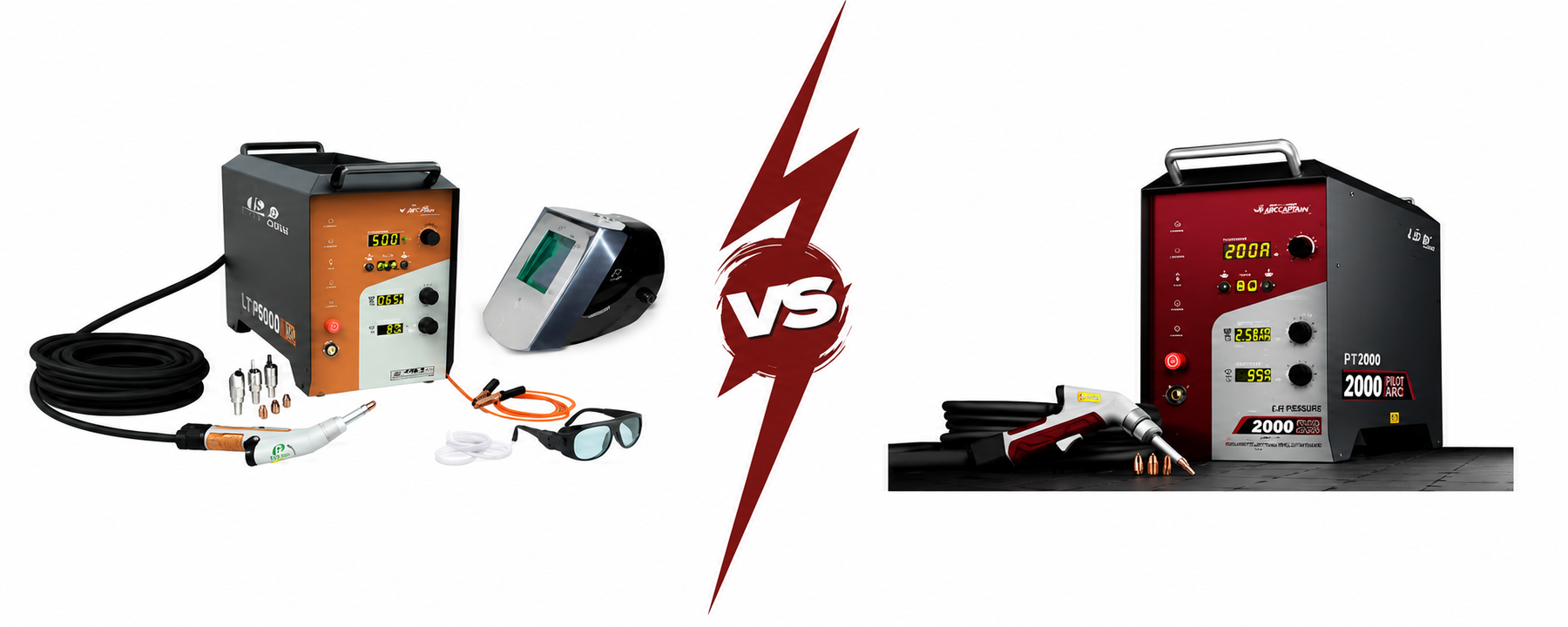

IPG LightWeld 1500 XR vs. 2000 XR

Why This Decision Is Harder Than It Looks

On the surface, the upgrade looks simple: the 2000 XR is 500 watts more powerful than the 1500 XR. More power should always be better, right?

In practice, the decision is more nuanced. The 1500 XR covers the vast majority of real-world handheld laser welding applications — steel and stainless steel fabrication, structural brackets, automotive bodywork, piping, furniture, and appliances — without hitting meaningful power limitations. If you're welding in that space, you may be paying $6,000 for headroom you'll rarely use.

The 2000 XR's extra power makes a genuine difference in specific situations: material above 6mm, copper welding, titanium and nickel alloys over 5mm, and production environments where the additional speed on long seam runs translates to measurable throughput improvement. For those applications, the upgrade pays for itself. For standard fabrication, it doesn't.

This comparison gives you the specific depth and speed numbers to make that call for your shop.

For the full IPG LightWeld series review covering all four models (1500, 1500 XC, 1500 XR, 2000 XR) and the honest assessment of whether the IPG premium is justified against the Chinese alternatives, see our IPG LightWeld review.

IPG LightWeld 1500 XR: Specs and Capabilities

Weld Depth and Material Thickness Range

The LightWeld 1500 XR (launched 2022) is the third product in the LightWeld line and the current 1500W flagship. Key technical specifications from IPG and authorised distributor documentation:

• Laser power: 1500W average, 2500W peak
• Steel and stainless steel: up to approximately 6mm single-pass
• Aluminum: up to approximately 6mm (3 and 5 series)
• Titanium and nickel alloys: up to approximately 5mm
• Copper: up to 2mm
• Spot size: 150µm (0.006") on-target beam diameter
• Wobble: linear beam scanning, 0–15mm length, 0–300Hz frequency
• Cooling: air-cooled, no external chiller required
• Price: approximately $33,250 USD

The XR series' key technical distinction from the original LightWeld 1500 and 1500 XC is a smaller spot size delivering more than 6× the energy density. This higher energy density is what makes the XR series significantly more capable on thick, reflective, and difficult materials compared to the original LightWeld 1500.

Speed and Throughput

LightWeld was already up to 4× faster than TIG welding before the 2000 XR launched. The 1500 XR maintains this speed advantage at 1500W — for standard steel and stainless steel fabrication in the 1–4mm range, travel speed is typically 3–5× what an equivalent TIG operator achieves.

The 1500 XR's 2500W peak capability enables high-frequency pulsed mode, which provides specific advantages for thin material (reducing burn-through risk) and for materials that benefit from pulsed rather than continuous energy delivery.

Preset System and User Experience

The 1500 XR includes the full SmartWeld preset library: stored parameter sets covering material type, thickness, and joint configuration combinations. These presets have been updated and optimised through the XR product revision. An operator can select material and thickness and begin welding immediately with factory-validated parameters.

The front panel interface: rotary knob controls for laser power, wobble length, and wobble frequency; touch-button access to stored process modes; system status indicators; Ethernet port for web-page GUI and remote parameter management. Includes CAT 6 Ethernet cable.

Included in each LightWeld XR unit: 5m or 10m gun cable, workpiece clamp, user guide, welding helmet with IR shield, 3 cleaning nozzles, 4 welding nozzles, OD 6+ laser safety glasses, CAT 6 Ethernet cable, cover slides.

IPG LightWeld 2000 XR: What the Extra Power Gets You

The 2000 XR launched in May 2024 — it's the fourth product offering within the LightWeld product line and the most powerful. IPG specifically described it in their launch press release as addressing the need for fabricators to weld thicker and deeper across the entire range of material capability.

Where 2000W Makes a Real Difference

The 2000 XR offers 2 kilowatts of laser power, over 30% more than its predecessor. This distinction matters most in three specific scenarios:

Material above 6mm: The 1500 XR's capability ceiling for steel and aluminium is approximately 6mm. The 2000 XR extends this to 8mm (0.315"), which is genuinely thicker structural material — tube and plate work that was previously outside the LightWeld's range entirely.

Copper: The 1500 XR welds copper up to 2mm. The 2000 XR extends copper capability to 3mm. For shops doing any significant copper work, the additional 33% copper thickness capability is meaningful — and the 2000 XR's wider process window on copper (enabled by higher energy density) makes copper welding more reliable and forgiving.

Speed on standard materials: Beyond depth capability, the 2000 XR is faster than the 1500 XR on materials where the 1500 XR is already capable. As IPG noted at launch, this model provides incredible speed benefits compared with the 1500 XR, which is perfect for jobs requiring longer welds on typically thinner materials.

Weld Depth and Speed Gains

Full material capability comparison from IPG's official 2000 XR specification:

The 2000 XR delivers 2000W average and 3000W peak. The same physical footprint as the 1500 XR (316mm × 641mm × 534mm), identical carry handles and portability — upgrading from 1500 to 2000 XR doesn't require any workspace reconfiguration.

Additional Cost and Power Requirements

Price: The 2000 XR is approximately $39,250 USD — approximately $6,000 more than the 1500 XR at $33,250.

Power requirements: The 2000 XR requires 220V, single phase, 50/60Hz, 24 amps. The 1500 XR requires approximately 20 amps at 220V. Both require a dedicated 220V circuit — the 2000 XR's 24A draw is slightly higher but in the same infrastructure category. Most shops with a 220V circuit already in place can run the 2000 XR on that circuit if it's rated 24A or higher.

Cobot integration: The 2000 XR is fully compatible with the LightWeld Cobot System — IPG's turnkey collaborative robot integration for automated laser welding. The cobot integration allows operators to teach the robot with manual guidance in minutes, without coding knowledge. This cobot compatibility makes the 2000 XR the correct choice for any shop planning to move toward automated welding operations.

Head-to-Head: 1500 XR vs. 2000 XR

Steel and Stainless Steel

For the majority of steel and stainless fabrication — structural brackets, frames, cabinets, piping up to 6mm wall thickness — the 1500 XR covers the application without reaching its power ceiling. The weld quality and penetration are excellent throughout this range.

For material between 6mm and 8mm: the 1500 XR is at or beyond its recommended single-pass capability. The 2000 XR handles this range cleanly in a single pass. For a structural fabrication shop working with 6mm+ plate regularly, the 2000 XR is the appropriate choice.

For long seam runs on 2–4mm material (tank fabrication, enclosures, automotive panels): the 2000 XR is faster — the additional power allows higher travel speed at the same penetration, directly increasing throughput. If your daily work involves significant linear seam footage, this speed advantage accumulates meaningfully.

Aluminum

Aluminum presents specific challenges for laser welding due to its high thermal conductivity and the reflective oxide layer on its surface. Both the 1500 XR and 2000 XR handle aluminum, but the considerations are worth being specific about.

The 1500 XR welds aluminum 3 and 5 series effectively up to approximately 6mm. The 2000 XR extends this to 8mm and provides a wider process window — meaning parameter tolerances are more forgiving, and the risk of burn-through or insufficient fusion is reduced.

For thin aluminum (under 3mm), the 1500 XR's pulsed mode and 2500W peak provide adequate control. For medium to thick aluminum (3–8mm), the 2000 XR's speed and depth advantage is more pronounced than on steel. For the specifics of why aluminum is more demanding than steel for laser welding and what parameters matter, our why aluminum is tricky to laser weld guide covers the material-specific challenges in detail.

Copper and Reflective Metals

Copper is where the 2000 XR makes its clearest material capability argument. The 1500 XR welds copper to 2mm — useful for light copper work (busbars, connectors, some HVAC applications) but limiting for structural copper or thicker electrical components. The 2000 XR extends copper capability to 3mm.

More significantly, the 2000 XR creates a wider process window on copper — IPG's language is specific here. Copper's high reflectivity means that at lower power levels, small variations in surface condition or parameter settings produce more variable results. At 2000W with higher energy density, the process window is wider and results are more consistent. For a shop doing regular copper welding, this reliability improvement across the 2–3mm range is arguably as valuable as the depth extension.

Thin-Gauge Work

For thin-gauge sheet metal fabrication (under 2mm) — the majority of automotive bodywork, food-grade equipment, architectural metalwork, and light structural fabrication — the 1500 XR and 2000 XR are functionally comparable. Both machines have the pulsed mode and parameter control needed for thin material without burn-through.

This is the range where the 1500 XR versus 2000 XR decision is least differentiated by raw capability. For shops whose primary work is thin-gauge sheet, the 2000 XR's advantages (depth, copper, speed on thick material) are less relevant, and the $6,000 premium is harder to justify on application grounds. For the specific considerations in thin sheet metal laser welding, our laser welding for sheet metal fabrication guide covers parameters and technique for this application range.

The Business Case: When Does the Price Gap Pay Off?

The $6,000 price gap between the 1500 XR and 2000 XR is the decision variable. The business case for the upgrade depends entirely on which of the 2000 XR's specific advantages you actually use.

Copper welding advantage: If your shop does copper work, the 2000 XR's wider process window reduces rework and parameter frustration on copper. At $150/hour shop rate, 2 fewer hours of copper rework per month = $300/month saved, or $3,600/year — about a 1.7-year payback on the $6,000 premium.

Speed gains on long seams: If the additional welding speed on standard material saves 1 hour per day over a 250-day working year, at $100/hour blended rate, that's $25,000/year in time value — the 2000 XR pays for its premium in a few months. But "1 hour per day in speed savings" is a significant assumption that requires your work to be predominantly long seam welds where travel speed is the limiting factor.

Depth capability (6–8mm material): If you currently subcontract 6–8mm structural welds because the 1500 XR can't handle them, and that work is $5,000+/month, the 2000 XR pays for itself in the first two months of bringing it in-house.

If none of these apply: If your work is primarily under 4mm steel and stainless without copper, the 2000 XR's specific advantages don't improve your output meaningfully. The 1500 XR is the right call.

For the complete framework on how to assess whether any LightWeld model is a justified investment for your shop, our how much power does your laser welder need guide covers the power-to-application matching decision before the 1500 vs 2000 comparison becomes relevant.

Who Should Choose the 1500 XR?

The 1500 XR is the right choice for:

• Standard steel and stainless steel fabrication under 6mm — the majority of structural brackets, frames, piping, cabinetry, and architectural metalwork
• Thin-gauge sheet metal work — automotive bodywork, food equipment, light structural panels; the 2500W peak and pulsed mode provide excellent thin-material control
• Shops with light copper welding needs — occasional copper up to 2mm is within the 1500 XR's capability; shops doing heavy copper work daily need the 2000 XR
• Budget-conscious buyers at the LightWeld price tier — the 1500 XR at $33,250 is already a significant investment; if the 2000 XR's specific advantages don't map to your application, saving $6,000 is rational
• Shops entering the LightWeld ecosystem who may upgrade to the 2000 XR later as volume justifies it

The 1500 XR covers the full standard handheld laser welding application range and produces excellent results throughout. It's not the limited option — it's the appropriate option for most fabrication shops.

Who Should Choose the 2000 XR?

The 2000 XR is the right choice for:

• Shops regularly welding steel or aluminum above 6mm — if 6–8mm structural plate, tube, or profiles are a consistent part of your production, the 2000 XR's extended depth range is required capability, not an upgrade
• Significant copper welding — the 3mm copper capability and wider process window make a material difference for shops doing regular copper fabrication
• Titanium and nickel alloy fabrication above 5mm — aerospace and industrial applications in these materials benefit from the 2000 XR's 7mm depth capability
• High-volume shops where speed translates to output — if your bottleneck is welding speed on long seam runs, the 2000 XR's speed gains on standard material add up at scale
• Cobot integration planning — if automated laser welding is your roadmap, the 2000 XR's Cobot System compatibility makes it the correct starting point; the 1500 XR is also compatible, but buying the 2000 XR at the same time as planning cobot integration makes sense

Verdict

For shops whose work is primarily steel and stainless steel fabrication under 6mm — the majority of professional fabrication applications — the 1500 XR covers the application fully and the $6,000 premium for the 2000 XR is not justified by performance gains in that material range.

For shops regularly welding above 6mm, doing meaningful copper or titanium work, or operating in high-volume production where the additional travel speed on standard material is measurable — the 2000 XR's specific advantages are real and the premium is justified.

The honest summary: the 2000 XR is a genuine performance upgrade over the 1500 XR, not a marketing step-up. The LightWeld 2000 XR offers 2 kilowatts of laser power, over 30% more than its predecessor, increasing processing speeds and extending welding capability up to 8mm for steels and aluminum, 7mm for titanium and nickel alloys, and 3mm for copper. Those numbers represent real capability that the 1500 XR doesn't have. Whether those specific capabilities are in your regular application range determines whether the upgrade is rational for your shop.

Frequently Asked Questions

What is the difference between the IPG LightWeld 1500 XR and 2000 XR?

The primary differences are laser power, weld depth, and copper capability. The 1500 XR delivers 1500W average / 2500W peak and welds steel/aluminum up to approximately 6mm, copper up to 2mm. The 2000 XR delivers 2000W average / 3000W peak and extends capabilities to 8mm for steel/aluminum, 7mm for titanium and nickel alloys, and 3mm for copper. Both machines have identical physical footprints and are air-cooled. The 2000 XR also provides faster travel speeds on material within the 1500 XR's range. Price difference: approximately $6,000 ($33,250 for the 1500 XR vs $39,250 for the 2000 XR).

Do I need 2000W for laser welding, or is 1500W enough?

For standard steel and stainless steel fabrication under 6mm: 1500W is sufficient. For material in the 6–8mm range, regular copper welding, titanium/nickel alloys above 5mm, or high-volume production where additional travel speed has measurable value: 2000W provides genuine advantages. The majority of professional fabrication shops doing structural steel, sheet metal, automotive, piping, and similar work up to 6mm thickness won't hit the 1500W ceiling in regular operation.

What materials can the IPG LightWeld 2000 XR weld?

The 2000 XR welds: steel and stainless steel up to 8mm (0.315"), aluminum 3 and 5 series up to 8mm, titanium and nickel alloys up to 7mm (0.275"), and copper up to 3mm (0.120"). Material list also includes mild steel, galvanized sheet, and other common engineering alloys. It includes pre-weld and post-weld cleaning modes for rust, grease, oxide removal, and discolouration. The 2000 XR is fully compatible with the LightWeld Cobot System for automated welding operations.

How much does the IPG LightWeld 2000 XR cost?

The IPG LightWeld 2000 XR is priced at approximately $39,250 USD from authorised distributors. This compares to approximately $33,250 for the LightWeld 1500 XR — a $6,000 premium for the 2000W model. Both require a dedicated 220V single-phase circuit. The 2000 XR includes the same standard package as the 1500 XR: 10m gun cable, workpiece clamp, user guide, welding helmet, cleaning and welding nozzles, OD 6+ safety glasses, Ethernet cable, and cover slides.

Is the LightWeld 2000 XR faster than the 1500 XR?

Yes. The 2000 XR offers increased welding speeds on material within both machines' capability range — IPG's launch documentation specifically describes speed gains compared with the 1500 XR for jobs requiring longer welds on typically thinner materials. The additional 500W (33% more power) enables higher travel speed at equivalent penetration depth. For shops doing significant footage of long seam welds on 2–5mm material, this speed advantage is measurable in throughput. For occasional short welds or complex joint geometry where travel speed isn't the limiting factor, the speed advantage is less practically significant.
