Which Glass Types Can You Actually UV Laser Engrave?
"Can a UV laser engrave glass?" has a real answer, and it's not a simple yes across the board. Glass isn't one material — soda-lime, borosilicate, tempered, and quartz all respond differently under a UV beam, and the gap between a manufacturer's demo video and what happens with your actual glass is almost always explained by which of these types you're actually working with. This guide goes through each honestly, including the ones that are riskier than the marketing suggests.
Table of Contents
- Why Glass Composition Changes the Result
- Soda-Lime Glass: The Reliable Default
- Borosilicate: More Common Than You'd Think, and Trickier
- Tempered Glass: Proceed With Real Caution
- Quartz and Sapphire: High-Value, Highly Specific
- Two Failure Modes to Understand Before You Buy
- Side-by-Side Comparison
- Frequently Asked Questions
Why Glass Composition Changes the Result
UV laser glass marking works by photochemically ablating a microscopically thin surface layer, creating a frosted, light-scattering mark rather than a colored one. How cleanly that ablation happens depends on the glass's chemical composition and its internal stress state — two things that vary significantly between glass types, between manufacturers of the same nominal type, and sometimes between production batches from the same manufacturer. This is the single biggest reason a UV laser demo looks flawless and a customer's own glassware doesn't behave the same way: the demo glass and the customer's glass are very likely not the same composition, even if both are technically "glass."
Soda-Lime Glass: The Reliable Default

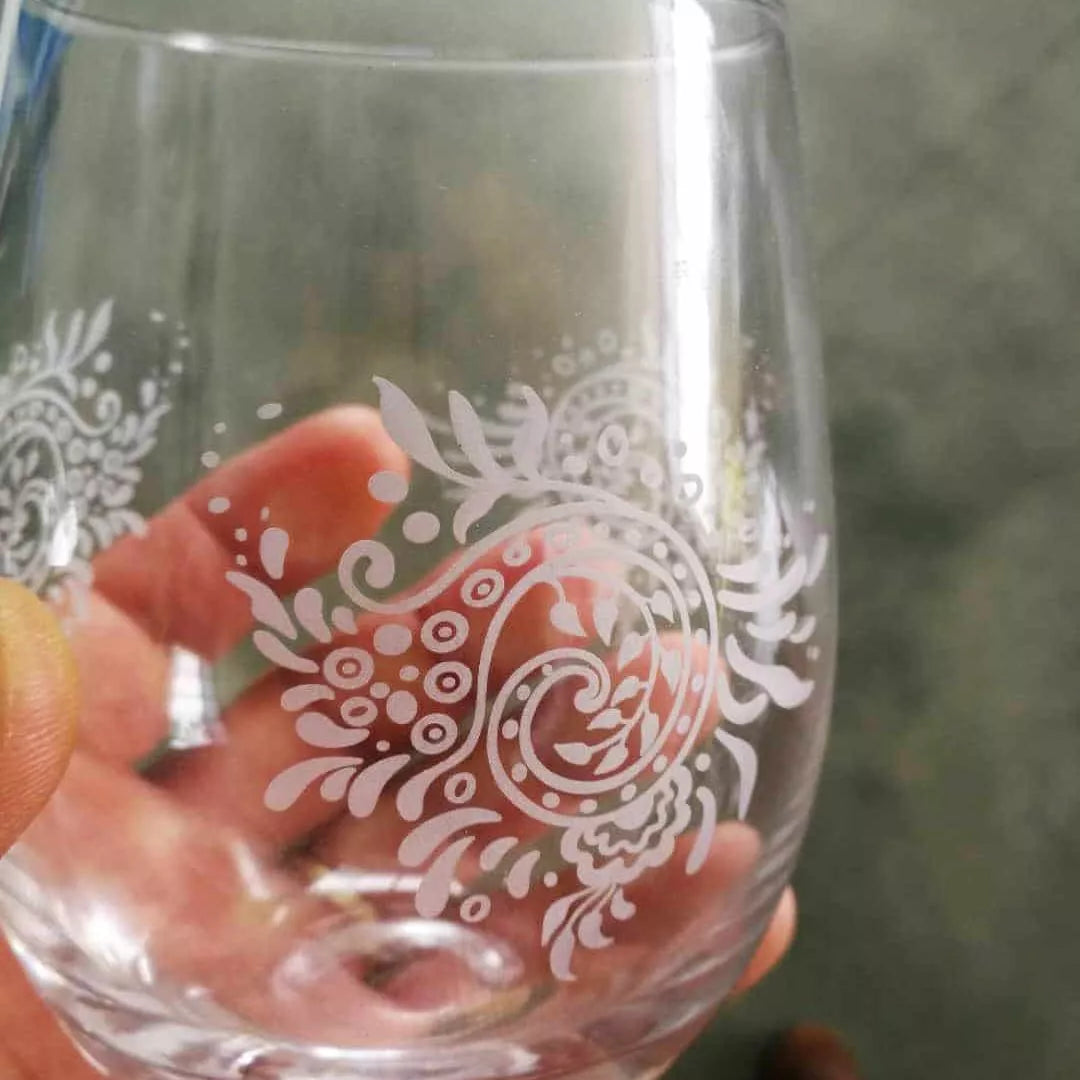

Soda-lime glass is what most everyday glassware is made from — wine bottles, drinking glasses, most picture frames, and standard windows. It's the most UV-laser-friendly composition on this list: relatively low internal stress, a chemical makeup that ablates cleanly under a 355nm beam, and a large enough installed base that most manufacturer-provided settings are calibrated against it by default. If you're new to UV glass engraving, soda-lime is where you'll get the most predictable results fastest, and it's the safest material to build a settings library around before branching into trickier glass types.
Borosilicate: More Common Than You'd Think, and Trickier
Borosilicate shows up more often than buyers expect — it's the standard for lab glassware, many premium drinkware lines, coffee and tea equipment, and cookware-adjacent glass items. Its different chemical composition (higher silica and boron content than soda-lime) changes how it absorbs and ablates under a UV beam, generally requiring different parameter settings than a soda-lime preset and sometimes producing a slightly different mark contrast even once dialed in correctly. It's absolutely engravable with the right settings, but treating a borosilicate piece as "just glass" and running soda-lime settings on it is a common source of inconsistent or weak marks. If a customer is bringing you their own glassware for engraving, borosilicate is common enough in premium drinkware that it's worth asking what the item actually is before quoting the job.
Tempered Glass: Proceed With Real Caution
Tempered glass — used in shower doors, some cookware, phone screen protectors, and safety glazing — is manufactured with significant internal compressive stress that makes it dramatically stronger against impact but also more prone to sudden, catastrophic failure if that stress balance is disturbed. A UV laser's ablation process removes a microscopic surface layer, and on tempered glass, that localized disruption can occasionally trigger a stress-release failure — the glass shattering rather than accepting a clean mark. This risk varies by how the specific piece was tempered and where on the surface the mark is placed (edges and stress concentration points are higher risk than the center of a flat panel). The honest guidance here: test on a scrap or low-value sample of the exact tempered glass type before running any customer-supplied or high-value tempered piece, and set that expectation with customers upfront rather than after a piece breaks mid-job.
Quartz and Sapphire: High-Value, Highly Specific
Quartz and sapphire crystal sit at the high end of both value and technical specificity — common in premium watch crystals, optical components, and lab equipment. Both are UV-markable, but their hardness and different absorption characteristics compared to standard soda-lime or borosilicate glass mean settings developed for typical glassware won't transfer directly. This is a genuinely valuable niche for a UV laser business (watch customization, premium optics marking, lab equipment identification) but it's not a walk-up-and-mark material — budget real time for parameter testing on the specific quartz or sapphire grade before committing to a paid job, particularly given how expensive a ruined sapphire piece can be to replace.
Two Failure Modes to Understand Before You Buy
The beam passing through without marking happens most often on very thin or highly clear glass at insufficient energy density — the beam ablates so little material that no visible mark forms. This is usually a lens-size or wattage mismatch rather than a fundamentally unmarkable glass; see our lens and work-area guide for how field size and power interact on glass specifically.
Chipping and cracking is more often tied to internal stress (tempered glass being the clearest example) or to running settings that are simply too aggressive for the specific composition. Both failure modes are reasons to test on the actual material before a full production run — not evidence that UV engraving on glass is unreliable in general.
Side-by-Side Comparison
| Glass Type | Common In | Marking Difficulty | Key Risk |
|---|---|---|---|
| Soda-lime | Bottles, drinking glasses, standard windows | Low | Minimal |
| Borosilicate | Lab glassware, premium drinkware, cookware-adjacent | Moderate | Requires different settings than soda-lime |
| Tempered | Shower glass, safety glazing, screen protectors | High | Stress-release cracking/shattering |
| Quartz / Sapphire | Watch crystals, optics, lab equipment | High | Requires dedicated settings; high replacement cost if ruined |
Frequently Asked Questions
Can a UV laser engrave any type of glass?
Most glass types are technically markable, but not all with the same ease or risk level. Soda-lime is the most reliable; tempered glass carries a real risk of cracking; quartz and sapphire need dedicated parameter testing.
Why does the same UV laser mark some glass perfectly and other glass poorly?
Glass composition varies by type and sometimes by manufacturer or batch, which directly changes how it ablates under a UV beam. Settings dialed in for soda-lime often don't transfer cleanly to borosilicate, tempered, or crystal glass.
Is it safe to engrave tempered glass?
It carries more risk than standard soda-lime glass due to the internal stress tempering introduces. Test on a scrap piece of the same tempered glass type first, and set expectations with customers before running high-value or customer-supplied tempered items.
What's the easiest glass type to start with?
Soda-lime — it's the most common glassware composition, the most forgiving under a UV beam, and the material most manufacturer-provided settings are calibrated against by default.
Why did my glass engraving come out invisible or barely visible?
Most often insufficient energy density for the glass thickness and clarity — either the lens is too large for the wattage, or the specific glass composition needs different settings than what was used. This is a parameter and equipment-match issue, not a sign the glass can't be marked at all.
