UV Laser Lens and Work-Area Guide: Choosing the Right Field for Your Work
UV lasers make lens size a checkout decision, not an afterthought — several machines we carry, including the Haotian UV Galvo and ComMarker Omni 1, let you choose your field lens when you order. Getting that choice right matters more on UV machines than on almost any other laser type, because glass work in particular is unusually sensitive to the energy-density tradeoff every lens size involves.
Table of Contents
- What Lens Size Controls on a UV Laser
- Why Glass Makes This Choice Higher-Stakes
- Recommended Lens Size by Material and Use Case
- How Wattage and Lens Size Interact
- When to Choose a Machine With More Than One Lens
- Frequently Asked Questions
What Lens Size Controls on a UV Laser

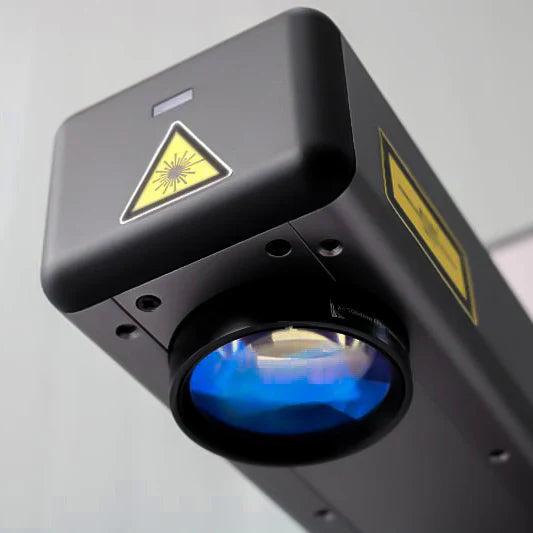

The F-theta lens on a UV galvo head sets the maximum working field the beam can scan without repositioning the piece — a 70x70mm lens gives a small, high-precision field; a 300x300mm lens covers a much larger area in one pass. The same laser output power gets spread across whatever area the lens defines, which means a larger lens directly lowers energy density at the focal point. On a fiber laser, that tradeoff mostly affects depth and speed. On a UV laser, particularly on glass, it can be the difference between a clean mark and a job that fails outright.
Why Glass Makes This Choice Higher-Stakes
Glass ablation under a UV beam requires a minimum energy density to break the surface cleanly rather than either failing to mark at all or cracking the material. That threshold is why manufacturer specs often cite a maximum field size specifically for glass work that's noticeably smaller than the lens's rated size for other materials — for example, a 5W UV source might mark glass cleanly up to roughly 130mm but handle non-glass materials at a much larger field size without the same restriction. Choosing a lens based on a plastics or PCB spec sheet, then trying to use the same lens for a bigger glass piece, is one of the most common ways new UV buyers end up disappointed with a purchase that was otherwise a good match for their needs.
Recommended Lens Size by Material and Use Case
| Use Case | Recommended Lens | Why |
|---|---|---|
| Small glass pieces, jewelry, fine detail | 70x70mm to 110x110mm | Highest energy density; needed for clean glass ablation and fine line work |
| Standard glassware, mid-size crystal awards | 110x110mm to 150mm, and only at 10W+ | Balances coverage with enough density for reliable glass marking at this size |
| Clear/translucent plastics, PCBs, non-glass materials | 150x150mm to 300x300mm | Non-glass materials tolerate lower energy density, so larger fields work at any power tier |
| Bottles and rotary-mounted glass | 110x110mm to 150x150mm paired with a rotary | Covers a bottle's circumference in reasonable passes without sacrificing density |
How Wattage and Lens Size Interact
Wattage and lens size aren't independent decisions — they trade off against each other for glass work specifically. A 5W UV source needs a smaller lens to hit clean glass-ablation energy density; a 10W or 15W source can push that same clean result across a larger field, because there's simply more total energy to spread across the area. If your work involves larger glass pieces, the honest choice is often to pay for more wattage rather than trying to squeeze a small-lens result out of an entry-tier source at a larger field size. Our UV buying guide covers how wattage tiers map to typical applications in more depth.
When to Choose a Machine With More Than One Lens
For shops doing a genuine mix of small detail glass work and larger plastic or PCB marking, a single mid-size lens is often a compromise that doesn't serve either job well. Several UV machines, including both the Haotian UV Galvo and ComMarker Omni 1 lines we've reviewed, support more than one lens — a small, high-density lens for glass and detail work, and a larger one for bigger, more forgiving materials. Confirm whether your machine's focus system (manual or autofocus) supports the full range of lenses you're considering, since some autofocus systems only calibrate within a specific lens range.
Frequently Asked Questions
What lens size is best for UV glass engraving?
Generally 70-110mm for a 5W source, expanding to 150-200mm only as wattage increases to 10W and above. Glass specifically needs higher energy density than most other UV-appropriate materials, so don't size the lens based on a spec sheet's non-glass rating.
Can I use a large lens for both glass and plastic on a 5W machine?
Not reliably for glass. A large lens spreads a 5W source's output too thin to cleanly ablate glass beyond a fairly small field — plastics and PCBs tolerate the lower energy density fine, but glass generally doesn't at that combination of power and field size.
Does a bigger lens make the machine better?
No — bigger just means more coverage at lower energy density. Choose the smallest lens that comfortably fits your typical piece size for the material you're actually marking most.
Can I switch lenses on the same UV machine later?
On many machines, yes, provided the mount and control software support the lens you're switching to. You'll need to refocus after any lens change.
What lens should I choose for corporate gift glassware and crystal awards?
110-150mm on a 10W or higher water-cooled source is a reasonable default for most standard-size glassware and crystal pieces, giving you working room without dropping below the energy density glass needs.
Not sure which lens fits your specific piece sizes? Call The Maker's Chest at 1-833-962-5377 before you choose at checkout.
