Manual vs Motorized Z-Axis on a Fiber Laser: Is Autofocus Worth the Premium?
Every fiber laser needs to be focused before it fires, and the mechanism that does that focusing — turning a manual dial or pressing a button and letting the machine do it — is a real cost driver on any spec sheet you'll compare. Whether that upgrade is worth paying for depends heavily on how often you change materials or piece heights during a working day.
Table of Contents
- How Focus Actually Works on a Fiber Laser
- Manual Z-Axis: What You're Actually Doing
- Motorized/Autofocus Z-Axis: What Changes
- When the Premium Is Worth It — and When It Isn't
- The Verdict
- Frequently Asked Questions
How Focus Actually Works on a Fiber Laser
A fiber laser's beam converges to its smallest, most powerful point at one specific distance from the lens — the focal point. Get that distance wrong and you lose mark quality, depth, or both. Every time you switch to a different material thickness, a taller or shorter piece, or move from flat work to a rotary-mounted round object, the machine's Z-axis (the up-down distance between the lens and the work surface) needs to move to re-establish correct focus.
Manual Z-Axis: What You're Actually Doing
On a manual Z-axis machine, you set focal distance yourself — typically using a focus gauge, a printed height card, or a red-dot reference mark, then adjusting a hand crank or thumbscrew until the distance is correct. It's a genuinely quick process once you've done it a few times: most experienced users can refocus in under a minute. The tradeoff is that it's a manual step every single time piece height changes, and it introduces a small but real chance of user error — a slightly-off focus doesn't always look wrong until you see a soft or shallow mark on a finished piece.
Motorized/Autofocus Z-Axis: What Changes

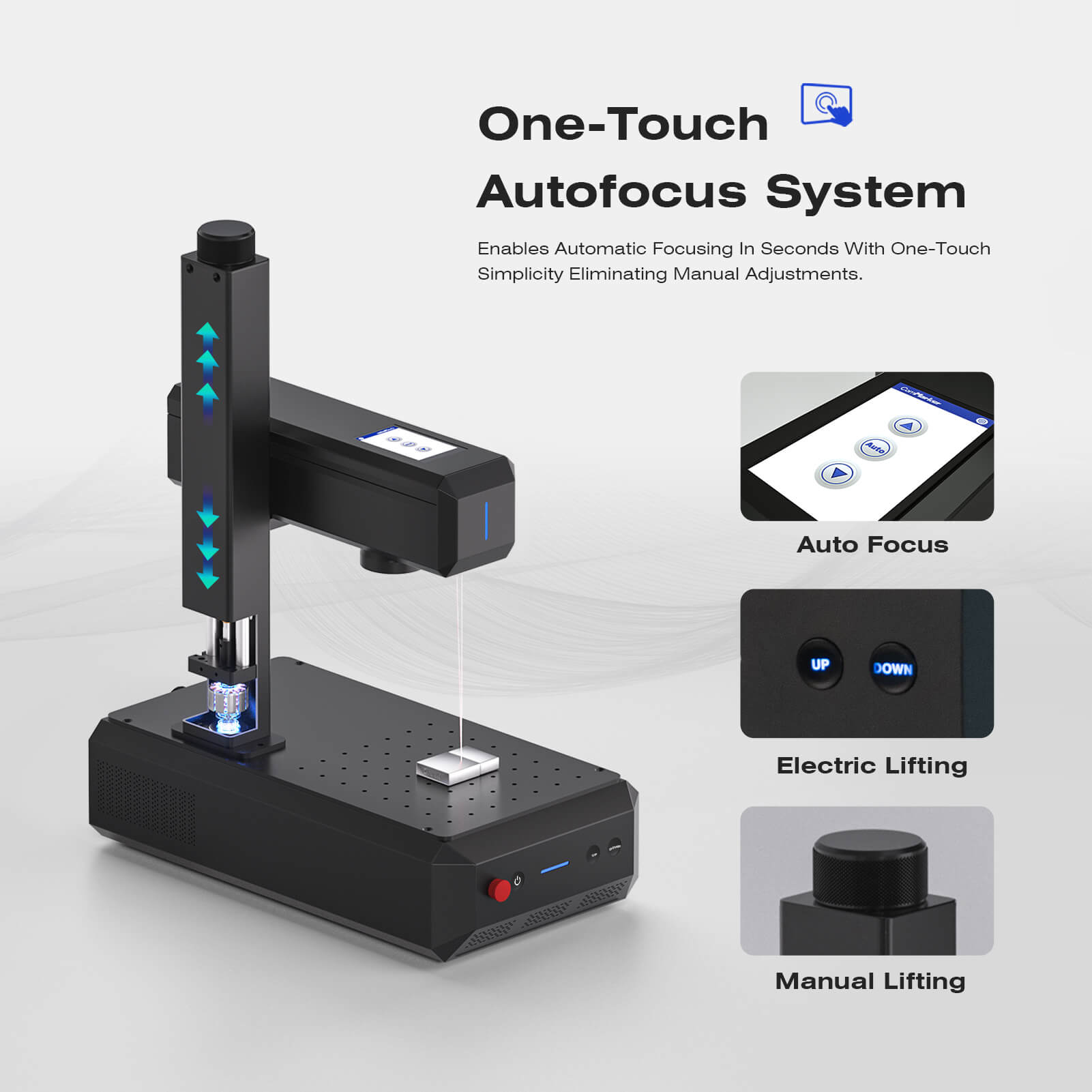

A motorized Z-axis with autofocus uses a sensor — typically measuring where a projected reference dot lands on the surface — to calculate the correct distance and drive the Z-axis there automatically, usually with one button press. This removes the manual step entirely and, more importantly, removes the error risk: the same sensor-driven routine runs identically every time, whether it's your first job of the day or your two-hundredth. The ComMarker B6 MOPA is a good example of this done well, with a touchscreen-triggered autofocus cycle that handles both coarse and fine positioning automatically — see our Haotian vs ComMarker MOPA comparison for how that plays out against a manual-focus alternative in practice.
When the Premium Is Worth It — and When It Isn't
The honest answer depends entirely on how often you refocus in a working day. If you run one material at one consistent height for hours at a time — batch-marking identical flat blanks, for example — manual focus costs you almost nothing across a full shift, since you're setting it once and leaving it. If your work mixes flat pieces, curved rotary-mounted items, and varying material thicknesses throughout the day, that manual refocus step repeats dozens of times, and the cumulative time cost (plus the error risk on a rushed refocus) starts to genuinely justify the autofocus premium.
There's also a training and staffing angle worth considering: a shop with rotating or less experienced operators benefits more from autofocus removing a manual skill step than a solo owner-operator who's refocused the same machine thousands of times and does it without thinking.
The Verdict
Manual Z-axis is the right call if: you run consistent batch work at one height for extended periods, you're comfortable with the focus routine, and you'd rather put the price difference toward wattage or a better laser source instead.
Motorized/autofocus Z-axis is worth the premium if: your work mixes materials, heights, or flat-vs-rotary setups throughout the day, you have multiple or rotating operators, or refocus errors have cost you finished pieces in the past.
Frequently Asked Questions
How much time does manual focus actually add per job?
For an experienced operator, well under a minute per refocus. The cost adds up when refocusing happens many times a day rather than from any single instance being slow.
Does autofocus improve mark quality, or just convenience?
Both, indirectly. The convenience is the headline benefit, but removing human error from the focus step also reduces the rate of soft or shallow marks caused by a slightly incorrect manual focus — which is a real quality benefit, not just a speed one.
Is motorized Z-axis necessary for rotary work?
Not strictly necessary, but genuinely helpful — switching between a flat lens height and a rotary-mounted cylindrical object is exactly the kind of frequent height change where autofocus earns its price back fastest.
Can I add motorized focus to a manual machine later?
Generally no — the Z-axis motor and control system are built into the machine at manufacture. This is a decision to make at purchase, not an accessory to add afterward.
Is manual focus a sign of a lower-quality machine?
No. Manual focus is standard on many well-built production machines, including open-frame industrial platforms where the operator is expected to manage focus directly. It's a design choice tied to price and workflow, not a quality shortfall.
Weighing autofocus against a manual-focus machine for your specific workflow? Browse our fiber laser collection or reach out to The Maker's Chest team for guidance based on how your day-to-day production actually runs.
