JPT vs Raycus vs MAX: Which Fiber Laser Source Should You Buy?

Open a fiber laser spec sheet and you'll see a source brand listed alongside the wattage — JPT, Raycus, or MAX being the three you'll run into most often. That name matters more than most buyers realize: it determines color-marking quality, warranty length, and how consistent your results stay over years of use. Here's what actually separates them.

Table of Contents

• Why the Laser Source Brand Matters at All
• Raycus: The Value Standard
• MAX: The Stability Upgrade
• JPT: The MOPA Specialist
• Side-by-Side Comparison
• Which Source Should You Buy?
• Frequently Asked Questions

Why the Laser Source Brand Matters at All

The laser source is the actual engine generating the beam — everything else in the machine (the galvo head, the enclosure, the software) is built around it. Different source manufacturers use different internal designs, frequency ranges, and quality control standards, which shows up directly in three places: how wide a range of materials the machine can mark cleanly, how consistent color marking looks across a large batch, and how long the source holds its rated output before performance drifts.

Raycus: The Value Standard

Raycus is the most widely used fiber laser source in the budget-to-mid-range market, and for good reason — it's a genuinely stable, well-proven source at a lower price point than JPT or IPG. Its typical frequency range (commonly cited around 20-80 kHz) is narrower than JPT's MOPA range, which limits how many non-metal and sensitive materials it handles cleanly compared to a MOPA-based source, and its warranty terms are generally shorter than JPT's premium tiers. For straightforward black marking on bare and coated metals without a color-marking requirement, Raycus remains a sound, cost-effective choice.

Best for: straightforward black-and-white marking on metal, cost-conscious builds, and shops that don't need color marking or MOPA-specific capability.

MAX: The Stability Upgrade

MAX sits close to Raycus on price and general specification but is widely regarded as the more thermally stable of the two — its cooling and power management design holds output more consistently through long, uninterrupted runs, which shows up as more even mark quality across a large batch rather than any single dramatic feature difference. Historically MAX had a higher failure rate than Raycus, though that gap has narrowed significantly with recent product generations.

Best for: shops running long, unattended batch jobs where consistent output over hours matters more than any single standout capability.

JPT: The MOPA Specialist

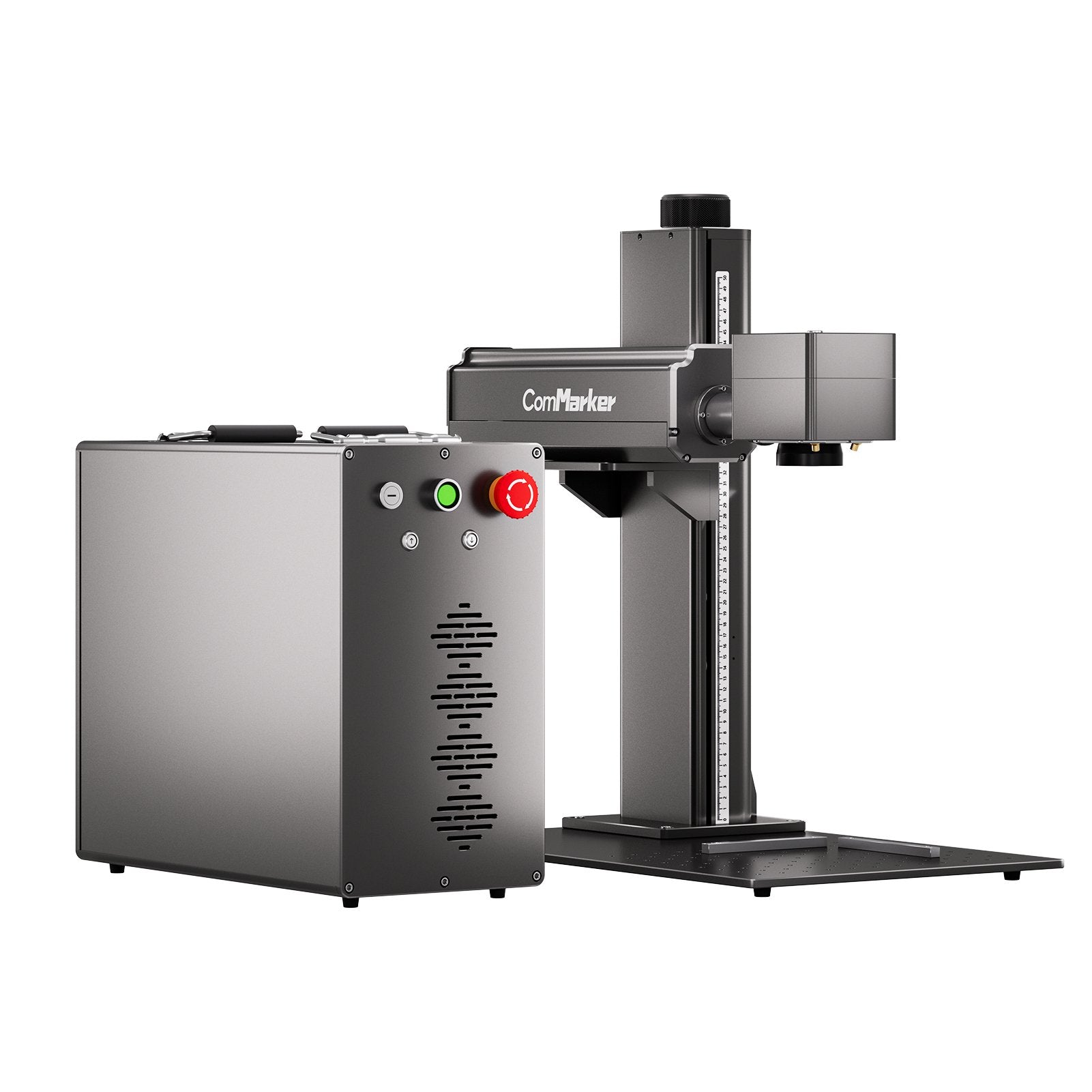

JPT built its reputation specifically around MOPA (Master Oscillator Power Amplifier) technology, and it shows: JPT sources typically offer a much wider adjustable frequency range than Raycus or MAX, which is exactly what enables full-spectrum color marking on stainless steel and titanium, clean anodized aluminum blackening, and sensitive plastic marking without melting. That capability comes at a price premium over Raycus and MAX, but for any application involving color marking, anodized aluminum, or mixed-material work, JPT's wider parameter range is what actually makes the result possible — not just faster or nicer, but achievable at all. Both the Haotian and ComMarker 60W MOPA machines we've reviewed use JPT M7-generation sources for exactly this reason.

Best for: color marking on stainless steel and titanium, anodized aluminum work, jewelry and maker's-mark engraving, and any mixed-material shop that needs one machine to handle metals and sensitive plastics.

Side-by-Side Comparison

Which Source Should You Buy?

Choose Raycus if: your work is straightforward black marking on metal and you want the lowest-cost path to a working fiber laser.

Choose MAX if: you're running long batch jobs and prioritize consistent output over a full shift more than any single specialized capability.

Choose JPT if: color marking, anodized aluminum, jewelry, or mixed-material work is any part of your product line — this is the source category that makes those results possible in the first place, not just faster.

Frequently Asked Questions

Is JPT better than Raycus?

"Better" depends on the job. JPT's wider frequency range makes color marking and mixed-material work possible, which Raycus generally cannot do. For simple black marking on metal, Raycus is a perfectly capable and less expensive choice.

Can Raycus or MAX do color marking on stainless steel?

Generally no — color marking through controlled oxide-layer formation requires the wider adjustable pulse width and frequency range that MOPA sources like JPT provide. Standard Raycus and MAX sources are built around fixed-pulse Q-switched operation.

Why is JPT more expensive?

JPT's MOPA architecture and wider parameter range require more sophisticated internal components than a fixed-pulse Q-switched source, which is reflected in the price. That premium buys genuine additional capability, not just a brand name.

Is MAX more reliable than Raycus?

MAX is generally considered to have better long-run thermal stability, though the reliability gap between the two has narrowed considerably in recent product generations. Both are established, widely used sources.

Does the source brand affect the machine's warranty?

Often, yes — source manufacturers set their own component warranty terms, and machine builders sometimes pass those terms through directly. It's worth confirming warranty length is tied to the source itself, not just the machine chassis.

Not sure which source fits your application? Browse our MOPA fiber laser collection for JPT-based machines, or reach out to The Maker's Chest team for a direct recommendation based on your material mix.
