Fiber Laser Lens Size Guide: Choosing the Right Field for Your Work
Many fiber lasers let you choose a lens size at checkout — commonly anywhere from 70x70mm up to 300x300mm — and it's an easy decision to get wrong in either direction. A bigger lens isn't simply "more machine for your money"; it's a real tradeoff against energy density, and picking the wrong size can leave you unable to hit the depth or detail your work needs.
Table of Contents
- What Lens Size Actually Controls
- The Real Tradeoff: Coverage vs. Energy Density
- Recommended Lens Size by Use Case
- Can You Have More Than One Lens?
- Frequently Asked Questions
What Lens Size Actually Controls

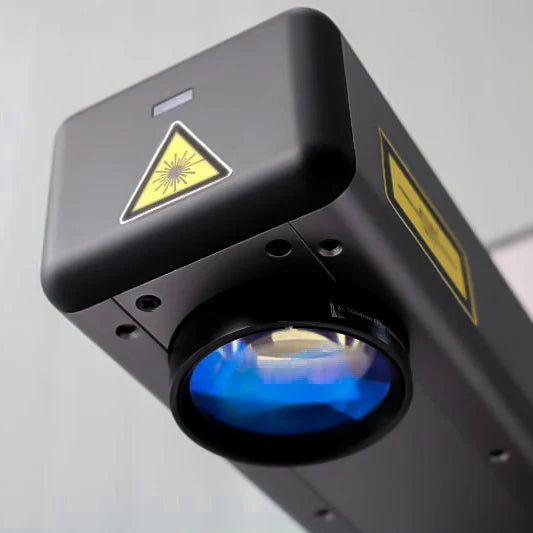

The F-theta lens on a fiber laser's galvo head determines the machine's working field — the maximum area the beam can scan without repositioning the workpiece. A 110x110mm lens gives you a 110mm square work area in a single setup; a 300x300mm lens gives you roughly eight times that surface area. That part is intuitive. What's less obvious is what you give up to get it.
The Real Tradeoff: Coverage vs. Energy Density
A larger lens spreads the same laser power over a larger focal area, which lowers energy density at the focal point. In practice, that means a bigger lens needs more passes, more power, or more time to achieve the same depth or contrast a smaller lens reaches more easily — and on some materials, particularly glass and certain UV-marked surfaces, energy density below a certain threshold simply won't produce a clean result no matter how many passes you run. This is precisely why our Haotian UV vs ComMarker Omni 1 comparison flags specific field-size limits for glass marking at each power level — the same physics applies across UV and fiber lasers alike.
The practical rule: choose the smallest lens that comfortably covers your typical piece size. A bigger lens sitting unused doesn't help you; it just means you're running at lower energy density than you need to for the depth or detail your work actually requires.
Recommended Lens Size by Use Case
| Use Case | Recommended Lens | Why |
|---|---|---|
| Jewelry, rings, small maker's marks | 70x70mm to 110x110mm | Small pieces need high energy density for fine detail, not coverage area |
| Dog tags, metal business cards, small plaques | 110x110mm to 150x150mm | Balances coverage with enough density for clean detail and color marking |
| Tumblers, larger gift items, industrial part marking | 150x150mm to 200x200mm | Covers larger flat areas or full rotary passes without repositioning |
| Large panels, batch marking multiple pieces per pass | 210x210mm to 300x300mm | Maximizes throughput at the cost of energy density; best paired with higher wattage |
Can You Have More Than One Lens?
Yes, and for shops with mixed work, this is often the better answer than compromising on one lens size. Several machines — including the Haotian and ComMarker MOPA machines we've reviewed — let you choose or add a second lens, giving you a small, high-density lens for detail work and a larger one for bigger pieces or batch runs. Confirm whether swapping lenses requires refocusing (it does) and whether your machine's autofocus system, if it has one, supports the full range of lens sizes you're considering — some autofocus systems only calibrate within a specific lens range.
Frequently Asked Questions
Is a bigger lens always better?
No. A bigger lens lowers energy density at the focal point, which can hurt depth and detail on smaller or more demanding work. Choose the smallest lens that comfortably fits your typical piece size, not the largest one available.
What lens size is best for jewelry engraving?
70x70mm to 110x110mm is typically the right range — jewelry work needs high energy density for fine detail far more than it needs a large working field.
Can I switch lenses on the same machine?
On many machines, yes, provided the machine's mount and control software support the lens you're switching to. You'll need to refocus after any lens change, and autofocus systems don't always support the full range of available lens sizes.
Does lens size affect color marking quality?
Yes, indirectly. Color marking on stainless steel and titanium depends on precise, consistent energy density, and a lens that's too large for the piece can make that consistency harder to achieve without additional passes or parameter tuning.
What lens size should I choose if I do a mix of small and large work?
Consider a machine that supports two lenses rather than compromising on a single mid-size lens — a small lens for detail work and a larger one for bigger pieces generally outperforms one lens trying to do both jobs.
