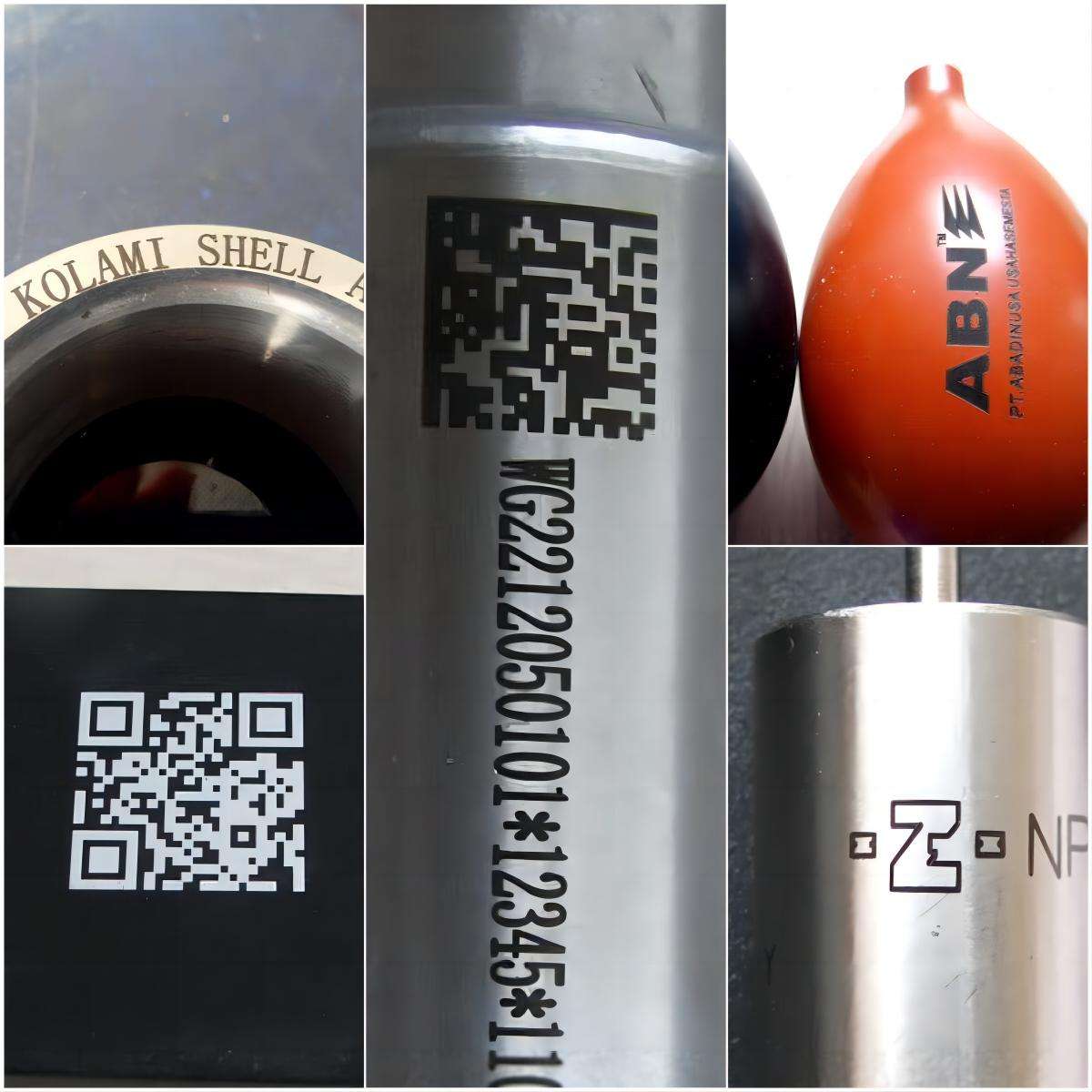

Fiber Laser for Industrial Part Marking, Serial Numbers and Traceability
Industrial part marking — serial numbers, QR and data matrix codes, lot traceability, compliance marks — is one of the most common commercial applications for a fiber laser, and one of the least forgiving. Unlike a decorative engraving, a traceability mark has to stay readable through the part's entire service life, sometimes including heat treatment, machining, or years of handling. Here's what that actually requires from a machine.
Table of Contents
- Why Fiber Is the Standard for Industrial Marking
- Minimum Viable, Recommended, and Production-Grade Machines
- Recommended Lens and Fixturing
- Typical Process: From Design File to Verified Mark
- Expected Limitations
- Safety Considerations
- Frequently Asked Questions
Why Fiber Is the Standard for Industrial Marking
Industrial part marking requires a mark that survives handling, cleaning, and sometimes further machining or coating — which rules out anything that sits on the surface rather than becoming part of it. A fiber laser's 1064nm wavelength either anneals (creates a color change through controlled oxidation, common on stainless steel) or engraves (physically removes material) directly into the metal surface, producing a permanent mark that doesn't wear, fade, or wash off the way ink, etching fluid, or adhesive labels can.
Minimum Viable, Recommended, and Production-Grade Machines
Minimum viable: a 20-30W Q-switched fiber laser handles basic serial numbers and data matrix codes on bare or lightly coated metal at low-to-moderate volume. This is sufficient for a shop marking parts as one step in a broader process rather than running dedicated marking production.
Recommended: a 50-60W MOPA source is the better default for most part-marking operations, since MOPA's adjustable pulse width produces cleaner, more consistent annealed marks on stainless steel and handles anodized or coated parts without the surface damage a standard fiber laser can cause at high frequency. See our fiber laser wattage guide for how this tier compares to the entry level.
Production-grade: for high-throughput lines marking thousands of parts per shift, a split-frame 100W+ platform integrated into a conveyor or fixture-fed workflow is the realistic target — our fiber laser buying guide covers how production volume should shape that decision.
Recommended Lens and Fixturing
Most part marking work suits a 110-150mm lens — large enough to cover a reasonable part size without sacrificing the energy density needed for a crisp, high-contrast code that scans reliably. See our lens size guide for the full tradeoff explanation. Fixturing matters as much as the laser itself here: a repeatable jig that positions every part identically is what actually makes serialized marking consistent at volume, since even a well-calibrated machine can't compensate for a part sitting in a slightly different spot every time.
Typical Process: From Design File to Verified Mark
- Generate the serial number or code sequence (many shops use LightBurn's or the control software's built-in variable-data/serialization function rather than manually editing each file).
- Load the part into a fixed jig to guarantee consistent positioning across the run.
- Run a test mark on a scrap piece to confirm focus, contrast, and code scannability before committing to the full batch.
- Mark the batch, incrementing the serial or code data automatically between pieces.
- Verify a sample of marks with a barcode/QR scanner or visual inspection before the batch ships, particularly for compliance-driven marking where a failed scan downstream is costly.
Expected Limitations
Fiber lasers mark metal and select hard plastics well but won't touch wood, leather, fabric, or most organic packaging materials — if your traceability marking spans mixed materials, you'll likely need a secondary laser type for the non-metal portion. Extremely small code sizes (sub-2mm data matrix codes) also demand tighter beam quality and more careful focus than casual marking work, so budget extra time for parameter testing before committing to a production run at very small code sizes.
Safety Considerations
Fiber laser wavelengths are invisible to the eye and more hazardous than visible-light lasers, so appropriate safety eyewear rated for 1064nm is non-negotiable for anyone near the machine during operation. For sustained production marking, particularly on coated or painted parts, dedicated fume extraction is recommended — see our Filtrabox fume extractor guide for sizing guidance appropriate to continuous production use.
Frequently Asked Questions
What wattage fiber laser do I need for serial number marking?
20-30W is sufficient for basic serial numbers on bare metal at low volume. 50-60W MOPA is the better default for coated, anodized, or stainless parts where consistent annealed contrast matters for scannability.
Can a fiber laser mark a QR code that scans reliably?
Yes, provided the code size and contrast are within the machine's resolution and the mark is verified with an actual scanner during setup — don't rely on visual inspection alone for codes that need to scan reliably downstream.
Do industrial part marks need to be annealed or engraved?
It depends on the application. Annealed marks (a color change without material removal) are common for stainless steel traceability marking since they don't compromise part integrity. Engraved marks are used when the application specifically calls for a physically recessed or raised mark.
Is fixturing more important than the laser itself for serialized marking?
They're both essential, but fixturing is the piece most operations underinvest in. A repeatable jig is what makes a serialized batch consistent — without one, even a well-calibrated laser can't guarantee identical mark placement part to part.
What's the biggest limitation of fiber laser part marking?
It's metal- and hard-plastic-only. Any traceability program spanning mixed materials — metal components alongside plastic housings or labels, for example — will need a secondary marking method for the non-metal parts.
