The 60W MOPA Fiber Laser That Does What Standard Fiber Lasers Can't.

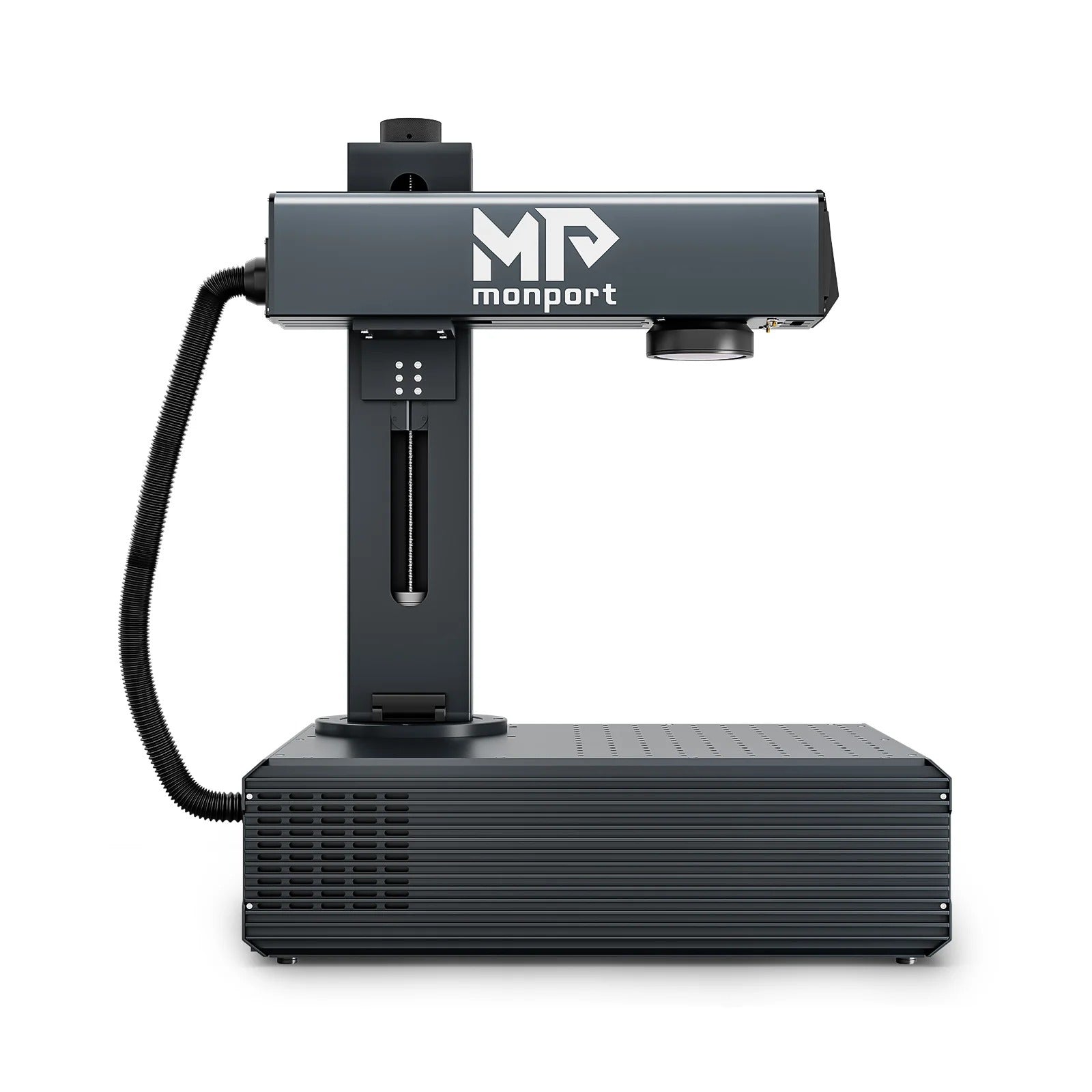

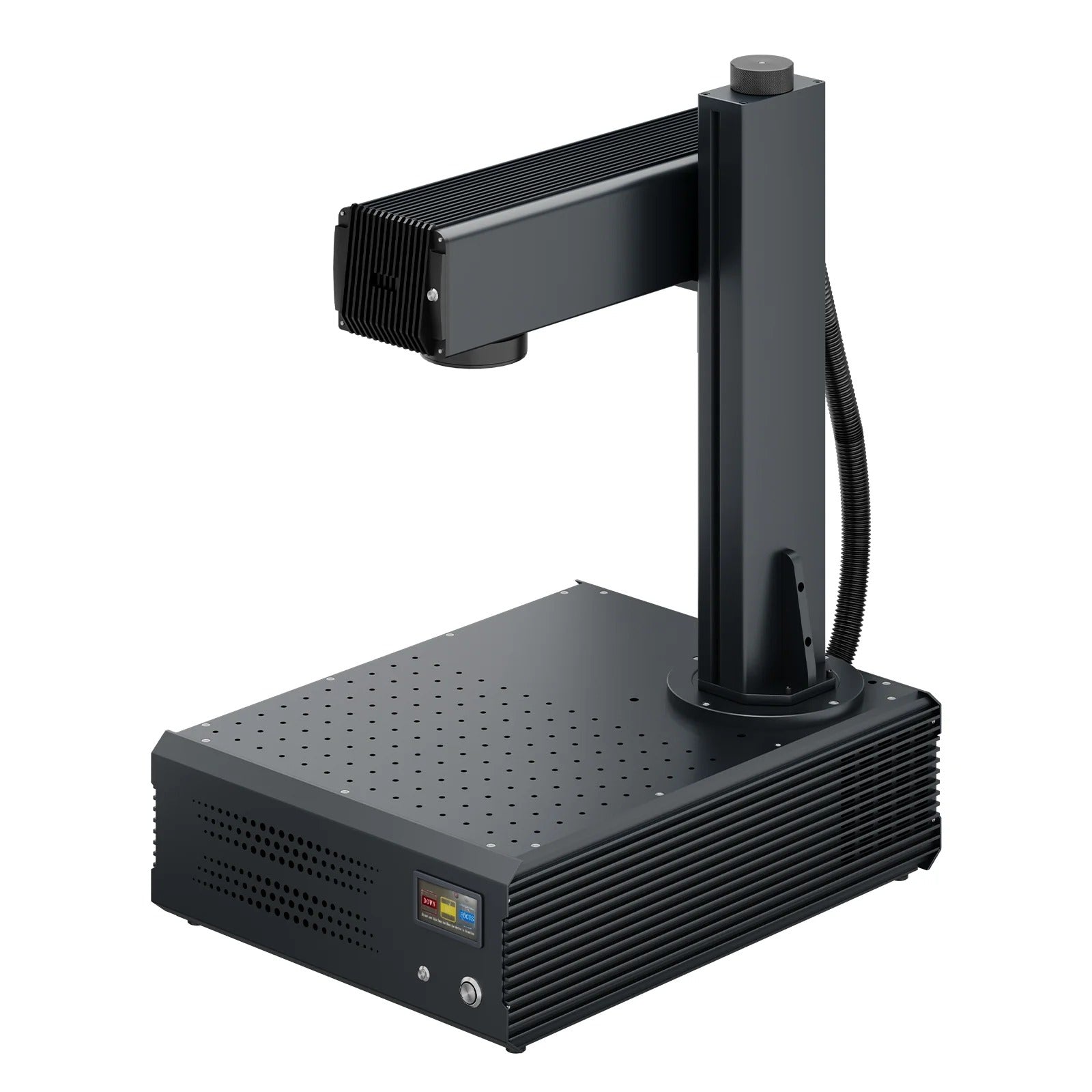

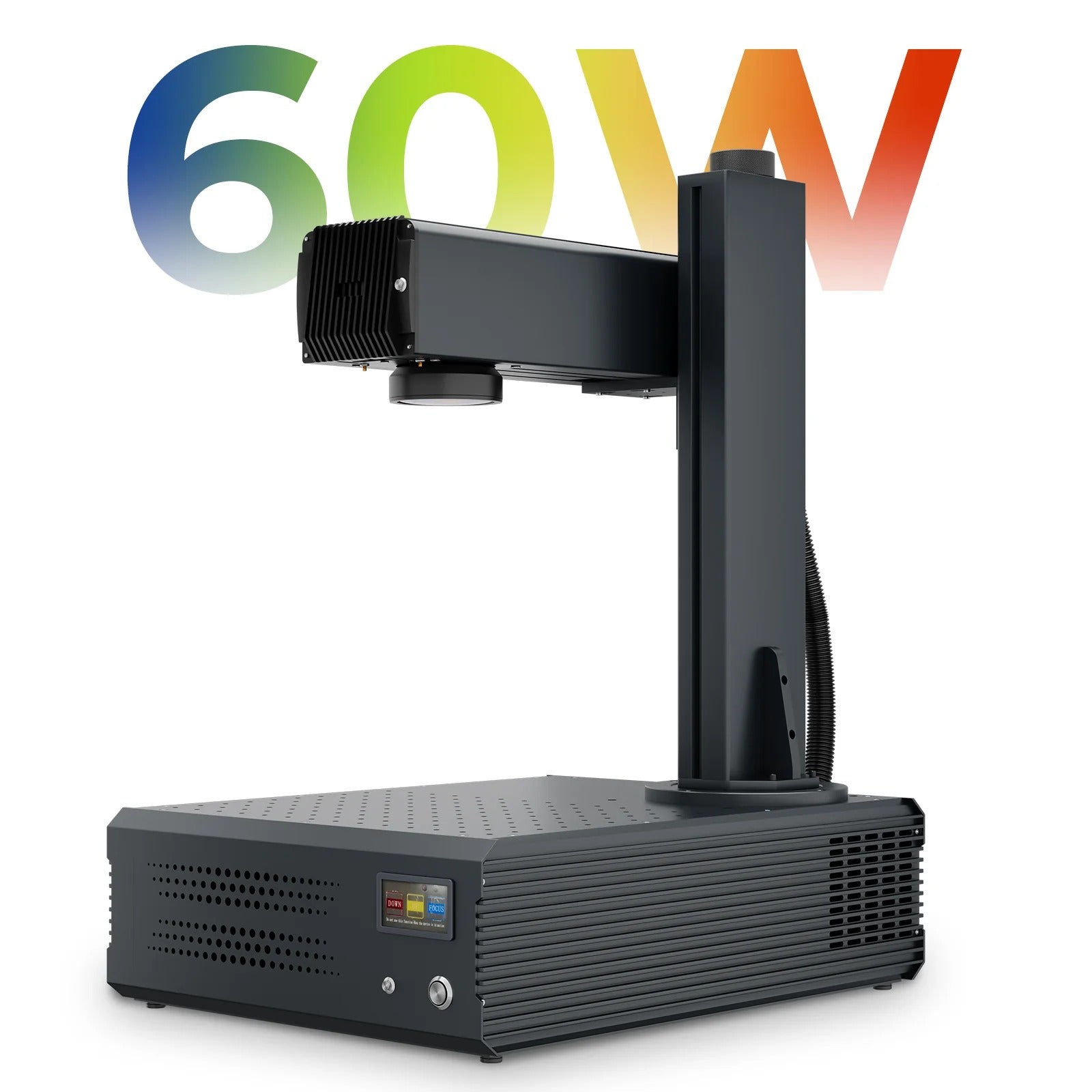

The Monport GA 60W MOPA Fiber Laser is a desktop industrial-grade fiber laser engraver and marker built around JPT MOPA technology — the laser architecture that unlocks true color marking on stainless steel, deep 3D relief engraving, precision metal cutting, and anodized aluminum blackening, all from a single machine. With 10,000 mm/s marking speed, one-touch autofocus, a 90° rotating mast, and LightBurn compatibility, it's the fiber laser upgrade that serious makers and production shops have been waiting for.
Compatible Materials:
|
Metal
|
Plastics
|
Stone
|
Leather
|
Rubber
|
![]()
![]()
Why MOPA Changes Everything About Fiber Laser Engraving
Most desktop fiber lasers use a Q-switched laser source — a technology that does one thing well: fast black marking on metal. Q-switched lasers have a fixed pulse width, which limits them to essentially one mode of operation. They're fine for simple part marking, serial numbers, and barcodes.
MOPA (Master Oscillator Power Amplifier) is a fundamentally different laser architecture. It gives you independent control over two variables that Q-switched lasers cannot adjust: pulse width (2–500 ns on the GA 60W) and pulse frequency (1–3,000 kHz). That adjustability is what unlocks an entirely different category of results:
-
True color marking on stainless steel and titanium — by varying pulse width and frequency, the laser creates a controlled oxide layer that produces specific colors. Golds, blues, reds, greens, and purples are achievable with the right parameters, on the same machine, in the same job
-
Clean anodized aluminum blackening — without the micro-cracking that standard fiber lasers cause on anodized surfaces at high frequency
-
Precise plastic surface marking — softer pulse widths allow marking delicate plastic without burning or melting, enabling factory-quality results on keyboards, electronics, and industrial components
-
Deep 3D relief engraving — consistent energy delivery enables controlled material removal for dimensional depth and relief effects
With the MOPA version you can adjust the pulse width parameter, allowing you to engrave more delicate materials like plastic more easily, and you benefit from engraving colors on stainless steel and producing a wider range of engraving effects.

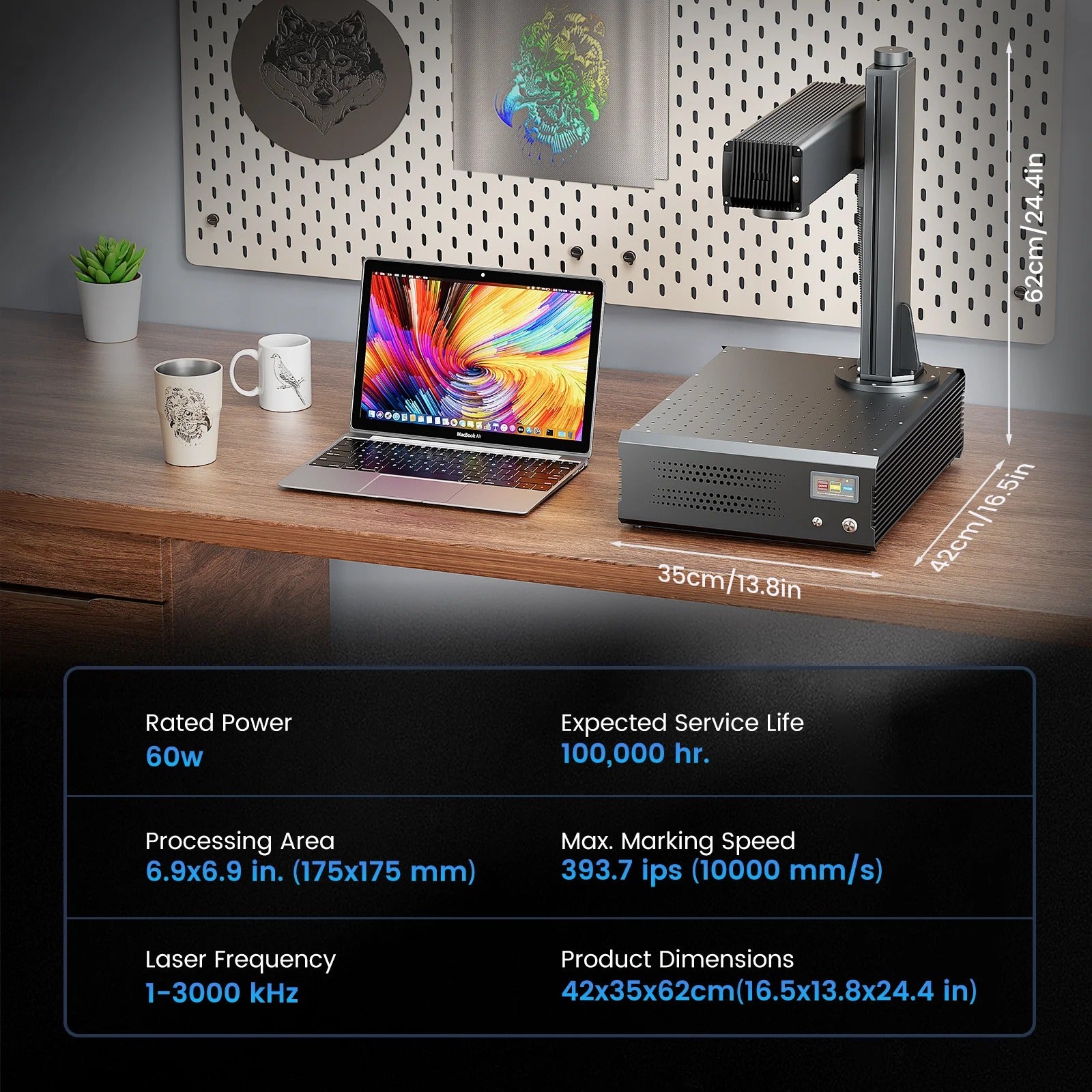

60W of Power. 10,000 mm/s of Speed.

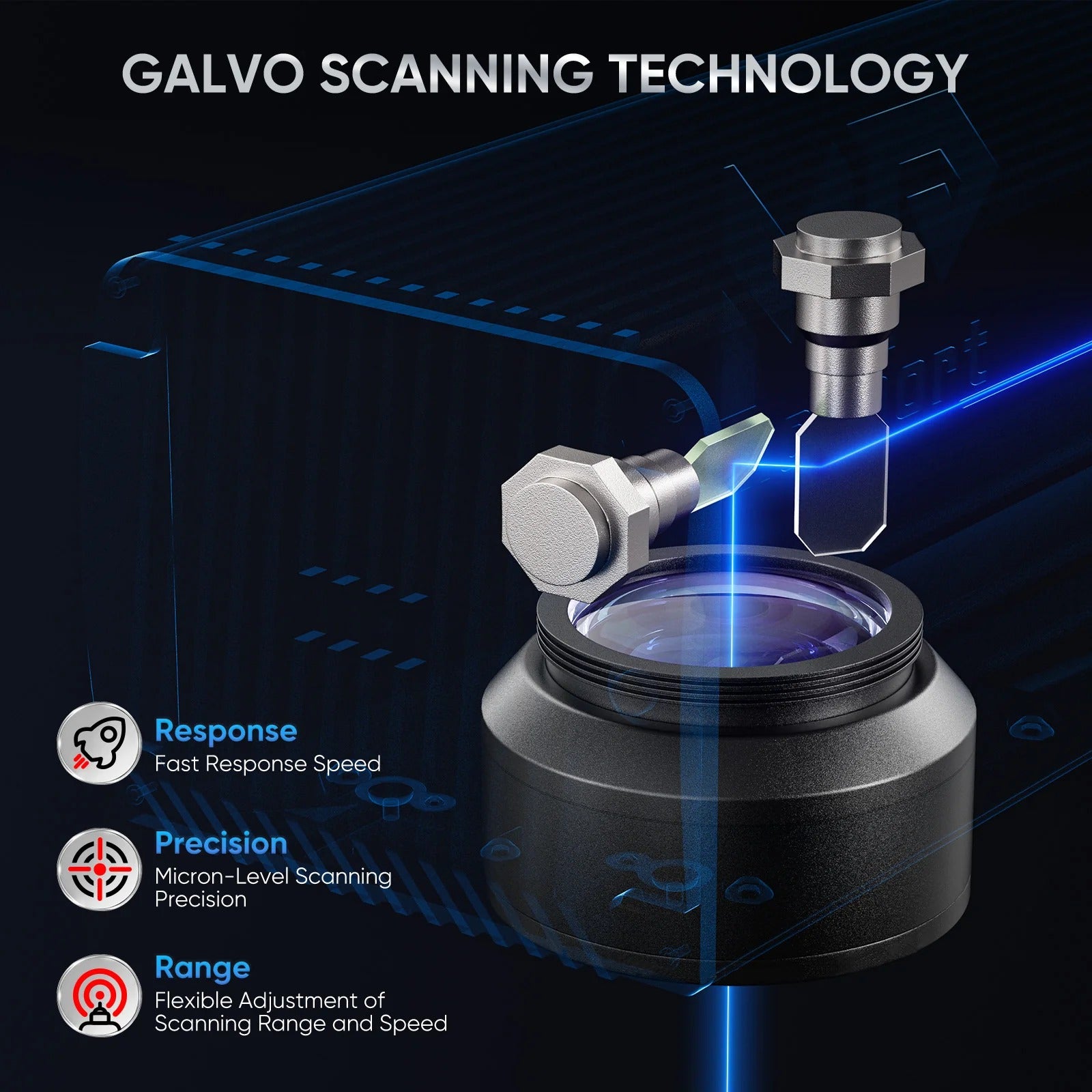

The GA 60W is driven by a 60W JPT MOPA laser source paired with a Galvo scanning system with silicon reflectors — a higher-spec mirror material than the standard aluminum reflectors used in most competing machines. The combination delivers:
-
10,000 mm/s maximum marking speed — the ceiling for desktop fiber laser performance in this class
-

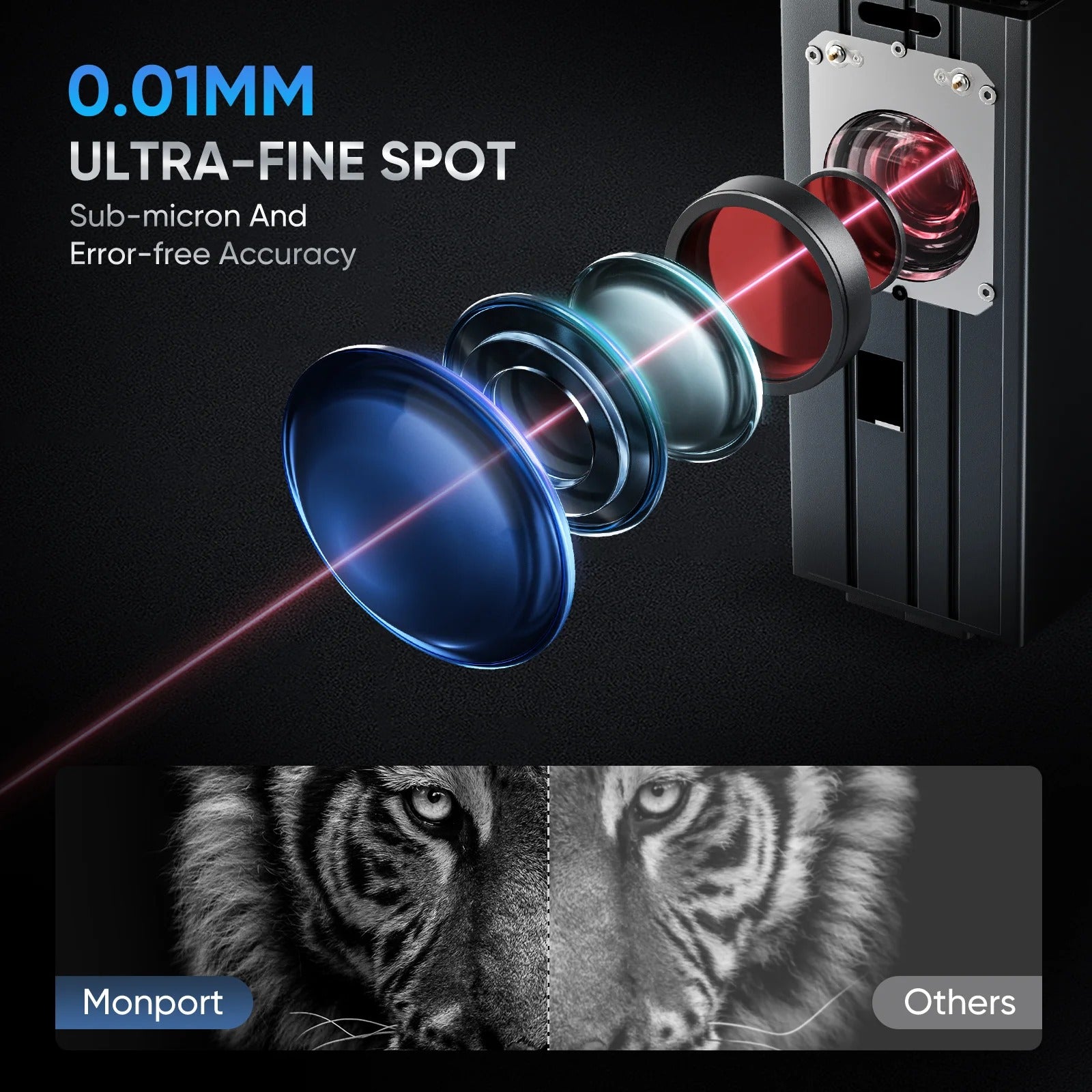

0.01mm engraving accuracy with ±0.1 µm positioning accuracy — sub-micron repeatability for production marking and precision part engraving
-
1.5 mJ maximum pulse energy — meaningful for deep engraving and metal cutting applications requiring sustained high energy per pulse
The 60W MOPA fiber laser offers adjustable frequency and pulse width, which means it can create colorful stainless steel markings, deep engravings, and precise cuts — versatility that sets it apart from standard fiber lasers.

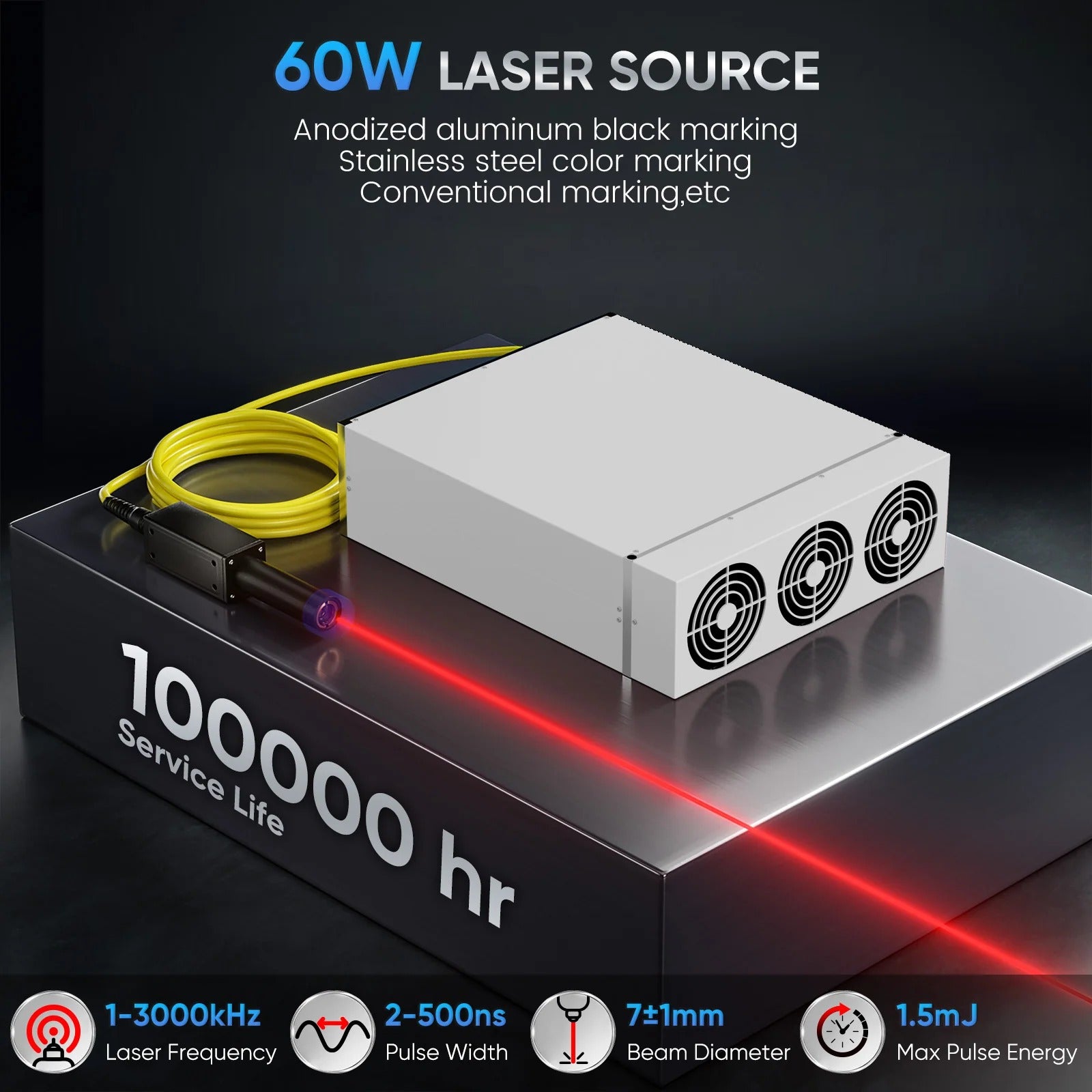

The laser runs air-cooled with no water chiller required — plug in, power on, and start working. Expected laser source lifetime is 100,000 hours under normal operating conditions.
One-Touch Autofocus. Installed in One Minute.
Two features of the GA 60W stand out for operators who want to spend time making, not configuring:

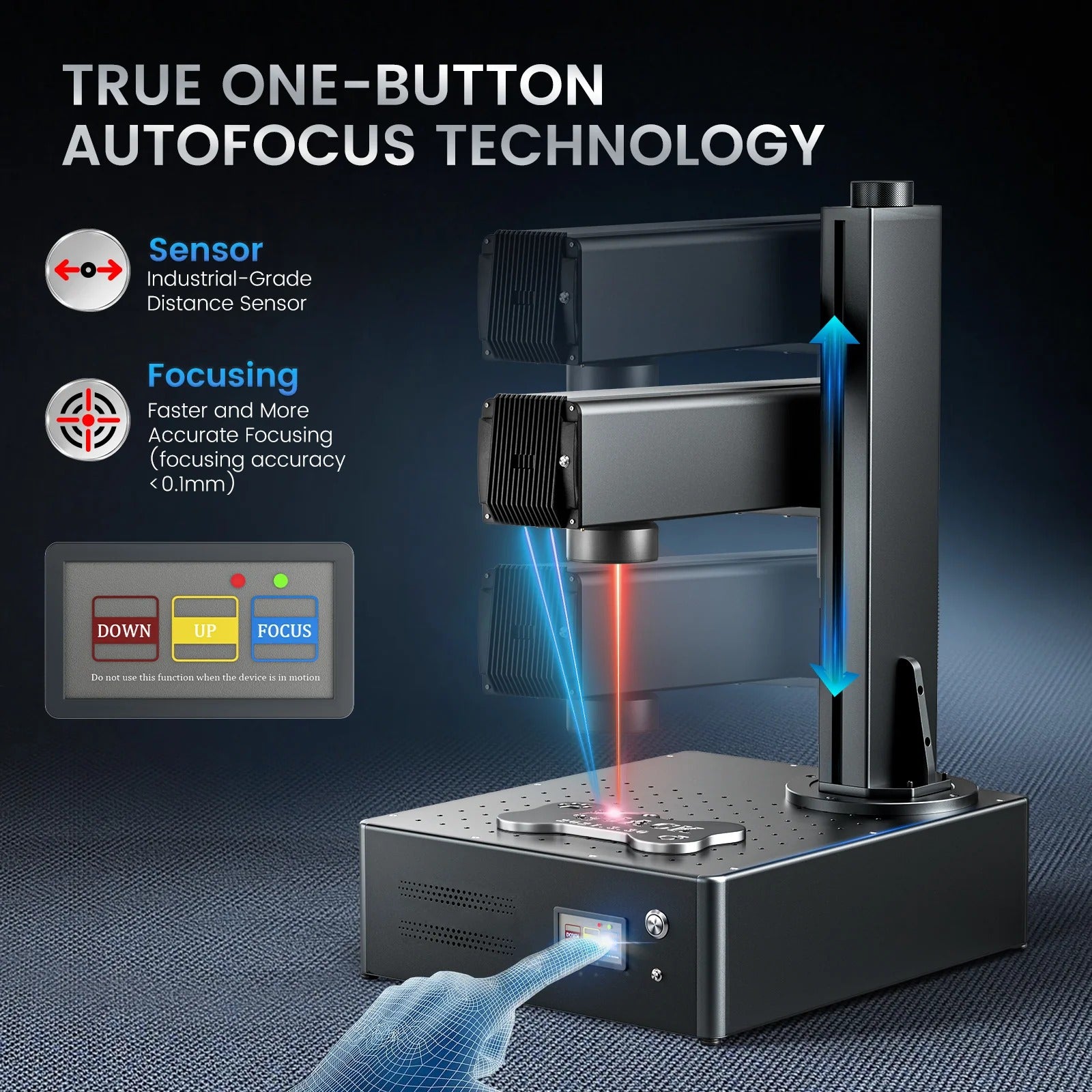

One-Touch Autofocus with Electric Lifting: Press the autofocus button and the electric Z-axis column adjusts to the exact focal distance for your material — no manual measurement, no test burns, no adjustment cycles. It works down to micron-level precision. Switch material thickness, press the button, and you're back engraving in seconds.

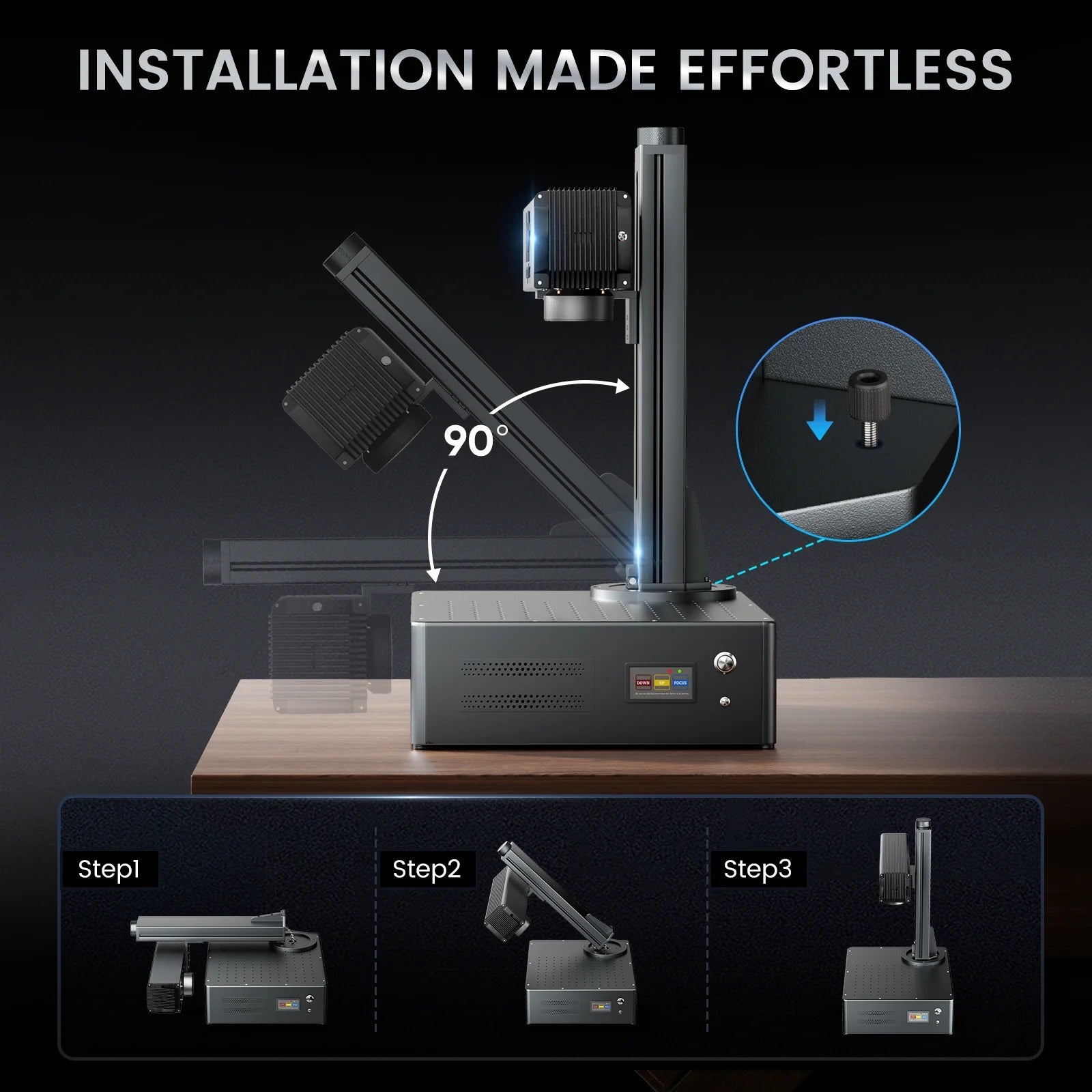

One-Minute Installation: The GA 60W ships mostly assembled. With the foldable vertical arm design, installation requires only tightening two screws — even beginners can complete setup within a minute. Unbox, set it on your bench, straighten the mast, tighten two screws. Done.
The foot pedal function is built in — no external pedal purchase needed. Trigger marking cycles hands-free during high-volume batch runs without reaching for the computer.

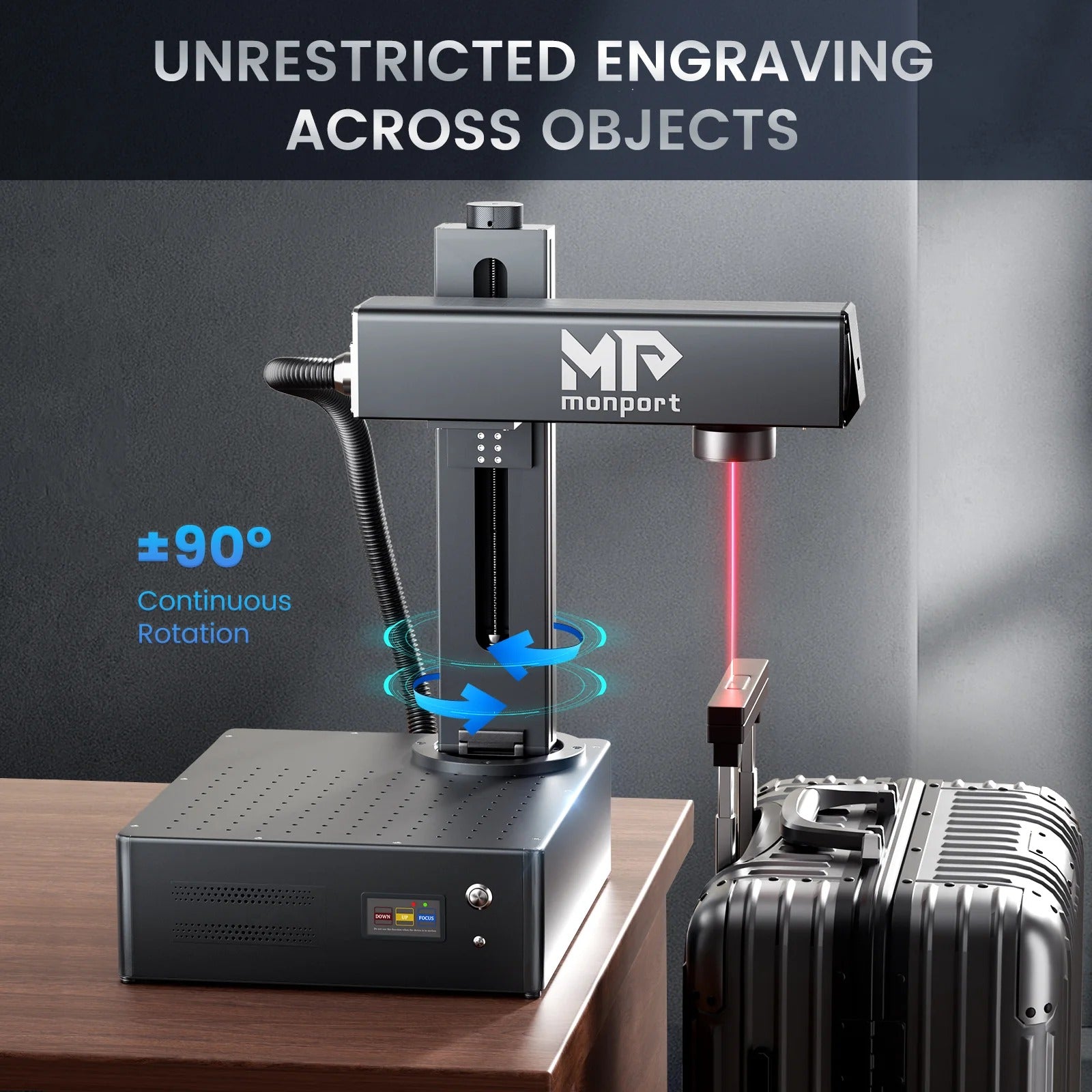

90° Rotating Mast — Mark Every Surface, Every Angle
The GA 60W's vertically rotating mast tilts to a full 90° horizontal position with a simple screw adjustment — no tools required, no disassembly. This opens up marking and engraving on surfaces and angles that a fixed-head machine physically cannot reach:
-
Side faces of parts without repositioning on a fixture
-
Vertical surfaces — cabinet panels, tool handles, standing parts
-
Angled faces on complex assemblies
-

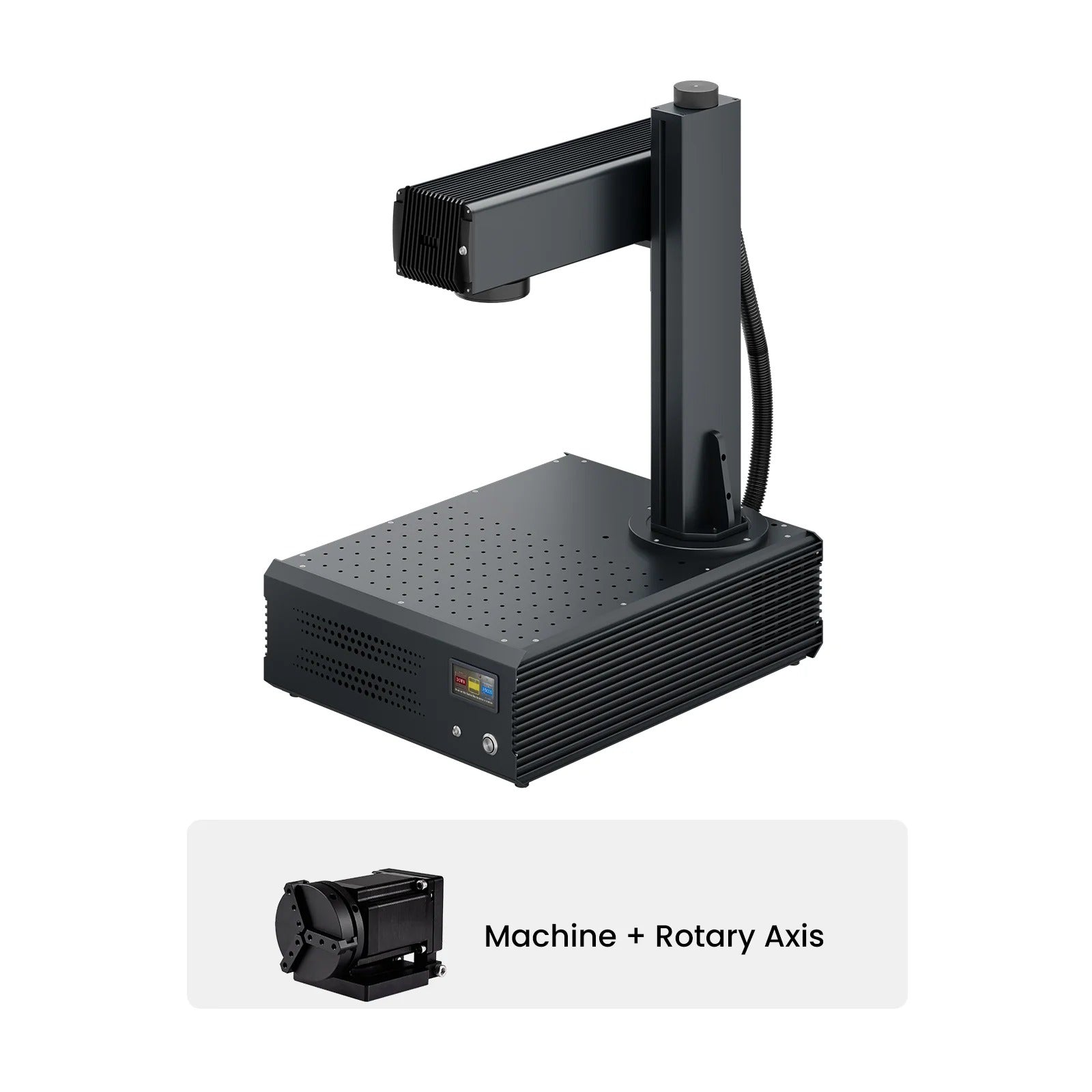

Rotary axis work — the built-in rotary axis function enables engraving on cylinders, rings, bracelets, tumblers, and pens in combination with the mast rotation

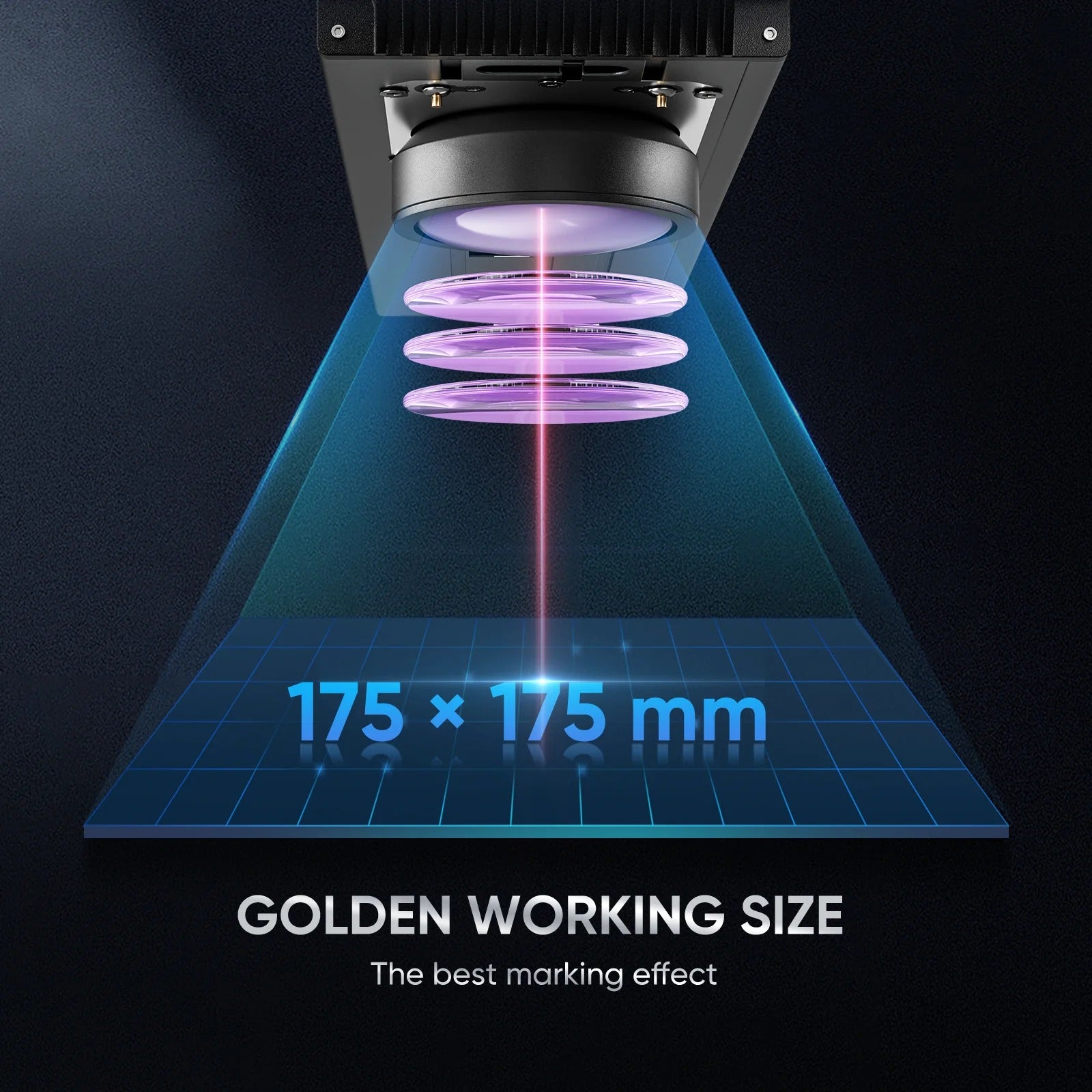

The 6.9" × 6.9" (175 × 175 mm) marking field is the optimal area for MOPA fiber laser work — large enough for most production marking, small enough to maintain consistent beam quality to the edges without distortion or light fall-off. Monport has tuned the field lens specifically for edge uniformity.
What You Can Mark, Engrave, and Cut
The GA 60W handles a remarkably wide material range with a single machine:
Metals — Mark, Engrave, Cut: Steel, stainless steel, aluminum, anodized aluminum, brass, copper, gold, silver, titanium, tungsten, carbide — and most other metals and alloys. Color marking on stainless and titanium. Deep engraving and 3D relief on steel and aluminum. Light cutting on thin metal sheet.
Hard Non-Metals — Mark and Engrave: Hard plastics, ABS, PC, fiber-reinforced materials, brick, marble, granite, slate, and similar dense materials. Results on plastic like ABS are factory-quality and indistinguishable from manufacturer's marking

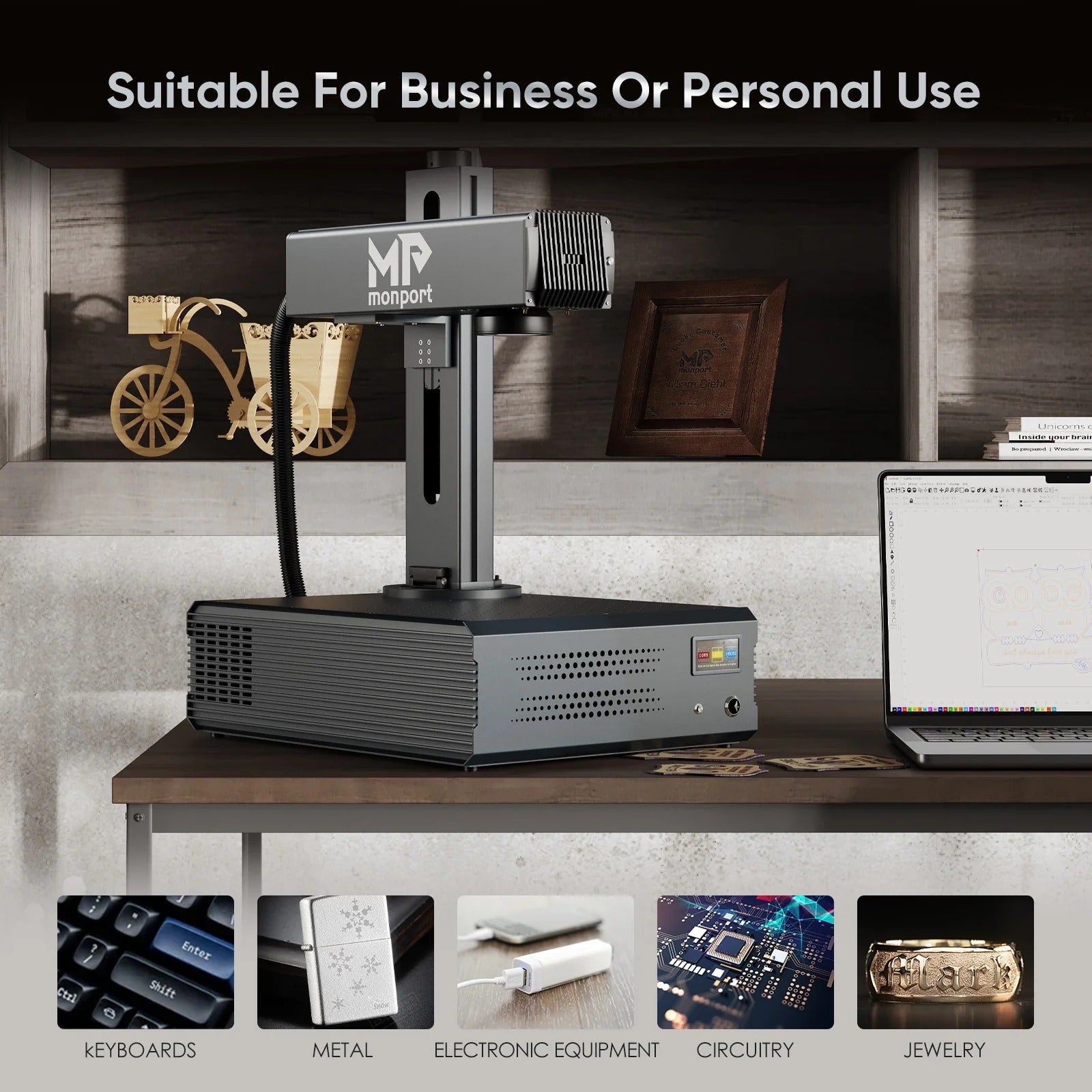

Specialty Applications: Industrial part traceability, QR codes and barcodes, jewelry personalization, medical device marking, tool marking, electronics labeling, and custom product branding.

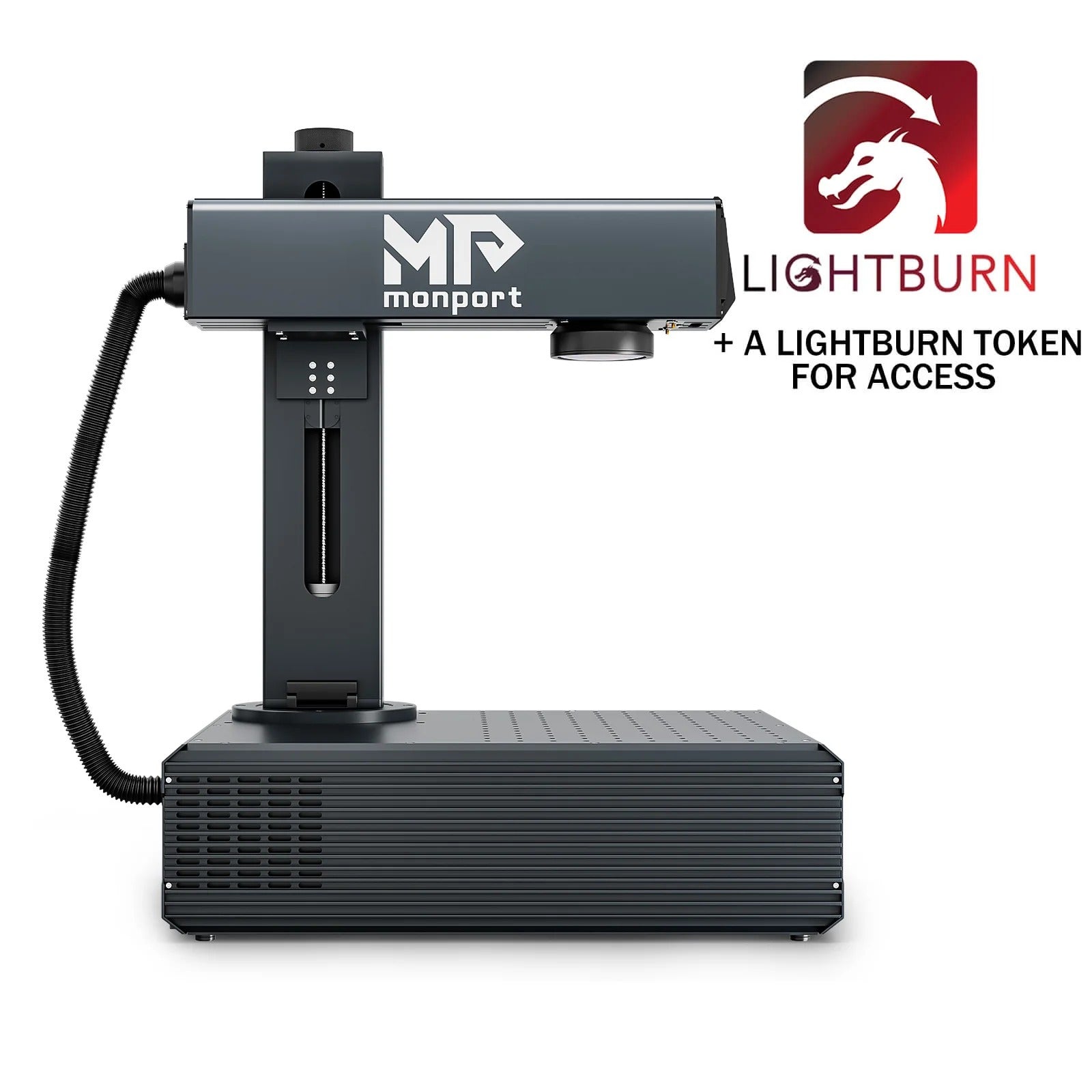

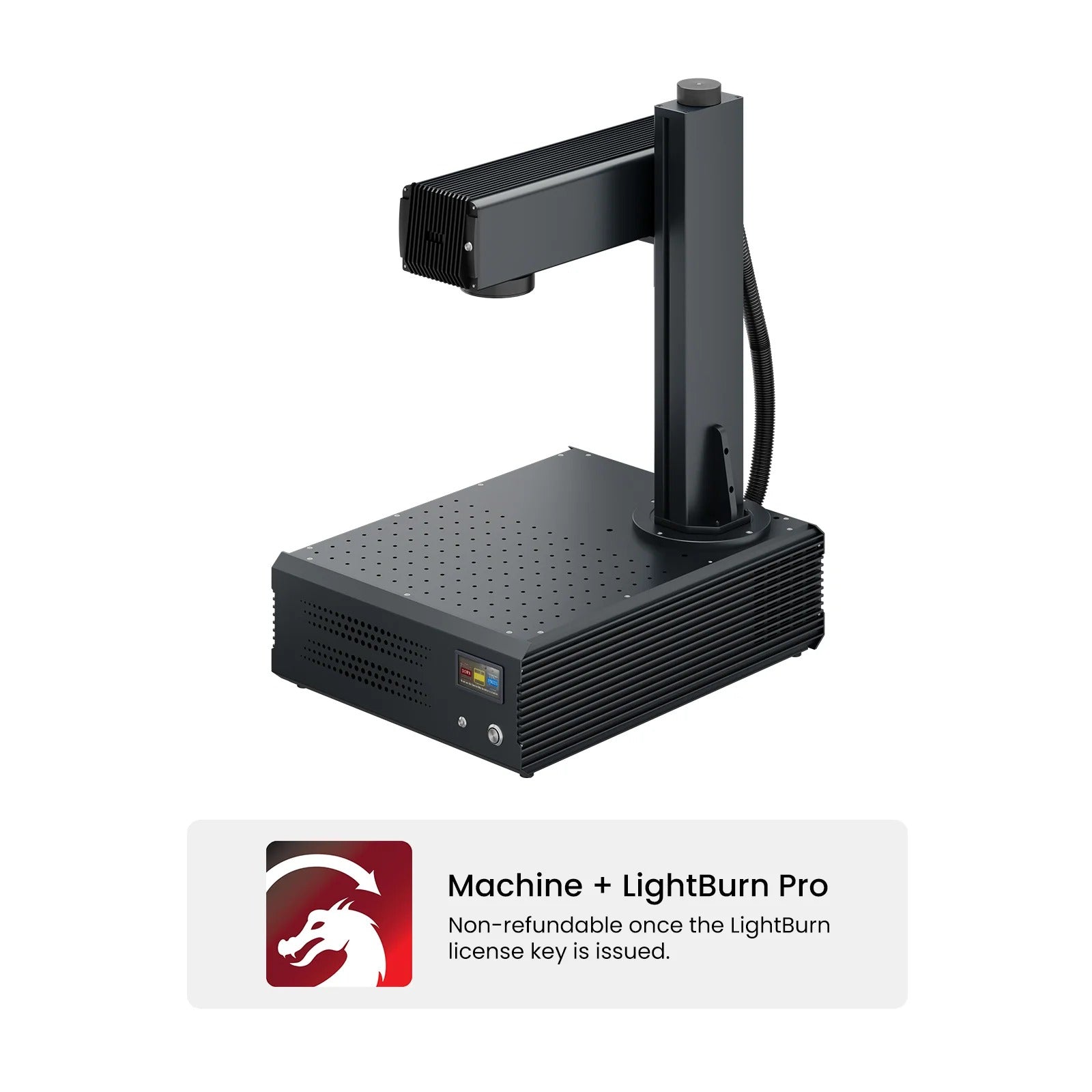

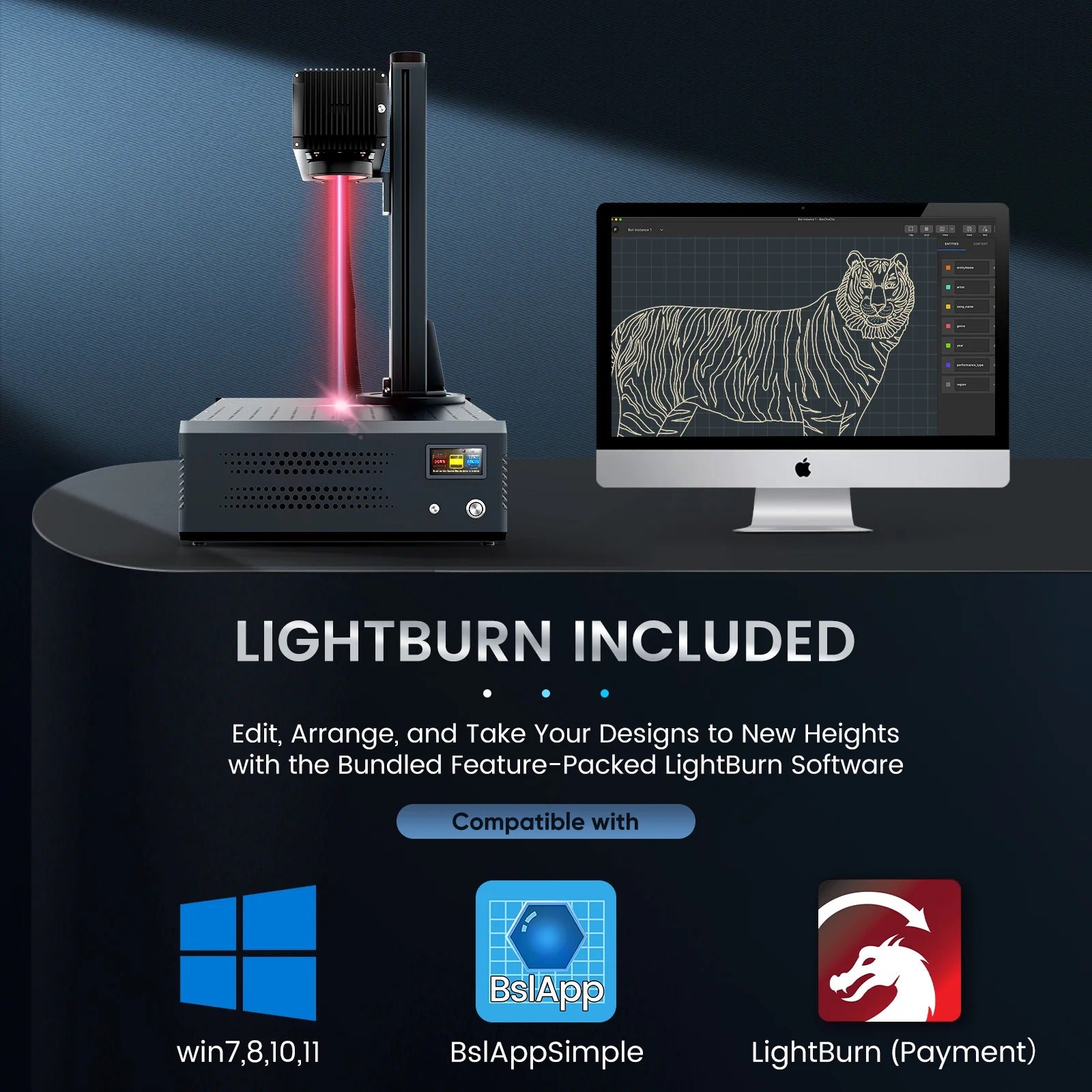

Software: LightBurn and BslAppSimple
The GA 60W is fully compatible with LightBurn — the same software used by CO₂ and diode laser operators, meaning if you already run a CO₂ laser in your shop, your workflow knowledge transfers directly. It also supports the native BslAppSimple marking software for operators who prefer dedicated fiber laser control. Compatible with Windows and macOS. Supported file formats include BMP, GIF, JPG, JPEG, DXF, DST, and more.

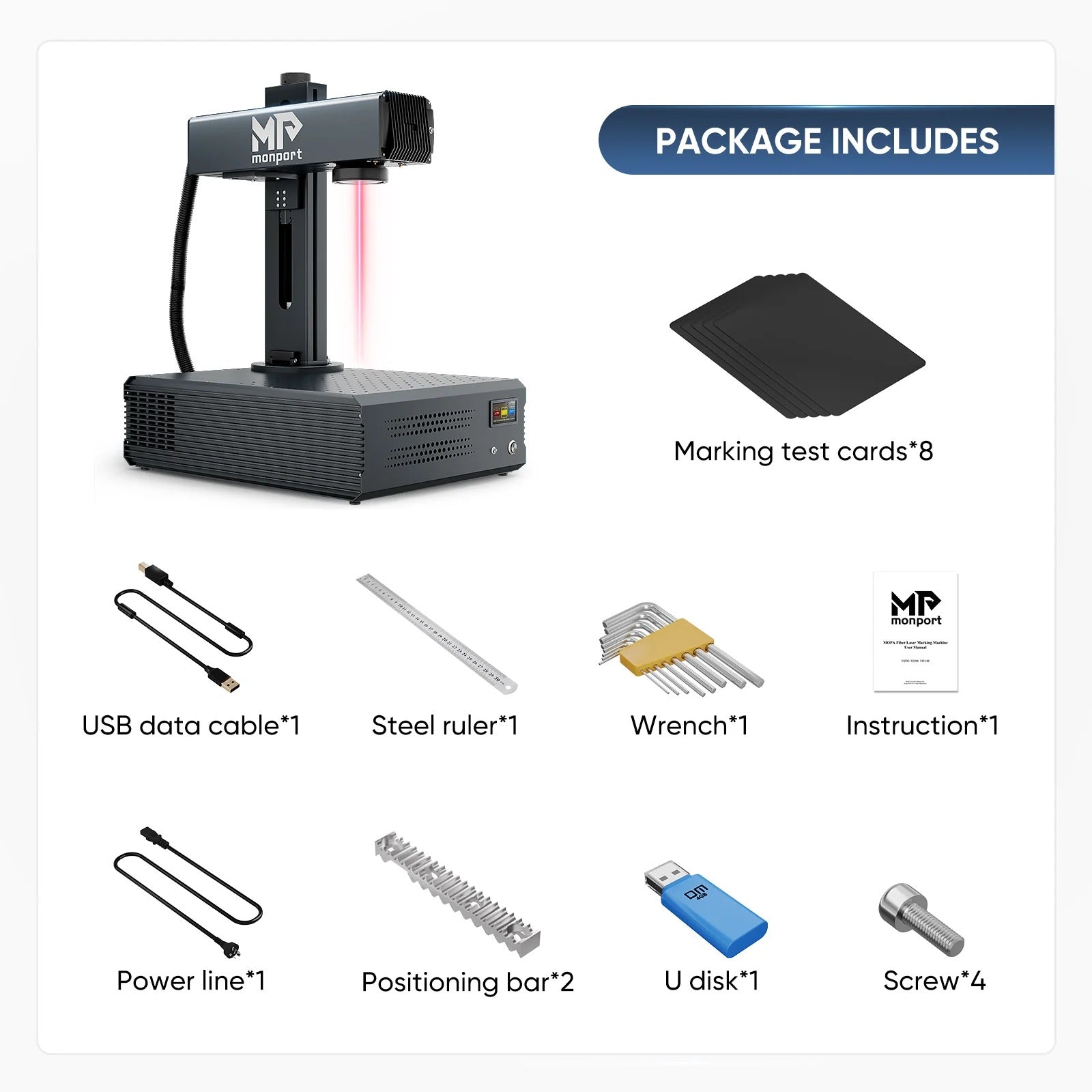

What's Included With The Monport GA 60W MOPA Fiber Laser
The Maker's Chest Difference
The Monport GA 60W is available from Monport directly and through other resellers. Here's what changes when you buy through The Maker's Chest:
- 🛡️ 75-day returns — Monport's own return window is significantly shorter. Ours gives you real time to dial in your MOPA parameters, run production tests on your actual materials, and confirm the machine fits your workflow before you're locked in
- 🇺🇸 Expert USA-based technical support — our team understands fiber laser operation and can help you work through MOPA parameter settings, material optimization, LightBurn configuration, and any issues that come up in production
- 📞 Dual lines of support — phone and email, so when you're mid-job and need a real answer, you have a direct path to a knowledgeable person
- 🔧 Honest pre-sale guidance — 30W vs. 60W? MOPA vs. standard fiber? Unsure if this machine fits your use case? Talk to us before you order. We'll tell you straight.
Frequently Asked Questions About Monport GA 60W MOPA Fiber Laser
Q: What is MOPA technology, and how is it different from a standard fiber laser? A: A standard Q-switched fiber laser has a fixed pulse width — it operates in essentially one mode. MOPA (Master Oscillator Power Amplifier) gives you independent control over pulse width (how long each pulse lasts) and pulse frequency (how many pulses per second). This adjustability is what enables color marking on stainless steel, clean anodized aluminum blackening, gentle plastic marking without burning, and deep 3D engraving — capabilities a Q-switched laser cannot replicate. If you only need basic black marking on bare metal, a standard fiber laser is sufficient. If you need color effects, anodized aluminum work, or delicate material marking, MOPA is the correct technology.
Q: Can it really produce color on stainless steel? A: Yes. By adjusting pulse width and frequency, the GA 60W creates a controlled thermal oxide layer on the stainless steel surface that produces specific visible colors — golds, blues, reds, greens, and others depending on parameter settings. Once you find the right parameters through test patterns, you can apply them consistently whenever you want. Monport provides reference color parameter tables to accelerate this process.
Q: Does it require a water chiller? A: No. The GA 60W is air-cooled — no water chiller, no hoses, no condensation risk. This is one of the practical advantages of fiber laser technology over CO₂ glass tube machines.
Q: What's the marking area? A: 6.9" × 6.9" (175 × 175 mm). For MOPA fiber lasers, this is the engineered optimum — large enough for most marking, engraving, and small-part production work, while maintaining consistent beam quality and energy uniformity to the edges of the field without distortion.
Q: Can it cut metal? A: The GA 60W can perform light cutting on thin metal sheet and precise drilling on metals. It is not a replacement for a dedicated fiber laser cutter for thick metal cutting. For jewelry-scale cutting, thin foil, and precision piercing on thin material, it performs well. For structural or thick sheet metal cutting, a dedicated cutting machine is required.
Q: How does the 90° rotating mast work in practice? A: The mast can be tilted from vertical (standard downward-firing position) to a full 90° horizontal position by loosening a set screw — no tools required. In horizontal position, the laser fires sideways, allowing you to mark vertical surfaces, side faces of parts, and complex assemblies without repositioning the workpiece. Combined with the rotary axis function, it enables a wide range of part orientations that a fixed-head fiber laser cannot address.
Q: Is it compatible with LightBurn? A: Yes. The GA 60W is fully compatible with LightBurn on both Windows and macOS. It also runs the native BslAppSimple software. If you're already using LightBurn for a CO₂ laser in your shop, the workflow and interface will be familiar immediately.
Q: What materials can it engrave besides metal? A: Beyond the full range of metals, the GA 60W handles hard plastics (ABS, PC, fiber-reinforced), brick, marble, granite, slate, carbide, and similar dense hard materials. It is not designed for wood, acrylic, leather, fabric, or other organic materials — those require a CO₂ or diode laser.
Q: How long does the laser source last? A: The JPT MOPA laser source is rated for an expected lifetime of 100,000 hours under normal operating conditions. At 8 hours per day, 250 days per year, that represents approximately 50 years of motor life — the laser source is essentially a lifetime component under normal use.
Q: What warranty comes with the machine? A: Monport offers a 2-year machine warranty and a 1-year warranty on the laser source. Our 75-day return window applies in addition to the manufacturer warranty — giving you real evaluation time before the standard warranty period begins.
Q: Why buy from The Maker's Chest instead of directly from Monport? A: Our 75-day return window gives you significantly more evaluation time than Monport's direct policy — enough to run MOPA color tests, dial in your parameter library, and confirm the machine performs for your specific materials and use case. Our USA-based expert support team is reachable by phone and email and can help with MOPA parameter guidance, LightBurn setup, and production troubleshooting — not just order processing.
