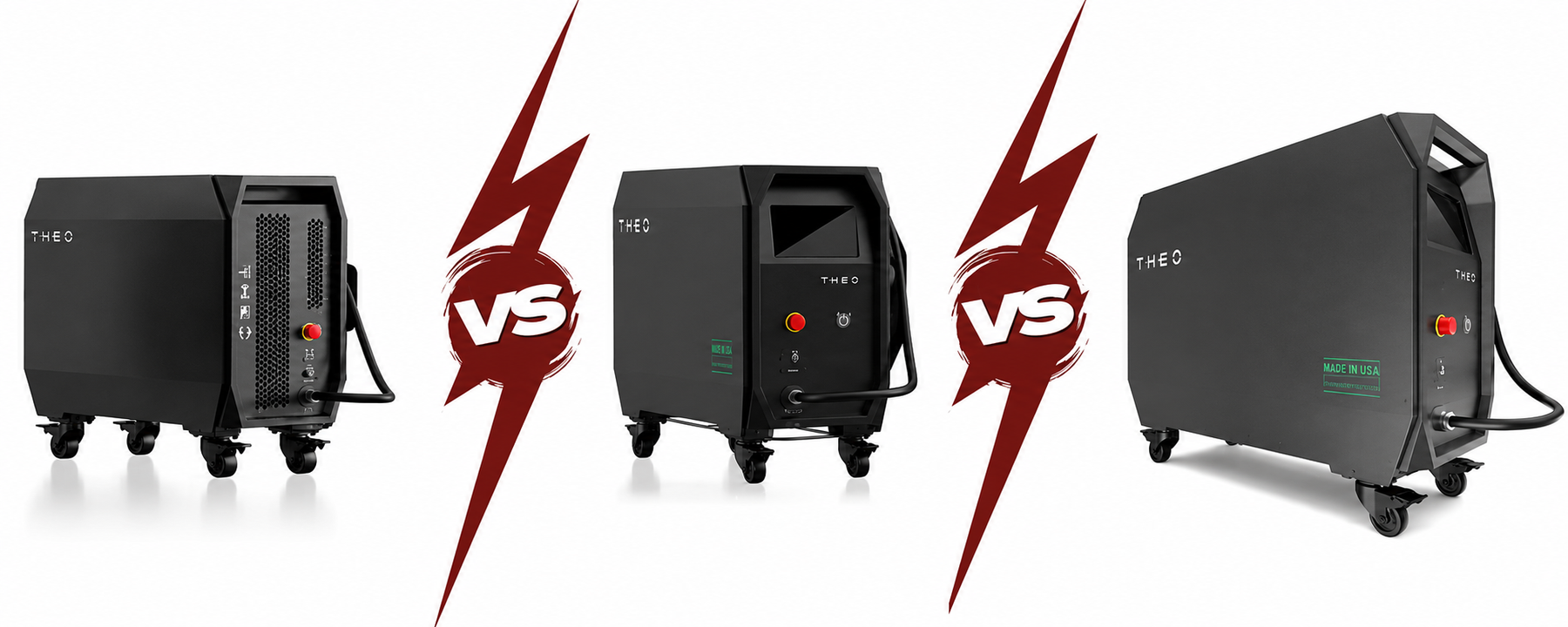

Theo MA1-35 vs. MA1-65 vs. MA1 ULTRA

Understanding the MA1 Series Before You Choose

The Theo MA1 is a family of air-cooled, handheld fiber laser welders built around Maxphotonics' proprietary 20µm fiber core technology — the same core advantage covered in the Theo vs. competitors comparisons elsewhere on this hub. The 20µm core concentrates energy into a smaller spot than standard handheld laser welders, enabling higher energy density per watt, faster throughput, and deeper penetration than equivalent-wattage competitors.

Across the MA1 series, this core technology is consistent. What changes between models is the laser output power — and power determines material thickness ceiling, throughput speed, and in the case of the ULTRA, the duty cycle that determines whether the machine can run at full load continuously.

The MA1 series currently includes four models: MA1-35 (800W), MA1-45 (1200W), MA1-65 (1500W), and MA1 ULTRA (2000W+). This article focuses on the three most discussed: the MA1-35 entry model, the MA1-65 production workhorse, and the ULTRA's top-tier capability. For the MA1-45, the guidance in the MA1-35 and MA1-65 sections brackets it clearly.

All MA1 models share: 5.6m fiber cable, 0–4mm adjustable wobble width, 680g lightweight torch (industry's lightest), 7-inch LED touchscreen, double-secured contact sensor, T1 wire feeder (included or available), and a 2-year warranty. Air-cooled — no external chiller required on any model.

---

Theo MA1-35 (800W): The Entry Point

Weld Depth and Material Capability

The MA1-35 is the entry model in the series:

• Typical laser output: 800W
• Maximum weld depth: 3.5mm (3/8" — 0.138")
• Weight: 28kg (62 lbs)
• Screen position: Top-mounted 7-inch LED touchscreen
• Dimensions: 576mm × 265mm × 425mm (22.7 × 10.4 × 16.7")

Materials: stainless steel, galvanized steel, mild steel, aluminum, nickel alloys, titanium. The MA1's 20µm fiber core means the MA1-35 at 800W delivers better energy density than many competitors' higher-wattage machines using larger fiber cores — the entry point is genuinely capable rather than a token low-power option.

The top-mounted screen is the most visible physical difference from the MA1-45 and above, which use front-facing screens. For most welding positions, top-mounted is fine; for sustained overhead or awkward-angle work, the front-facing screens on higher models are more ergonomic.

---

Best Applications

The MA1-35 is optimised for standard sheet metal fabrication work on material from 0.5mm up to 3.5mm. In practice this covers:

• General steel and stainless fabrication in the 1–3mm range
• Automotive bodywork and panel repair (typically 0.8–2mm)
• Light structural brackets and frames
• Furniture and architectural metalwork
• Thin-wall tubing and pipe

For fabrication shops whose daily work stays under 3mm — which describes a very large portion of professional small-shop work — the MA1-35's 3.5mm depth ceiling is adequate with some margin. For the full picture of how to match laser power to material requirements, our how much power does your laser welder need guide covers the power-to-application decision before this tier comparison.

---

Limitations

3.5mm is a meaningful depth ceiling. Common structural applications above 3.5mm: 4mm plate bracket work, heavier tube (wall thickness 3–5mm), structural plate components. If your shop regularly welds material above 3–3.5mm, the MA1-35's ceiling will bind you in regular production — the MA1-45 (4.5mm) or MA1-65 (6.5mm) provides the required headroom.

The top-mounted screen, while functional, is less ergonomic than the front-facing screens on higher models for extended production sessions.

---

Theo MA1-65 (1500W): The Production Workhorse

Weld Depth and Speed Gains Over the MA1-35

The MA1-65 steps up significantly:

• Typical laser output: 1500W
• Maximum weld depth: 6.5mm (1/4" — 0.256")
• Weight: 39kg (86 lbs)
• Screen position: Front-facing 7-inch LED touchscreen
• Dimensions: 667mm × 276mm × 542mm (26.3 × 10.9 × 21.3")

The MA1-65's 1500W output — delivered through the same 20µm fiber core — achieves 6.5mm weld depth. This isn't just 86% more power than the MA1-35; the 20µm core's concentrated energy density means this 1500W punches harder at the weld interface than a standard 1500W system with a larger fiber core.

The speed advantage over the MA1-35 compounds with material thickness. On material the MA1-35 handles (1–3mm), the MA1-65 welds faster. On material above 3.5mm that the MA1-35 can't handle, the MA1-65 opens applications entirely.

---

Best Applications

The MA1-65 is Theo's most popular model and the one that functions as the production workhorse for most professional fabrication shops:

Structural fabrication: 4–6mm plate brackets, structural tube, frame components — the MA1-65 covers this range comfortably without reaching its ceiling.

Sheet metal production: For the complete guide to laser welding parameters and productivity on sheet metal work, our laser welding for sheet metal fabrication guide covers the technique specifics that make the MA1-65 effective for production sheet metal operations.

Automotive restoration: Body panels (0.8–1.5mm) and structural components (2–4mm) are all within range, with plenty of headroom.

Industrial maintenance and repair: 4–6mm structural components in industrial maintenance, pipeline repair, and heavy equipment fabrication.

High-volume fabrication: At 1500W with the 20µm core's throughput advantage, the MA1-65 handles long production sessions with the build quality and 2-year warranty that sustains production reliability.

The MA1-65 is the correct choice for most professional fabrication shops that want a single machine covering their full range. Most shops' material range — even including occasional structural work — falls within 6.5mm. The MA1-65 covers it with significant headroom.

---

Theo MA1 ULTRA (2000W+): The Heavy-Duty Option

The 100% Duty Cycle Difference

The ULTRA's defining feature isn't just raw power — it's the 100% duty cycle on materials up to 4mm. The MA1 ULTRA maintains a 100% duty cycle on materials up to 4mm, ensuring continuous, reliable performance in the most demanding conditions.

What does duty cycle mean practically? A machine with a 60% duty cycle can run at full power for 6 minutes in every 10, then needs to run at reduced power or rest for thermal management. A 100% duty cycle machine can weld continuously at full power without thermal management interruptions.

For a shop doing occasional welds or hourly production, this doesn't matter. For a shop doing production runs of long seam welds on 2–4mm material hour after hour — automotive production lines, container fabrication, production weld stations — the 100% duty cycle eliminates the productivity interruptions that lower duty cycle machines create.

This is a production infrastructure specification, not a hobbyist feature. If your shop is running the machine for 6–8 hours of sustained welding daily, the ULTRA's duty cycle is what keeps the machine running without degradation.

---

Weld Depth: Up to 8.5mm

The MA1 ULTRA delivers:

• Typical laser output: 2000W (plus "boost mode" for maximum penetration)
• Maximum weld depth: 8.5mm (1/3" — 0.335") in boost mode
• Weight: 39kg (86 lbs)
• Screen position: Front-facing 7-inch LED touchscreen
• Dimensions: 667mm × 276mm × 542mm (26.3 × 10.9 × 21.3")
• Laser modules: Next-generation, gold-plated laser pumps — 10% less energy consumption than MA1-65

The 8.5mm depth capability enables applications that are at or beyond the ceiling of any other model in the MA1 range. The MA1-65's 6.5mm covers most professional fabrication; the ULTRA's 8.5mm covers heavy structural work — 6–8mm plate, heavy tube with thick walls, structural weldments that would otherwise require water-cooled industrial systems.

The upgraded gold-plated laser pumps deliver maximum efficiency, longer life, and 10% less energy consumption versus the MA1-65. This energy efficiency improvement is meaningful for shops running the machine at high duty cycle — the operating cost difference adds up over sustained production use.

The wire feeder included with the ULTRA has also been upgraded for smoother, easier operation compared to the previous T1 feeder.

---

When You Actually Need the ULTRA

The ULTRA is the correct choice when one or more of the following applies:

Material above 6.5mm regularly: If 7–8.5mm structural plate, heavy tube, or industrial components are part of your regular production, the ULTRA's 8.5mm boost mode capability is required.

Production volume that demands 100% duty cycle: If your machine runs continuously for 6–8 hours at sustained full power — production welding lines, high-volume manufacturing — the 100% duty cycle prevents the thermal management interruptions that reduce productivity on lower-duty-cycle machines.

Highest-efficiency energy use over a production lifetime: The gold-plated pumps and 10% energy reduction compound over production years. For a shop running the machine full days, this operating cost reduction has real value over the machine's lifetime.

For the specific technique considerations around wobble width settings and how they apply across the MA1 range, our wobble welding explained guide covers the 0–4mm wobble parameter that all MA1 models share.

---

Side-by-Side Comparison: All Three Models

Power and Weld Depth

All four models: 680g torch, 5.6m cable, 0–4mm wobble width, air-cooled, 2-year warranty, wire feeder included/available.

---

Duty Cycle

This specification is the ULTRA's primary performance differentiator over the MA1-65:

• MA1-35: Standard duty cycle (not specified at 100%)
• MA1-65: Standard duty cycle for extended production
• MA1 ULTRA: Up to 100% duty cycle on materials up to 4mm

The MA1-35 and MA1-65 are designed for professional production use — they're not consumer-grade machines — but neither is documented at 100% duty cycle. The ULTRA specifically is. For shops where this matters (high-volume continuous welding), the specification difference is significant.

---

Price Across the Range

Theo MA1 pricing is quote-based through welding equipment distributors (Atlantic Laser Solutions, Canada Welding Supply, Laser Forward, Integral Equipment, and others) — list prices are not publicly posted as fixed retail prices. General market position based on distributor guidance:

• MA1-35: Entry tier — approximately $8,000–$12,000 depending on distributor and configuration
• MA1-45: Mid tier — approximately $12,000–$16,000
• MA1-65: Upper mid — approximately $16,000–$22,000+
• MA1 ULTRA: Premium tier — above MA1-65; contact distributor for current pricing; 1-month lead time documented for some configurations

These ranges are approximate based on market data. Contact an authorised Theo distributor for current pricing. The significant price steps between models reflect genuine capability differences — each step up the range delivers meaningful additional welding capability, not just a spec bump.

---

How to Choose the Right Theo MA1 Model

Start with this question: what is the thickest material you weld regularly, and what material threshold would cover 90% of your work?

• Up to 3mm regularly, occasional 3–3.5mm: MA1-35 covers your application with some margin. The price saving over the MA1-65 is real.
• Up to 4.5mm regularly, occasional work above 3.5mm: MA1-45 is the correct step — the 4.5mm depth provides the headroom the MA1-35 lacks without the full cost of the MA1-65.
• Up to 6mm regularly, structural work up to 6.5mm: MA1-65. This is the model most professional fabrication shops should choose — it covers the practical range of almost all small and medium shop work with headroom.
• Above 6mm regularly, OR you need 100% duty cycle for continuous production, OR you're building for a high-volume manufacturing environment: MA1 ULTRA. The extra investment is justified by specific, real capability you'll use daily.

A secondary question: how long will the machine run per day? If the answer is 6–8 hours of continuous welding at full power, the duty cycle argument for the ULTRA strengthens independent of material thickness.

For the foundational investment question — whether any Theo MA1 model is the right choice versus alternatives at each price point — our is a laser welder worth it guide covers the ROI case before this within-series decision.

---

Verdict

The Theo MA1 series is a well-structured product line where each step up delivers specific, real capability rather than marginal incremental improvement:

MA1-35 (800W/3.5mm): The right entry-point for shops whose core work is under 3mm and who want the Theo's 20µm fiber core advantage without the higher-tier investment.

MA1-65 (1500W/6.5mm): The most broadly applicable professional choice. Covers almost all small-to-medium fabrication shop work with significant headroom. This is where most buyers should start when choosing their Theo model.

MA1 ULTRA (2000W/8.5mm, 100% duty cycle): The production machine for shops that genuinely need 7–8.5mm depth capability or continuous operation at full power. The gold-plated laser pumps and 10% energy reduction add production economics that compound over years of heavy use.

The 20µm fiber core runs through the entire series — every model delivers the energy density advantage that differentiates Theo from standard handheld competitors at equivalent wattage. The model choice is about which power level matches your material range and production volume.

---

Frequently Asked Questions

What is the difference between the Theo MA1-35 and MA1-65?

The MA1-35 delivers 800W typical output and welds up to 3.5mm depth. The MA1-65 delivers 1500W and welds up to 6.5mm depth — nearly twice the material thickness. Both use the same proprietary 20µm fiber core, 680g lightweight torch, 5.6m cable, and 0–4mm wobble width. The MA1-65 also has a front-facing 7-inch touchscreen versus the MA1-35's top-mounted screen. For shops whose work regularly exceeds 3mm material, the MA1-65 is the correct choice; for shops consistently under 3mm, the MA1-35 covers the application at lower cost.

Is the Theo MA1 ULTRA worth the upgrade over the MA1-65?

For shops welding above 6.5mm material regularly, or for production environments requiring continuous 100% duty cycle welding — yes. The ULTRA's 8.5mm depth in boost mode and 100% duty cycle on material up to 4mm are genuine production capabilities the MA1-65 doesn't offer. For shops whose material range stays under 6mm and whose production volume doesn't demand sustained continuous operation, the MA1-65's 6.5mm coverage and lower price are the better choice.

How deep can the Theo MA1 ULTRA weld?

The MA1 ULTRA welds up to 8.5mm (1/3") in boost mode using its next-generation 2000W+ laser modules with gold-plated laser pumps. This makes it the deepest-penetrating handheld laser welder in the Theo MA1 series. The 100% duty cycle capability on materials up to 4mm means it can sustain this output continuously for production environments. The system maintains all standard MA1 series features: 20µm fiber core, 680g lightweight torch, 5.6m cable, 0–4mm wobble, 7-inch touchscreen, wire feeder, and 2-year warranty.

Which Theo MA1 model should I buy for automotive fabrication?

For automotive bodywork (0.8–2mm panels) and structural repair (2–4mm brackets and frames): the MA1-35 covers the application with margin, but the MA1-65 is a better long-term investment for a professional shop — it provides the depth headroom for structural components and runs faster on thin material. For restoration and classic car work where thin aluminum and precision thin steel are priorities: the MA1-65's power level handles aluminum more effectively than the 800W MA1-35. Most professional automotive fabrication shops choose the MA1-65 as the all-in capability model.

What materials can the Theo MA1 series weld?

All Theo MA1 models weld: stainless steel, galvanized steel, mild steel (carbon steel), aluminum, nickel alloys, and titanium. Material thickness capability scales by model: 3.5mm for the MA1-35, 4.5mm for the MA1-45, 6.5mm for the MA1-65, and 8.5mm for the MA1 ULTRA. The MA1-65 and ULTRA specifically provide better capability on thermally conductive metals (aluminum) and challenging alloys due to higher energy density. Copper welding requires verification at your specific gauge — Theo's distributors can confirm copper capability for your application.
