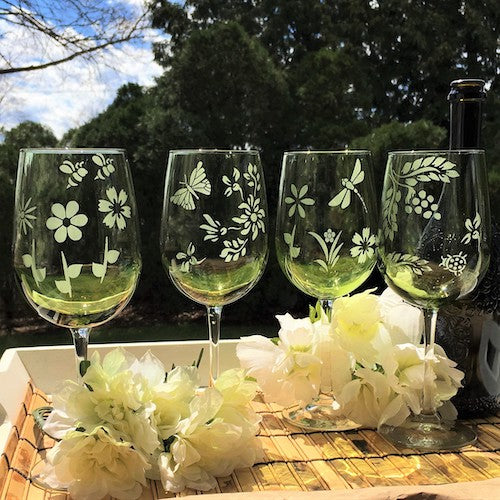

UV Laser Engraving Bottles and Curved Glass: Rotary Setup and What to Expect
Bottles and other curved glass items are one of the most requested UV laser jobs — wine bottles, growlers, corporate gift glassware — and one of the few UV applications where the accessory you buy alongside the laser matters as much as the laser itself. Engraving a cylinder cleanly requires a rotary attachment and a real understanding of how curvature changes focus and marking consistency across the piece.
Table of Contents
- Why Curved Glass Needs a Rotary Attachment
- How Rotary Engraving Actually Works
- The Focus Challenge on a Curved Surface
- Choosing the Right Rotary for Bottle Work
- Common Problems and What Causes Them
- Frequently Asked Questions
Why Curved Glass Needs a Rotary Attachment
A UV galvo head projects its beam onto a flat focal plane, but a bottle's surface curves away from that plane in every direction from the center point. Without a rotary attachment rotating the bottle in sync with the laser's scanning pattern, you're limited to marking a narrow flat-feeling strip near the center of the curve before the surface falls too far out of focus for a clean result. A rotary attachment solves this by turning the bottle itself as an additional axis of motion, effectively "unrolling" the cylindrical surface so the laser can trace a design around the full circumference while staying within the machine's focal tolerance throughout.
How Rotary Engraving Actually Works
In practice, the rotary attachment holds the bottle between a fixed center and a rotating chuck or roller, and your control software (commonly LightBurn or the machine's native EZCad-style software) coordinates the rotary's rotation with the laser's scan pattern so the design wraps correctly around the circumference without stretching or compressing. Getting this coordination right requires the software to know the bottle's actual diameter — an incorrect diameter setting is one of the most common causes of a design that looks stretched, squeezed, or misaligned once it wraps around the full bottle, even when every other setting is correct.
The Focus Challenge on a Curved Surface
Even with a rotary handling rotation correctly, focus quality can still drift near the top and bottom edges of a design if the design's vertical height is large relative to the bottle's diameter — the curvature falls away from the focal plane faster on a narrower bottle than a wider one. This is why designs that work perfectly on a wide growler sometimes show inconsistent contrast near the edges when applied to a narrower wine bottle without adjustment. Keeping the design height modest relative to the bottle's circumference, or accepting a slightly reduced quality tolerance near the vertical extremes of a tall design, are both reasonable ways to manage this rather than treating it as a machine fault.
Choosing the Right Rotary for Bottle Work
Rotary attachments generally come in two styles: chuck rotaries, which grip the piece at both ends and suit uniform cylindrical items well, and roller rotaries, which support the piece from underneath and accommodate a wider range of diameters and slightly irregular shapes with less fixture-swapping between jobs. For a business doing consistent bottle work at one or two standard sizes, a chuck rotary sized to that diameter is often the more precise and repeatable choice. For a business handling varied glassware — different bottle shapes, occasional tumblers, mixed corporate-gift orders — a roller-style rotary's flexibility across sizes is usually worth more than the marginal precision gain of a size-specific chuck.
Common Problems and What Causes Them
A design that appears stretched or compressed after wrapping is almost always an incorrect diameter setting in software, not a hardware fault — double-check the actual measured diameter of the specific bottle before running the job, since nominal "standard" bottle sizes vary more between manufacturers than you'd expect. A visible seam line where the design doesn't quite meet itself around the circumference usually means the design wasn't built to account for the bottle's exact circumference, or the rotation calibration has drifted slightly and needs recalibrating. Inconsistent contrast between the center and edges of a tall design, as covered above, is typically a focus-and-curvature issue rather than a settings problem, and is best addressed by adjusting the design's proportions relative to the bottle rather than chasing it through laser power settings alone.
Frequently Asked Questions
Do I need a rotary attachment to engrave bottles with a UV laser?
Yes, for anything beyond a narrow flat-feeling strip near the center of the curve. A rotary is essential for wrapping a design cleanly around a bottle's full circumference.
Why does my design look stretched after wrapping around a bottle?
Almost always an incorrect diameter measurement entered into the software. Measure the actual bottle diameter directly rather than relying on a nominal size, since it varies between manufacturers.
Should I choose a chuck rotary or a roller rotary for bottle engraving?
A chuck rotary suits consistent, uniform bottle sizes with slightly better precision. A roller rotary handles a wider range of diameters and shapes with less fixture-swapping, which suits mixed glassware orders better.
Why is there a visible seam where my design doesn't quite meet?
Usually the design wasn't built to account for the bottle's exact measured circumference, or the rotary's rotation calibration needs adjusting. Confirm the measured diameter first before assuming a calibration issue.
Why does my design look weaker near the top and bottom on a tall bottle design?
Curved surfaces fall away from the laser's focal plane faster on narrower bottles, especially toward the vertical extremes of a tall design. Keeping design height modest relative to the bottle's diameter reduces this effect.
