How to Set Up and Use a Filtrabox Fume Extractor Safely
Last updated June 2026
Quick answer: Set your Filtrabox as close to the laser’s fume source as possible with the shortest, straightest hose run you can manage. Plug in, power on, and start the extractor before firing the laser — not after. Filter changes are the most important maintenance step: inspect pre-filters monthly, replace HEPA and carbon filters every 6–12 months depending on use. Done correctly, setup takes under 30 minutes and the unit runs safely in the background for years.
Table of Contents
- Placement and Hose Routing for Maximum Capture
- Initial Setup and Startup Procedure
- Filter Handling, Schedules, and Replacement
- PPE and Safe Filter Disposal
- Ongoing Maintenance: Hoses, Ducts, and Drawers
- Frequently Asked Questions
Placement and Hose Routing for Maximum Capture

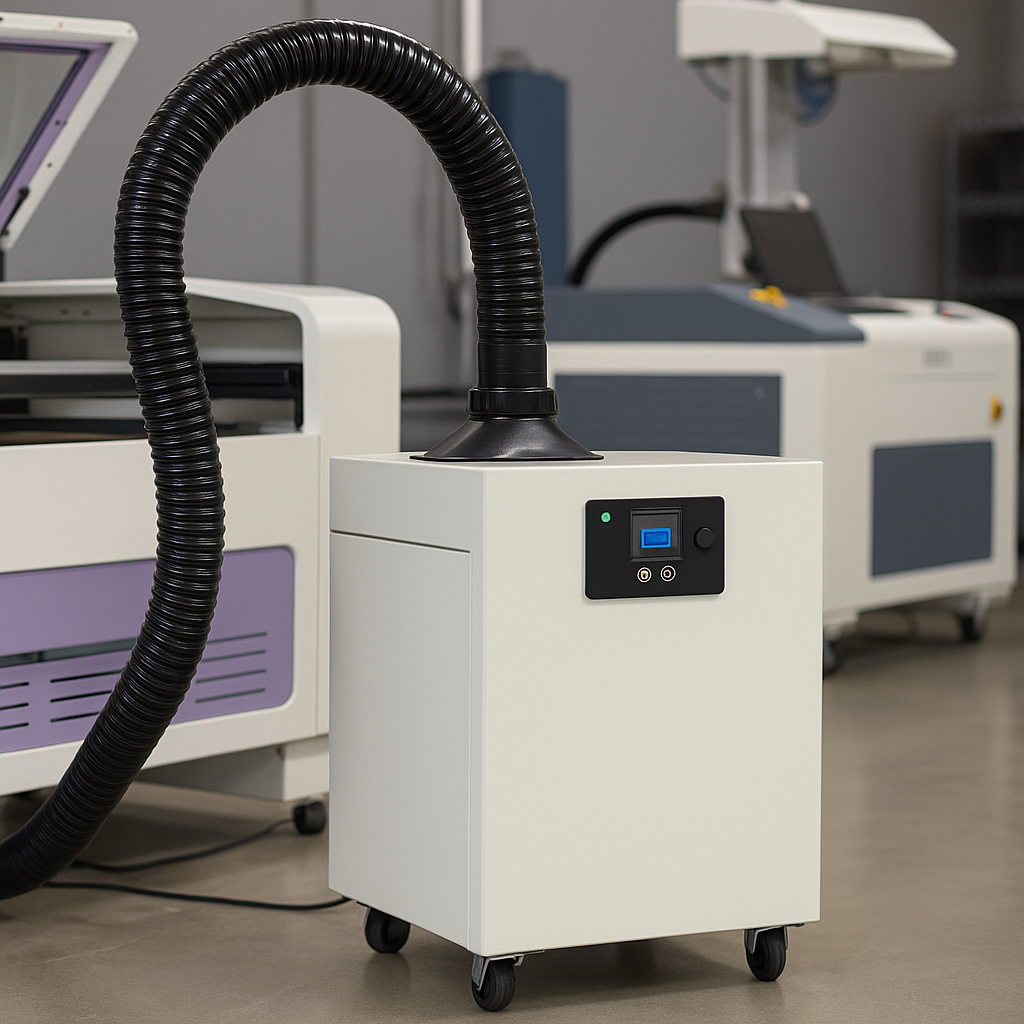

The single most important factor in fume extractor performance is placement. A Filtrabox sitting on the other side of the room with a long, kinked hose is significantly less effective than the same unit positioned close to the laser with a clean, short hose run — even if the spec sheet is identical.
The goal is source capture: grabbing fumes at the moment they’re generated, before they disperse into the room. Position the extractor’s intake hose at or near the laser’s exhaust port, as close to the work area as your setup allows. Keep the hose run short — ideally under 1.5 metres — and as straight as possible. Every bend reduces suction; a 90-degree elbow can cost 10–15% of your effective airflow.
Give the unit breathing room around its intake and body — don’t wedge it in a corner with no clearance. The extractor draws air through its filters and needs unobstructed airflow at both ends to operate efficiently.
Quick test: hold a thin strip of tissue paper near the laser bed before starting a job. If it pulls immediately toward the hose connection, placement is effective. If it wavers or moves away, reposition the hose entry point until the draw is immediate and direct.
Initial Setup and Startup Procedure
First-Time Setup
Before connecting to your laser, confirm the filters are correctly installed — all Filtrabox models ship with filters in place, but it’s worth opening the filter access panel to verify nothing shifted in transit. Check that the pre-filter, HEPA filter, and carbon filter are seated properly and the door is securely closed.
Connect the exhaust hose between the Filtrabox inlet and your laser’s exhaust port. Secure both connections so there’s no air gap at either end — even a small leak at the connection point lets unfiltered fumes bypass the filtration system entirely.
Plug the unit into a grounded outlet. If your Filtrabox model has a variable speed control, start at mid-speed for your first session and adjust up if you notice any smoke escaping the laser’s enclosure.
Operating Sequence for Every Session
Always follow this order: start the fume extractor first, then start the laser job. Running the laser before the extractor means fumes are produced into an unfiltered space even for a few seconds. After the job finishes, let the extractor run for 2–3 minutes before switching it off to clear residual fumes from the hose and laser enclosure.
Filter Handling, Schedules, and Replacement
Filters are the functional core of your Filtrabox. When they’re loaded with captured particles and VOCs, airflow drops and filtration effectiveness declines. Staying on a replacement schedule isn’t optional if you want consistent performance and genuine air quality protection.
Pre-Filter: Monthly Inspection
The pre-filter captures large particles — dust, ash, wood fibers — before they reach the HEPA stage. Inspect it monthly: if it looks visibly dirty or you notice airflow reducing, replace it. Pre-filters are the least expensive element in the system and should be replaced freely rather than pushed too long, because a clogged pre-filter makes every other stage work harder than necessary.
HEPA Filter: Every 6–12 Months
HEPA H14 filters capture fine particles down to 0.3 microns. Under moderate use (a few hours weekly), expect 10–12 months of service life. Under heavy use (daily production), lean toward the 6-month end. If your Filtrabox model has a filter-change indicator or pressure readout, monitor it — that’s the most accurate signal for when replacement is needed rather than relying on calendar time alone.
Carbon Filter: Every 6–12 Months, or When Odours Return
Activated carbon absorbs VOCs and odours. When the carbon is saturated, it can no longer capture new chemical compounds — and you’ll notice: the chemical smell from acrylic or plastic cutting starts returning to your workspace. That’s your warning sign. Don’t wait for the calendar; swap the carbon filter as soon as odours come back.
PPE and Safe Filter Disposal
Used filters contain everything they’ve captured — fine particulates, chemical residues, and depending on your materials, potentially hazardous compounds. Treat filter changes as a PPE task: wear disposable gloves, and a basic dust mask or N95 if you’ve been cutting plastics or other materials with heavy chemical output. Safety glasses prevent fine dust from puffing into your eyes when sliding a filter free.
Bag used filters immediately in a sealed bag before disposal — don’t leave them open on the bench where particles can re-enter the air. Check your local waste disposal guidelines if you cut materials beyond natural wood and leather.
Ongoing Maintenance: Hoses, Ducts, and Drawers
Monthly Hose and Connection Inspection
Hoses degrade over time — check monthly for cracks, soft spots, kinks, and loose connections at both ends. A small crack in the hose leaks suction and allows unfiltered fumes to escape into your workspace. If you notice airflow has reduced but the pre-filter looks fine, check the hose before assuming the filters are the problem — hoses are the culprit more often than not.
Dust can accumulate inside the duct itself. A quick vacuum through the hose every few months prevents buildup that would otherwise put extra load on the motor and filtration stages.
Dust Drawer and Flame Arrestor
Most Filtrabox models include a dust drawer that catches larger debris before it reaches the filters. Check and empty it monthly. The flame arrestor prevents sparks from travelling into the filter system. Keep it clear of accumulated dust with a gentle wipe during your monthly inspection.
Frequently Asked Questions
How close does the Filtrabox need to be to my laser?
As close as practically possible. The goal is the shortest, straightest hose run you can achieve — ideally under 1.5 metres with no sharp bends. Many operators position the Filtrabox directly beside or under their laser table for this reason.
How do I know when my filters need replacing?
Reduced airflow signals that the pre-filter is loaded. Returning odours from cut materials signal that the carbon filter is saturated. On a calendar basis: inspect pre-filters monthly, plan HEPA and carbon replacement every 6–12 months.
Can I clean and reuse filters to save money?
No — HEPA and carbon filters are consumables and cannot be cleaned effectively. Attempting to wash or vacuum a HEPA filter damages the fibres and destroys the filtration rating. Carbon filters that have reached saturation cannot be regenerated at home.
Should the fume extractor run during the entire laser session?
Yes, and for 2–3 minutes after each job completes. Start the extractor before firing the laser and let it run until fumes have cleared from the hose and laser enclosure after the job ends.
What’s the correct PPE for changing Filtrabox filters?
At minimum: disposable gloves, safety glasses, and a basic N95 or dust mask if you’ve been cutting plastics or materials with significant chemical output. Seal used filters in a bag immediately after removal.
