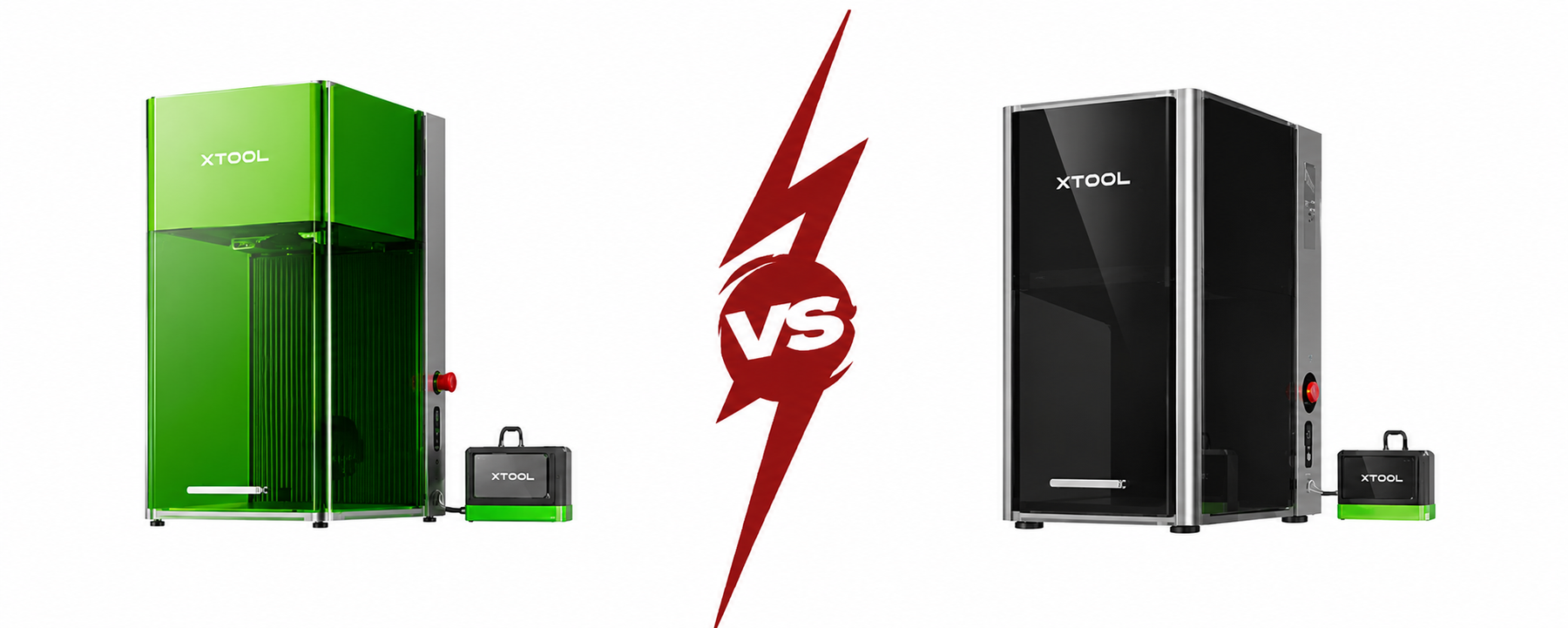

xTool F1 Ultra vs xTool F2 Ultra MOPA: Is the Upgrade Worth It?

This is one of the most common questions in the xTool community right now, and it deserves a straight answer rather than a hedged one. So here it is upfront: for most makers and small business owners currently running an F1 Ultra, the upgrade to the F2 Ultra is not worth it. For a specific subset of users — those who need deep 3D embossing, true MOPA color engraving, or the ability to cut thicker metal sheet — it absolutely is.

The difference isn't really about the F2 Ultra being a "better" machine across the board. It's about whether the capabilities that define the upgrade actually match your workflow. This guide helps you work that out clearly.

The Core Question: What Does the Extra Money Buy?

The F1 Ultra retails at around $3,999. The F2 Ultra starts at $4,999 for the single-laser version and climbs to $6,499 for the dual-laser version with the 40W diode. You're looking at a gap of $1,000 to $2,500 — and that's before factoring in the conveyor accessory, which is sold separately on both machines.

So what specifically do those extra dollars buy?

The headline change is the fiber laser source. The F1 Ultra uses a 20W Q-switched fiber laser — a fixed-pulse system with a pulse duration of around 120ns. The F2 Ultra replaces that with a 60W MOPA fiber laser, where pulse duration is variable from 2–500ns. That difference matters in three specific ways: deeper 3D embossing, more vivid color engraving on metal, and the ability to cut metal up to 5x thicker. To understand exactly why MOPA technology enables what standard fiber lasers can't, our MOPA vs standard fiber laser guide covers the mechanics in detail.

Everything else — working area, enclosure design, xTool Creative Space software — is broadly similar. The F2 Ultra also adds a second 48MP camera (the F1 Ultra has one 16MP camera), which improves positioning accuracy from roughly 0.5mm to 0.2mm. And the diode laser gets a 40W upgrade from 20W in the dual version.

If your work doesn't regularly push against those specific limits, the F2 Ultra won't meaningfully change your output. If it does, it can be transformative.

xTool F1 Ultra: Where It Still Wins

It's worth being direct: the F1 Ultra is not a machine that needs replacing for most of the work people use it for. Our full xTool F1 Ultra review covers the depth of what it can do — but here's where it genuinely has the edge in a head-to-head comparison.

Dual-Laser Versatility (Fiber + Diode)

The F1 Ultra ships as a dual-laser machine as standard. Its 20W fiber laser handles all metals, while the 20W diode handles wood, leather, acrylic, glass, rubber, and more. You get both lasers at the $3,999 price point. The F2 Ultra at $4,999 is single-laser (fiber only) — if you want the diode laser for non-metal work, you're spending $6,499 for the dual version.

For makers who regularly switch between metal engraving and wood or leather work, the F1 Ultra's dual-laser configuration at its price is difficult to beat. The F2 Ultra's diode also lacks built-in air assist, which limits its cutting performance on wood and acrylic compared to dedicated diode systems.

Price and Value at Its Tier

The F1 Ultra sits in a unique position: it delivers professional-grade results on standard metal marking, batch production, and mixed-material work, at a price that many small business owners can justify without needing to demonstrate an immediate revenue increase. At $3,999 with the 20W fiber and 20W diode, the machine has few direct competitors in terms of what you get per dollar.

At 10,000 mm/s with a 220 × 220mm working area (expandable to 220 × 500mm with the conveyor), the F1 Ultra handles high-volume standard marking jobs extremely efficiently. If your business is built on tumblers, anodized drinkware, keychains, leather patches, and similar products, the F1 Ultra is an excellent production workhorse that earns its cost quickly.

Best Use Cases for the F1 Ultra

The F1 Ultra is the right tool if your daily work includes: high-contrast metal marking on stainless, aluminum, brass, or titanium; engraving and cutting wood, leather, and acrylic in the same workflow; batch production of personalized small items; and on-site or storefront engraving where the fully enclosed design and compact footprint matter.

It also remains the right machine if you want MOPA-level color work occasionally but not consistently — the F1 Ultra can produce color effects on metal, just with less vibrancy and repeatability than a dedicated MOPA system. If color engraving is a small part of what you do rather than a core product line, that trade-off is perfectly reasonable.

If you're ready to add one to your shop, you can Buy the xTool F1 Ultra directly from The Maker's Chest.

xTool F2 Ultra MOPA: Where It Pulls Ahead

The F2 Ultra earns its price in four specific areas. If your work demands any of these, the upgrade conversation becomes much more serious. For a detailed breakdown of real-world performance, see our xTool F2 Ultra MOPA review.

60W MOPA vs 20W Standard Fiber

This is the defining difference. The F2 Ultra's 60W MOPA delivers roughly 3x the raw power of the F1 Ultra's 20W fiber — and the MOPA architecture means that power is delivered with variable pulse control rather than the fixed pulse of a Q-switched laser.

In practical terms: jobs that take 30–60 minutes of deep engraving on a 20W machine complete in a fraction of that time on the 60W. For high-volume production of deeply engraved items — challenge coins, relief medallions, embossed business cards, custom knife blades — this time saving has a direct impact on order capacity and profitability. The 60W MOPA engraves 3D metal coins approximately 5x faster than a 20W fiber laser, according to xTool's own comparative testing across the F-Series.

Color Engraving Capability

Both machines can produce color on metal. The difference is in quality and consistency. Because the F2 Ultra's MOPA allows independent control of pulse duration (2–500ns) and frequency, it achieves more vivid, consistent color results than the F1 Ultra's fixed-pulse fiber laser. xTool's own F-Series comparison confirms the hierarchy: F2 Ultra produces the most vivid color results, followed by the F1 Ultra, with the standard F2 at the bottom.

In real-world testing, the F2 Ultra produces rich blues, golds, and purples on stainless steel and titanium more reliably than the F1 Ultra. That said, color engraving on any MOPA system requires test-grid work to dial in settings per material, and the colors are somewhat viewing-angle dependent — they look brilliant from the right angle, less so from others. It's a premium capability worth having if color branding is central to your business, not a shortcut to push-button color output.

Speed and Production Volume

The F2 Ultra's 15,000 mm/s maximum speed is 50% faster than the F1 Ultra's 10,000 mm/s. For standard marking this difference is noticeable on large batches, but it's the combination of speed and power that matters most — at 60W you're moving faster through deeper material removal, not just across the surface faster.

Both machines support the optional auto conveyor for batch production automation, and both use xTool Creative Space with smart camera positioning and batch fill features. The F2 Ultra's dual 48MP cameras improve positioning accuracy to 0.2mm (compared to roughly 0.5mm with the F1 Ultra's single 16MP camera), which is particularly valuable when centering small, high-value items like jewelry.

Metal Cutting Depth

This is one of the clearest, most measurable differences between the two machines. The F1 Ultra can cut 0.4mm brass, 0.3mm stainless steel, and 0.2mm aluminum. The F2 Ultra cuts up to 2mm in brass and stainless steel, and 1mm in aluminum.

That's a 5–6x increase in cutting thickness. For jewelry businesses cutting 1mm silver or gold name necklaces, or for makers producing custom metal blanks in-house, this unlocks real product categories the F1 Ultra simply can't serve. A 1mm name necklace cuts in around 6 minutes on the F2 Ultra — a viable production time for a premium product.

What You Give Up Going F1 Ultra to F2 Ultra

The upgrade isn't purely additive. There are real trade-offs that deserve clear-eyed acknowledgement.

LightBurn is gone. The F2 Ultra uses xTool Creative Space and Atomm exclusively — LightBurn is no longer compatible. The F1 Ultra supports both XCS and LightBurn. For many users XCS is excellent, but anyone who relies on LightBurn's advanced parameter controls for fiber laser work will lose that option. Most competing 60W MOPA machines from ComMarker, Monport, and Cloudray maintain LightBurn support, which is worth knowing if that's a priority.

The diode laser loses air assist. The 40W diode in the F2 Ultra dual version doesn't include built-in air assist. This limits its cutting performance on wood and thicker acrylic compared to dedicated diode lasers or machines with integrated air assist. Some users who've tested the F2 Ultra dual version recommend buying the single-laser F2 Ultra and pairing it with a separate dedicated diode machine — you get a more capable two-machine setup for a similar total cost.

The price gap is meaningful. At minimum, you're spending $1,000 more for the single-laser F2 Ultra. At maximum, the dual-laser version plus conveyor represents over $7,000 all-in. That's real money that needs a real business case.

Early production quality reports. Some first-generation F2 Ultra users have reported quality control issues — enclosure lids that don't stay closed, slightly misaligned laser modules, power supply noise. These are issues being addressed in later production runs, but worth knowing for early buyers.

The Price Gap: Making the ROI Case

The honest way to evaluate this upgrade is to ask: will the F2 Ultra's specific additional capabilities generate enough additional revenue to pay back the cost gap within a reasonable timeframe?

If you're adding deep 3D embossing to your product line — embossed coins, relief jewelry, textured metal plaques — and you can charge $30–80 for these items versus $10–20 for standard marked goods, the math can work relatively quickly at any reasonable volume. If you're cutting 1mm jewelry blanks in-house that you currently outsource, the saving per unit adds up fast. If you're running color-branded metalwork at production scale where MOPA consistency matters, the upgrade justifies itself.

If none of those scenarios describe your current or near-term business, the ROI case is thin. The F2 Ultra won't make your standard metal marking meaningfully more impressive to customers — the F1 Ultra already produces results that are hard to distinguish at that level of work. You'd be paying a premium for headroom you don't yet need.

Who Should Stay With the F1 Ultra?

You're well served staying with the F1 Ultra — or buying one rather than the F2 Ultra — if your primary work is standard metal marking, mixed-material production (metals plus wood, leather, acrylic), or high-volume batch engraving of items like tumblers, tags, keychains, and personalized gifts.

The F1 Ultra is also the right choice if you're earlier in your business journey and still building order volume. The machine's output quality is genuinely professional. Customers ordering engraved gifts, branded tumblers, or personalized jewelry from an F1 Ultra setup won't feel they're receiving anything less than premium work. Don't upgrade to fund capabilities you can't yet charge for.

And if you want MOPA-level color engraving on metal as a product offering at lower cost, the ComMarker B6 MOPA is worth comparing — it delivers dedicated MOPA fiber laser performance for metal at a significantly lower price than either xTool machine.

Who Should Buy the F2 Ultra MOPA?

The F2 Ultra makes the most business sense when your current machine has become a genuine bottleneck — you're turning down orders, the F1 Ultra's engraving speed or metal cutting thickness is blocking product categories you're ready to offer, or you need 3D embossing and consistent MOPA color work at production volume.

More specifically: custom jewelry makers who need to cut metal blanks in-house or produce embossed designs at scale; knife makers, coin producers, and award engravers for whom deep relief is a core product feature; and established small businesses with demonstrable demand for the premium capabilities MOPA unlocks.

The single-laser version ($4,999) is the smarter starting point for most buyers. The dual-laser version adds a 40W diode for non-metal materials, but without air assist its cutting performance doesn't match a dedicated machine at that power level. For the same budget as the dual version, you could run a single F2 Ultra and a separate dedicated diode — and actually have more total capability.

Verdict

The xTool F2 Ultra is a better machine than the F1 Ultra in three specific and measurable ways: deeper 3D embossing, more vivid MOPA color engraving, and thicker metal cutting. If your business depends on any of those three things, the upgrade is real and worth the cost.

If it doesn't, the F1 Ultra remains one of the best all-around desktop laser engravers available — fast, versatile, well-supported, and priced at a point where it earns back its cost relatively quickly for most small business use cases. The Crafty Catsman's review put it plainly: "The F2 Ultra is a 'should upgrade' only if you need one of three specific things: true, consistent MOPA color engraving on metal, deep 3D embossing on metal, or the 40W diode's power for cutting thick wood or acrylic."

Buy the machine that matches the work you're doing today. If you hit the ceiling of what the F1 Ultra can do, you'll know exactly when the upgrade makes sense — and by then you'll have the order volume to justify it.

Frequently Asked Questions

What is the main difference between the xTool F1 Ultra and F2 Ultra?

The core difference is the fiber laser source. The F1 Ultra uses a 20W Q-switched (standard) fiber laser with a fixed pulse duration. The F2 Ultra uses a 60W MOPA fiber laser with variable pulse duration (2–500ns). This difference in laser architecture gives the F2 Ultra roughly 3x the raw power, meaningfully better color engraving on stainless steel and titanium, deeper 3D embossing capability, and the ability to cut metal up to 5–6x thicker. The F2 Ultra also uses dual 48MP AI cameras versus the F1 Ultra's single 16MP camera, improving positioning accuracy. However, the F2 Ultra no longer supports LightBurn software, while the F1 Ultra does.

Is the xTool F2 Ultra worth the upgrade from the F1 Ultra?

For most makers, no — not unless you specifically need one of three capabilities the F2 Ultra uniquely delivers: deep 3D embossing on metal, consistent MOPA color engraving, or the ability to cut thicker metal sheet (up to 2mm stainless versus the F1 Ultra's 0.3mm). If your work focuses on standard metal marking, mixed-material engraving (metals plus wood and leather), or high-volume batch production of items like tumblers or personalized tags, the F1 Ultra already handles all of that extremely well. The upgrade makes financial sense when your F1 Ultra has become a production bottleneck and you have the order volume to justify a $1,000–$2,500 additional investment.

Does the xTool F2 Ultra support LightBurn?

No. The F2 Ultra uses xTool Creative Space (XCS) and the Atomm platform exclusively — LightBurn is no longer compatible with this machine. The F1 Ultra supports both XCS and LightBurn. For users who prefer LightBurn's advanced parameter controls or who use it across multiple machines, this is a meaningful consideration before upgrading. For users already comfortable in XCS, it's a non-issue.

What is the price difference between the xTool F1 Ultra and F2 Ultra?

The F1 Ultra retails at approximately $3,999 (dual laser: 20W fiber + 20W diode). The F2 Ultra starts at $4,999 for the single-laser version (60W MOPA fiber only) and $6,499 for the dual-laser version (60W MOPA + 40W diode). The optional auto conveyor is a separate purchase for both machines. So depending on configuration, the gap ranges from about $1,000 to $2,500 or more. Prices vary with promotions, so always check current listings.

Can the xTool F1 Ultra do color engraving on metal?

Yes, the F1 Ultra can produce color marking on metal. However, because it uses a standard Q-switched fiber laser rather than a MOPA source, the color vibrancy and consistency are lower than what the F2 Ultra achieves. xTool's own F-Series comparison ranks color engraving quality from highest to lowest as: F2 Ultra > F1 Ultra > F2. The F1 Ultra's color results are usable, particularly for less demanding applications, but if vibrant, repeatable color on stainless steel or titanium is a core product offering, the F2 Ultra's MOPA source produces meaningfully better results.

How much thicker metal can the F2 Ultra cut compared to the F1 Ultra?

The difference is substantial. The F1 Ultra can cut 0.4mm brass, 0.3mm stainless steel, and 0.2mm aluminum. The F2 Ultra cuts up to 2mm brass, 2mm stainless steel, and 1mm aluminum — roughly 5–6x thicker across the board. This opens up real product categories like metal jewelry blanks (1mm gold or silver name necklaces cut in around 6 minutes) and custom metal components that the F1 Ultra's cutting limits can't serve. For purely marking-focused operations, this difference may not matter day-to-day.

Can I do 3D embossing on both the F1 Ultra and F2 Ultra?

Yes, both machines support 3D embossing. However, the 60W MOPA in the F2 Ultra engraves 3D designs approximately 5x faster than the F1 Ultra's 20W fiber laser at the same depth settings. The F2 Ultra can also achieve greater material removal depth per pass, which means more dramatic relief effects are achievable. For makers who sell embossed coins, relief jewelry, or deep-etched custom metalwork as a product line, the F2 Ultra's embossing capability is a genuine differentiator. For occasional embossing as part of a broader mixed-material workflow, the F1 Ultra handles it well enough.

Should I buy the single or dual laser version of the xTool F2 Ultra?

Multiple independent reviewers, including Machines for Makers, recommend the single-laser version ($4,999) over the dual ($6,499) for most buyers. The 40W diode in the dual version lacks built-in air assist, which limits its cutting performance on wood and acrylic. For the $1,500 savings over the dual version, you could invest in a separate dedicated diode laser with air assist and run both machines simultaneously — giving you more total capability than the dual F2 Ultra at a similar or lower total cost. If you specifically need an all-in-one single machine for both metal and organic materials without running two setups, the dual version is worth considering.
